Product Features:
Truck Mounted Road Sweeping Truck
This vehicle is a new generation road sweeper combining sweeping and suction function. It is mainly suitable for mechanized cleaning and sweeping operations in city streets, municipal squares, and large factories and mines. The truck has high operating efficiency, advanced and reliable technical performance, beautiful appearance, and has distinctive characteristics.
The parameters for Dongfeng High Pressure Vacuum Road Sweeper Truck:
Description | Specification | |||
Automotive chassis | Model,categoryand manufacturer of chassis | DFL1160BX4 | ||
Model and manufacturer of engine | CUMMINS 190HP | |||
Rated power of engine | 141kW/2600r/min | |||
Tire | Front wheel | 9.00R20 steel wire tire | ||
Rear wheel | 9.00R20 steel wire tire | |||
Fuel type | Diesel meeting the discharge requirements in the fifth stage, select an appropriate diesel grade according to the temperature | |||
Auxiliary engine | Standard configuration | Model and manufacturer | EQ6BT5.9 or QSB5.9-C160-30(Standard ChinaⅢ) | |
Power | 118kw/2500r/min;120kw/2200r/min | |||
Clutch | Single plate, dry type and diaphragm spring | |||
Fan | Type | Special high-pressure centrifugal fan | ||
Mode of transmission | Narrow V belt drive | |||
Hydraulic system | Type | Open type, EHC and centralized control | ||
Main elements | Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc. | |||
Overflow pressure | 14MPa | |||
Hydraulic oil capacity | 60L | |||
Electrical system | Control mode | PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc. | ||
Chassis system voltage | 24V | |||
Working device system voltage | 12V | |||
Model of storage battery | Chassis: 12V-70A.H (2 pieces connected in parallel) | |||
High-pressure cleaning system | High-pressure water pump | Type | Plunger type | |
Model | Italian Pratissoli KEB36R | |||
Rated pressure | 10MPa | |||
System working pressure | 9MPa | |||
Rated flow | 80L/min | |||
Rated speed | 1150r/min | |||
Water valve and control | Type of water valve | High-pressure stainless steel ball valve, 10MPa | ||
Control mode | Oil cylinder drive, electrical control | |||
Type of nozzle of water spray rod | High-pressure washing type | |||
Dust falling system of sweeping plate | Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system | |||
Sweeping system | Type | Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted. | ||
Diameter of sweeper | Φ850mm | |||
Speed of sweeping plate | High gear (normal operation gear): 110r/min; intermediate gear: 80r/min; low gear: 60r/min | |||
Adjustment to dip angle of sweeping plate | Front inclination: 4°-6°; outward inclination: 2°-4° | |||
Suction nozzle | Type | Double suction ports, built-in long spray lance with a high-pressure nozzle, the body of suction nozzle moves with the pavement. Lifting of the suction nozzle is controlled by the oil cylinder. A spring is used for floating suspension. | ||
Diameter of sucker | Φ180mm | |||
Ground clearance of suction nozzle during working | 5~10mm | |||
Left & right spray lance | Pendulum angle of spray lance | 65° | ||
Nozzle ground clearance | 340mm | |||
Total number of nozzles | 8pcs | |||

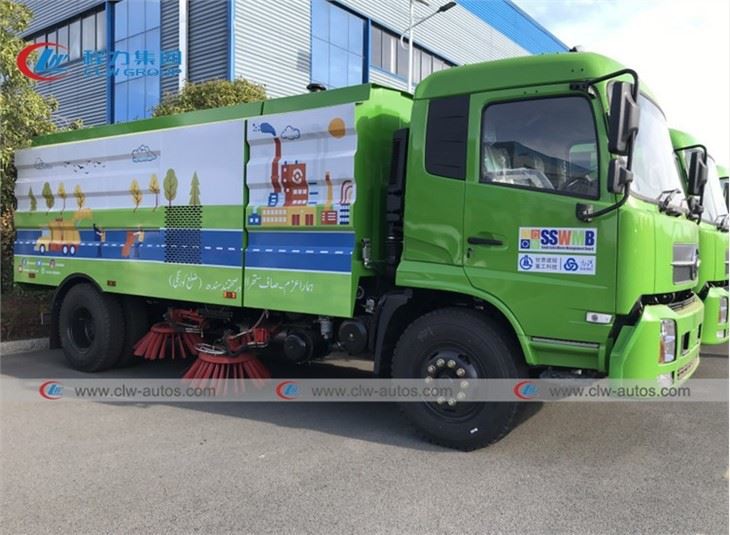

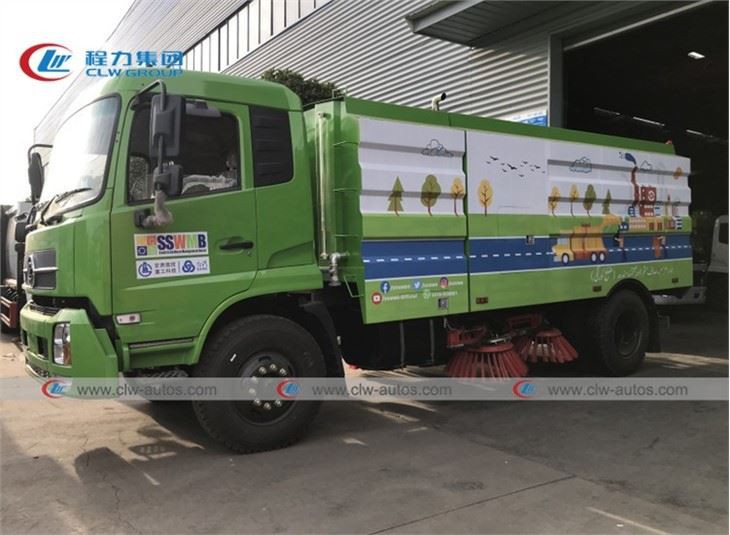

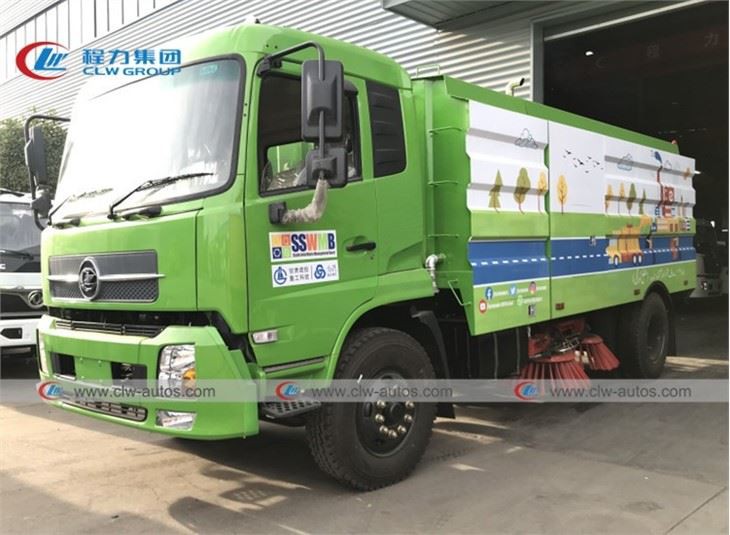

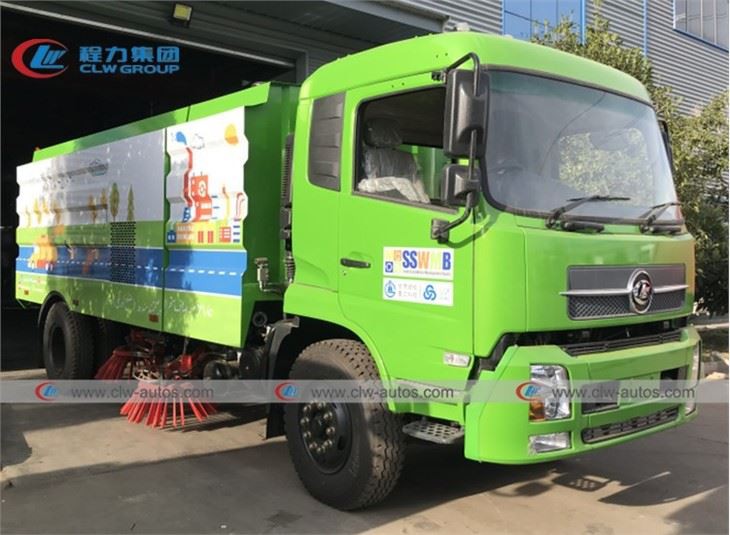

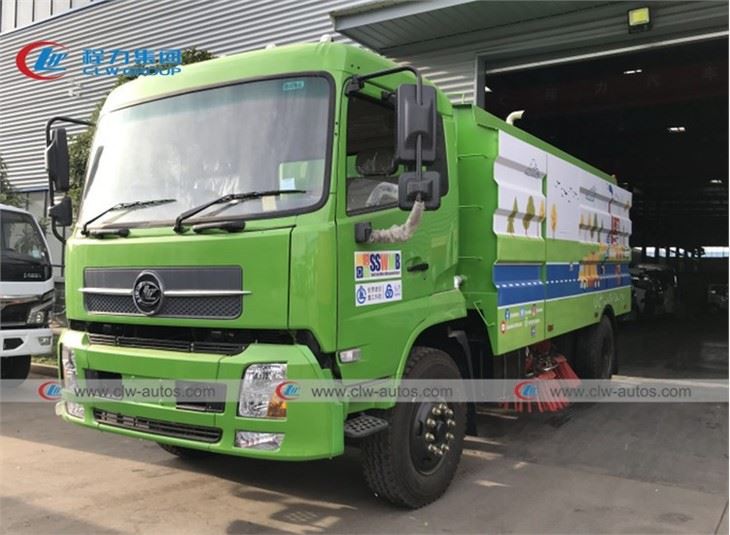

More pictures for Dongfeng High Pressure Vacuum Road Sweeper Truck:
Strong Tank Body
The garbage tank adopts the overall stainless steel single-layer structure, which will not rust. The garbage tank adopts an inclined plate structure, which is convenient for unloading without manual intervention.
The sweeping tray of this vehicle adopts a central four-tray sweeping structure, which sweeps the road garbage to the middle of the vehicle during the cleaning operation, which is convenient for the suction nozzle to pick up.
Each sweeping pan is equipped with 2 nozzles, and high-pressure spraying can be used to reduce dust during the sweeping operation, so that the dust concentration is less than 2.5 mg/m³.
In-cab Control
The vehicle adopts the control mode of "display screen + controller + CAN bus operation panel". When the sweeping application is started and stopped, the auxiliary engine speed control, suction nozzle lifting, sweeping and retraction and other operation devices are all controlled by one button, which is easy to operate. The operation of the vehicle is realized by 3 operating devices, two of which are in the cab and one is on the right side of the rear of the vehicle
The electrical control adopts model of CAN bus control. After the operation mode is selected, one-button controls all, such as the start-stop of deputy engine and the retracting and stretching out of operating device, reducing the possibility of misoperation.
It integrates the functions of road sweeper and high-pressure cleaner to achieve cleaning, high-pressure washing, garbage collecting, and sewage collecting in a single operation.
It has nine operating modes: full washing and sweeping, left washing and sweeping , right washing and sweeping, full sweeping, left sweeping, right sweeping, full washing, left washing, right washing.
