Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng mobile 15cbm helicopter fuel aviation kerosene refueling truck in China. If you're going to buy high quality dongfeng mobile 15cbm helicopter fuel aviation kerosene refueling truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.

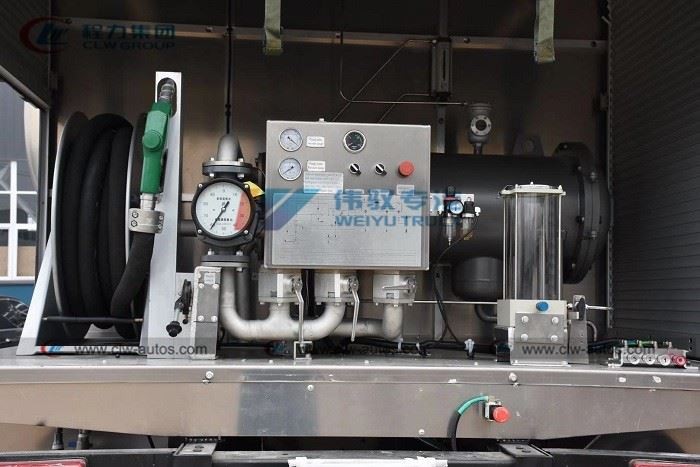

2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.
Product Specification
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 7805 kg | ||
| Loading weight(kg) | 7000/8000/9000 kg | ||
| Wheelbase(mm) | 4200/4500/4700/5000 mm | ||
| Front/Rear axle loading weight(kg) | 4000/7000 kg | ||
| Front/Rear overhang(mm) | 1430/2370 mm | ||
| Approach/Departure angle(°) | 18/12 | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 9.00-20 | ||
| Transmission | Manual type, 8 Forwards and 2 reverses | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cab | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | Dongfeng Cummins | |
| Model | B190 33 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 5900 ml | ||
| Power(kw) | 140 kw | ||
| Horsepower(HP) | 190 HP | ||
| Cylinder number | 4 pcs | ||
| Emission standard | Euro 3 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 10.0 cbm/12 cbm | |
| Tank material | Aluminium alloy | ||
| Thickness(mm) | 5.0mm | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene | ||
| Fuel pump | Quantity(pcs) | 1 pcs | |
| Model | China local brand | ||
| Notes | 1, Aluminium alloy safety valve 1 pc 2, Mechanical type Ladder 3, Filter system 4, Control system | ||
| Remarks | Customized LOGO design as per customer needs! | ||

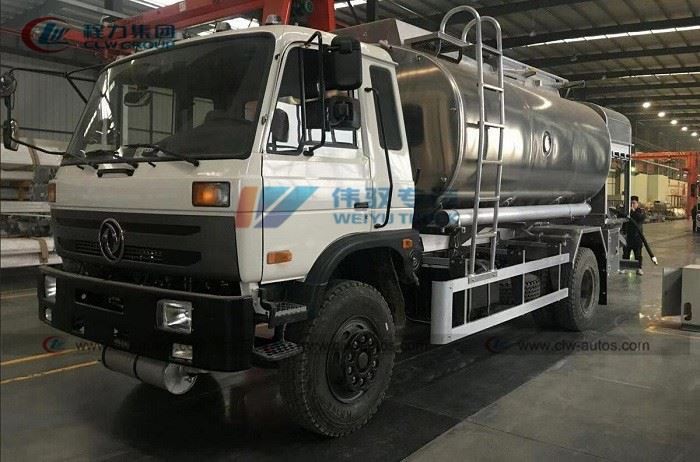

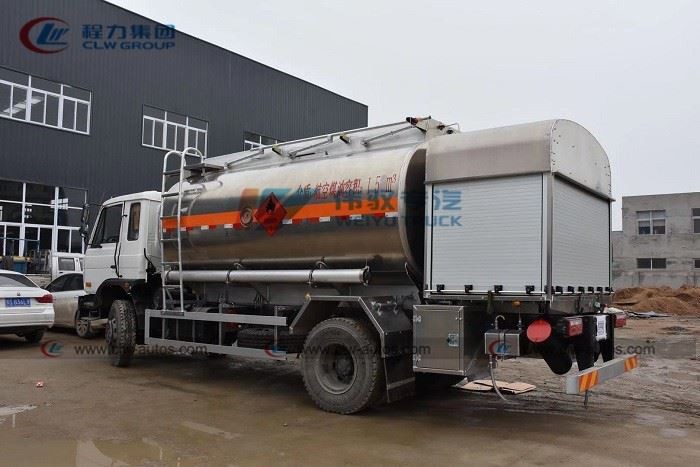

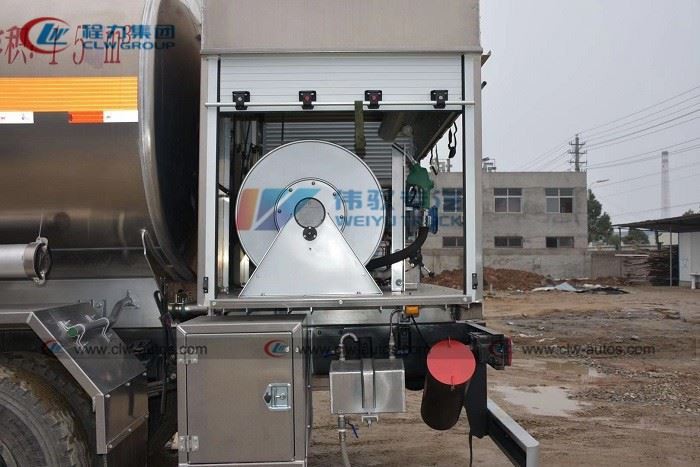

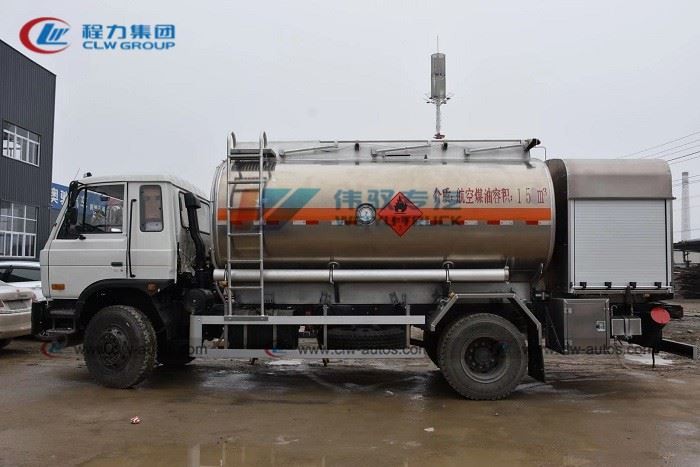

Reference Photos
