Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4tons telescopic boom truck in China. If you're going to buy high quality 4tons telescopic boom truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Structural pieces with 690MPa high-strength steel plate welding, high strength, good toughness, light weight.
2. The use of advanced three-dimensional design and stress analysis to ensure product reliability.
3. Rotary mechanism using hydraulic mechanical double brake, to ensure the operation and driving safety.
4. Winning mechanism using mature hydraulic winch structure of small noise, high efficiency, good reliability.
5. Suspension and contraction of the three-stage cylinder + cable with telescopic form, with the ability to carry the leading domestic, cylinder part of the 100%, rigging part of 2.
6. Work range, wide range of applications.
Products with car seat control, operation field of vision better, more secure operation.
Product Specification
Chassis | ||||
Drive Model | 4x2, Left hand drive | |||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | |||
Wheel base (mm) | ||||
Weight in KGS | Curb Weight (kg) | |||
Gross weight(kg) | ||||
Front/Rear axle loading(kg) | ||||
Max. driving speed(km/h) | ||||
Engine | Horse Power(HP) | |||
Emission standard | ||||
Gearbox | 6 forwards & 1 reverse | |||
Steering Gear | Power steering, hydraulic steering with power assistance | |||
Brakes | Air Brake | |||
Tire | 10.00-20 tire, 10pcs with 1 spare tire | |||
Upper Cargo | ||||
Material | Q235B | |||
Dimension | 5070*2400*600mm | |||
Thickness | 3mm for side /4 mm for the bottom | |||
Technical parameter of crane | ||||
Crane Model | 5Ton 4 Arms Knuckle Boom Crane | |||
Crane Weight | 2260kg | |||
Max. Lifting capacity | 5000kg | |||
Max lifting height | 12M | |||
Working radius | 11M | |||
Max. Oil flow of hydraulic system | 32L/min | |||
Max. Pressure of Hydraulic system | 20MPa | |||
Oil tank capacity | 90L | |||
Installation space | 900 mm | |||
Rotation angle | 360 degree All rotation | |||
Remarks | 1.Color is optional | |||

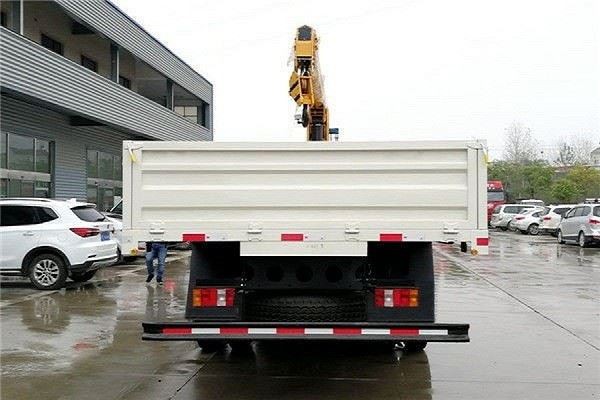

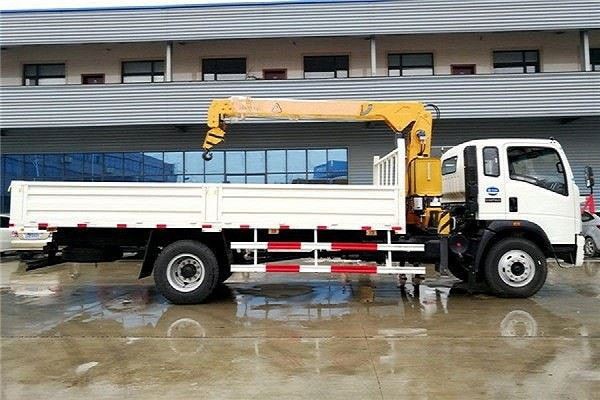

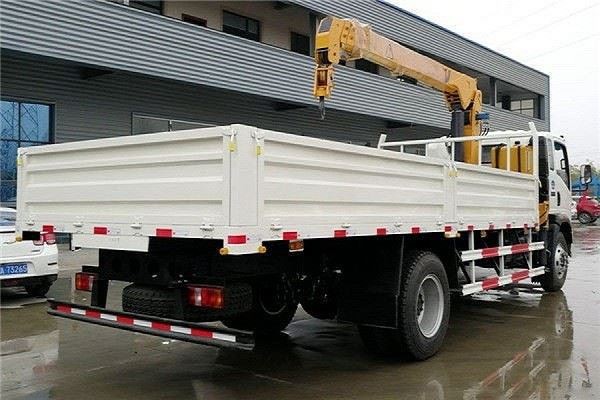

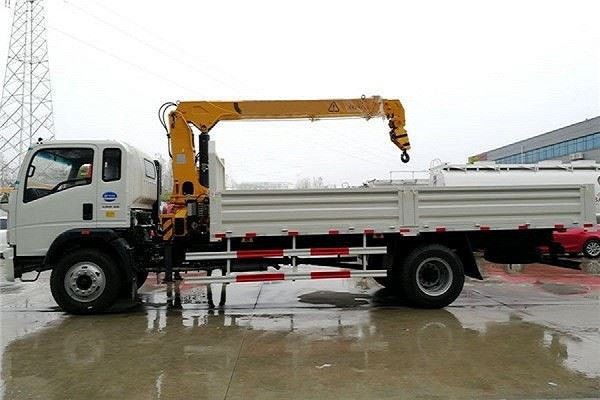

Reference Photos
Details of telescopic boom truck
Production Process
① Truck Ordering & Producing
② Crane Manufacturing or ordering.
③ Installing the boom crane;
④ Installing circuit and testing;
⑤ Painting and Customized LOGO design.
Our Advantage
1 The brick crane consists of a crane and a jig, which is no longer powered by an old-fashioned pallet chain, but by a battery. A single charge can be used continuously for 3 days, 1000 times, saving manpower and time.
2 Ensure stable and reliable vehicle performance through strict testing;
3 Easy operation and we will provide all English Operation Manual, Guiding Video and Maintenance Notice to our customer.
Working Situation
Customer Visiting
Overseas Exhibition and After-sales Service
Sales Service
① Pre-sales Service: Communicate with customers, analyze their requirements;
② Sales Service: Provide professional technical solutions, recommend the right models and provide quotation document accordingly, ensure quick delivery and shipment.
③ After-sales Service: Quick feedback to solve your problem, professional engineering and production team, spare parts supplied at factory price whenever needed, regular customer after-sale visiting, and free technical staff training and guidance.
FAQ
1. Do you want a better price?
Contact me, I will give you the best price according to your port of arrival, current exchange rate, payment method, and the company’s current preferential activities.
2. Is the product performance or style different from what you want?
Contact me and tell me the product requirements you want. We can redesign and custom made the product you want according to your requirements without any design expenses. Don't forget, our company is a high-tech enterprise in China. Our technical ability is first-class.
3. Are you worried about the after-sales service in the future?
Contact me, I will make a feasible and thoughtful after-sales service plan for you according to your country, product characteristics and personal requirements.
4. Is the product not what you want? Do you want other products?
Contact me. I am in Suizhou, China. This is the capital of China's truck manufacturer in China.
