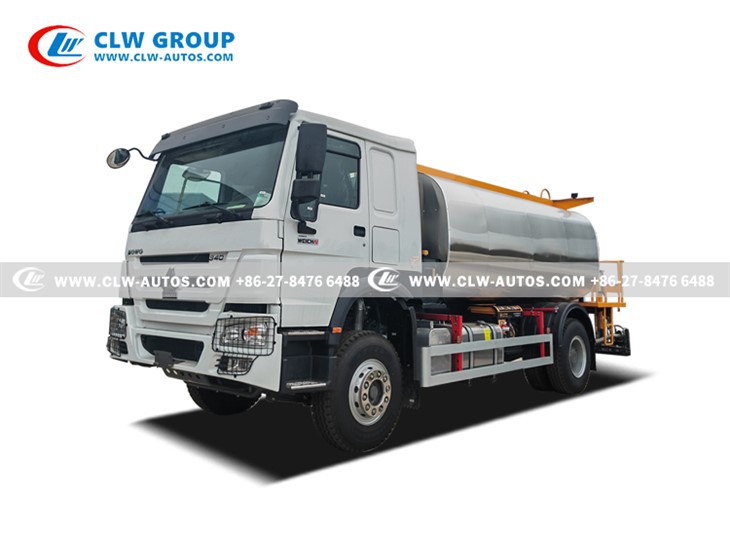

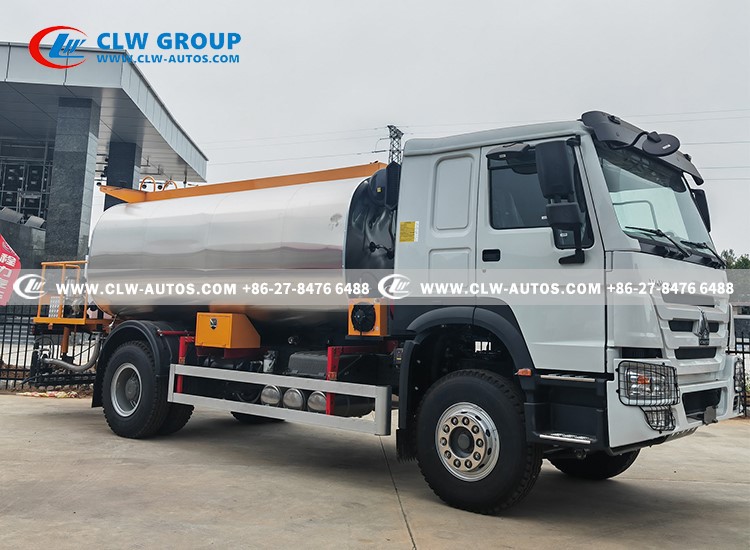

HOWO 10 Ton Bitumen Distributor Truck
Capacity:10 cubic meters
Chassis:SINOTRUK HOWO
Engine Power:300 horsepower
Spraying Width:Adjustable up to 4.5 meters
Asphalt Spraying Volume:2.5-3.5 L/m²
Working Speed:5-20 km/h
Heating System:Italian Riello diesel burner (200,000 kcal/h)
Control System:Siemens modular design with touchscreen interface
Insulation:50mm rock wool insulation layer
HOWO 10m3 Asphalt Distributor Truck: Efficient Road Construction Solution
Products Description
The 10,000-Liter HOWO Asphalt Spreader Truck represents a modern upgrade in road building and maintenance machinery, merging advanced engineering with precise asphalt spraying performance. Designed for accurate and uniform asphalt distribution, it ensures the creation of smooth, long-lasting road surfaces. With its 10-cubic-meter tank, the truck offers an optimal balance between carrying capacity and operational flexibility, making it an ideal option for contractors, construction firms, and municipal infrastructure projects.
Key Features
The HOWO 10,000L Bitumen Sprayer Truck integrates high-end components and intelligent control systems to ensure stable and accurate performance:
Chassis: Based on the reliable SINOTRUK HOWO platform, powered by a Weichai 300 HP engine, offering dependable strength and endurance under heavy workloads.
Smart Control: Siemens modular control system with a touchscreen in-cab interface and rear backup console allows precise and flexible operation.
Spraying System: QGB950 asphalt pump (950 L/min) paired with 36 individually adjustable nozzles delivers up to 4.5 meters of spraying width.

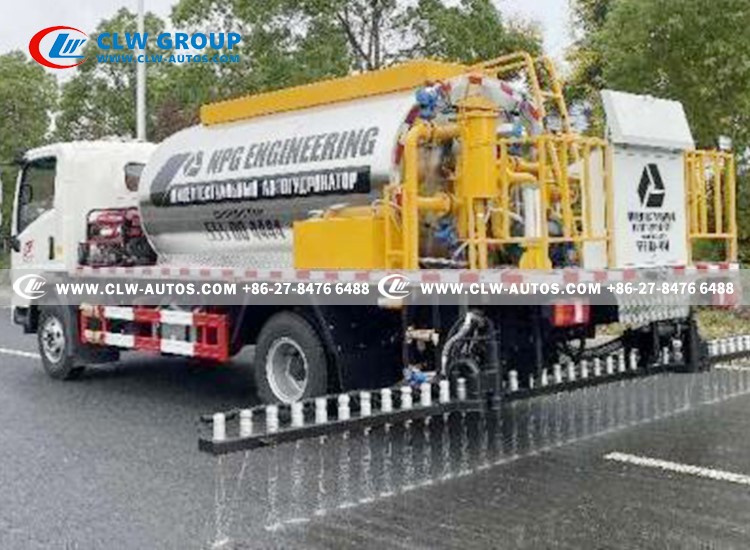

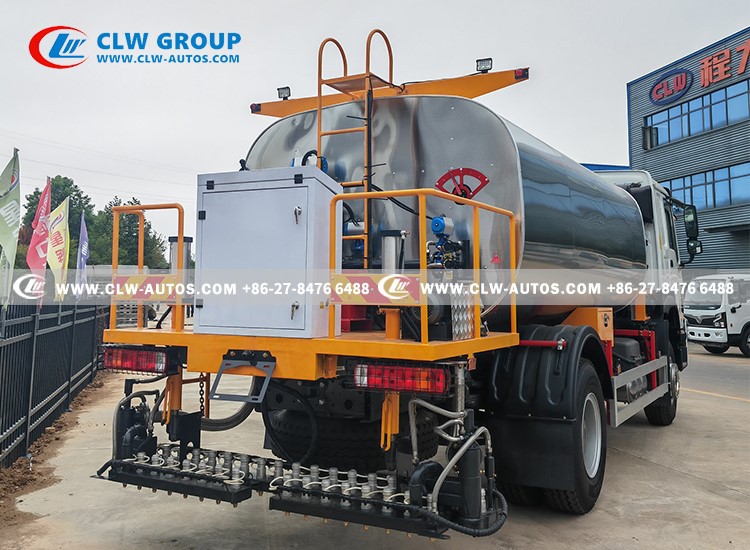

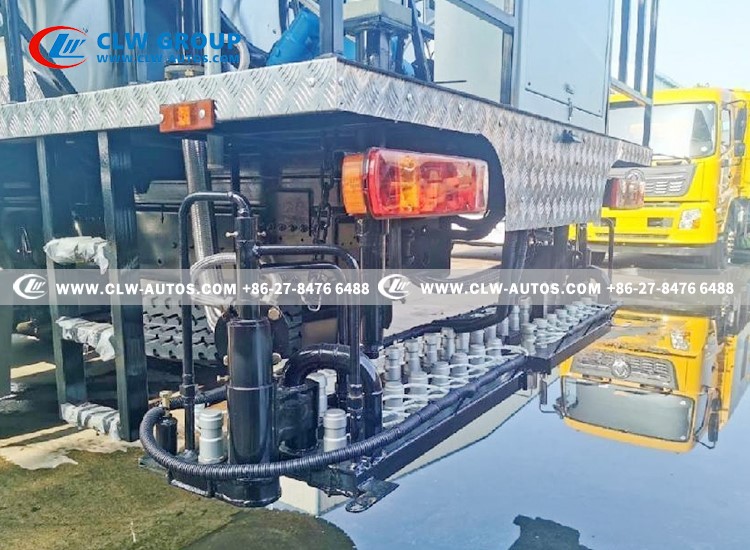

Structural Innovation: Three-section folding spray bar supports multi-layer applications and allows operation around obstacles.
Automatic Cleaning: Built-in diesel and high-pressure air flushing system prevents nozzle blockage, reducing downtime and maintenance costs.
Environmental Compliance: Meets China National VI emission standards, featuring advanced ABS braking systems for safety and eco-friendly operation.
Application
Asphalt distributor trucks play an essential role in every phase of pavement construction and upkeep:
- Road Surface Maintenance: Applies asphalt sealant evenly over existing roads to improve smoothness, enhance waterproofing, and extend service life.
- New Road Construction: Distributes asphalt uniformly during roadbed preparation, ensuring a consistent foundation and better pavement adhesion.
- Urban Road Repairs: Ideal for handling small-scale maintenance tasks like pothole filling and crack sealing in congested city environments.
- Waterproof Layer Coating: Builds a waterproof membrane to prevent moisture from penetrating the pavement base and damaging the structure.
- Chip Sealing Operations: Some specialized models combine asphalt spraying and aggregate spreading in a synchronized process, boosting construction efficiency.
Why Choose CLW Asphalt Distributor Trucks
Hubei Chengli Special Automobile Co., Ltd. (CLW) is one of the leading manufacturers of specialized vehicles in China. Their asphalt distributor trucks stand out for their superior performance and design innovations:
- Excellent Thermal Insulation: Using high-grade insulation materials, CLW trucks retain heat efficiently, keeping asphalt temperature loss under ≤12°C within 8 hours for consistent spraying viscosity.
- Premium International Components: Equipped with top-brand parts such as hydraulic motors, pumps, proportional valves, and control units to ensure high reliability and a long service lifespan.
- Automated Precision Control: Computer-controlled systems automatically synchronize asphalt pump rotation with driving speed to maintain an even distribution accuracy within ±2%.
- Versatile Spraying Options: Operators can select between manual and automatic modes, controlling each nozzle independently for different working widths or targeted repairs. A handheld spray gun is also included for detailed work.
- Efficient Heating Technology: Integrated with Italian Riello burners (200,000 kcal/h) and thermal oil systems, providing rapid asphalt heating of 10–15°C per hour.
- Durable and Safe Design: Stainless steel outer panels resist corrosion, while insulated surfaces enhance operator safety by preventing heat-related injuries.
Products Parameter
| Chassis | |
| Overall Dimension | 8500x2500x3320 mm |
| Wheel Base | 4600 mm |
| Front Axle | 7000 kg |
| Rear Axle | 16000 kg |
| Engne | · WP10.300E22 · Original WEICHAI Diesel Engine · Supercharge and inner cooling, four stroke, 6 cylinder in line,direct injection type |
| Fuel Type | Diesel |
| Engine horsepower | 300HP/221KW |
| Emission Standard | EURO II |
| Displacement | 9726(Diesel) |
| Gear box | Manual type,HW19710,10 forward gears & 2 reverse |
| Max Driving Speed | 90 km/h |
| Cabin | · Left hand drive · 4X2/2 axles in total · HOWO HW76 cabin,one and a half row cab · Power steering · Air conditioned · Audio System · High mental bumper · Manual window and door |
| Tire | 295/80R22.5 (6 pieces+1 piece spare tire) |
| Fuel box | 400L |
| Power Supply | With PTO, PTO control mounted in cabin. |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Accessories | · Standard tool kit · Mud flaps · Safety belts |
| Asphalt Tank | |
| Asphalt type | Hot asphalt, modified asphalt, emulsified asphalt |
| Tank size | 10 cbm/10,000L |
| Tank material | High quality carbon steel |
| Outside covering Material | 1mm Stainless plate |
| Insulation layer | 50mm rock wool insulation layer,≤12℃/8h |
| Bitumen Spaying width | 4.5 meters |
| Bitumen Spaying volume | 0.25~3 L/m2 |
| Driving speed when spaying | 2~16 km/h |
| Hydraulic System | |
| Hydraulic pump | Heifei Changyuan brand |
| Driving Motor | AKS05-130 (Ningbo) |
| Proportional valve | Tianwan Brand,EFBG-03-160-HF |
| Bitumen Sprinkler system | |

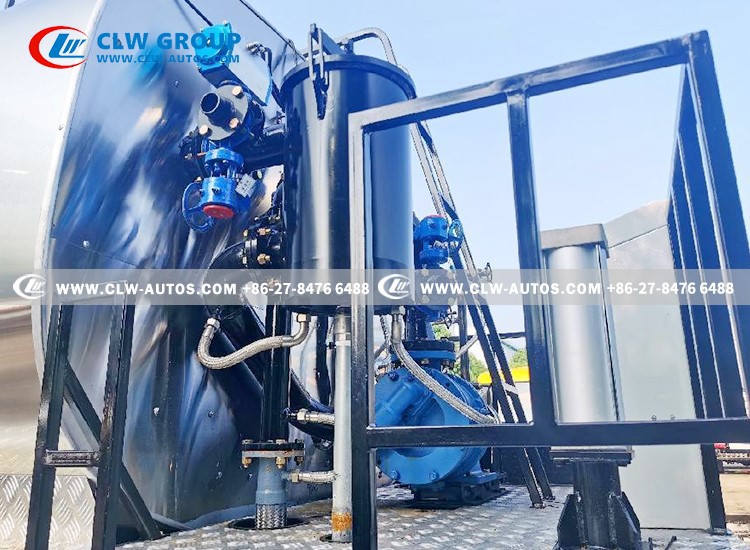

| Bitumen pump | · QGB950 · 950L/min · High Viscosity Asphalt Pump |

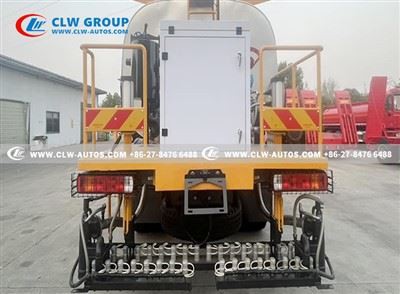

| Asphalt sprinkler nozzle | 34 pcs (one manual button controling for 1 nozzle) |
| Hand spray gun | 6 meters metal hose,suitable for small area and corner construction conditions. |
| Control System | |

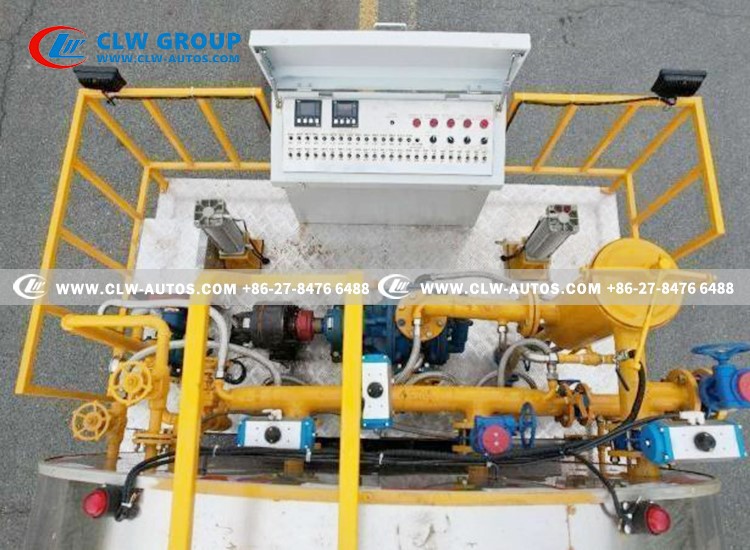

| Control Method | Controlled inside truck cabin and at rear working platform |
| Temperature sensor | WZP-230, Chinese brand from shanghai |
| Speed Sensor | GTS211B-N016 |
| Heating System | |
| Heating method | Automatic heating by oil |

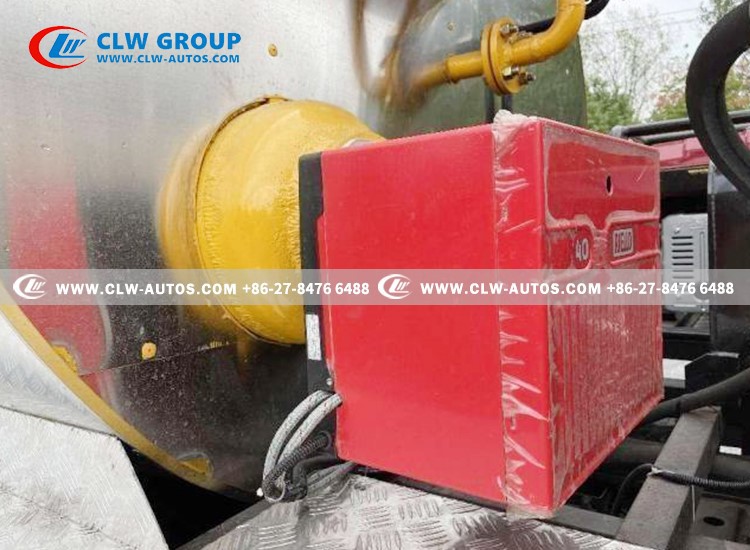

| Burner | RIELLO G20/Italy brand |

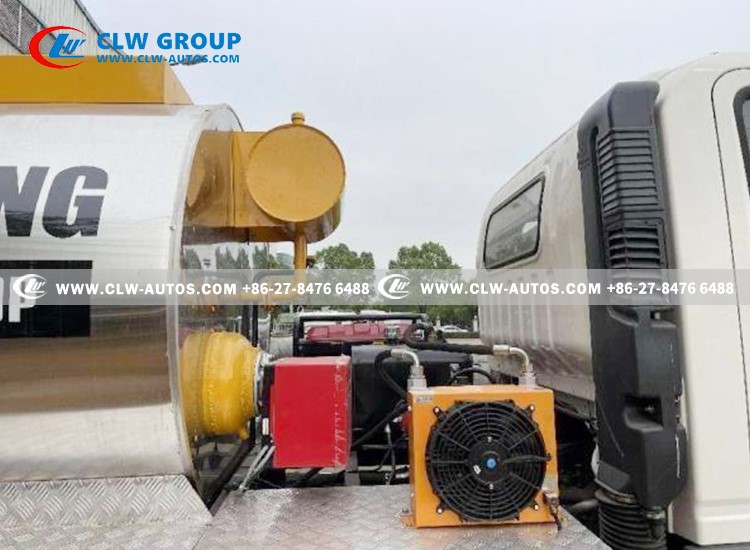

| Radiator | RISEN brand |
| Heat transfer oil pump | RY40-25-160 from Hebei brand |
| Heat transfer oil pump | motor 380V-2.2KW |

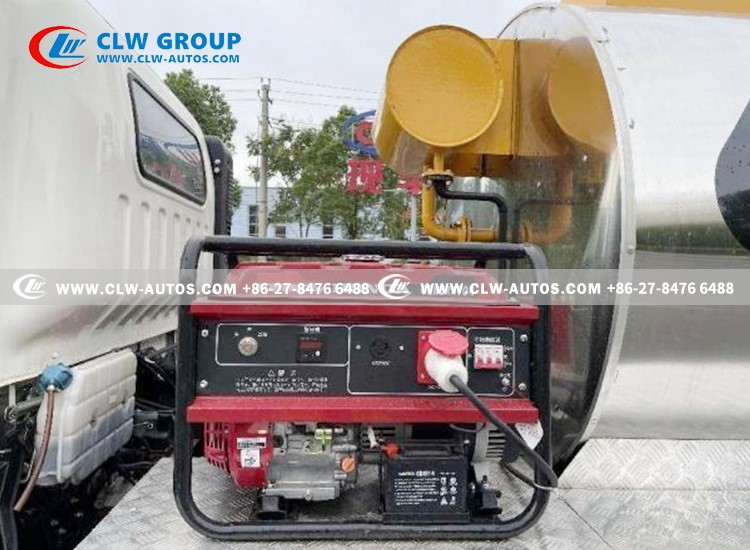

| Gasoline generator | 7kw |
| Low level | automatic alarming system 1pc |
|

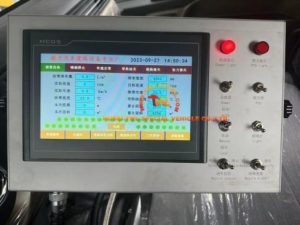

Intelligent Control
|
· Dual control, intelligent control by touch screen computer in the cab and manual control at the rear · One control for each rear asphalt nozzle · Heating method, diesel burner · Tank heating, heat transfer oil tank and pipeline circulation heating · Equipped with a gasoline generator · Spreading volume: 0.3-2.5L/㎡ · Mainly sprays emulsified asphalt · Hot asphalt, SBS modified asphalt, etc. · Mainly can control the spreading volume of asphalt spraying, input the required asphalt volume for work on the touch screen computer in the cab, and after inputting the value, the speed sensor is used to automatically match the pump speed to the vehicle speed, so as to achieve a uniform and uniform asphalt spreading volume during construction at different vehicle speeds (such as setting the spreading volume to 0.3 kg, maintaining about 0.3 kg per square meter during construction) |
|

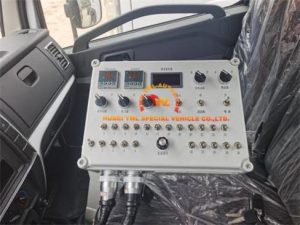

Standard Control
|
· Controlled by a manual control box in the cab · With one-to-one control of the tail asphalt nozzle · Heating method: diesel burner · Tank heating, heat transfer oil tank and pipeline circulation heating · Equipped with a gasoline generator · Mainly spray emulsified asphalt, hot asphalt, SBS modified asphalt, etc. · The asphalt pump speed can be adjusted by the vehicle speed and pump speed knob to meet the construction needs of different asphalt spreading amounts. |
