Howo 4X4 Off Road 4Tons Telescopic Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road 4tons telescopic crane truck in China. If you're going to buy high quality howo 4x4 off road 4tons telescopic crane truck, welcome to get more information from our factory. For price consultation, contact us.



Function

--telescopic crane truck(also called boon crane truck,truck with crane,crane truck,xcmg crane truck,palfinger crane truck,lorry mounted crane,truck mounted crane,knuckle boom crane truck,folding arm crane truck,crane truck mounted cargo truck,boom crane,boom crane truck,articulated crane truck) is used to lift,rotate and craing heavy equipment through hydraulic lifting and  stretch.

-- telescopic crane truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc telescopic crane truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 telescopic crane truck;

3) according to towing capacity:2tons,3.2tons,4tons,5tons,6.3tons,8tons,10tons,12tons,16tons,20tons telescopic crane truck

4) according to crane type: straight-arm and folding arm telescopic crane truck.

5) according to crane brand:XCMG(China top brand),Palfinger,CLW own brand,Changxing,Dalishen crane truck

Feature

---- HOWO chassis ensures perfect driving performance

---- WEICHAI technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger,XCMG,CLW



Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely

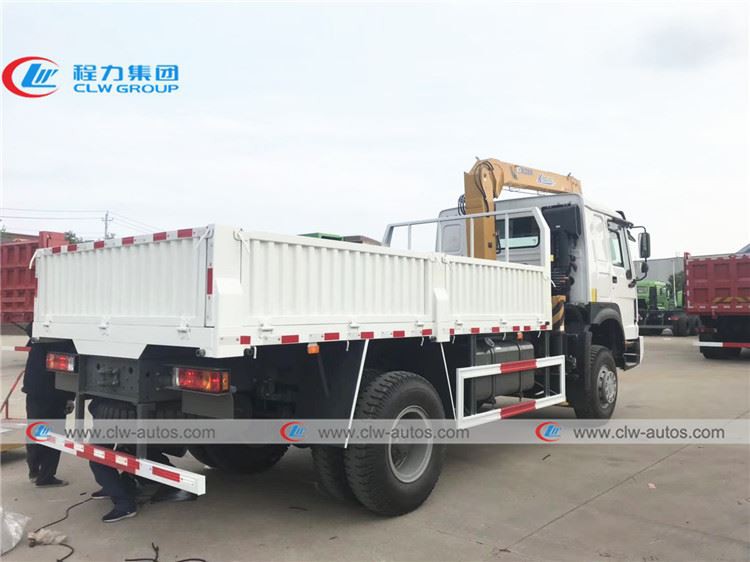

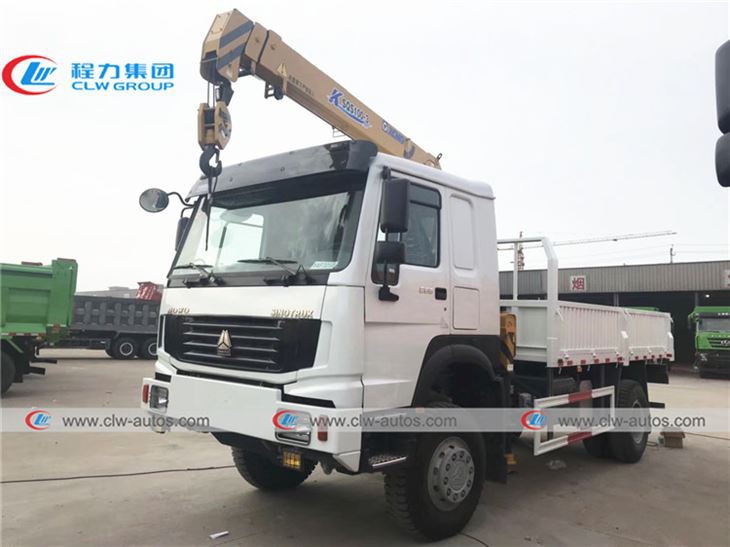

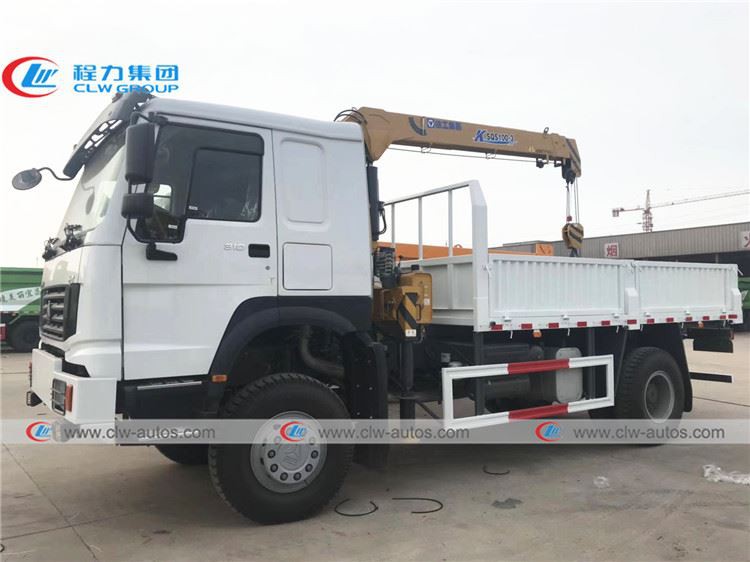

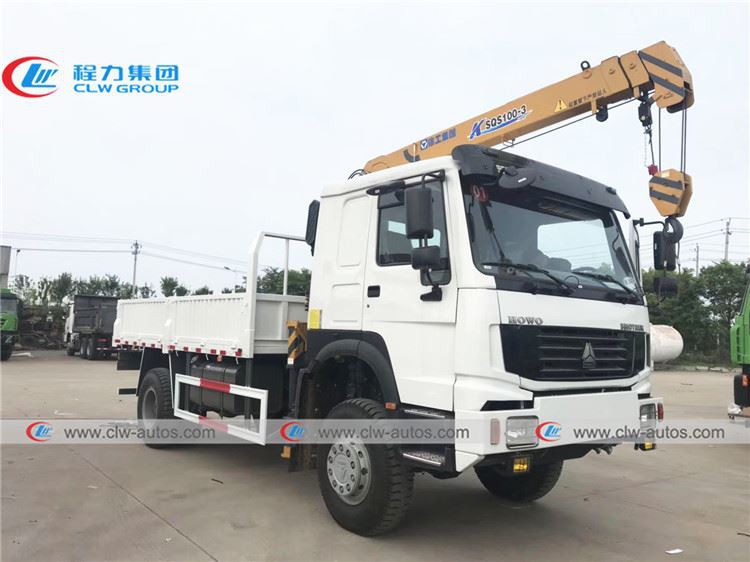

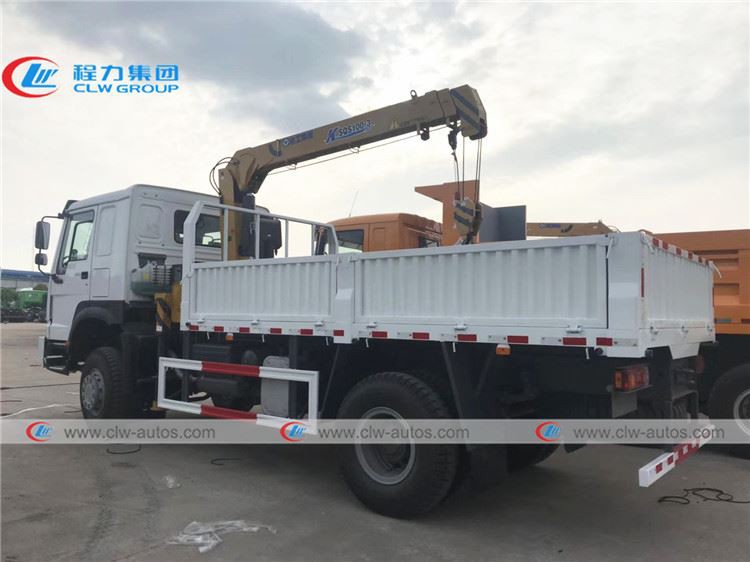

Reference picture

Specification

Howo 4X4 Off Road 4Tons Telescopic Crane Truck
General	Chassis brand	Howo
	Overall Dimension	7280 * 2500 * 3680 mm
	GVW	16,000kg
Cab	Cabin type	Howo cabin,3 persons
	Air conditioner	Optional
Engine	Engine Model	WEICHAI
	Engine Power	270 HP (198 KW)
	Displacement	9726 ml
	Emission standard	Euro 3 or 4
Chassis	Wheelbase	4500 mm
	Driving Type	4x4,left hand drive,optional for RHD
	Max.speed	90km/h
	Gear box	FAST 9-peed forward and 1 reverse
	Tire	11.00R20,6 pcs with one spare
Superstructure	Cargo Box Dimension	4000*2400*600 mm
	Crane Type	Telescopic boom crane
	Crane brand	XCMG
	Max Lifting Capacity	4000 kg
	Slewing Angle	360° All rotation
	Crane Weight	2120 kg
	Installation Space	900 mm
	Control panel	English or Your language
Optional	1-knuckle boom crane/folding arm crane; 2-Hydraulic tipper box; 3-Customized box thickness; 4-Remote control box
