Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ford emergency rescue ambulance vehicle in China. If you're going to buy high quality ford emergency rescue ambulance vehicle, welcome to get more information from our factory. For price consultation, contact us.
An ambulance is a vehicle for transportation of sick or injured people to, from or between places of treatment for an illness or injury, and in some instances will also provide out of hospital medical care to the patient. The word is often associated with road going emergency ambulances which form part of an emergency medical service, administering emergency care to those with acute medical problems.
The specifications of Ford Emergency Rescue Ambulance Vehicle:
| Truck name | Ambulance truck |
| Gross weight (kg) | 3495 |
| Curb weight (kg) | 2540 |
| Axle loading(kg) | 1560/1935 |
| Overall dimension(mm) | 5380*2032*2460 |
| Medical treatment cabin dimension(mm) | 2600*1730*1750 |
| Approach/departure angle(°) | 20/25 |
| Max speed (km/h) | 156 |
| Front/Rear overhang (mm) | 1014/1027 |
| Color | According to customer’s request |
| Chassis Parameters | |
| Chassis name | Ford,JMC,jinbei,other famous brand |
| Number of axles | 2 |
| Wheel base(mm) | 3300 |
| Cabin seats | 6passengers |
| Gear box | 6speed,5forward 1rear |
| Number of wheels | 2 |
| Tire specification | 215/75R16LT |
| Front Track (mm) | 1736 |
| Rear Track (mm) | 1720 |
| Engine Parameters | |
| Engine model | DURATORQ4D2O5L |
| Engine type | 2.0T, four-cylinder, supercharged intercooled, high pressure common rail |
| Drive type | 4*2,Left hand drive |
| Emission standard | Euro 5 |
| Displacement (ml) | 1998ml/121kw |
| Power horse(hp) | 165 |
| Fuel Type | Diesel |
| Configurations Instruction | |
| Warning system | Warning light,alarm and flash lights |
| Power system | 1000W positive wave inverter system Integrated circuit integrated control protection system Ac circuit protection system Integrated switch control panel for medical module GB 220V power port,Disinfecting lamp,Ventilator,Intercom |
| Oxygen pathway and oxygen | Two 10-liter medical oxygen bottles with shock absorbing clamp,concealed oxygen piping system,two oxygen ports,one humidifier bottle |
| Medical cabin | Polymer hard top;polymer material partition wall;long hanging cabinet and medical equipment and storage cabinet;Vertical oxygen tank cabinet;full set of blue anti-collision soft cover walls |
| Seats | 1PCS Reverse soft roll seat,1PCS Independent seat with backrest,1PCS long soft roll seat for 2 person |
| Emergency auxiliary | Stretcher pad and guide plate,1pcs slideable infusion rack,fire extinguisher |
| Appearances | Black solar membrane on left side,translucent frosting film on right and rear side |

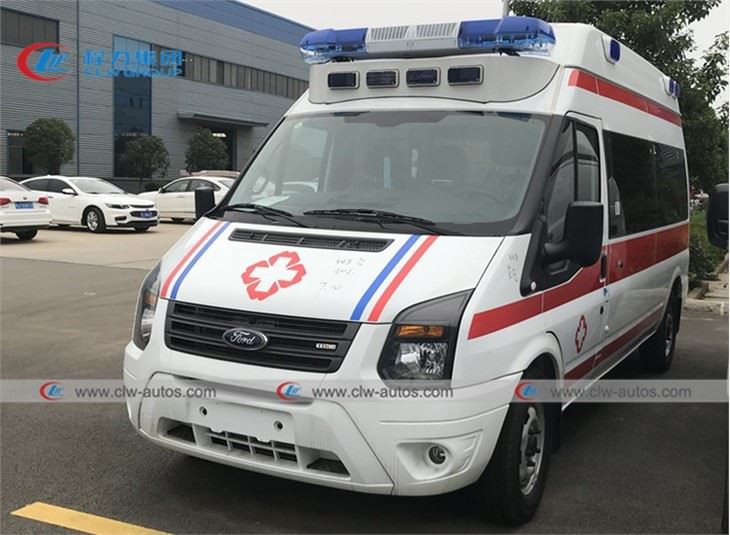

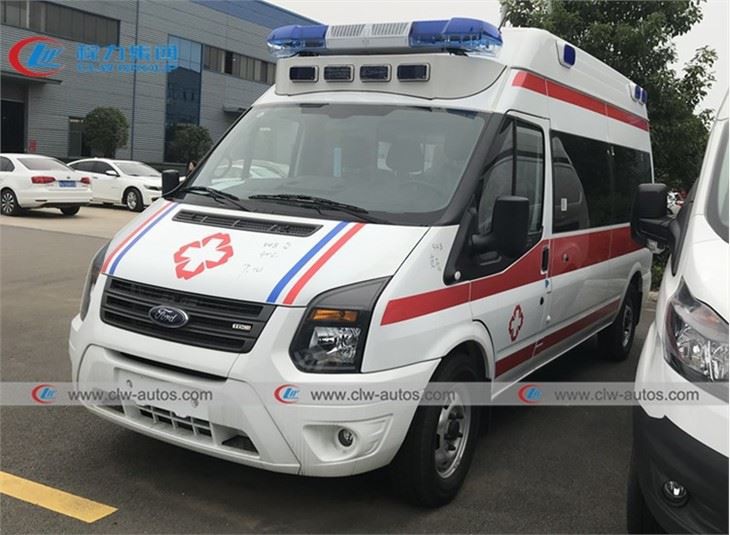

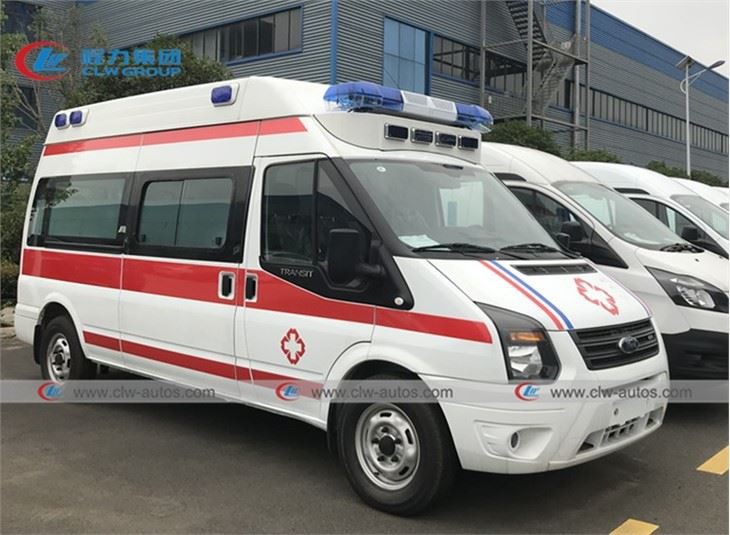

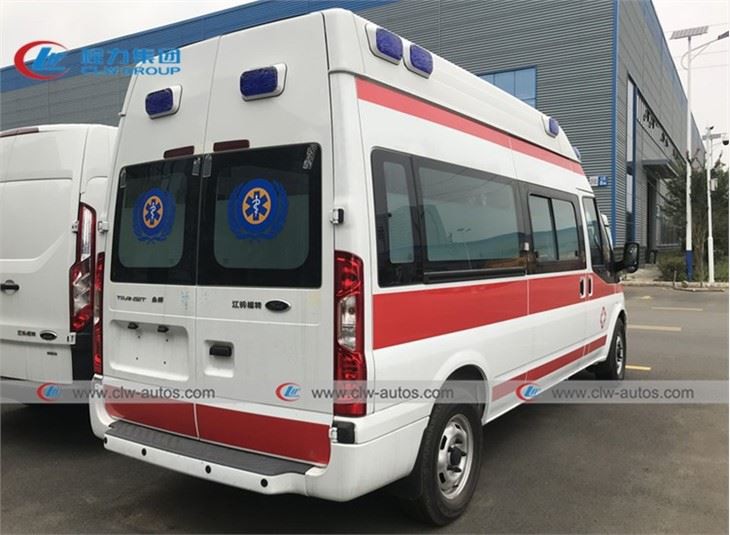

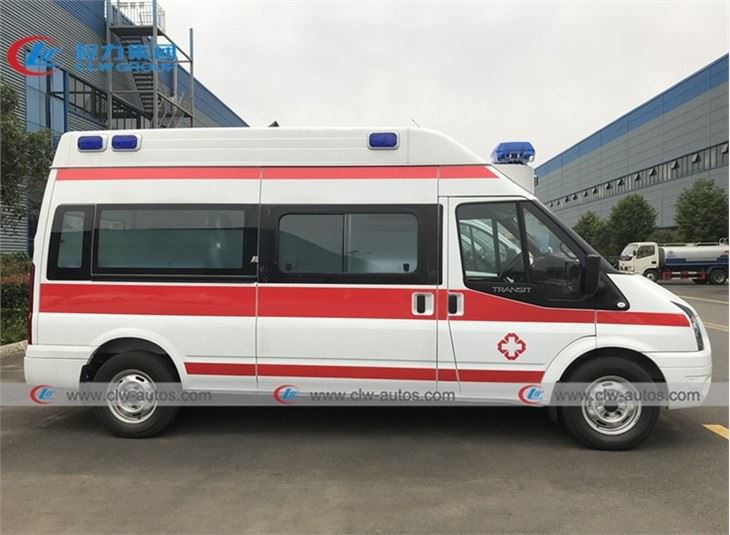

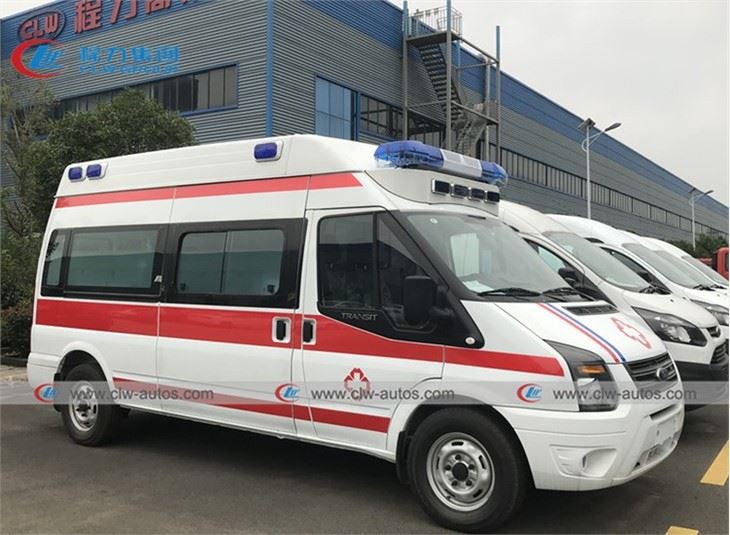

More detailed pictures for Emergency Rescue Ambulance Vehicle:
Inside of Emergency Rescue Ambulance Vehicle:
Disinfecting lamp picture:
GB 220V power port& oxygen ports picture:
Intercom picture:
Slideable infusion rack picture:
The above product pictures and specification for reference only. If you want to know more details or exact price, please feel free to contact me. We can provide the customized-designing product meeting with any of your demand.Welcome to visit our factory!
