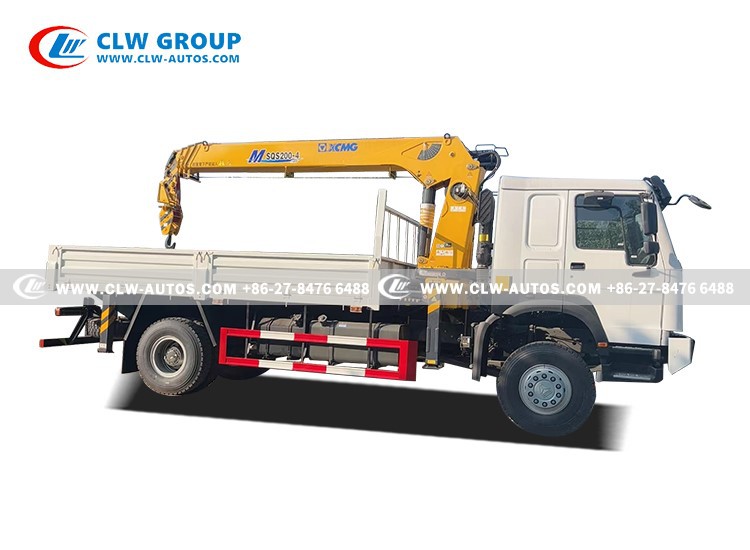

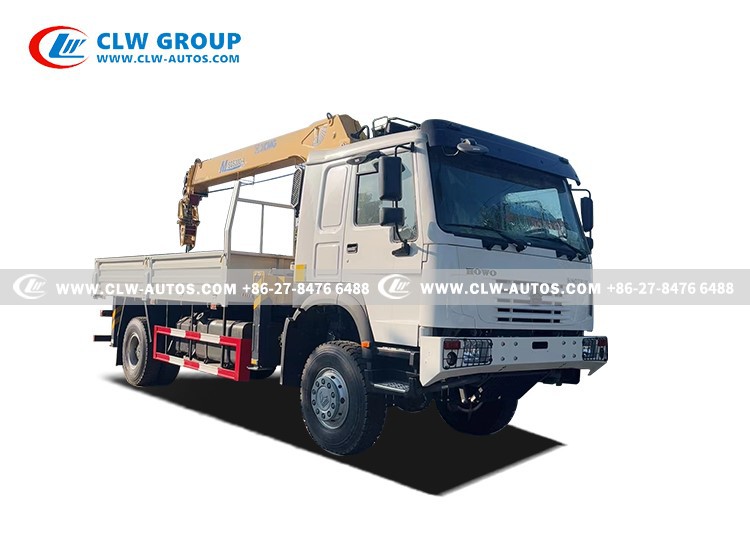

HOWO 4X4 Truck with 8Tons Straight Boom XCMG Crane



4X4 straight  boom crane,referred to as off road truck-mounted crane,4x4 truck with crane,4x4 crane mounted on truck, is a kind of equipment that realizes the lifting, turning and lifting of goods through a hydraulic lifting and telescopic system.

whatsapp for quick inquiry +86 135 45064324

--4X4 crane truck generally composed of a truck chassis, a cargo compartment, a power take-off, and a crane.
--The truck chassis can be selected from Dongfeng, FAW,FOTON, SHACMAN,I-SUZU,SINOTRUK HOWO and so on
--The truck can be 4x4,6x6,8x8 off road truck with crane or normal 4X2 6X4 8X4 crane
 --According to the type of crane, they can be divided into straight arm type and folding arm type.
--according to the tonnage is divided into 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 20 tons.

Feature
--The whole truck is fully controlled by hydraulic, with large working range.
--360 degrees full hydraulic full rotation.
--new type of H-type outrigger, which can adapt to slope and irregular site operations.
--main components such as boom and outrigger are all high-strength and high-quality.
--Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reliable.











Technical Parameters
Chassis
Drive Model		4X2,Left hand drive for Djibouti
Vehicle Main Dimensions		Dimensions(L x W x H)(mm)			8300*2500*3800 mm
		Wheelbase (mm)			4600 mm
		Overhang (front/rear) (mm)			1430/2425 mm
		Approach/Departure angle(°)			16/14
Weight in KGS		Curb Weight (kg)			9600 kg
		Front/Rear axle loading(kg)			7000/16000
Max. driving speed(km/h)					90
Engine		Model			WEICHAI Diesel engine WP10.300E22
		Type			6-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)			266/290/300 HP
		Displacement (ml)			9726 ml
		Emission standard			Euro II
Brakes		Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake.
Cabin		4X2 OR 4X4/2 axles in total HOWO HW76 cabin,one and a half row cab Power steering Air conditioned Audio System High mental bumper
Gearbox		HW19710,Manual gear box,10 forwards & 2 reverses
Steering Gear		ZF, Power steering, hydraulic steering with power assistance
Fuel tank (L)		400
Tire		12.00R20 tire , 6 + 1(spare tire)
Upper & Equipment
Cargo box		Loading Capacity(tons)			15 tons
		Size(L*W*H)			5000*2300*600 mm
		Button(mm)			4.0 mm
		Side plate(mm)			3.0 mm
		Tank material			High quality Q235 carbon steel

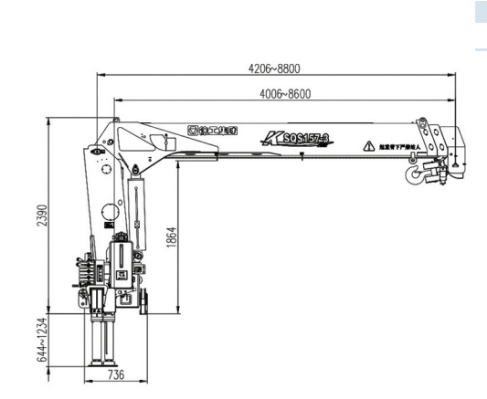

Crane		Brand			XCMG brand
		Model number			KSQS157-3/KSQS200-4
		Working Platform			360 °turning(left or right)
		Material			Q235 Carbon steel
		Extendable boom section			3/4
		Boom Type			Straight boom
		Max. Lifting Weight(kg)			Effectively: 6300 kg/8000 kg
		Max. Working Radius(m)			8.3 m
		Max. Lifting height(m)			10.3 m
		Max. Lifting Moment(T.M)			157.5 T.M
		Max. Oil Flow of Hydraulic System(L/min)			40L/min
		Oil box size			90 L
		Max. Pressure of Hydraulic System(MPa)			22 MPa
		Crane Weight(kg)			2200kg

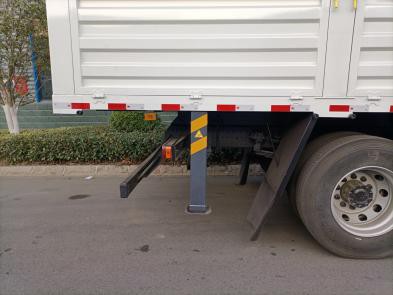

		Landing leg			4 pcs hydraulic landing leg

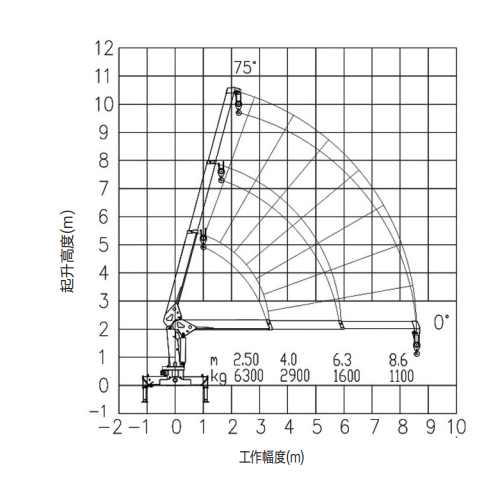

Working radius	2.5		4.0	6.3		8.6
Lifting Capacity(KG)	6300		2900	1600		1100
