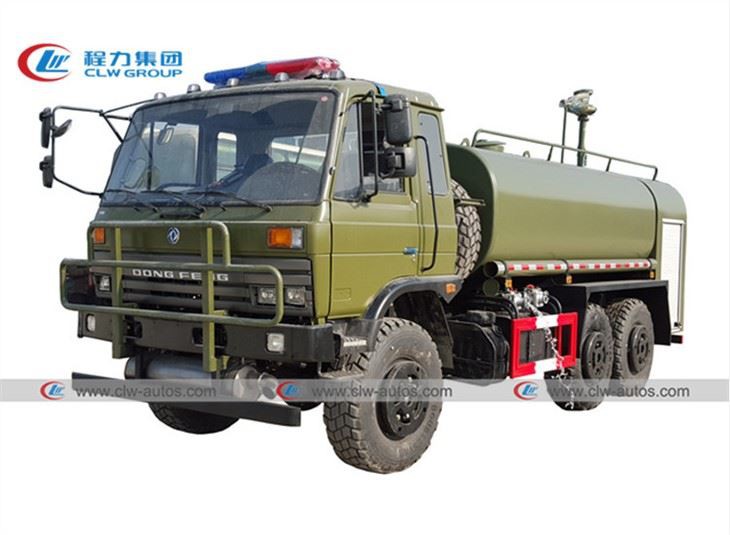

Dongfeng 6x6 AWD Off Road Watering Tank Lorry

Dongfeng 6x6 AWD Off Road Watering Tank Lorry Tank Volume: 12CBM, 12m3, 12000lITERS, 12Tons. With Fire Pump,Fire Brigade

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6x6 awd off road watering tank lorry in China. If you're going to buy high quality dongfeng 6x6 awd off road watering tank lorry, welcome to get more information from our factory. For price consultation, contact us.

Features:

One of the most stable and classic chassis. Nissan diesel cab + Cummins engine + Fuller gearbox + Dana axle classic powertrain configuration. Market test more than 20 years, mature and stable. It has a variety of refits and excellent off-road capability. High ground clearance, light weight chassis, easy to repair, high mechanical reliability characteristics make it become China's second generation truck model, and also become the good co-worker of UN peacekeeping troops.

Bodybuilder can be customized according to customers' requirements.

The chassis can be 4x4, 6x6 or 8x8, and the rear tire can be twin or single version.

The detailed Specification for Dongfeng 6x6 Watering Tank Lorry, Fire Water Sprinkler Truck :

Cabin	Driving type 6x6
	Dongfeng Standard cab, with three seats, with A/C. Left Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9670x2500x3100
	Wheel base (mm)	4600+1450
	Wheel track (front/rear) (mm)	1350/2250
	Approach/Departure angle(°)	35/25
Weight in KGS	Tare Weight	8100
	Loading Capacity	27000
	Front axles loading capacity	1x7000
	Rear axles loading capacity	2x10000
Max. driving speed（km/h）		90
Engine	Brand	CUMMINS
	Model	B245 -33， 180KW/2500r/min
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)	245HP
	Emission standard	Euro III
Maximum Climbing Degree(%)			60
Slope ability(%)				40
Minimum ground clearance (mm)				355
Minimum turning radius (m)				8
Maximum vertical barrier height (mm)				600
Maximum entrenched width (mm)				600
Maximum wading width (mm)				800
Fuel consumption under limited conditions(L/100Km)				28
Gearbox	FAST brand , 9 forwards & 2 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Fuel tank (L)	220 L
Tire	14.00R20 , 11 pieces including one spare.
