Tipping 8Ton Hook Lift Garbage Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of tipping 8ton hook lift garbage truck in China. If you're going to buy high quality tipping 8ton hook lift garbage truck, welcome to get more information from our factory. For price consultation, contact us.

Hook Lift Garbage Truck

Hook-arm garbage trucks are also called detachable garbage trucks.

Mainly used to collect and carry various garbage in various places such as municipal sanitation and property management. The garbage compartment and the chassis can be separated.

It has a reasonable structure, easy operation, stability, and use. The advantages of high efficiency, good sealing performance, convenient dumping, etc., can realize the joint operation of one trolley and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Realize one car with multiple boxes for cyclic transfer, energy saving and cost saving.

Hook lift System Structure

• Hydraulic system: Oil tank and a filter system, an oil pump, a multi-way reversing valve, a one-way throttle valve, an oil cylinder, and an oil pipe.

• Power of system: PTO take poer from the engine, then supplying to the oil pump.

• Oil Gear Pump: delivery hydraulic oil through the oil suction filter, and the multi-way valve supplies oil. When the multi-way valve of the hook arm garbage truck is working, the arm cylinder and the locking cylinder are activated.

• When the hydraulic cylinder is not working, the hydraulic oil passes through the multi-way valve and returns to the oil tank directly.

• The advantage is that one vehicle can be equipped with multiple buckets, and one vehicle can maintain the operation of several garbage collection stations, with high efficiency, and the box body is a sealed design, which will not cause secondary pollution

Hook arm upper mounting structure

1. Hydraulic system

2. High-strength alloy steel one-piece main hook arm

3. Reinforced hook

4. Reinforced sub-beam

5. Cast steel tailstock wheel

6. Explosion-proof oil pipe

7. Hydraulic cylinder

8. Locking mechanism

9. Electric control and hydraulic operating device

Others: 5000kg lifting capacity, can be equipped with 5-30 trash bins, fixed-point placement, circular transportation.

Hydraulically complete loading, unloading, locking, self-unloading and other operations.

Specicifation:

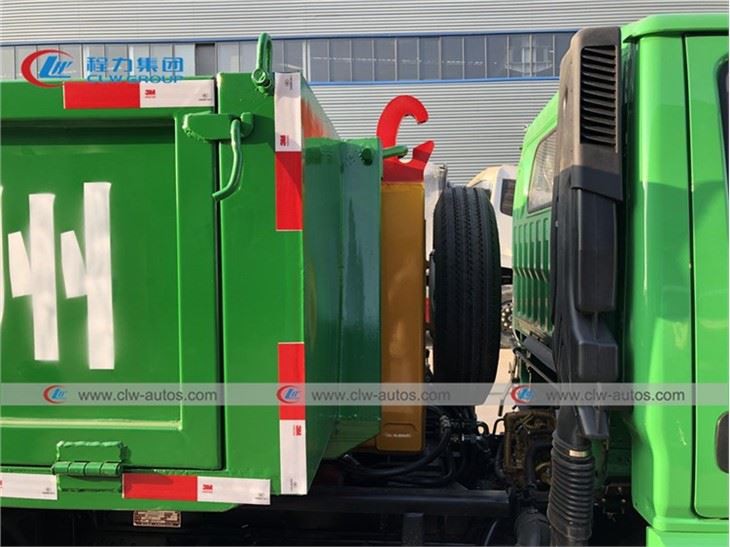

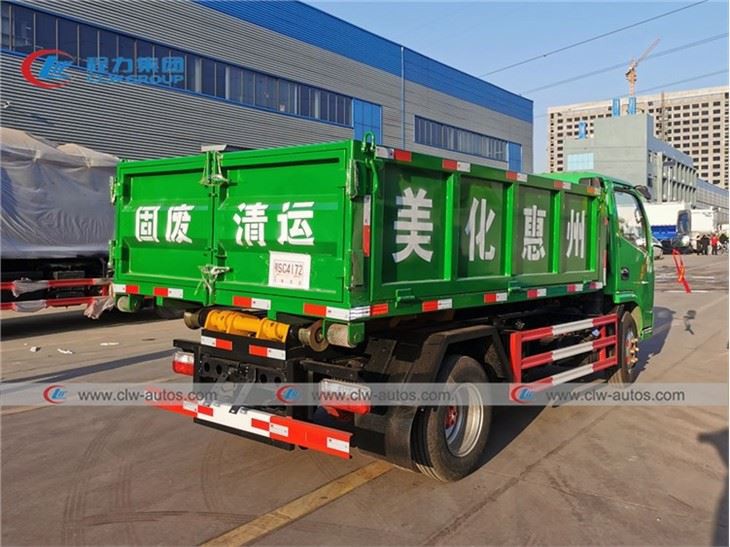

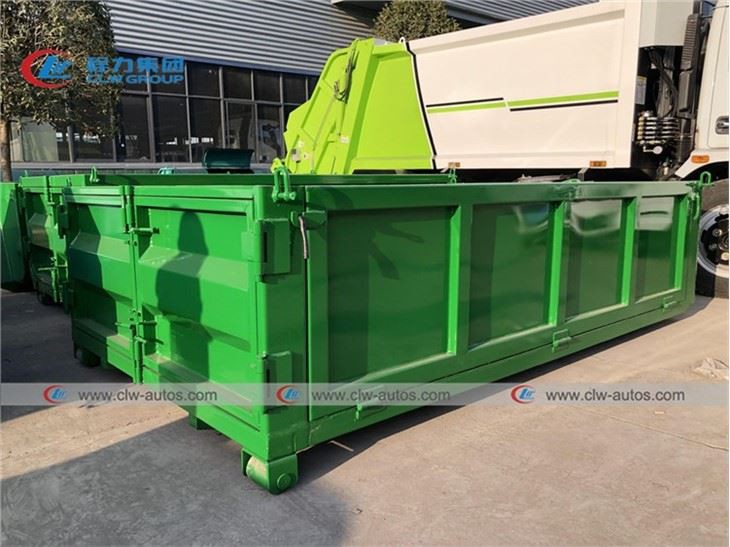

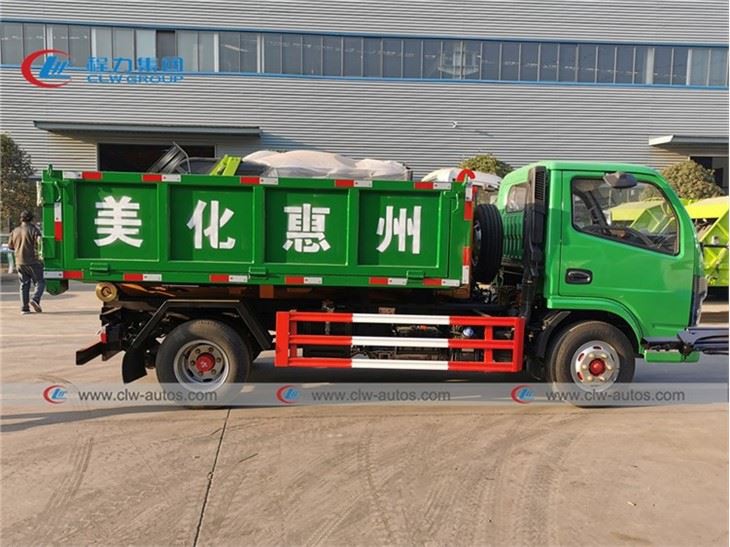

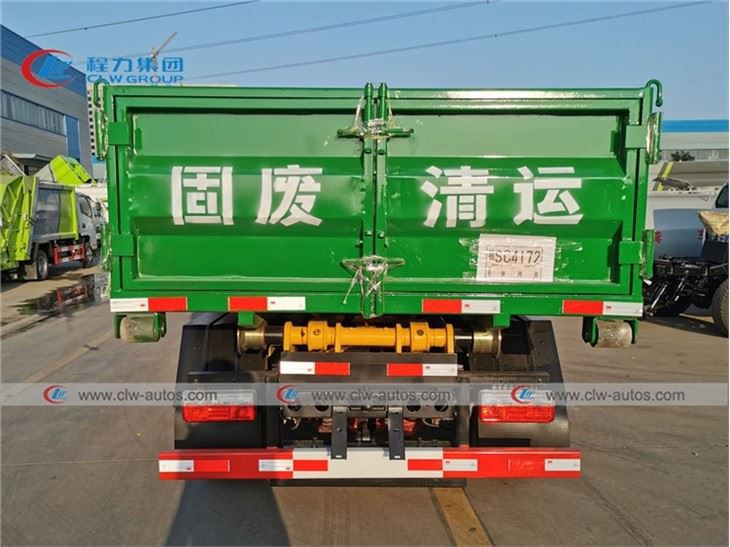

Truck Photos:
