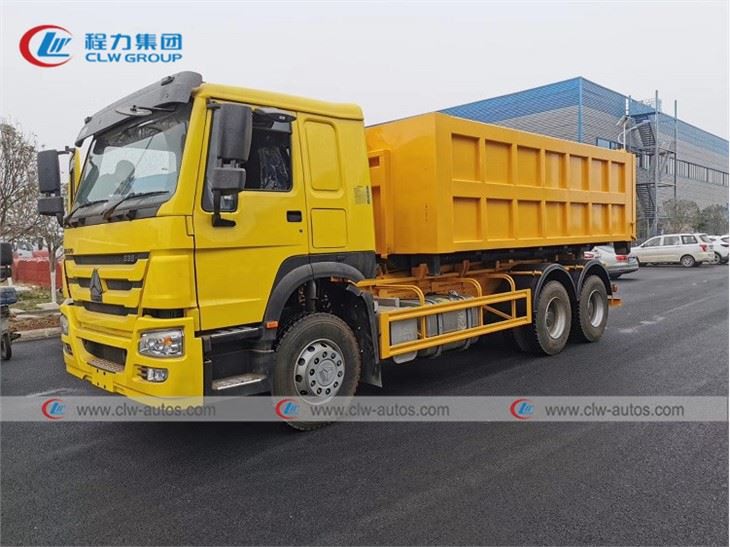

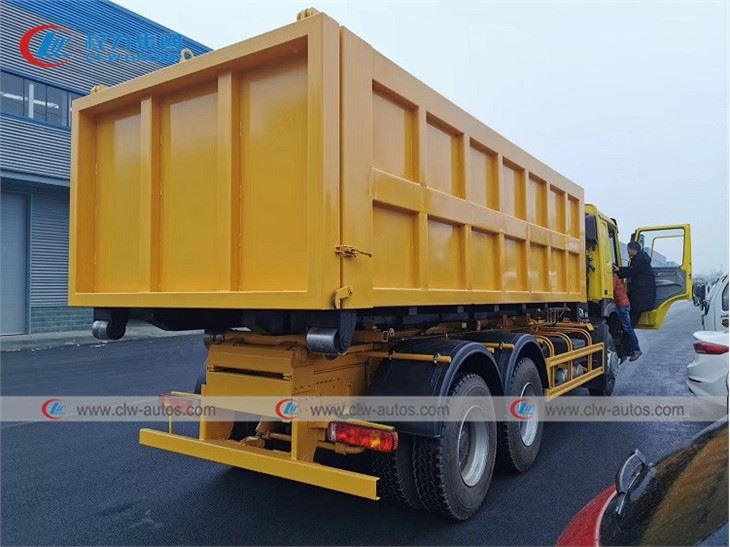

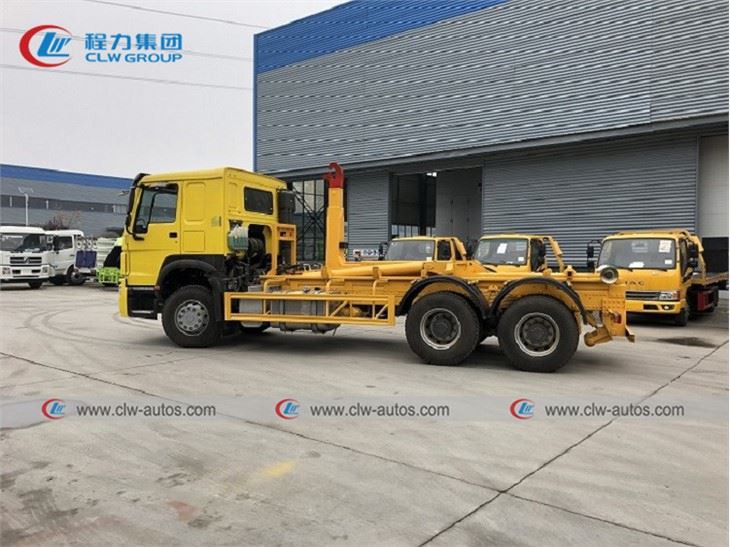

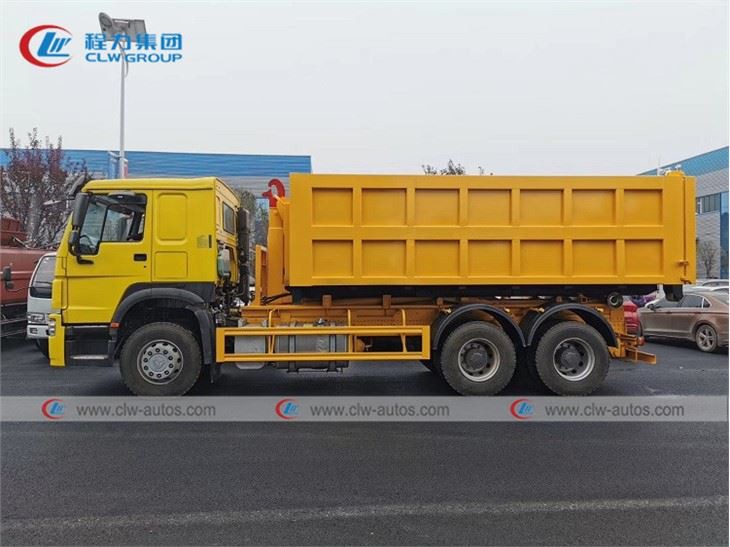

Howo RHD 20cbm Waste Recycling 20m3 Hook Lift Garbage Truck

Engine:SINOTRUK HOWO brand, 266HP;
Driving model:LHD or RHD;
Gear box:10-speed forward and 2 reverse
Hydraulic cylinder:Top brand
Garbage bin size:10cbm

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo rhd 20cbm waste recycling 20m3 hook lift garbage truck in China. If you're going to buy high quality howo rhd 20cbm waste recycling 20m3 hook lift garbage truck, welcome to get more information from our factory. For price consultation, contact us.




Description--Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
--Hydraulic Control Loading & Unloading System.
--Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided         into above-ground and under-ground type.
--High-tensile steel chains: imported hydraulic oil cylinder and sealing material.

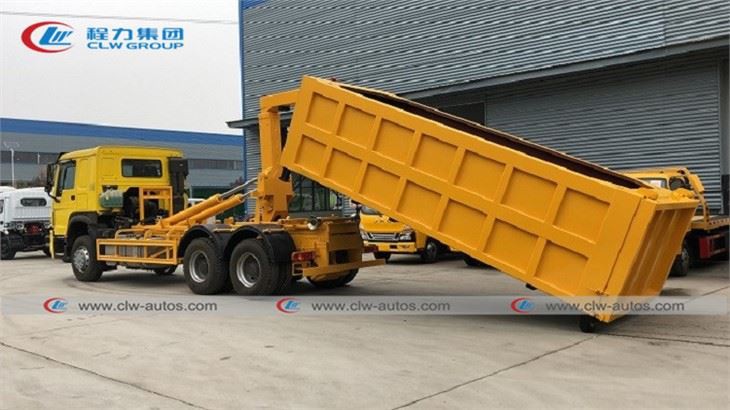

--Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
--Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

Feature--SINOTRUK HOWO Chassis, perfect performance
--Sinotruk engine, Super powerful,reliable performance-- Nice shape, rational design --High quality hydrauilc cylinder, Top brand --Strong,durable, long time service time--High tense carbon steel material

Specification

howo右驾勾臂垃圾车_副本

Truck model

ZZ1257M4641W

Drive style

Left or right hand drive

Drive model

6x4

Dimensions(LxWxH)

8865x2500x3290 MM

Cargo body

20 cbm

Loading weight

20ton

Engine

WD615.69,  336hp

Emission standard

EURO II

Front axle

HF7, 7tons loading capacity

Rear axle

HC16, 16tons loading capacity

Transmission

HW13710, 10 forward & 2 reverse.

Steering system

ZF8118, hydraulic steering with power assistance

Tires

295/80R22.5,   10+1spare

Upperstructure Specification

Garbage Hopper

Dimension

5600×2300×1500mm

Standard Configuration

With one garbage bin, with hydraulic rear outrigger

Volume

Ground type, 18CBM or 20cbm

Loading Capacity

16tons or 18Tons

Thickness

5mm, Carbon Steel Q235B

Dump type

Hydraulic cylinder lifting and self-loading

Dump angle

≥45°

Hydraulic system pressure

≤16Mpa

Protective Material

Q235A Carbon Steel

Controlling Way

Three-way hydraulic control valve

Other Configuration

  1. Reinforced        hydraulic swept-body system, with Double hydraulic cylinder

  2. Swing Arm,        Chain.

  3. Hydraulic        multi-way valve control.

Options

Electronically controlled valve, trash bin type, trash   bin quantity, etc.
