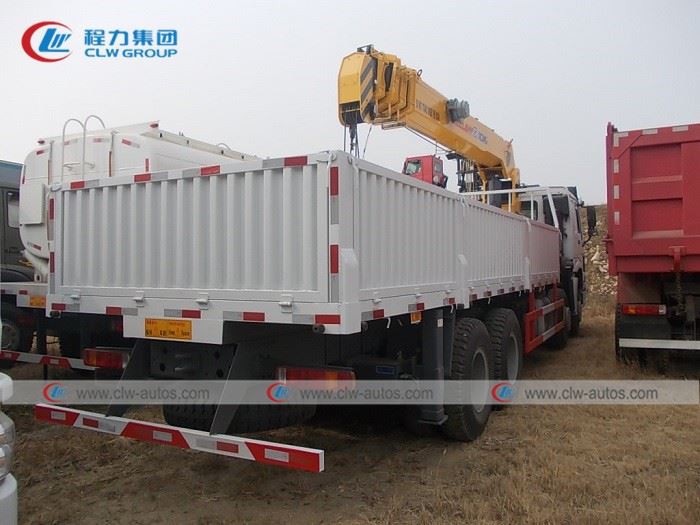

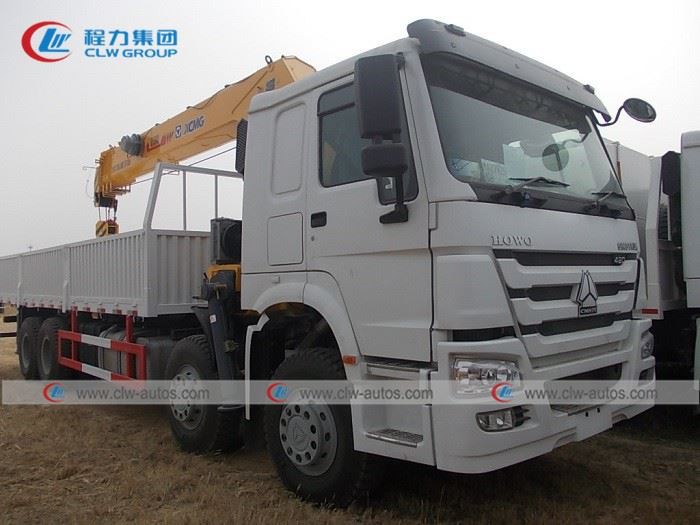

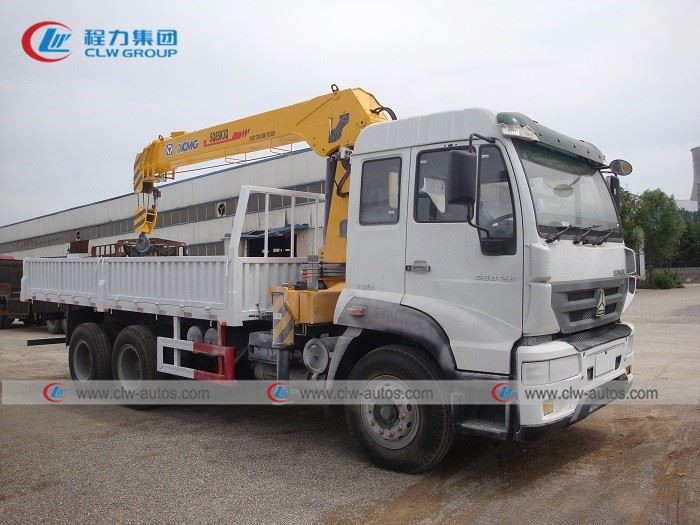

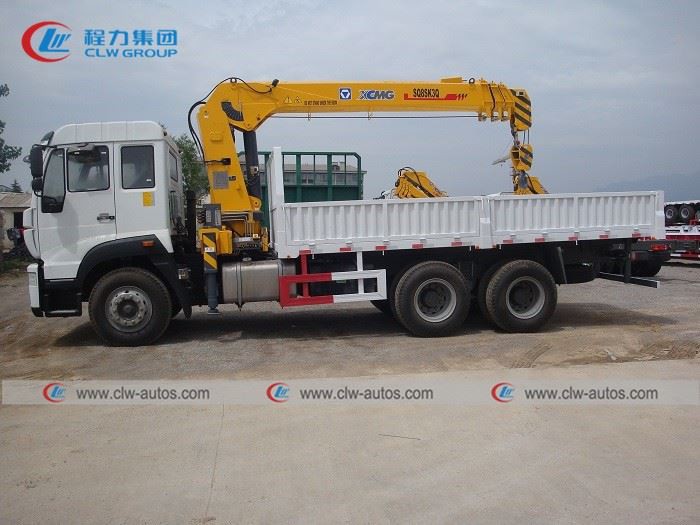

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6*4 howo chassis with 8t straight telescopic arm crane 8 tons stiff boom crane truck in China. If you're going to buy high quality 6*4 howo chassis with 8t straight telescopic arm crane 8 tons stiff boom crane truck, welcome to get more information from our factory. For price consultation, contact us.
--Truck mounted crane(also called Truck with Crane, Truck Crane,truck mounted crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
--Truck mounted crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Lorry mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Lorry mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Lorry mounted crane;
4) According to crane type,there are telescopic/straight arm and knuckle/folding arm Lorry mounted crane.
--Crane: We can supply International brand XCMG and SANY PALFINGER for optional.
--Landing leg: Hydraulic control, top quality, easy for operation.
--Storage box: High quality carbon steel Q235.
--Truck chassis: Japanese brand ISUZU Diesel engine truck chassis.
--Arm frame form: straight arm.
| Driving type 6x4 | |
HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Overall dimensions (L x W x H) mm | 10350×2500×3800 |
Carriage Size (L x W x H) mm | 6300×2300×600 | |
Wheel base (mm) | 4600+1350 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 16/12 | |
| Tare Weight | 14000 |
payload | 27000 | |
Front axles loading capacity | 1x9000 | |
Rear axles loading capacity | 2x16000 | |
| 90 | |
| Brand | SINOTRUK |
Model | WD615.69 | |
Type | 4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inter-cooling | |
Horse Power(HP) | 336 HP | |
Emission standard | Euro 2 | |
| HW19710, 10 forwards gear & 2 reverse gear | |
| ZF8098 power steering | |
| 12R22.5 tubeless tires with one spare | |
| 400L | |
| Reinforced diaphragm clutch, diameter 430 mm | |
| Brand : according to customer's requests. | |
Type: Telescopic | ||
Max lift capacity: 14000 kg | ||
Max working radius 15.8 m, Max lifting height : 17.8 m | ||
14 T Telescopic crane
TYPE | Max Lifting Capacity | Max Lifting Moment | Recommend Power Needed At Recommend Oil Flow | Max Oil Flow of Hydraulic System | Rated Pressure Of Hydraulic System | Oil Tank Capacity | Rotation Angle | Crane Weight | Installation Space |
SQ14SK4Q | 14000KG | 35 | 30 | 63 | 26 | 160 | All Rotation | 4800 | 1300 |
Key word: Straight
Boom Truck, Truck Mouted with Telescopic Crane, Stiff Boom Crane, Crane Truck, Truck With Crane, Sinotruk Howo lorry with crane, 8tons Telescopic Arm crane truck, Straight Arm Crane Truck.
Hot Tags: 6*4 howo chassis with 8t straight telescopic arm crane 8 tons stiff boom crane truck, China, manufacturers, suppliers, factory, price
