Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng truck mounted telescopic boom 6.3tons xcmg crane in China. If you're going to buy high quality dongfeng truck mounted telescopic boom 6.3tons xcmg crane, welcome to get more information from our factory. For price consultation, contact us.
--Truck mounted telesopic boom crane(also called Truck with Crane, Truck Crane,truck mounted crane,crane truck) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone,bricks etc.
--Truck mounted telesopic boom crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck mounted telesopic boom crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted telesopic boom crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Truck mounted telesopic boom crane
4) According to crane type,there are telescopic/straight arm and knuckle/folding arm Truck mounted telesopic boom crane.
--Crane: We can supply International brand XCMG and PALFINGER for optional.
--Landing leg: Hydraulic control, top quality, easy for operation.
--Storage box: High quality carbon steel Q235
--Truck chassis: Japanese brand ISUZU Diesel engine truck chassis
--Tire: 10R22.5 tubeless tire with high trafficability.
--Crane is designed with high-strength steel plate and hexagonal boom, featuring high strength, light dead weight and strong lifting capacity.
--Rated lifting capacity: 6.3tons or 8tons, arm length: 14 or 17.7 meters.
--Arm frame form: straight arm
Cabin | Dongfeng Kingrun | ||||||
Vehicle Main Dimensions | (L x W x H)mm | 9000×2550×3730 | |||||
| Wheel base (mm) | 5000 | ||||||
| Wheel track (front/rear) (mm) | 1880/1800 | ||||||
| Approach/Departure angle(°) | 20/12 | ||||||
Weight in KGS | Tare Weight | 11080 | |||||
| Loading Capacity | 6725kg | ||||||
| Front axles loading capacity | 65000 | ||||||
| Rear axles loading capacity | 11500 | ||||||
Max. driving speed(km/h) | 85 | ||||||
Engine | Brand | Cummins | |||||
| Model | B190 33 | ||||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||||
| Horse Power(HP) | 190HP | ||||||
| Emission standard | Euro III | ||||||
Gearbox | 8 forwards & 1 reverse | ||||||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||||
Steering Gear | power steering, hydraulic steering with power assistance | ||||||
Fuel tank (L) | 300 | ||||||
Tire | 10R22.5 tire,6 pieces with one spare | ||||||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||||
| Model | XCMG/CLW/PALFINGER | |
| Max. Lifting Capacity | KG | 63000 |
| Max. Lifting momen | T.M | 15.7 |
| Lifting height | M | 11 |
| Working radius | M | 9 |
| Recommend power | KW | 20 |
| Max. Oil Flow of Hydraulic System | L/Min | 40 |
| Max. Pressure of Hydraulic System | Mpa | 20 |
| Oil Tank capacity | L | 90 |
| Crane weight | KG | 2102 |
| Installation Space | mm | 900 |
| Rotation Angle | ° | 360° All rotation |
Why do you choose XCMG crane?
★Accurate positioning: smooth movement, accurate positioning, can complete high difficulty, high precision lifting tasks
★Fuel saving: crane is 500-1000 kg light, and can be lifted under the state of engine idle, 30% fuel saving
★Save trouble: the crane has a low failure rate and adopts a large number of maintenance-free designs. The maintenance is economical and simple, reducing the use cost by 30%
★Save worry: timely and thoughtful service, one call to solve problems, save 30%-50% of maintenance cost
★Strong operation capacity: the strongest lifting capacity, the extra-long lifting range, the operation capacity is increased by 10%-20%
★Continuous operation: continuous operation under high temperature and heavy load environment, the operation efficiency can be increased by more than 30%.

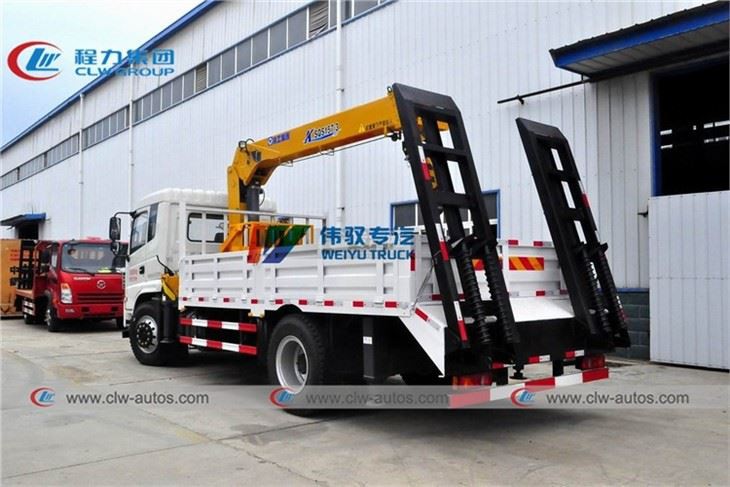

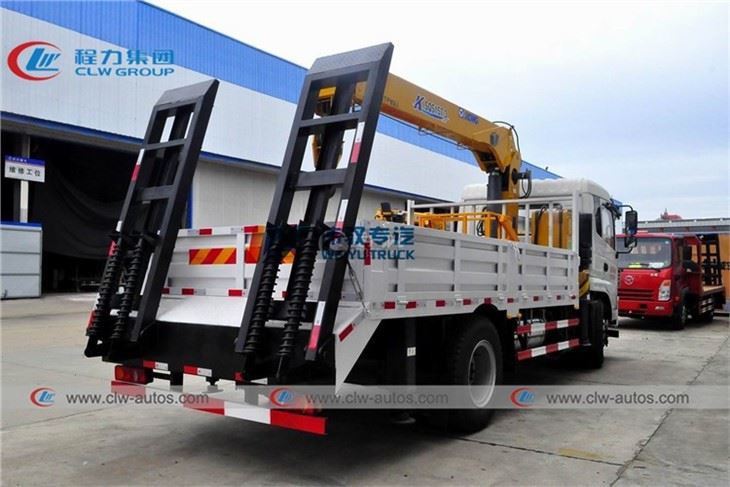

Reference picture★XCMG 3-section telescopic crane

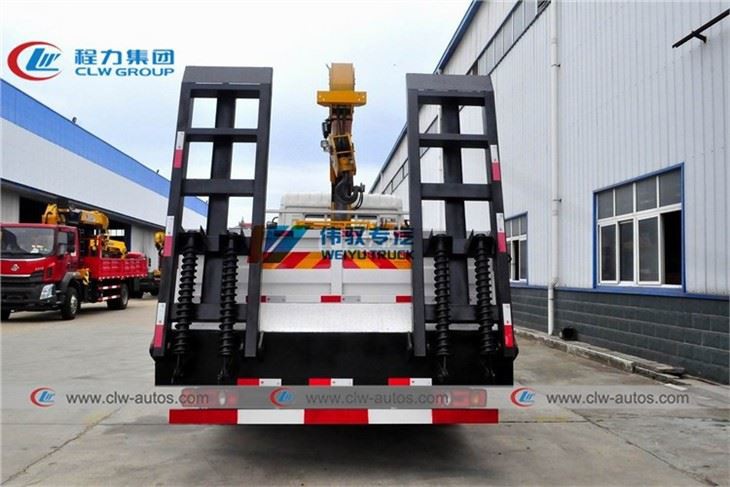

★hydraulic rear landing leg
★hydraulic rear ladder
★hydraulic oil box

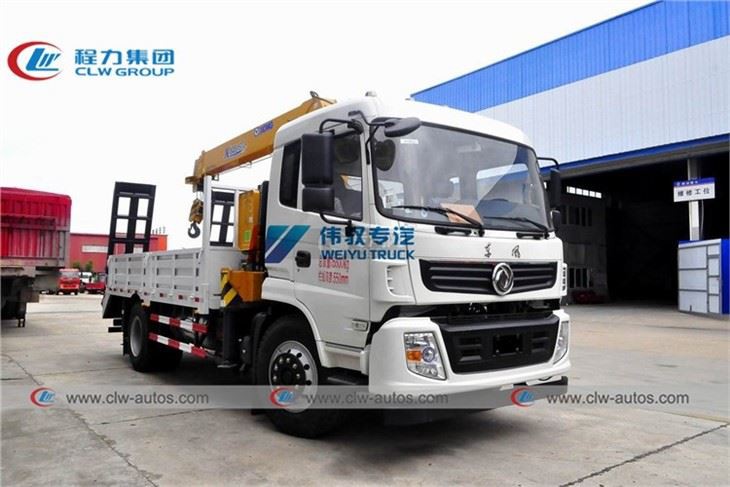

★left side of dongfeng kingrun truck with 6.3tons crane
