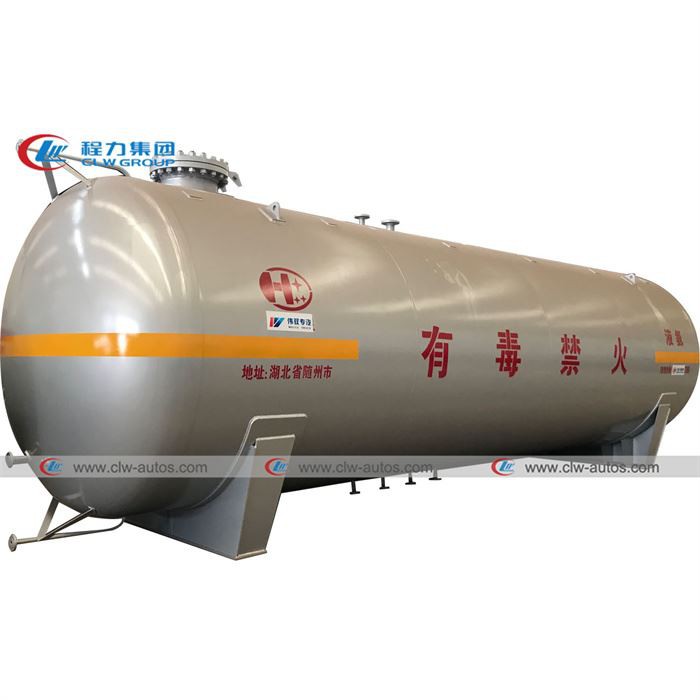

50,000L 50CBM Liquid Ammonia Storage Tank

Tank size:50000Liters;
Tank material:Q345R
Dimension:8620*2840*3420mm
Thickness:16mm,18mm, or 20mm
Design pressure: 1.77Mpa
Design lifetime:20 years

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50,000l 50cbm liquid ammonia storage tank in China. If you're going to buy high quality 50,000l 50cbm liquid ammonia storage tank, welcome to get more information from our factory. For price consultation, contact us.

50,000L 50CBM Liquid Ammonia Storage Tank

Product Description

1. Storage medium of liquid ammonia storage tank: Liquid ammoina, LPG, Dimethyl ether, Iso-butane, Pentane and etc.
2. Available tank capacity of liquid ammonia storage tank: 5m³~200m³, 2ton~100tons
3. Manufacturing standards of lpg gas plant tank: GB50016-2006, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

Product Specification

Item	Name		Unit	Parameter
1	Product model		/	liquid ammonia storage tank
2	Vessel type		/	On the ground
3	Tank Volume		m3	50
4	Filling medium		/	liquid ammonia
5	Filling coefficient		Kg/ m³	520
6	Tanker material		/	Q345R
7	Overall dimension		mm	862028403420
8	Tank inner diameter		mm	2800
9	Thickness	End plates	mm	20
		Shell body	mm	20
10	Curb weight		kg	14470
11	Filling medium weight		kg	24700
12	Corrosion allowance		mm	2
13	design pressure		Mpa	2.16
14	Hydrostatic test pressure		MPa	2.22
15	Designing temperature		°C	-19~50
16	Produce Manufacturing standards		/	GB50016-2006
17	Certification		/	ISO 9001-2015
Production process control			1. Steel Plate Cutting &Rolling
			2. Tanker Body Welding
			3. X-ray Welding Seam Detection
			4. Whole Tanker Heat Treatment
			5. Rust, Sand Blasting, Puttying
			6. Water Pressure Test
			7. Painting: primer, finish, lacquer

Reference Photos

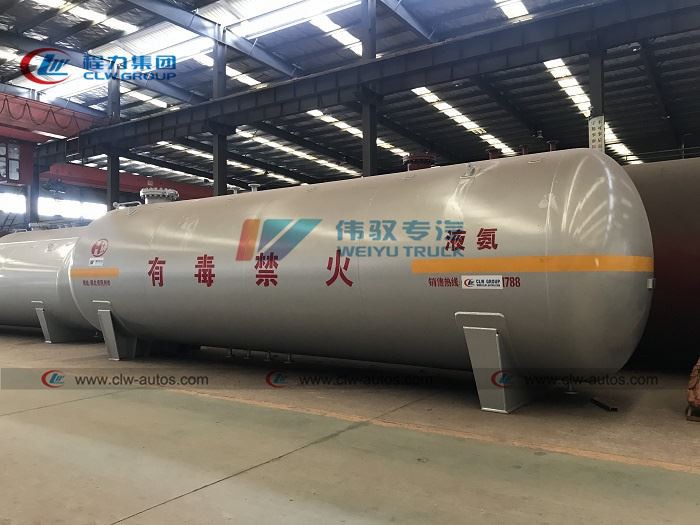

Liquid ammonia storage tank

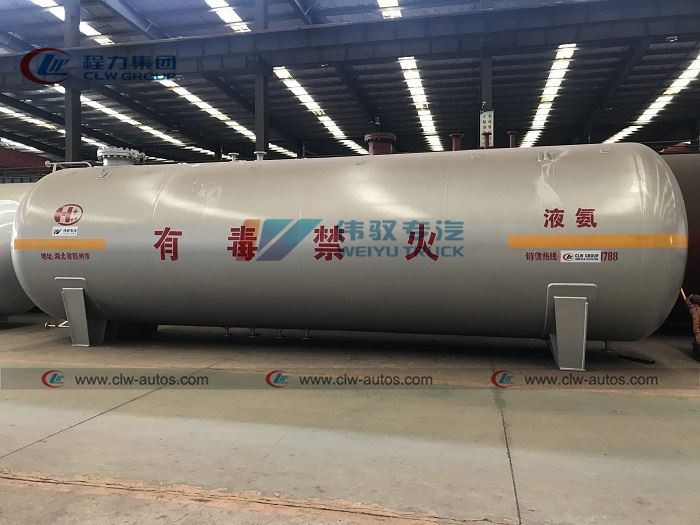

50cbm Liquid ammonia storage tanker

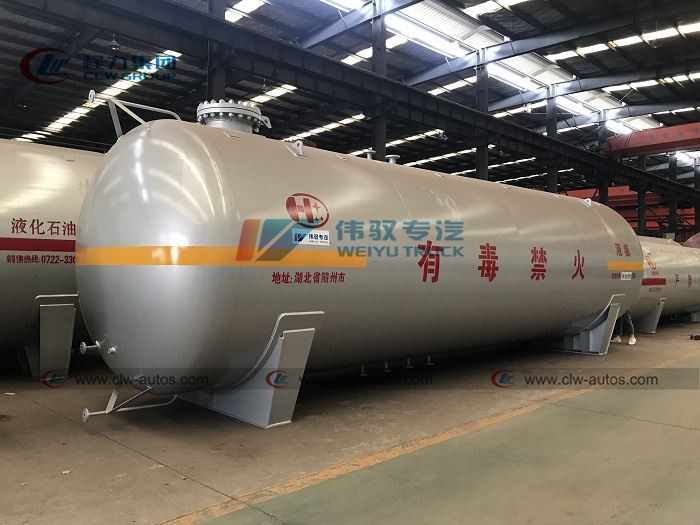

50000Liters Liquid ammonia storage tank

We supply customized drawing for every storage tank

Production and shipment

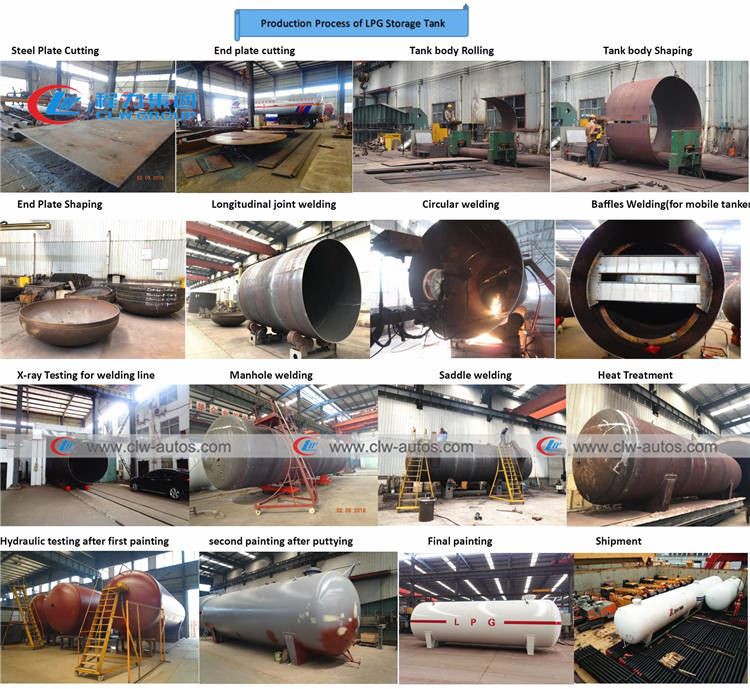

25T 25MT 50000L LPG Gas Tank01

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
