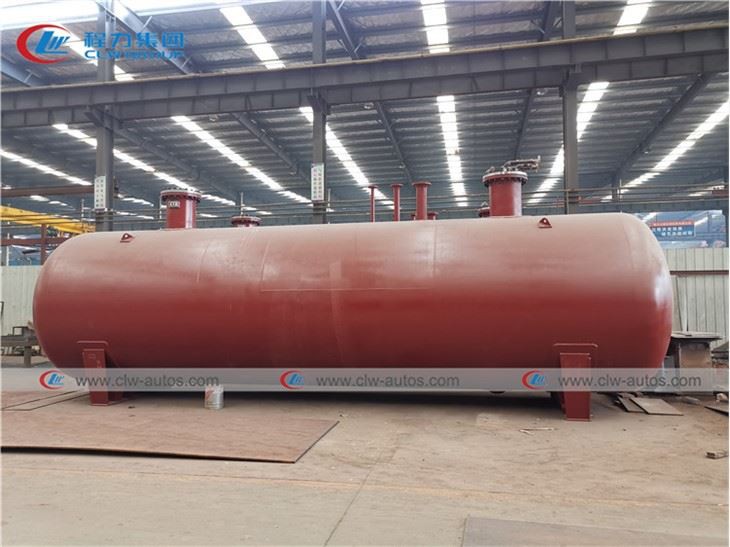

Underground LPG Tank 50000liters 13000 Gallons

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of underground lpg tank 50000liters 13000 gallons in China. If you're going to buy high quality underground lpg tank 50000liters 13000 gallons, welcome to get more information from our factory. For price consultation, contact us.



Function

--Underground LPG tank (also called burried lpg tank,lpg underground tank,underground liquid petroleum tank) is a professional product for storing LPG or propane gas underground.As the name suggests, buried lpg storage tank is buried underground.The tank consists of saddle, tank (including head and tank shell), manhole integration (including liquid phase mouth, gas phase balance mouth, sewage outlet, liquid level gauge, thermometer, manhole cover, etc.)The outside of the tank should be drained in three steps and the cathodic corrosion protection should be backfilled with sand and stone.This kind of product is the necessary storage tank for LPG station when the land area is small and the fire safety distance is not enough.

Why do you choose underground lpg tank compared with above ground lpg tank?

★underground lpg tank requires less land than above ground lpg tank.The buried LPG storage tank can halve the distance from the storage tank to the building, effectively use the land area and make the whole beautiful and harmonious after installation.

★The service life is also better than that of the aboveground liquified gas storage tank with good anti-corrosion treatment;

★The temperature underground is more stable for underground lpg tank to avoid possible risk brought by high temperature

Feature

--The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

--non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

--Design pressure of Underground LPG tank: 1.77Mpa;

--hydraulic testing pressure:2.21 Mpa;

--Corrosion allowance: 1mm;

-Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.

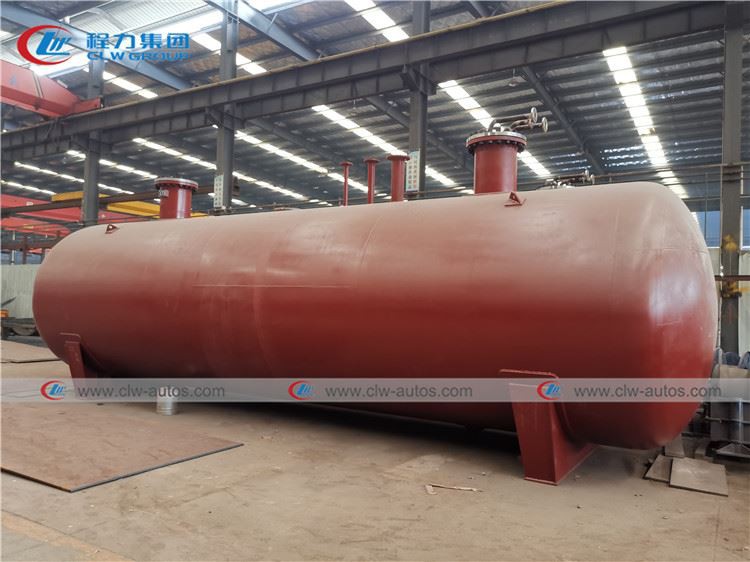

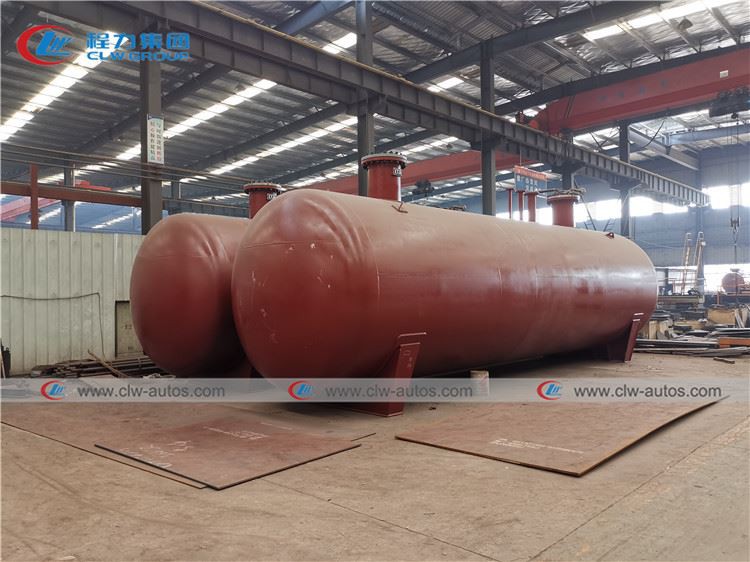

Pictures of underground LPG tank 50000liters

Specification of
 underground LPG tank 50000liters

ITEM		PARAMETER	ITEM		PARAMETER
Volume		50cbm	Thickness of Shell		14mm
Tank Material		Q345R	Thickness of End plate		16mm
Overall Size		9182*2728*3990mm	Tank Net Weight		11325kg
Tank Diameter		2700mm	Loading Capacity		19950kg
Design Pressure		1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20℃~50℃	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years
Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-80	Safety Valve DN80			1		RF
Y-100T	Pressure Gauge M20*1.5  1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40℃~60℃

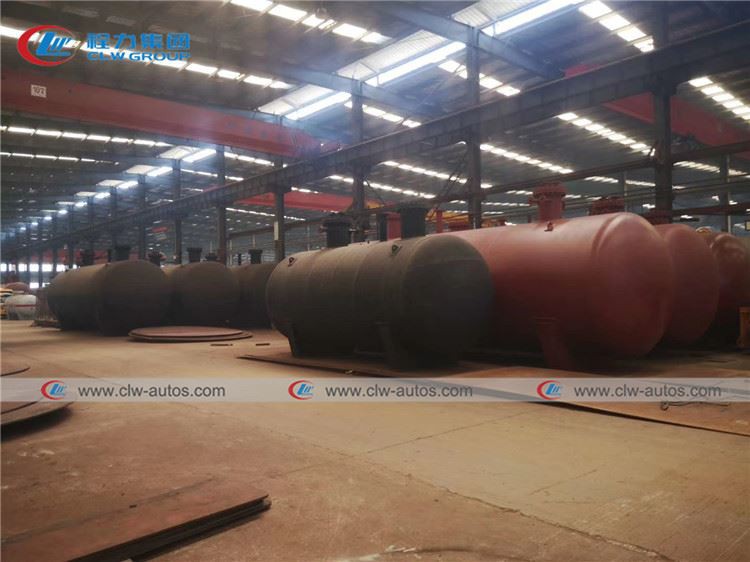

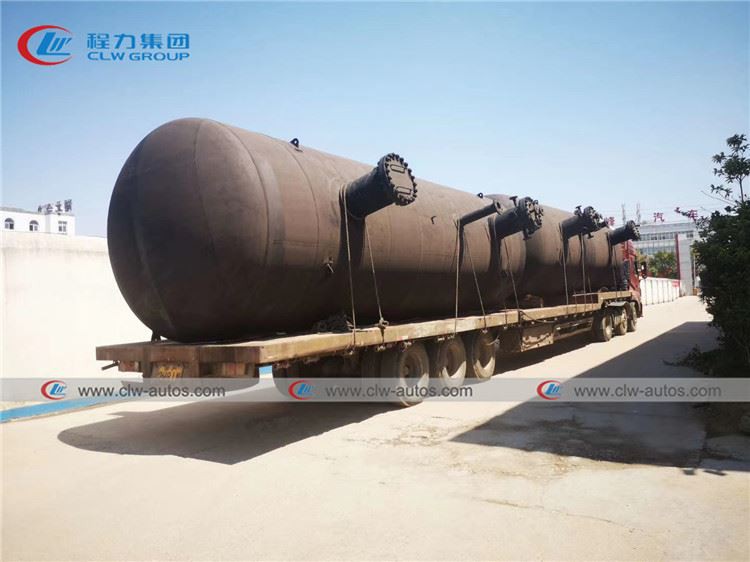

Production and shipment of underground LPG tank

FAQ★How can I get a sample of underground lpg tank to check your quality?Answer:Due to the underground lpg tank size,sample can not be sent to your country.But we have supplied a lot of underground lpg tanks to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
★How long can I expect to get the underground lpg tank?Answer:20~30 working days after receiving deposit at account.
★What's your payment term?

Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of underground lpg tank?

Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.

★Does your underground lpg tank have warranty service? How long is the warranty period?

Answer:Yes,lifetime of underground lpg tank is 20 years.

Overseas service and Client visiting

Installation and precautions for underground LPG tank

--It is necessary to do a good job of cathodic anti-corrosion for the buried lpg tank. The tank body of LPG storage tank is in contact with the minerals in the soil and will be corroded by acid, alkali and salt substances in the perennial erosion process, which will cause fatal harm to the tank body over time.Therefore, for underground lpg tank and related equipment, we mainly do a good job of cathodic corrosion, through the 'impressed current protection law', will be protected metal and the negative pole of the power supply connection, another conductive inert material to connect the positive pole.After electrification, the metal surface produces a negative charge (electron) accumulation, thus inhibiting the loss of electrons of the metal to achieve the purpose of protection.Prevent corrosion of metal equipment in soil, seawater and river water from LPG tanks.

--The upper surface of underground lpg tank is filled with some fine sand. The requirements are as follows: the size of sand grains is uniform and finely broken, and the depth is about 400 mm.
