Description
1. We can supply all brands of special trucks, such as Dongfeng, ISUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4
3. Tank size optional from 1cbm, 2cbm to 18cbm 20cbm
Feature
1. The garbage bin is made of stainless steel with a filter plate inside, which can effectively prevent light objects such as leaves from blocking the air outlet and dust from being discharged.
2. Anti-corrosion, anti-rust and anti-virus treatment inside the water tank.
3. The cleaning structure of "Center 4 brush + rear suction cup", the front sweeping disk has automatic obstacle avoidance function, and the left and right sweeping brushes can be controlled separately.
4. According to the user's needs, it can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel, operation monitoring system, auxiliary suction device and snow shovel.

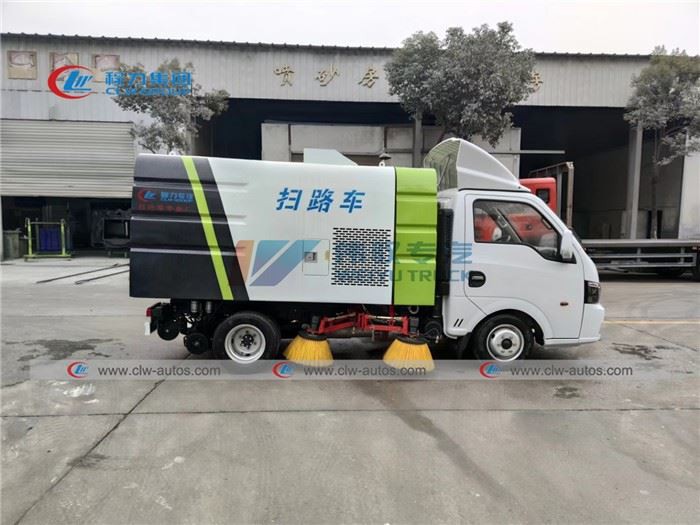

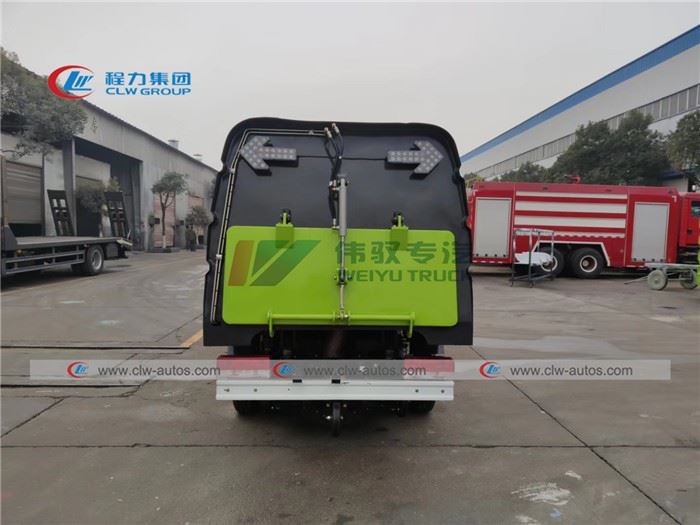

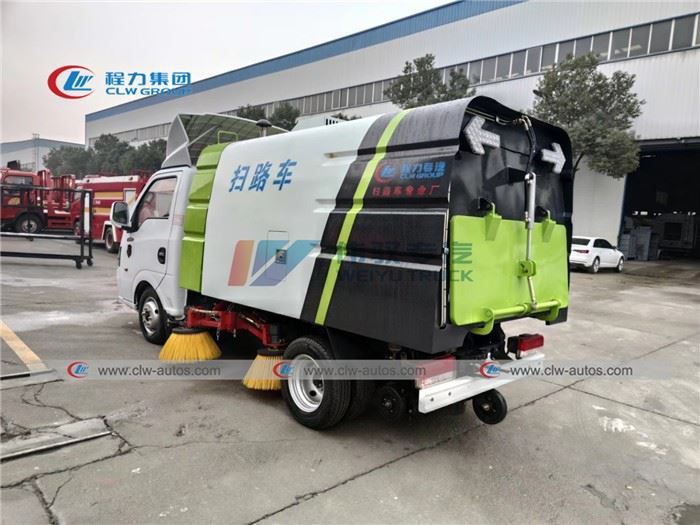

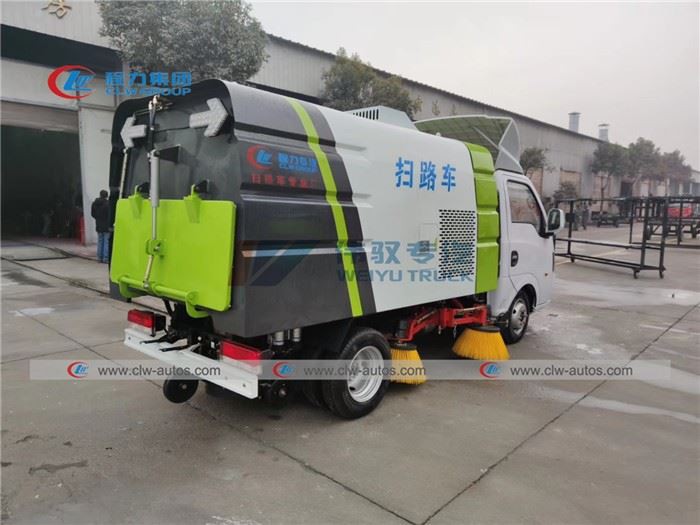

Reference Picture
Technical parameter
| |||||
| New condition/Left hand drive/4x2 | ||||
| Brand | Dongfeng | |||
Curb weight(kg) | 4460 kg | ||||
Wheelbase(mm) | 2600 mm | ||||
Dimensions(mm) | 5010x1660x2190 | ||||
Wheel track (front/rear) (mm) | 1504/1425 | ||||
Approach/Departure angle(°) | 24/13 | ||||
Axle Load(kg) | 5280/4720 | ||||
Max. driving speed(km/h) | 90 km/h | ||||
Tire | Specifications | 6pcs with one spare tire | |||
Number | 6.00-13 | ||||
| Reinforced diaphragm clutch | ||||
| Manual type, 5 Forwards & 1 Reverse | ||||
| Left Hand Driving, 3 Passenger Allowed | ||||
| Model | Diesel Engine | |||
Power(kw)/Horsepower(HP) | 98 HP | ||||
Emission standard | Euro III | ||||
| Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||||
Auxiliary brake: engine exhaust valve brake | |||||
| Power steering, hydraulic steering with power assistance | ||||
| |||||
| Garbage tank | Tank material | Stainless steel 304 | ||
Tank volume(cbm) |
| ||||
Water tank | Tank material | Stainless steel 304 | |||
Tank volume(cbm) |
| ||||
| Model | ISUZU | |||
Power(kw) | 98 HP | ||||
| Quantity(pc) | 2 pcs | |||
Working area(m) | 2.7-3.2 m | ||||
Cleaning | High pressure reel | 18 meters | |||
| 1, With water sprayer-bar | ||||
2, Rear vacuum cleaner | |||||
3, Blower | |||||
4, Rear LED pilot lamp | |||||
5, Self unloading box body | |||||
6, The color will be designed on basis of your requirements. | |||||
