Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5 tons fuel tank truck in China. If you're going to buy high quality 5 tons fuel tank truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
Specification
| ||||
Overall Dimension | 6000x2050x2500(mm) | Gross Vehicle Weight | 7360(kg) | |
Curb Weight | 3760(kg) | Loading Weight | 3460(kg) | |
| ||||
Chassis parameters | Chassis Brand | DONGFENG | ||
Cabin | Single, Left Hand Driving, with ABS | |||
| Model | CY4BK551, 4 Cylinders | ||
Power | 75KW/102HP | |||
Emission standard | EURO V | |||
Displacement | 3.707L | |||
Fuel type | Diesel | |||
Gearbox | 5 Forward & 1 Reverse Gear | |||
Front and Rear Axle load | 3.5T rear axle | |||
Wheel Base | 3308(mm) | |||
Overhang( Front/Rear) | 1040/1647(mm) | |||
Angle(Approach/departure) | 16/14(°) | |||
Brake System | Pneumatic | |||
Steering Gear | Power Assistant | |||
Tire | 7.00R16, 6 Pieces | |||
Maximum speed | 80(km/h) | |||
| ||||
Fuel Tanker | Tank Volume | 5tons | ||
Tank Material | Q235B Carbon Steel | |||
Tank Shape | Square Round | |||
Transport oil type | Diesel/Petrol | |||
Equipment | Lifting fence, ladder, Manhole 1 Unit, Emergency cut-off valve 1 Unit | |||
Optional API standard system | Anti-overflow probe | |||

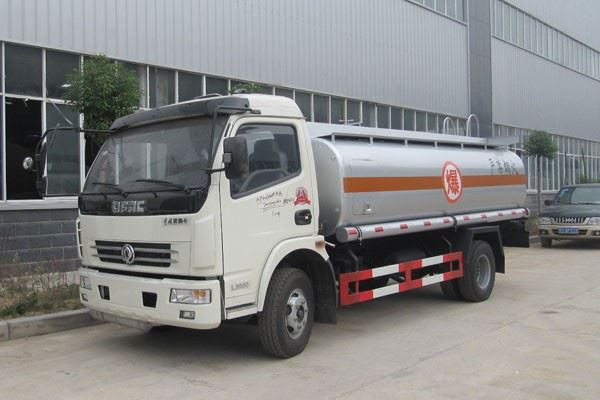

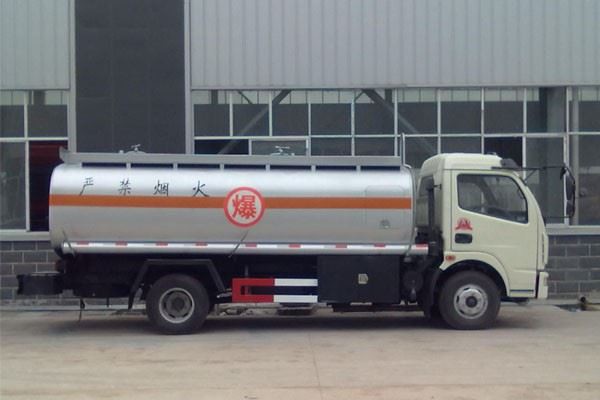

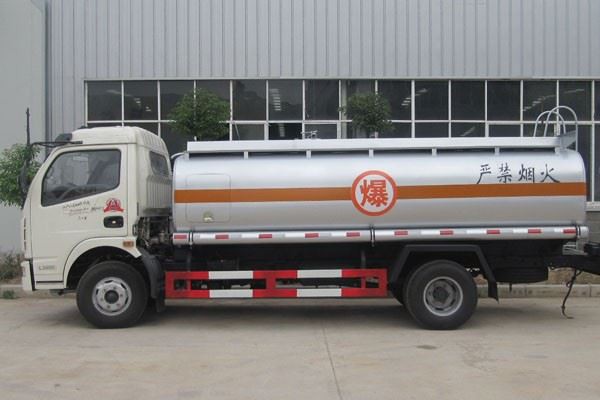

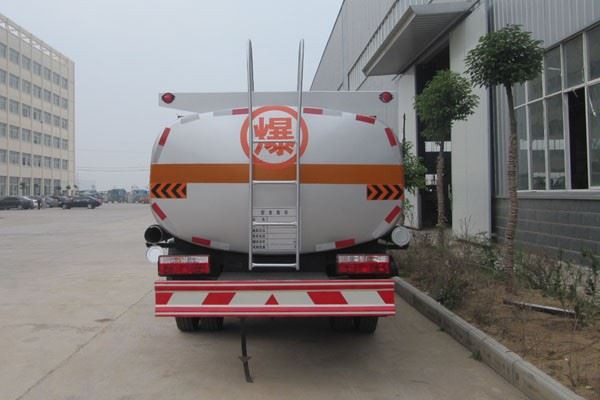

Reference Picture
Workshop
Some photos showing our factory device and production quality
Our Advantage
1. We can do the designs according to the customers'requirement.
2. Promptly delivery.
3. We can provide operation videos.
4. After the tank is formed, the high pressure gas leak test makes the tank have high strength, stable center of gravity and safe vehicle transportation.
Successful Case
Customer Inspection
Overseas Exhibition
Sales Service
1. Professional engineering and production team
2. Related Accessories and spare parts offered at factory price
3. Regular customer after-sale visiting
4. Free technical staff training and guidance
FAQ
Q1: How about your delivery time of fuel tank truck?
A: Generally, it will take 30 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: Do you test all your fuel tank truck before delivery?
A: Yes, we have 100% test before delivery
Q3: Do you accept custom order? What's is your MOQ order?
A: Yes, we do, our MOQ is 1 unit.
