Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40000l bitumen semi trailer in China. If you're going to buy high quality 40000l bitumen semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. 40000Liter Volume can carry 40Ton Hot Bitumen
2. 3 Layer Tanker, inner Carbon Steel, middle rock wool, outside galvanized sheet
3. Inside Heating Pipes to complete melt bitumen in discharging
4. Special Discharging designed discharging pipeline for easier discharging
5. Large Capacity Rear Heater for Efficient & Durable working.
6. 13Ton Fuwa or BPW Axle for Even Heating.
Specification
Model | 3 axle 40Tons Bitumen Tanker Semi trailer |
Outside dimension | 11,000*2500*3850 |
Volume of tank | 40,000Litres |
Total weight | 49,000kg |
Loading weight | 40,000kg |
Net weight | 9,000kg |
Thickness of tank | 6mm carbon steel. |
Tire | 11.00R20 8 pcs |
wheelbase | 5650+1300 mm |
13T Fuwa two axles. Jost supporting legs | |
Manhole | Two units on the top of tank body |
Outlet | One outlet at rear of tank body for self-discharges. |
ladder | Steel mounted at front, bolted top and bottom |
Cabinet | One at the rear end of the tank covering the valve. |
Toolbox | For emergency kits, between the two landing gear |
Fender | Plastic |
Fire extinguisher | 8KG in the front near the landing gear place |
Special suction | Heating by rock wool insulation material. |
Insulation thickness : 5mm | |
Combustion machine burned system: | |
Burner model | |
asphalt pump | LQB58/0.36 |
Flux: 960I/min or 58m3/h | |
Working pressure: 58Mpa | |
Suction vacuum height: 3m | |
Diameter of outlet and inlet: 100mm | |
Driving diesel motor: 22KW. | |

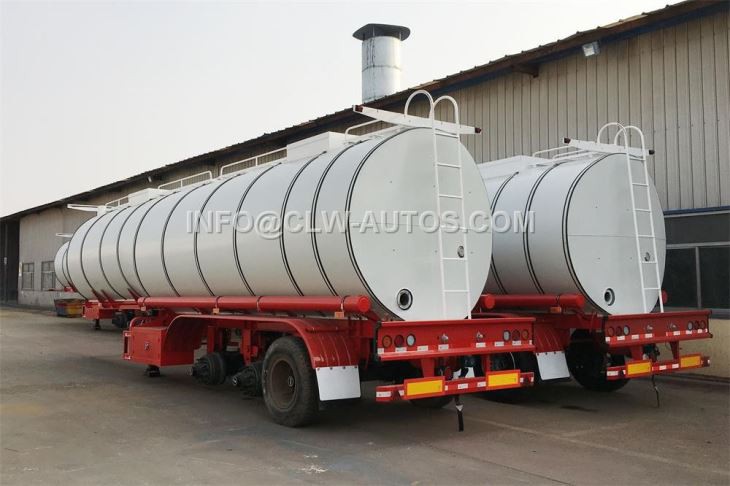

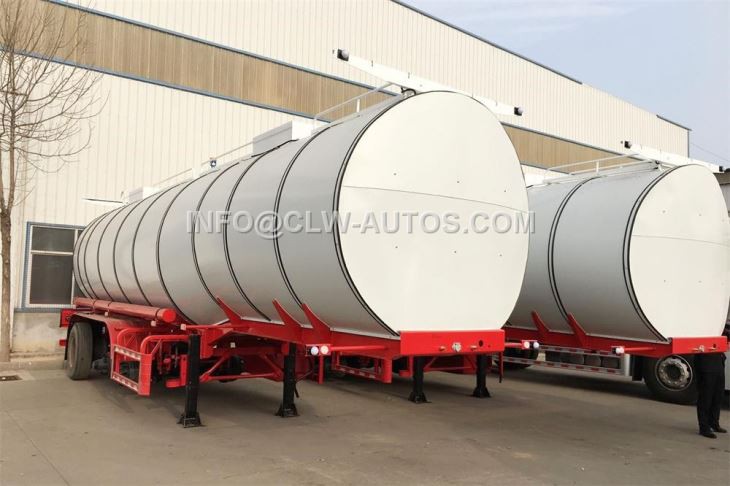

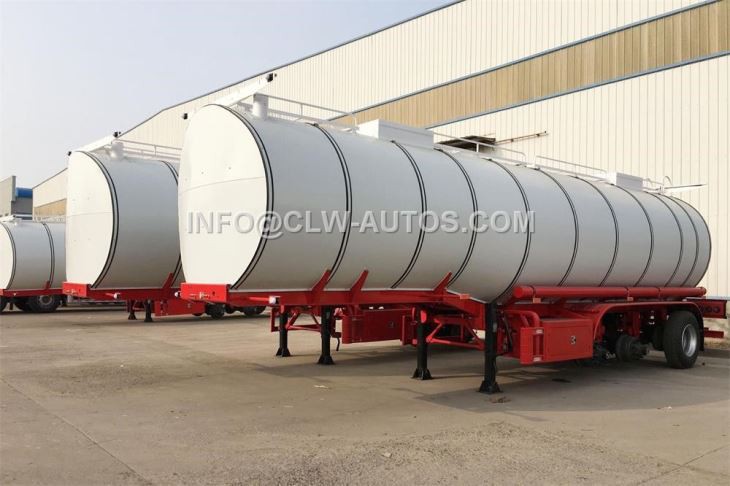

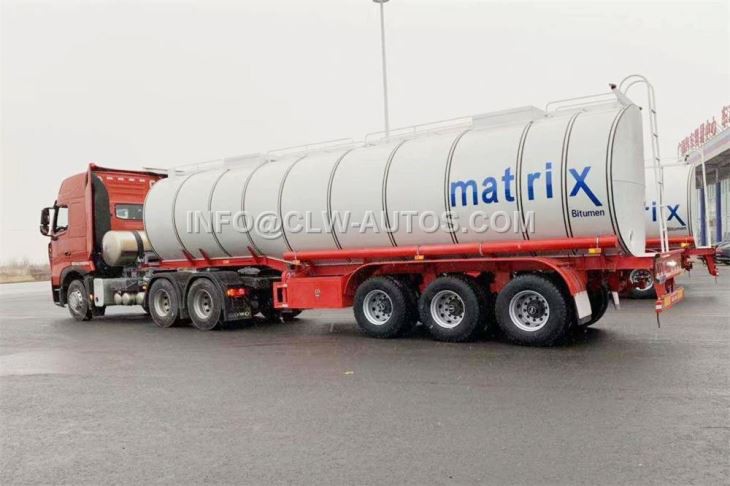

Reference Picture
Introduction of production process
A. Steel auto cutting
B. Main beam auto submerged arc welding
C. chassis reversal
D. shot blasting for rust cleaning
E. F.Welding by experienced worker
G. Final cleaning welding slag
H. Dust-free painting
Our Advantage
1. Supplying Most Appropriate Model as per Customer’s requirement
2. Good Offer with flexible payment term.
3. On Site After sales service
4. Service Available for Delivery
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: Can i have the drawings?
A: Yes, we will make the more precise drawings after getting the down payment, and will send this drawing to you for your confirmation before production.
Q2: Can I customize the trailer?
A: Yes, you can choose as your actual request, then tell us the needs. We will communicate with technology and production and implement your customized trailer.
Q3: How can I pay the money without risk?
A: Beside paying T/T payment, also you can pay in L/C to ensure you money.
Q4: What about warranty?
A: Our warranty for the tractor head is 12 months from the date of delivery for the major parts, including Axles, Beams and major parts. Easy Wore parts are not included.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
