Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng captain 5 tons flatbed rollback wrecker truck in China. If you're going to buy high quality dongfeng captain 5 tons flatbed rollback wrecker truck, welcome to get more information from our factory. For price consultation, contact us.
China flatbed wrecker truck(also called 5 tons rollback wrecker,5 tons wheel lift tow truck,breakdown rescue truck,flatbed recovery truck,flat platform recovery truck) is used to move disabled,breakdown cars,vehicles,bus,improperly parks vehicles or acts as a car carrier temperarily.
Flatbed wrecker truck is optional for knuckle boom crane or straight boom crane.
Flatbed tow truck is optional for electrophoretic painting for better auti rust effect
Flatbed recovery truck is optional for remote control
Both left hand drive and Right hand drive are available
ISUZU wrecker,Howo wrecker truck,JAC wrecker,Foton Wrecker,FAW tow truck,shacman towing truck is optional.
whatsapp for quick inquiry +86 135 45064324
|
Chassis |
||
|
Drive Model |
4X2, Right hand drive/Left Hand drive |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)(mm) |
7500X2300X2570 mm |
|
Wheelbase (mm) |
3800 |
|
|
Weight in KGS |
Curb Weight (kg) |
5120kg |
|
Front/Rear axle loading(kg) |
2700/6800 |
|
|
Max. driving speed(km/h) |
95 |
|
|
Engine |
Model |
YC4FA120-33 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
120HP/88KW |
|
|
Emission standard |
Euro II |
|
|
Max. Torque |
345 N.m |
|
|
Displacement(ml) |
2982 |
|
|
Brakes |
Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. |
|
|
Cabin |
|
|
|
Gearbox |
l 6 forwards & 1 reverse |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
8.25R16 tire , 6 + 1(spare tire) |
|
|
Upper & Equipment |
||
|
Platform material |
|
|
|
Lifting and Towing device |
Max. Towing capacity(kgs) |
5000 |
|
Max. Lifting capacity(kgs) |
5000~6000 |
|
|
Platform |
Max. Loading capacity(kgs) |
5,000 |
|
Length(mm) |
5600/5800 |
|
|
Width(mm) |
2250 |
|
|
Minimum inclination angle(°) |
8° |
|
|
Platform working itinerary（mm) |
2700 |
|
|
Ground clearance(mm) |
1100 |
|
|
Winch device |
Quantity(pcs) |
1 pc |
|
Rated traction(KN) |
50 KN |
|
|
Wire rope diameter(mm) |
φ12 |
|
|
Wire rope length(m) |
25 m |
|
|
Minimum linear speed of wire rope(m/min) |
3.23 m/min |
|
|
Remarks |
1. Auxiliary trolley two units 2. Top electronic lamp one unit 3. 1 pair “L” bracket fork 4. 4 units fastening strap |
|
|
Control |
|
|
3 Tons/4 Tons/5 Tons Rollback tow truck

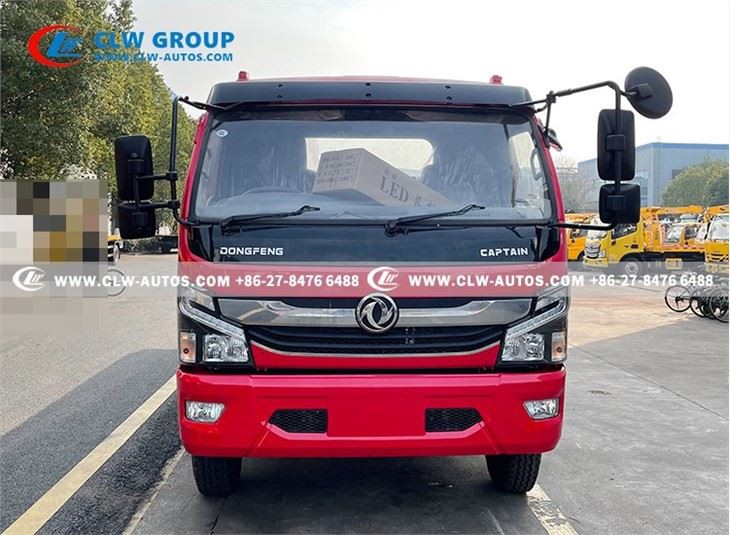

DONGFENG CAPTAIN cabin with Right hand drive

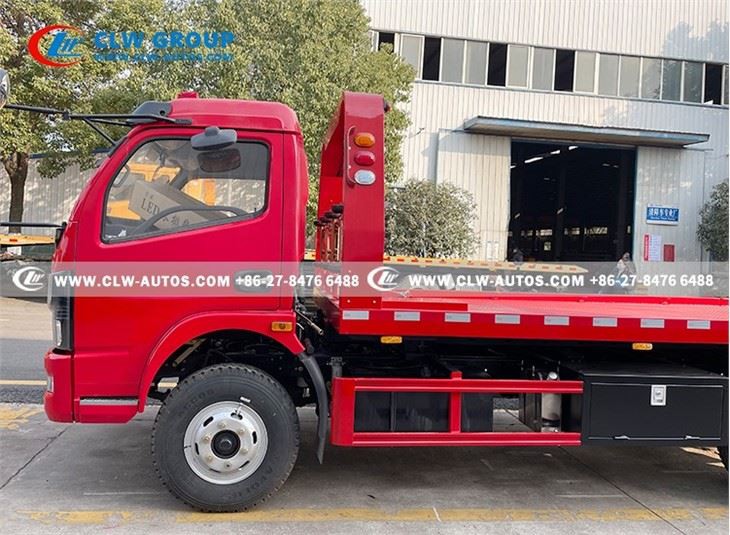

Right hand drive cabin
4mm checked plate

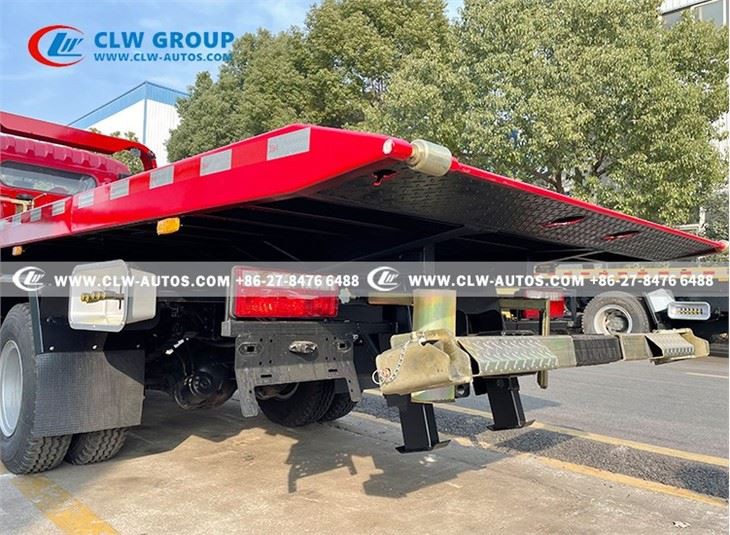

3.5 tons under lift boom

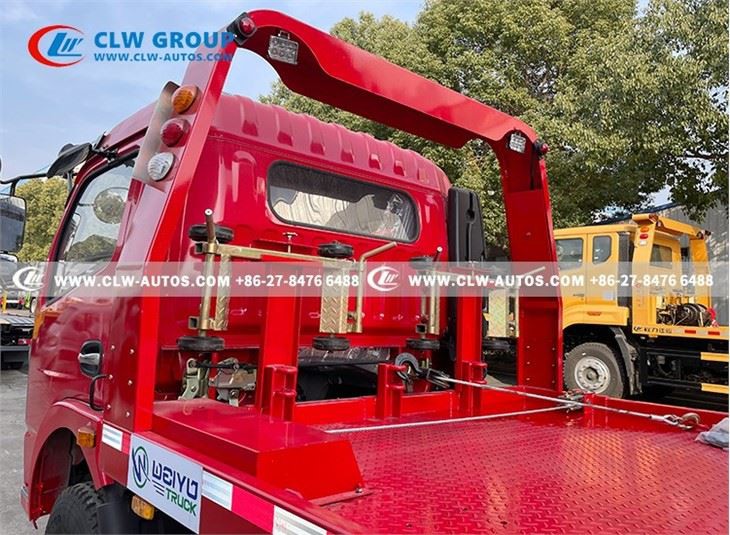

5 Tons winch and 2 Auxiliary trolle

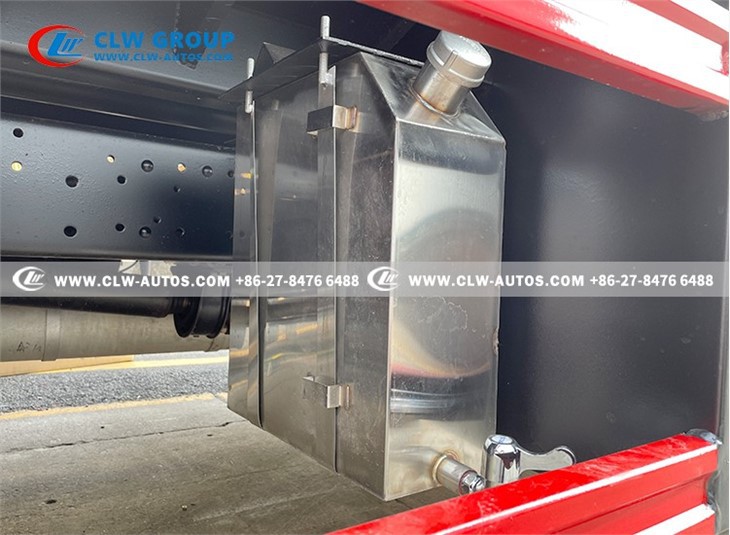

Hand washing device
