Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of jac 4tons flatbed wrecker towing truck in China. If you're going to buy high quality jac 4tons flatbed wrecker towing truck, welcome to get more information from our factory. For price consultation, contact us.
1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
| |||
Overall Dimension | 5995x2300x2250(mm) | ||
Gross Vehicle Weight | 4495kg | ||
Curb Weight | 3800kg | ||
| |||
Chassis Parameters | Chassis Brand | JAC | |
Cabin | Single, Left Hand Driving | ||
Engine | Model | 4 Cylinders | |
Power | 88KW/120HP | ||
Emission Standard | EURO III | ||
Displacement | 2771 ml | ||
Fuel Type | Diesel | ||
Gearbox | 5 Forward & 1 Reverse Gear | ||
Front and Rear Axle Load | 2.5T/5T | ||
Wheel Base | 3308(mm) | ||
Overhang( Front/Rear) | 1120/1515(mm) | ||
Angle(Approach/departure) | 21/17(°) | ||
Brake System | oil brake | ||
Steering Gear | Power Assistant | ||
Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
Maximum Speed | 90 (km/h) | ||
| |||

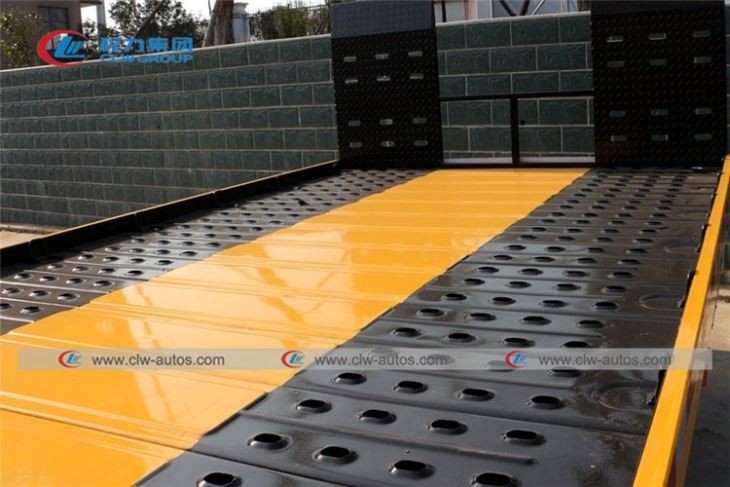

Flatbed | Dimensions | 4200x2320 (mm) | |
| 4000(kg) | ||
Operating Stroke | 2700 (mm) | ||
Min. Angle of Slope | 8(°) | ||
Platform Height from the Ground | 1070(mm) | ||

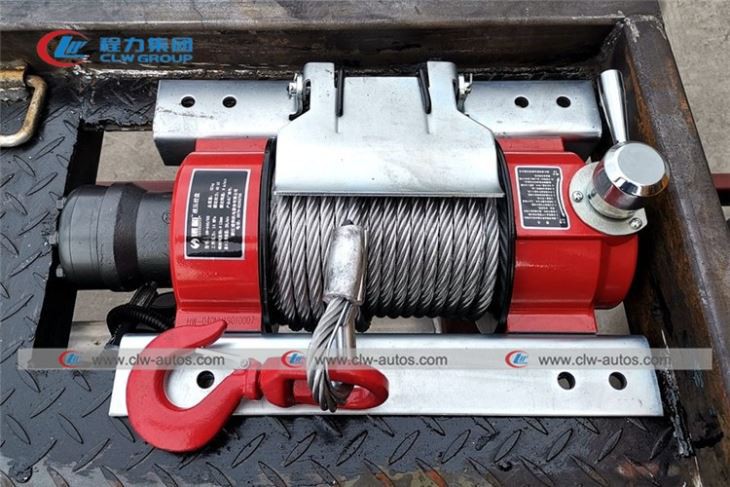

Winch | Quantity | 1pc | |
| 4000 (kg) | ||
Length of Steel Cable | 25 (m) | ||
Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| 2000 (kg) | ||
Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
Max Under-Hoist Useful Length | 1640 (mm) | ||
Remarks | 1. Equiped with One Set of Auxiliary Wheels | ||
2. Bandages 4pcs | |||
3. Yellow Warning Lamp 1pc | |||
4. Double Side Hydraulic Operation | |||
5. Can Tow 2 Cars | |||
