Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 28m cherry picker in China. If you're going to buy high quality 28m cherry picker, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1.High-platform operation truck is high effecience and great performance with good safety.
2.The Chassis brand for high-altitude operation truck is Dongfeng,1SUZU,Dongfeng, JMC,JAC, FORLAND etc.
3.12m to 22m arm hydraulic lifter
Product Specification
| |
Overall dimensions | 8450×2050×3100 mm |
Wheel base | 3800 mm |
F/R track base | 1015/2280mm |
Approach/departure angle | 24/10° |
Front / Rear Axle | 2Ton / 4.8Ton |
Cabin | ISUZU 600P cabin, Double Row, Left Hand Driving, with A/C, Radio |
Engine | 4KHF-TCG40, Diesel type, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling, Euro IV |
Displacement/ HP | 2999ml / 120hp |
Gearbox | ISUZU 5 foward &1 reverse |
Steering Gear | Hydraulic Power Steering |
Max speed | 90 km/h |
Tire specification | 7.00-16, 6 Pieces |
Traction system | 4x2 |
Equipment |
(including 1.7meter person height, net height is 14.3meter), 2. Max operation radius≤ 9.2m, 3. Max working platform height≤12.5m, 4. Working platform rating loading≤200kg, 5. Working platform rating allowable passengers=2, 6. Working platform dimension:1100*570*1000mm, 7. 360°turning(left or right), 4 H-shape legs. 8.The cage be operated both in the air and on the earth 9. Control System: Manually 10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg |

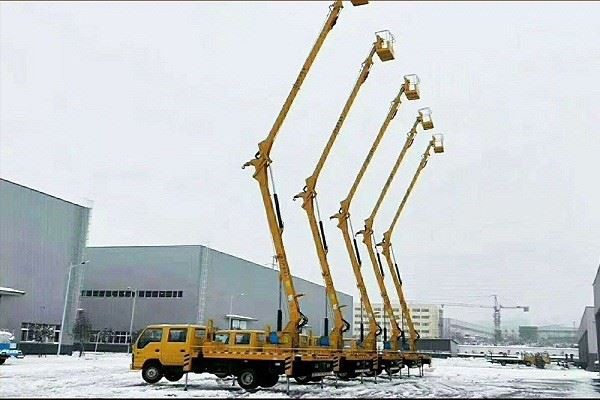

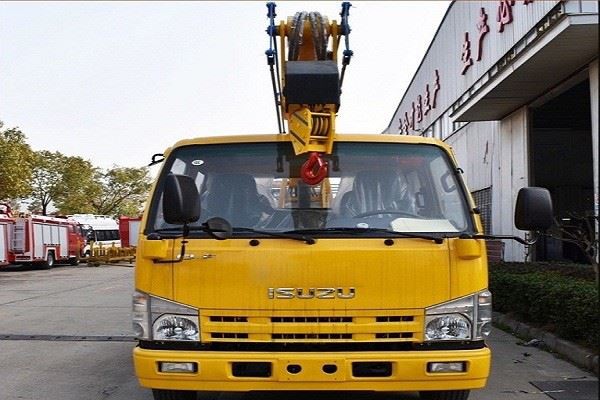

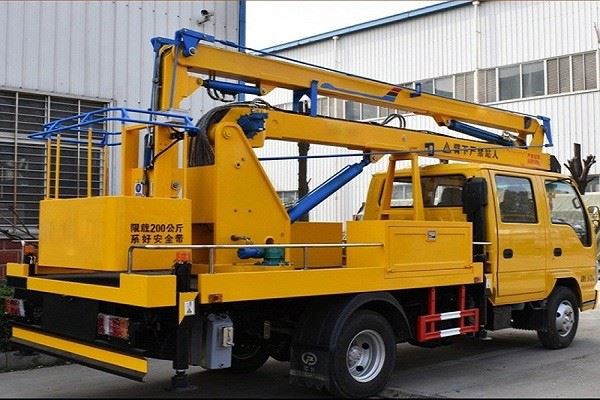

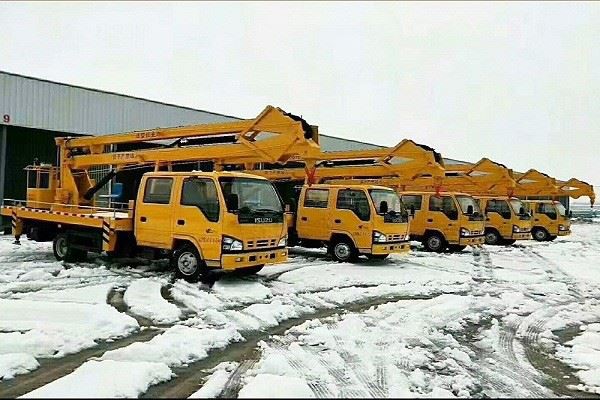

Reference Photos
Our Advantage
1. Aerial working height 12m,14m,16m,18m,20m,20m,22m
2. The rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket
4. Truck equipped with two rotating amber lights
5. Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
Successful Case
Customer Visiting
Overseas Exhibition and After-sales Service
Sales Service
1. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
2. We can provide for free operation videos or operation manuals.
FAQ
Q1: If I do not like the color,could I change the color?
A: Yes,most of our trucks have standard colors,if all colors could not meet your needs,we could customized by your request.
Q2: Can you supply the spare parts of the truck?
A: Yes,We can supply the spare parts for all the trucks we selling.We have spare parts department professional for this.Once you need spare parts we can supply immediately.
Q3: How about your product quality?
A: All our spare parts are from the original manufacturers,the quality is 100% guaranteed.
