Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10cbm dongfeng garbage compactor truck in China. If you're going to buy high quality 10cbm dongfeng garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
We are 15 years professional manufacturer of special trucks,the truck can be customized as customer requirements. Garbage truck is also called compact garbage truck,compactor garbage truck,compression garbage truck,garbage compactor,etc
(1). Volume : 3-20m3 garbage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage trucks
(4). Truck chassis: ISUZU,DONGFENG,SINOTRUK HOWO,JAC,FOTON,etc.
Feature
1--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of rear loader compressed garbage truck : option for 3-20m3 compressed garbage truck
6--Steering wheel of rear loader compressed garbage truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of compressed garbage truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8--Truck chassis of compressed garbage truck : option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...

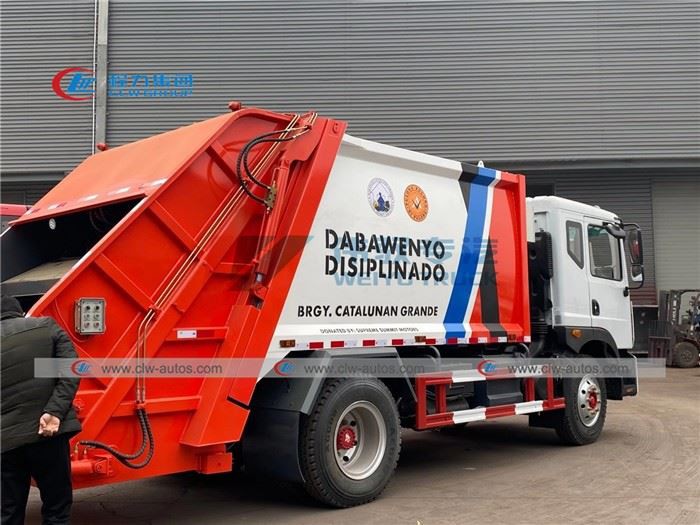

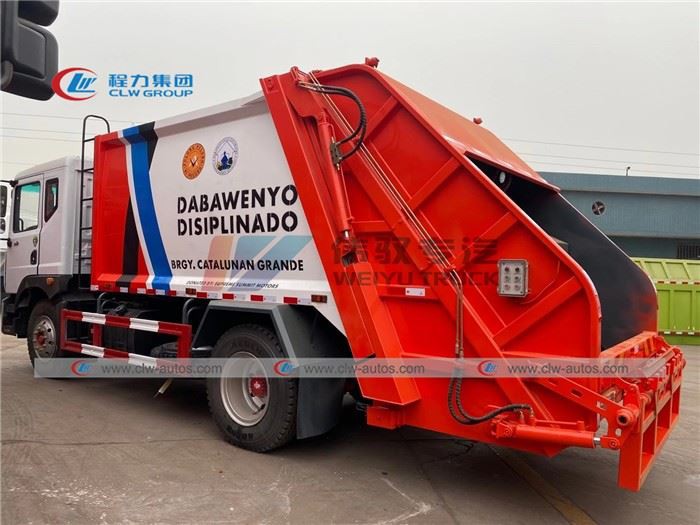

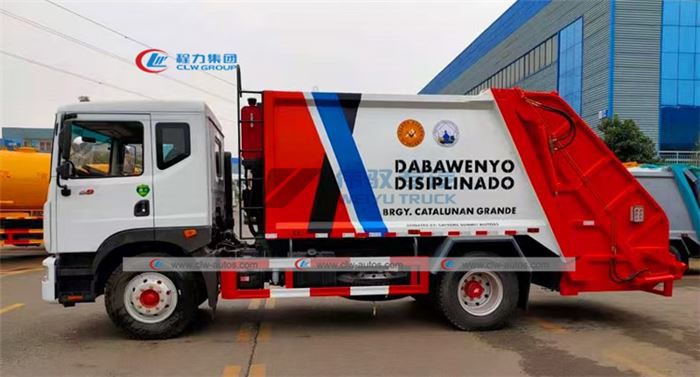

Reference picture
Specification
Cabin | Driving type 4x2 | ||
with A/C. Left Hand Drive. | |||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7580*2470*2950mm | |
Wheel base (mm) | 3950 | ||
Approach/Departure angle(°) | 24/16 | ||
Weight in KGS | Tare Weight | 7500 | |
Front axles loading capacity | 2700kg | ||
Rear axles loading capacity | 7200kg | ||
Max. driving speed(km/h) | 95 | ||
Engine | Brand | Cummins | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 170 HP | ||
Emission standard | Euro III | ||
Gearbox | 5 forwards &1 reverse | ||
Clutch | Diaphragm spring clutch | ||
Steering Gear | Power steering | ||
Tire | 9.00-20 tires with one spare, total 7 pieces | ||
Compression garbage box body system | |||
Body Volume | 10m3 | ||
Material Thickness | 5mm | ||
Cycle Time of Filling(S) | ≤40 | ||
Lifting Time of Filler(S) | 10 | ||
Time of Discharging | ≤60 | ||
Working Pressure(MPA) | 16 | ||
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||
Garbage compactor truck diagram
