Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of heavy duty sinotruk howo 12-wheel 50t tow truck in China. If you're going to buy high quality heavy duty sinotruk howo 12-wheel 50t tow truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--50t tow truck(also called 50tons road wrecker,50t wrecker truck,50t,towing truck,50t tow truck,50t recovery truck,50t towing service truck,50tons breakdown truck) is used for moving heavy duty disable,improperly parked or breakdown vehicles or car.
--Tow truck consists of the chassis, hoisting equipment,towing hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.The tow truck can hoist and underlift heavy duty break down cars or trailers and also be with other special functions, mainly used in highway and city road obstacle cleaning.
-- heavy duty tow truck can be divided into various types as follows,
1) According to the categories, the tow truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.
2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 tow truck ;
3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons tow truck ;
4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,camc,shacman tow truck .
Feature
--Powerful sinotruk howo truck chassis;
--2 Nos of 15tons or 25tons winches with diameter 28mm;
--360 ° rotation rotator towing truck;
--Italy hydro control control valve and balance valve;
--Wuxi oil hydraulic pneumatic equipment co ltd;
--One-step modeling compartment plate by germany 3P2A punching machine;
--Adopting American wrecker design and manufacturing technology.
--Key components using the finite element stress analysis (CAE technology)
--Adopting high quality high-strength steel for important components
--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
--The key hydraulic lines seals imported from Germany.
--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.
--Equipped with various fork lifts (including leaf spring forks).
--High and low fork combined with various fork lifts.
--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
--Boom with 360 degree continuous rotation.
--Equipped with trailer towing disk, remote control is optional.

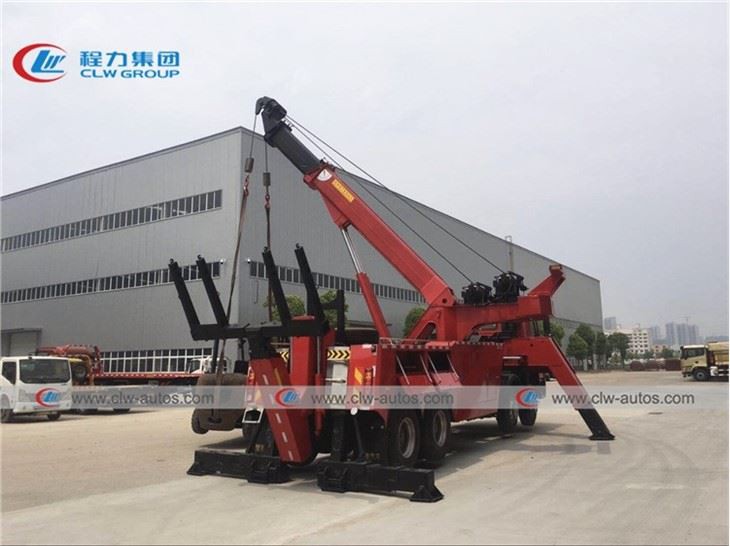

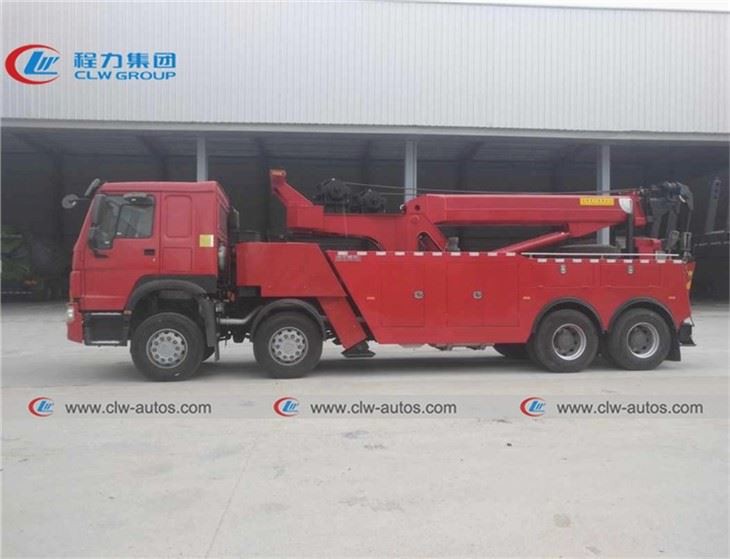

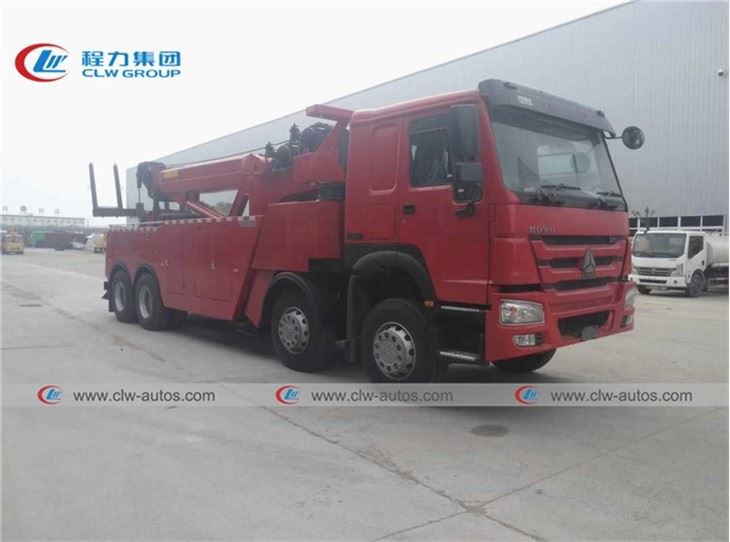

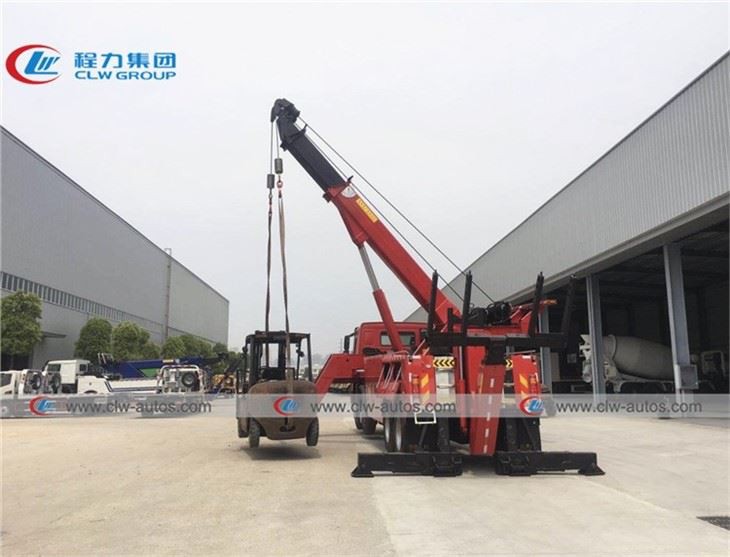

Reference picture
Remote controller
Drawing of towing winch
Specification
| |||||
Cabin | HW76 standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons | ||||
No load(kg) | Curb Weight | 13070 | |||
Front axle | 7000*2 | ||||
Rear axle | 18000*2 | ||||
Full load | Max. Overall Weight | 33000 | |||
Overall Dimensions(mm) | Length | 11430 | |||
Width | 2500 | ||||
Height | 3270 | ||||
Wheel base(mm) | 1800+4600+1350 | ||||
Track(mm) | 2022/1830 | ||||
F/R Suspension(mm) | 1500/2200 | ||||
A/D Angle(°) | 16/18 | ||||
Driving Model | 8X4 | ||||
Tyre | 12R22.5 | ||||
Max. Speed(km/h) | 105 | ||||
Max. Grade-ability(%) | 30 | ||||
Min. Turning Diameter(m) | 22.6 | ||||
Min. Ground clearance(mm) | 310 | ||||
Engine | Model | WD615.47 | |||
Horsepower(HP) | 371 | ||||
Displacement(mL) | 9726 | ||||
Transmission | HW19710,10 forwards&2 reverses | ||||
| |||||
Max. Towing Weight(kg) | 43000 | ||||
Lifting System | Max. Lifting Weight(kg) | 25000 | |||
Max. Lifting Weight under all extension(kg) | 8300 | ||||
Effective Length of Corbeling Arm(mm) | 3650 | ||||
Extend-retract of Corbeling Arm(mm) | 1750 | ||||
Slope Angle of Corbeling Arm(°) | 7 | ||||
Folding angle under no load(°) | -7~92 | ||||
Folding angle under load(°) | -7~16 | ||||
Max. Ground Distance(mm) | ≮900 | ||||
Landing Strength(KN) | 80*2 | ||||
Hydraulic Hose | Tianhe,Guangdong Province | ||||
Hydraulic Joint | Germany technology and exported Sealing rings | ||||
Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||
