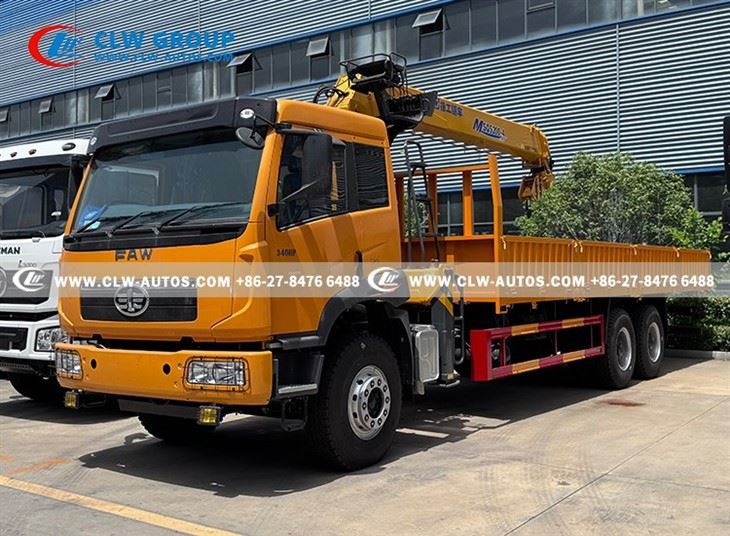

FAW J5P 10 Wheels 6X4 8-Ton Straight Boom Crane Truck For Tanzania
FAW (First Automobile Group) is a leading brand of Chinese commercial vehicles.
Its truck-mounted crane transport vehicles are highly competitive in Tanzania and the global market.
Military-Grade Chassis
Customizable Crane
Cost Efficiency
Environment Adaptability
Core Features
1. Articulated Arm Configuration
Features a multi-jointed folding arm that can be compactly stowed, optimizing space efficiency and ideal for confined workspaces.
2. Versatile Functionality
Compatible with various attachments such as grabs, clamps, lifting hooks, and elevated work platforms, making it suitable for timber transport, scrap metal recovery, machinery assembly, and similar operations.
3. High-Performance Power Unit
Utilizes either a standalone hydraulic pump or a chassis-powered take-off drive, ensuring seamless hoisting operations.
4. Usage Environments
Distribution hubs: Containerized cargo handling.
Construction zones: Lifting steel beams and formwork.
Disaster response: Rapid debris clearance (articulated arm can access tight spaces).
|
FAW Crane Truck With 8Tons Straight Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
Q011P |
|
Driving Model |
6x4 |
|
Dimension |
11000 x 2500 x 3900 mm |
|
Cab |
|
|
Wheelbase |
5865+1350 mm |
|
Gross vehicle Weight |
25000 kg |
|
Curb Weight |
15600 kg |
|
Front Axle Loading Capacity |
6500 kg |
|
Rear Axle Loading Capacity |
11500 x2 kg |
|
Axle Number |
3 |
|
Engine |
|
|
Model: WP10.340E32 |
|
|
Horse power: 340 HP |
|
|
Displacement: 9726 ml |
|
|
Emission standard: Euro 2 |
|
|
Transmission |
Model: 9JSD135T |
|
9 Forwards & 1 Reverse |
|
|
Tire |
12.00R20 18PR |
|
10 pcs with 1 spare tire |
|
|
Fuel Tank Capacity |
400 L |
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
7500 X 2400 X 600 mm |
|
Loading Capacity |
15 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|
Crane |
|
|
Model |
XCMG SQS200 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 4 extendable boom |
|
Crane Type |
Straight Boom Crane |
|
Max. Lifting Capacity |
Effectively: 8000 kg at 2.5 meters |
|
Max. Working Radius |
13.6 meters |
|
Max. Lifting Height |
15 meters |
|
Max. Lifting Moment |
200 kN.m |
|
Max. Oil Flow of Hydraulic System |
50+50 L/min |
|
Max. Pressure of Hydraulic System |
26 Mpa |
|
Crane Weight |
3709 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
|
|
|
|
|
|
| Crane Rated Lifting Load Image |
FAW JH6 6X4 Crane Truck with 16-ton Folding Boom Crane
Crane Truck with Brick Clamp
Crane Truck with Log Grapple
Crane Truck with Drilling Rig
Crane Truck with Personnel Basket
