Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 8x6 20000liters oil tanker truck in China. If you're going to buy high quality howo 8x6 20000liters oil tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
1.ENGINE- always giving 100% Standard fitting WD615 and D12 Engine The exclusive use of reinforced and wide high-strength and double- wall engine block improves the configuration and quality of key parts and enhances the reliability and durability of engine greatly.1.High reliability It keeps a record of continuous running of 40 thousand kilometers for one month. Bench test totaled more than 40000 hours and vehicle road test accumulated to more than 5 mil- lion kilometers. Its B10 life could reach 1.5 million kilometers.
2.Surging Power Through strengthened spare parts, larger range of horsepower is realized. Maximum net power of MC11 is440PS and the largest torque is 200Nm.
3.Low Consumption
Advanced engine technology achieves superior fuel economy. The engine fuel consumption ratio lower than 184g/ kWh is equivalent to international advanced level.
Parameters for HOWO 8x6 20000Liters Oil Tanker Truck:
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9500*2500*3210 |
Wheel base (mm) | 4300+1350 | |
Wheel track (front/rear) (mm) | 2020/1800 | |
Weight in KGS | Tare Weight | 13500 |
payload | 25000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 3x16000 | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | SINOTRUK |
Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | |
Horse Power(HP) | 336 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10-speed forward and 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering | ZF8098,power steering, hydraulic steering with power assistance | |
Oil tank | 400 liters | |
Tire | 12R22.5 tubeless tyre 15 pcs including one spare tire | |
Tank Size | 20,000 liters | |
Tank Material | Q235. End plate thickness:5mm, tanker body thickness:5mm With Two compartmets, two API manholes, two Pneumatic emergency shut-off valve | |

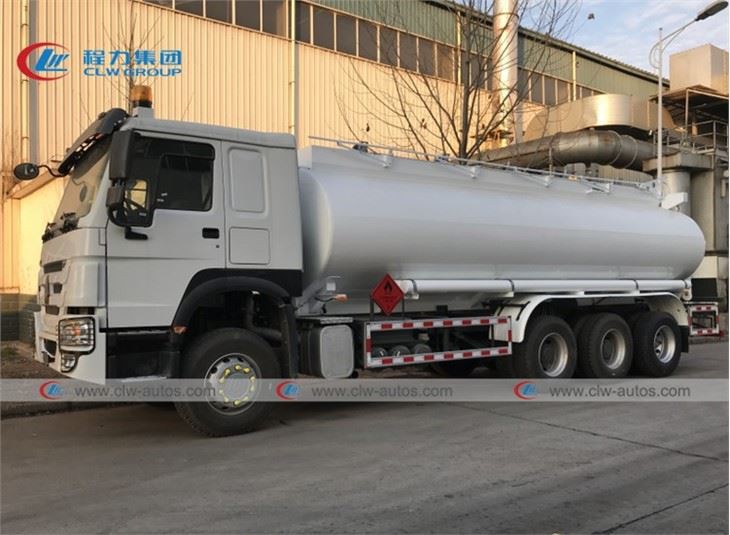

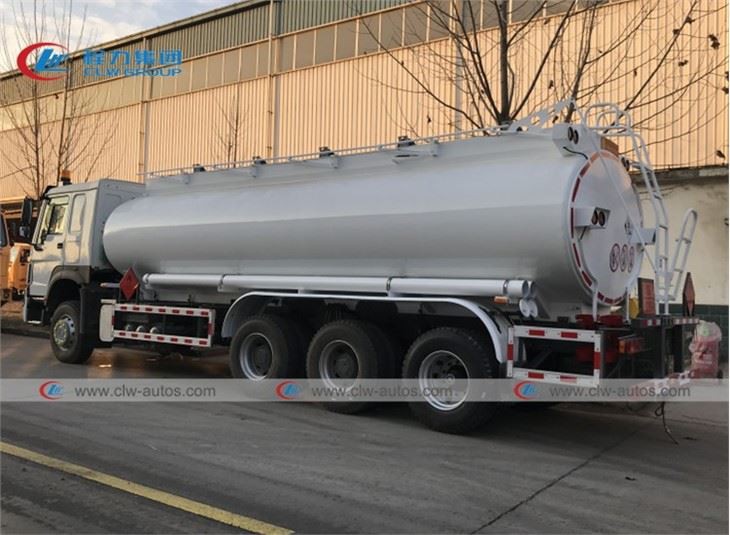

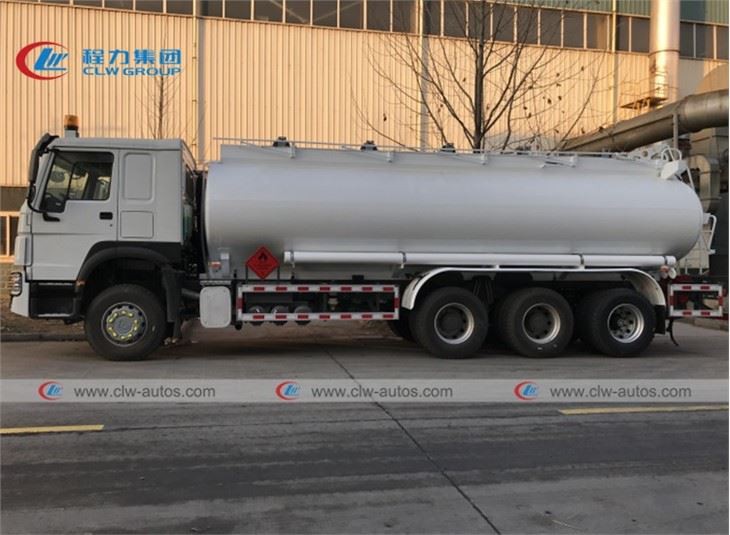

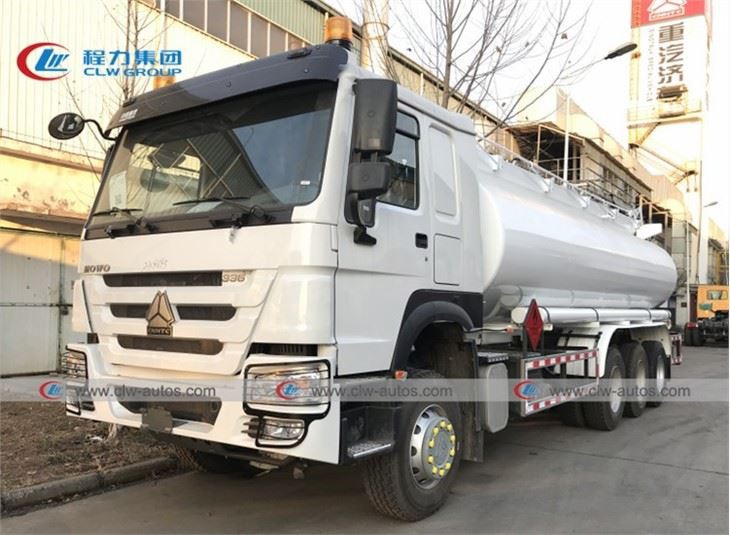

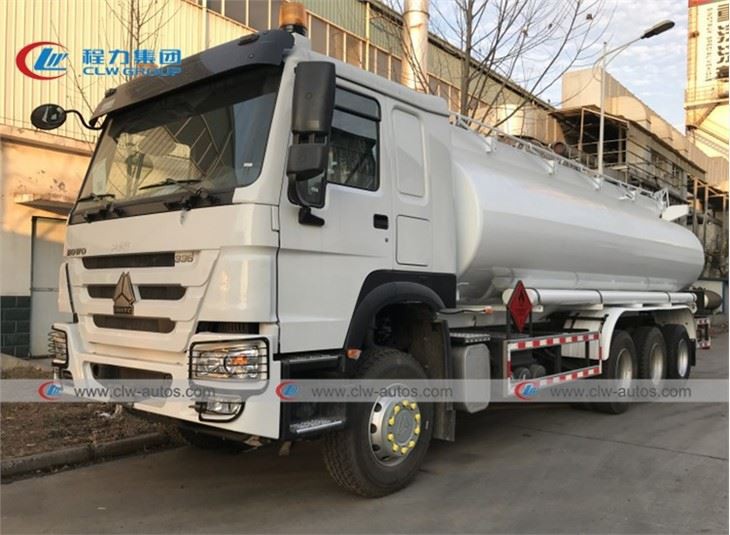

More pictures for HOWO 8x6 20000Liters Oil Tanker Truck:
