Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road 15000l fuel bowser refueling tank truck in China. If you're going to buy high quality howo 4x4 off road 15000l fuel bowser refueling tank truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
HOWO Off Road truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Parameters of HOWO 4x4 Off Road 15000L Fuel Bowser Refueling Tank Truck:
| Model | ZZ2167M4627A | |
| Drive Model | 4x4 all wheel drive, Off Road truck chassis. | |
| Cabin | HW76 Long Cabin, with two seats and one sleeper bed, with Air Conditioner and electric window. | |
| Engine | Model | WD615.62 |
| Horse Power (Hp/rpm) | 266/2200, Euro II Emission Standard | |
| Max.Toruqe(Nm/rpm) | 1100/1100-1600 | |
| Displacement | 9.726L | |
| Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | |
| Transmission | HW15710C, 10 speeds forward and 2 speeds reverse. | |
| Front Axle | HF7, Steering with double T-cross section beam, Loading Capacity: 9,000kgs | |
| Driving Axle | ST16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF8118, Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 11.00R20 | |
| Fuel Tank Capacity (L) | 400L Diesel Tank | |
| Kurb Weight (kg) | 9,000 | |
| Loading Capacity (kg) | 14,000 | |
| Gross Vehicle Weight (kg) | 23,000 | |
| Overall Dimension(L*W*H)(mm) | 8300×2500×3200 | |
| Tank Material | Carbon Steel, Stainless Steel, or Aluminum Alloy | |
| Nos of Compartment | 1-3 | |
| Wheelbase(mm) | 4300, or 4600 | |
| Max. Speed (km/h) | 75 | |
| Tanker | Volume: 15000Liters, 15CBM, 15m3, 15 cubic meters carbon steel | |
| Single Compartment | ||
| Tank Thickness: 5mm, End plate thickness: 6mm | ||
With API manhole, API discharge valve, one set of bottom emergency cut off valve | ||
| Equipped with Pump, filling dispenser, 15 meters filling hose, and filling gun | ||

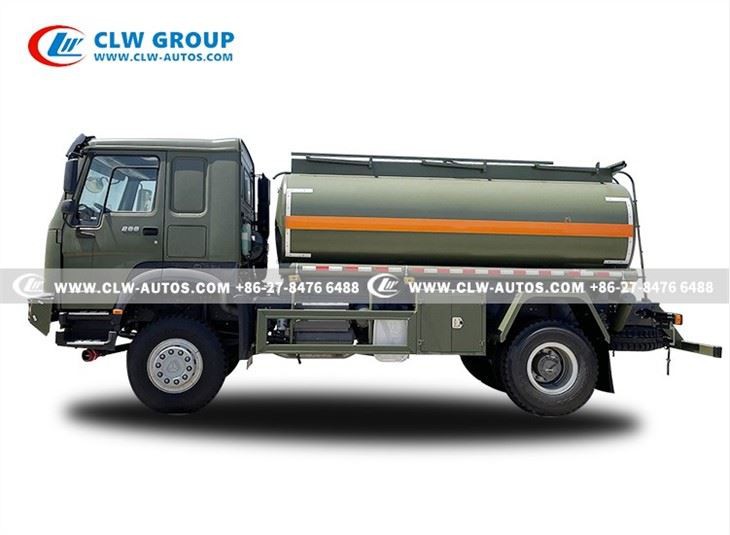

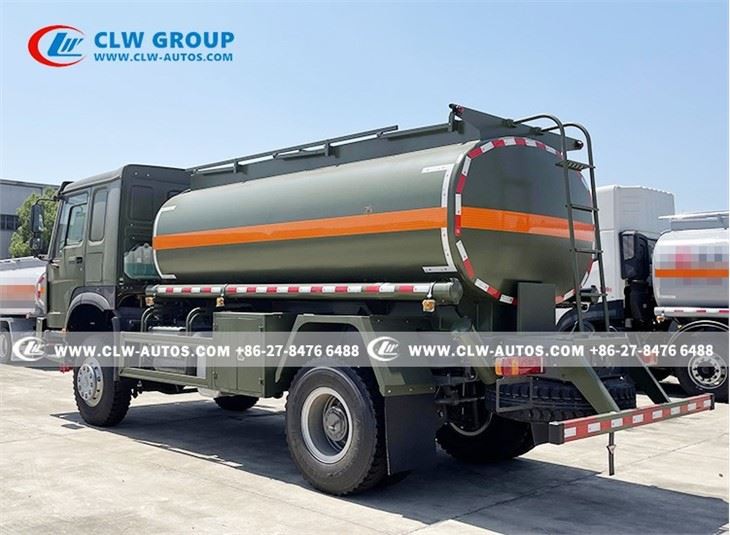

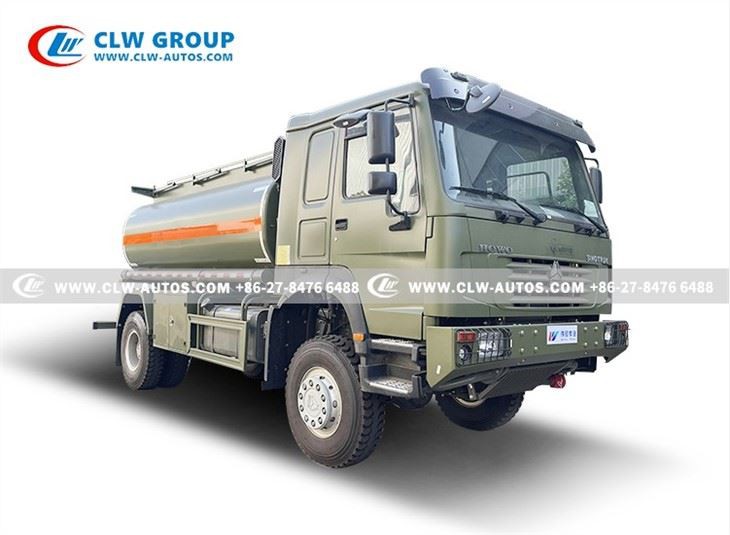

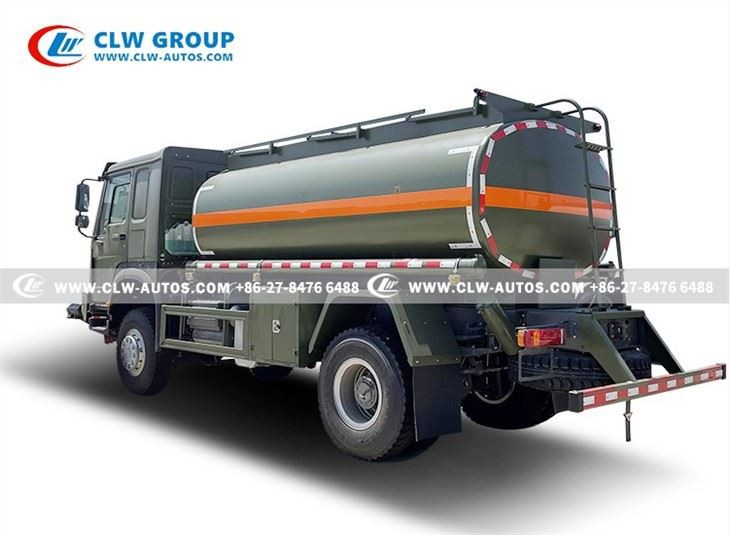

More detailed picturs for HOWO 4x4 Off Road 15000L Fuel Bowser Refueling Tank Truck:
API discharging valves:
Pump Pictures for HOWO 4x4 Off Road 15000L Fuel Bowser Refueling Tank Truck:
Filling Refueling Dispenser Pictures for HOWO 4x4 Off Road 15000L Fuel Bowser Refueling Tank Truck:
