Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 5000 liter lpg bobtail truck for cooking cylinder refiiling in China. If you're going to buy high quality howo 5000 liter lpg bobtail truck for cooking cylinder refiiling, welcome to get more information from our factory. For price consultation, contact us.

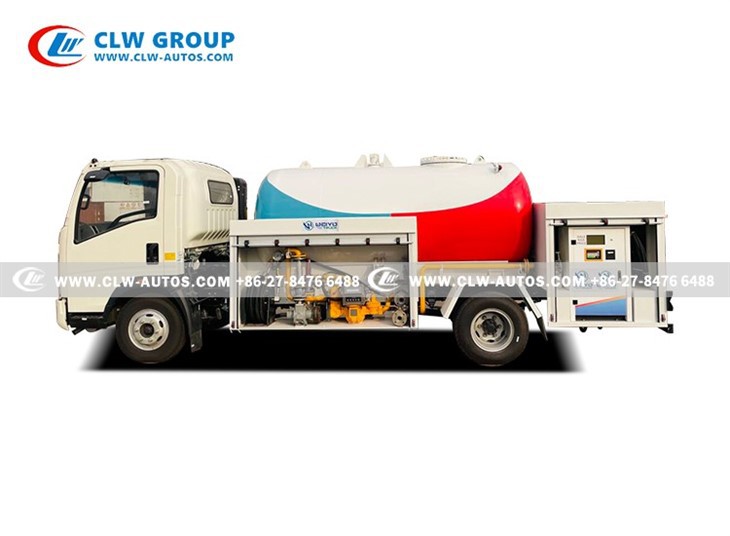

HOWO 5000 Liter LPG bobtail truck, which also called LPG dispenser truck, LPG gas refiiling truck, LPG tank truck with pump,LPG bobtail tanks, butane bobtail, lpg truck,is customized for small tank or cooking cylinder refilling, mainly refueling areas or restaurants or factories that are not covered by gas stations. Customer can easily start gas retail business with a bobtail truck.
Factory supplied bobtail trucks;
Truck brand: HOWO, dongfeng, Shacman, Foton, Faw, ISUZU, JAC,JMC etc.
The tank capacity varies from 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 16000L, 20000L, 25000L, 30000L etc.
Pump brand: Chinese brand, or US corken Z2000 or US blackmer LGLD2.
Level gauge: Chinese brand or Rochester brand.
Filling system one: LPG pump with flow meter, rego adapter for small tank refilling. Filling system two: LPG pump with LPG dispenser for cooking cylinder refill. Factory can also combined two function to support multi purpose.
Filling hose 15m, 20m, 25m, 30m, can be customized.
|
Specification of Truck Chassis |
||||
|
Chassis Model |
ZZ1047D3815C145 | |||
|
Driving Model |
4 X 2 |
|||
|
Cab |
HOWO, 2080 cabin. Left or Right Hand Driving with air conditioner |
|||
|
Wheel Base |
3800mm |
|||
|
Axle Loading (front/rear) |
2700/7200 kg |
|||
|
External Dimensions (L x W x H) |
5950X2350X2650mm |
|||
|
Max. driving speed |
95 km/h |
|||
|
Engine |
Model |
Yuchai engine, YN4102QBZL | ||
|
Type |
4-cylinders in a line, turbo-charging and inter-cooling |
|||
|
Horse Power |
116Hp |
|||
|
Max output power |
85 kW |
|||
|
Emission standard |
Euro 2 |
|||
|
Displacement |
3.76 L |
|||
|
Min. Fuel consumption at full load |
≤217 g/kw.h |
|||
|
Gearbox |
Manual type, WLY6TS55C, 6 forwards & 1 reverse |
|||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Tire |
7.50R16, 6 pieces with 1 spare tire. |
|||
|
Fuel box |
120L /steel material |
|||
|
LPG tank |
||||
|
|
||||
|
Filling Medium |
Liquefied Petroleum Gas |
|||
|
Working temperature |
-40~50 ℃ |
|||
|
Volume: |
5,000Liters |
|||
|
Tank material: |
Q345R |
|||
|
Tank diameter: |
1600mm |
|||
|
Tank thickness: |
10mm |
|||
|
End plate thickness: |
10mm |
|||
|
Tank length: |
As designed |
|||
|
Gas phase |
Flange type,DN50/2" or according to customer request |
|||
|
Liquid Phase |
Flange type,DN50/2" or according to customer request |
|||
|
Filling gas |
Propane(LPG) |
|||
|
Working Pressure: |
1.61Mpa |
|||
|
Design Pressure |
1.71 Mpa |
|||
|
Testing pressure |
2.21Mpa |
|||
|
Corrosion Allowance |
1.0 mm |
|||
|
Refilling Accessory |
||||
|
Directly driven by PTO(easy for future maintenance) |
||||
|
LPG Pump |
Chinese brand CLW 15-5 |
|||
|
Inlet 2" NPT and Outlet 2" NPT |
||||
|
Flow rate :15.5 m3/h |
||||
|
780 r/min for rotation speed |
||||
|
LPG Flow meter |
TSC-50 model Showing filling volume Inlet/Outlet 2"/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer. |
|||

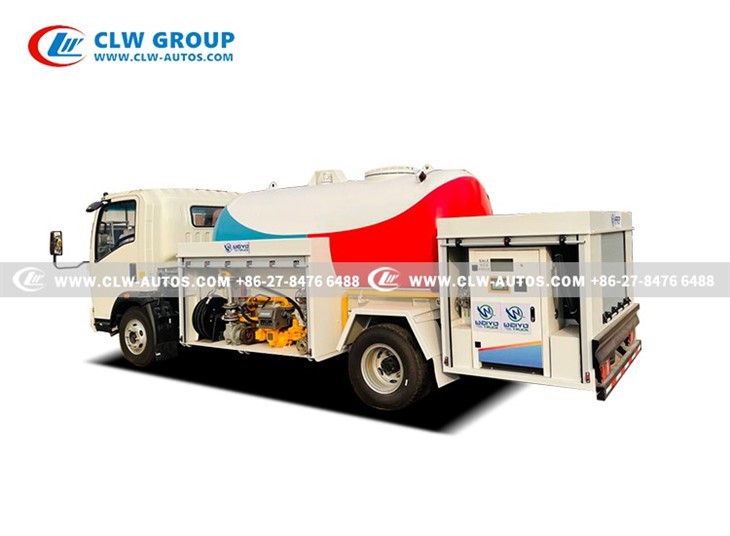

| LPG dispenser |
English remarks with printer for receipt Chinese top brand-JINGDA For measuring filling weight from truck to cylinders offer receipt to clients Designed at back of truck 4 meters refilling hose |
|||
|
Filling hose |
15M,retractable with REGO adapter for small tank refilling |
|||
|
Level Gauge |
Rochester level gauge or Chinese brand |
|||
|
Safety Valve |
Model No. |
A412F-25-16 |
||
|
Type |
Built-in |
|||
|
Nominal Pressure |
2.5 Mpa |
|||
|
Safety return valve |
1 PC |
|||
|
Pipeline safety valve |
1 PC |
|||
|

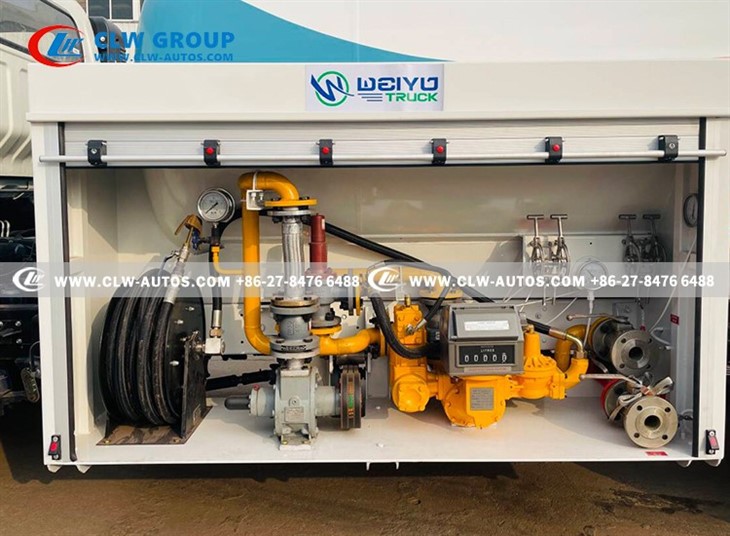

Equipment and Valve Box |
Located at side of LPG bobtail (opposite driver's side) Strong design with rolling off cabinet |
|||
|
Manhole |
DN450 |
|||
|
Thermometer |
1 pc WTQ-280 |
|||
|
Pressure Gauge |
2 pc YN-100T |
|||
|
Emergency shut off Valve |
2 pcs with switch inside valve box and at rear of truck |
|||
|
Fender |
Steel |
|||
|
Fire Extinguisher Holder |
1 set |
|||
|
Static conductive tape |
1 pc |
|||
|
|
||||
