Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 15 cubic meters isuzu lpg gas filling tanker truck in China. If you're going to buy high quality 15 cubic meters isuzu lpg gas filling tanker truck, welcome to get more information from our factory. For price consultation, contact us.

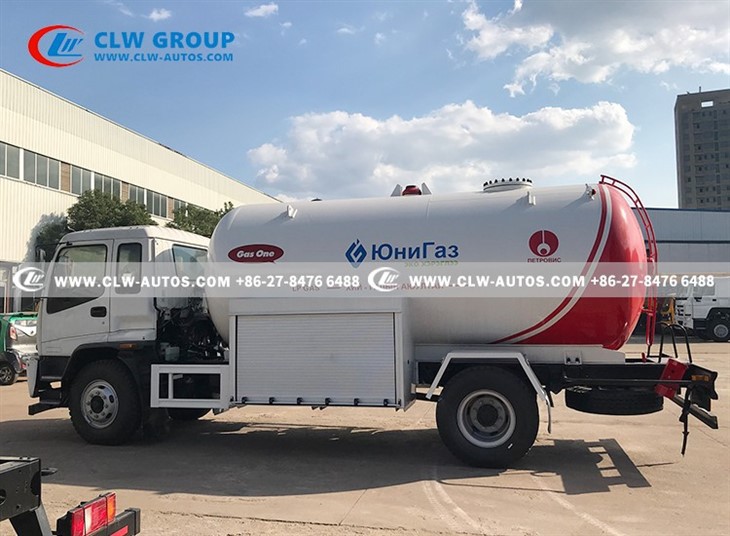

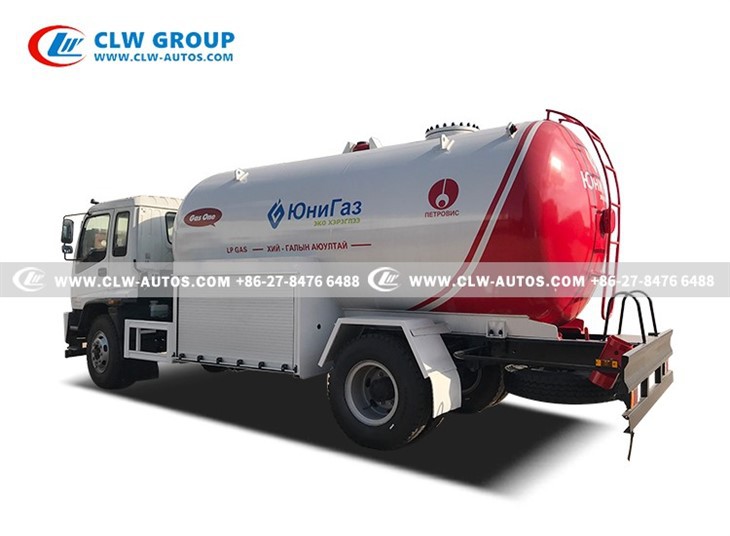

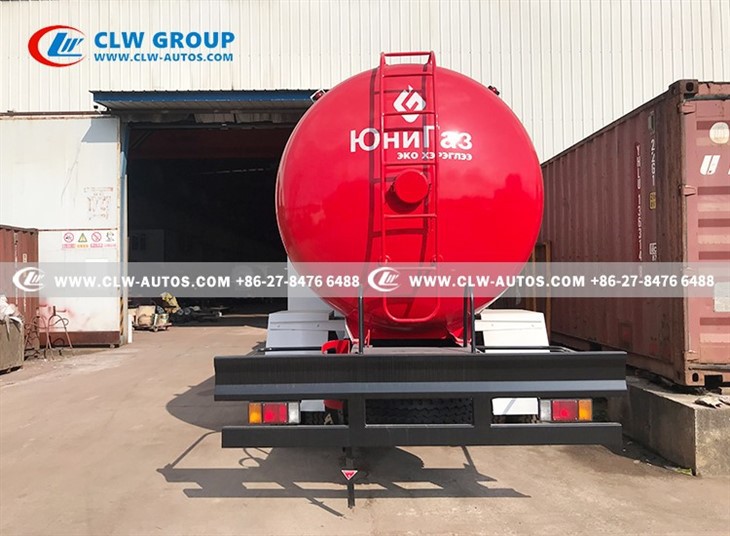

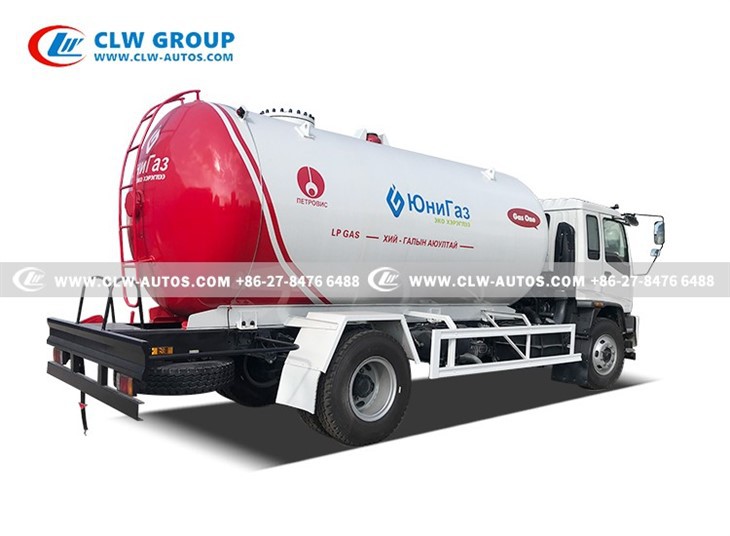

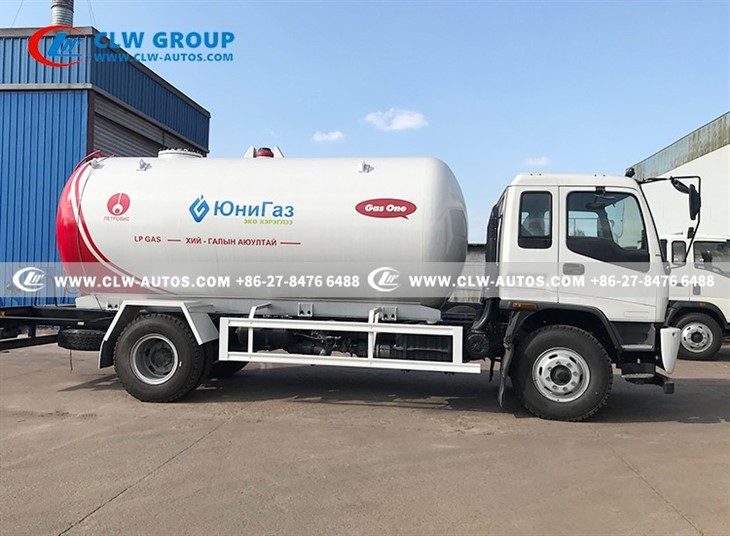

Above ISUZU FTR 205HP LPG Gas Filling Tanker Truck,also called mobile propane tanker truck,gaz refilling truck, lpg tanker truck with pump, butane transport truck, lpg bobtail,is customized for Mongolia client in Oct. 2023.
LPG gas filling truck is used for mobile delivering, transporting liquified petroleum gas/cooking gas/propane/butane gas. With equipped lpg pump, flow meter(lpg dispenser),filling reel and hose,lpg filling truck,you can use it for filling small hotel tanks and even start lpg cylinders filling business.
For quick inquiry
whatsapp +86 135 4506 4324
Main equipment
2" Flowmeter or single nozzle filling dispenser machine
2" USA corken pump Z2000 or Blackmer LGLD2 or Chinese brand vane Pump YQB15-5
15/30/40 meters Filling Hose Reel
REGO Filling nozzle
Rochester level gauge (optional)
Radiator(optional)
hydraulic oil box(optional)
Stainless steel tool box (optional)
Optional gas bottling truck brand:
SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other Chinese brands.
Optional size of ISUZU LPG bobtail truck
5000liters,5000L,5 cbm
8000liters,8000L,8 cbm
10,000liters,10000L,10cbm,
12,000liters,12,000L,12cbm,
15000 Liters,15000L,15cbm,
20cbm,20,000liters,20,000L
25cbm,25,000liters,25,000L
35cbm 35,000liters,35,000L
Available options for pump drive
from truck’s PTO by hydraulic drive
From truck’s PTO by shaft
Electric motor-usually for lpg trailer
Main Truck Spec.
Stable ISUZU FTR/FVR chassis
with one sleeper
Left hand drive
Wheelbase 4500 /4700 mm
ISUZU Diesel Engine,4HK1-TC50,205HP
Gear box:MLD,6 speed forward and 1 reverse
Front axle 6.3 tons,Rear axle 13Tons
10.00R20 tires,6 pcs with one spare
Mounted with 15,000 liters LPG tank
10 mm thickness tank
Q345R,one of ASME standard material
Safety relief valve
2" vapour and liquid phase
Float ball Level gauge
|
Specification of Truck Chassis |
||||
|
Chassis Model |
QL1180VMFRY |
|||
|
Driving Model |
4 X 2 |
|||
|
Cab |
Original ISUZU FTR cabin with one sleeper Left Hand Driving with air conditioner Central lock Electric window |
|||
|
Wheel Base |
4500mm |
|||
|
Axle Loading (front/rear) |
6300/13,000 kg |
|||
|
External Dimensions (L x W x H) |
8800X2490X3250mm |
|||
|
Max. driving speed |
95 km/h |
|||
|
Engine |
Model |
ISUZU engine 4HK1-TC50 |
||
|
Type |
4-cylinders in a line, turbo-charging and inter-cooling |
|||
|
Horse Power |
205Hp |
|||
|
Max output power |
151kW |
|||
|
Emission standard |
Euro V |
|||
|
Displacement |
5193ml |
|||
|
Min. Fuel consumption at full load |
≤210 g/kw.h |
|||
|
Gearbox |
Manual type, MLD, 6 forwards & 1 reverse |
|||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Tire |
10.00R20, 6 pieces with 1 spare tire. |
|||
|
Fuel box |
200L /steel material |
|||
|
LPG tank |
||||
|
|
||||
|
Filling Medium |
Liquefied Petroleum Gas |
|||
|
Working temperature |
-40~50 ℃ |
|||
|
Volume: |
15,000Liters |
|||
|
Tank material: |
Q345R |
|||
|
Tank diameter: |
1900mm |
|||
|
Tank thickness: |
10mm |
|||
|
End plate thickness: |
10mm |
|||
|
Tank length: |
As designed |
|||
|
Gas phase |
Flange type,DN50/2” or according to customer request |
|||
|
Liquid Phase |
Flange type,DN50/2” or according to customer request |
|||
|
Filling gas |
Propane(LPG) |
|||
|
Working Pressure: |
1.61Mpa |
|||
|
Design Pressure |
1.71 Mpa |
|||
|
Testing pressure |
2.21Mpa |
|||
|
Corrosion Allowance |
1.0 mm |
|||
|
Refilling Accessory |
||||
|
Directly driven by PTO(easy for future maintenance) |
||||
|
LPG Pump |
CORKEN PUMP Z2000GAEE |
|||
|
Inlet 2” NPT and Outlet 2” NPT |
||||
|
Max. RPM: 800 |
||||
|
|
||||
|
LPG Flow meter |
TSC-50 model Showing filling volume Inlet/Outlet 2”/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer. |
|||
|
|
||||
|
Filling hose |
15M,retractable with REGO adapter |
|||
|
Level Gauge |
Rochester level gauge |
|||
|
|
||||
|
Safety Valve |
Model No. |
A412F-25-16 |
||
|
Type |
Built-in |
|||
|
Nominal Pressure |
2.5 Mpa |
|||
|
Safety return valve |
1 PC |
|||
|
Pipeline safety valve |
1 PC |
|||
|
Equipment and Valve Box |
Located at side of LPG bobtail (opposite driver’s side) Strong design with rolling off cabinet |
|||
|
Manhole |
DN450 |
|||
|
Thermometer |
1 pc WTQ-280 |
|||
|
Pressure Gauge |
2 pc YN-100T |
|||
|
Emergency shut off Valve |
2 pcs with switch inside valve box and at rear of truck |
|||
|
Fender |
Steel |
|||
|
Fire Extinguisher Holder |
1 set |
|||
|
Static conductive tape |
1 pc |
|||
|
|
||||
