Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 15000l lpg bobtail tanker truck in China. If you're going to buy high quality howo 15000l lpg bobtail tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG bobtail truck(also called lpg bobtail,lpg tanker truck,lpg bobtail tanker,propane truck,propane tank truck,lpg dispenser truck,lpg refueler truck,lpg refilling truck) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg mobile and refuel small lpg station tank or home cylinders with help of lpg pump,lpg dispenser and filling hose reel.
--lpg bobtail truck from clw group is optional for 5000L,10,000L,15,000L,20,000L,24,000L and 35500L.The most polular size is 10,000L and 20,0000L,which is 5tons lpg bobtail truck and 10tons lpg bobtail truck.
--Design standard: Chinese GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Optional lpg tanker accessories :ROCHESTER float-ball/magnetic level gauge or rotator level gauge,chinese or corken lpg pump,flow meter or lpg dispenser.
--Optional truck chassis brands: dongfeng lpg bobtail truck,howo lpg bobtail truck,ISUZU lpg bobtail,FAW lpg truck...
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
Reference picture

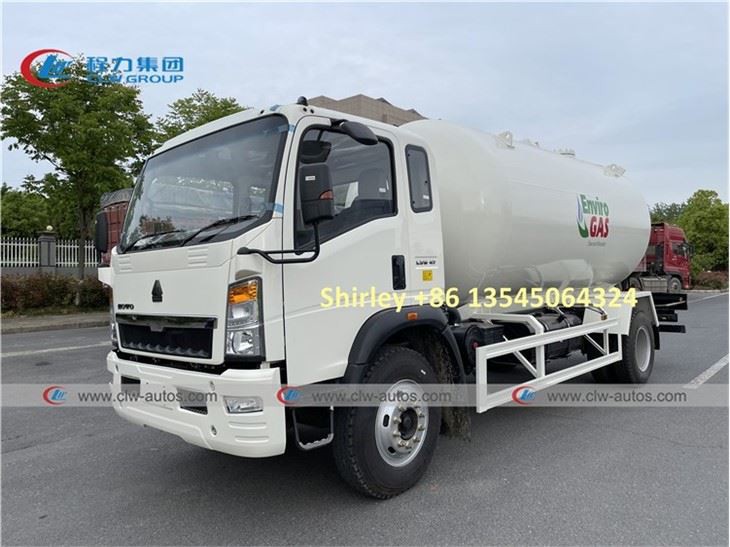

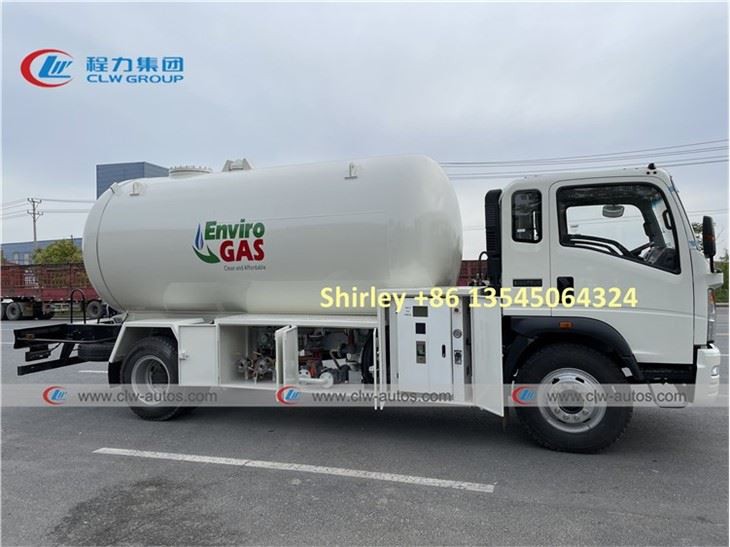

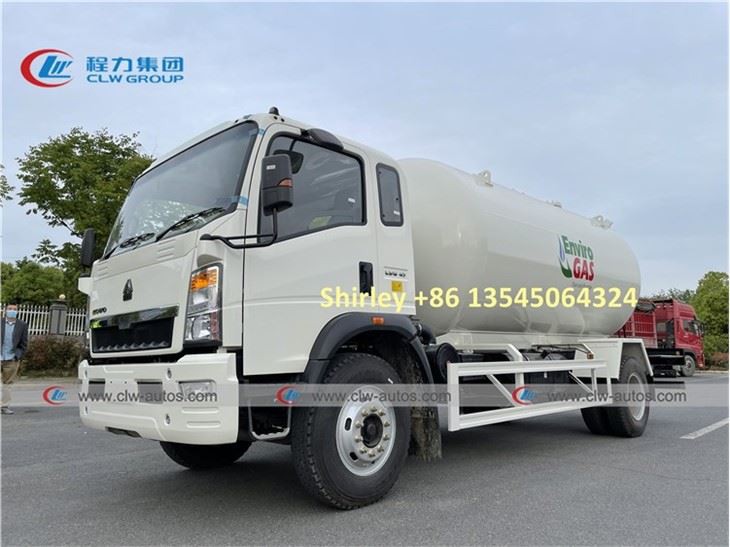

(front side view of howo lpg bobtail)

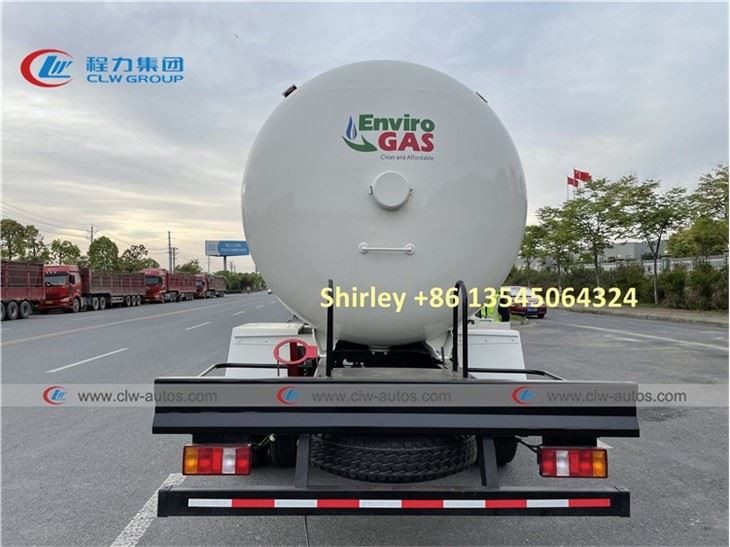

(rear view of howo lpg bobtail truck)
(lpg dispenser of howo lpg bobtail)

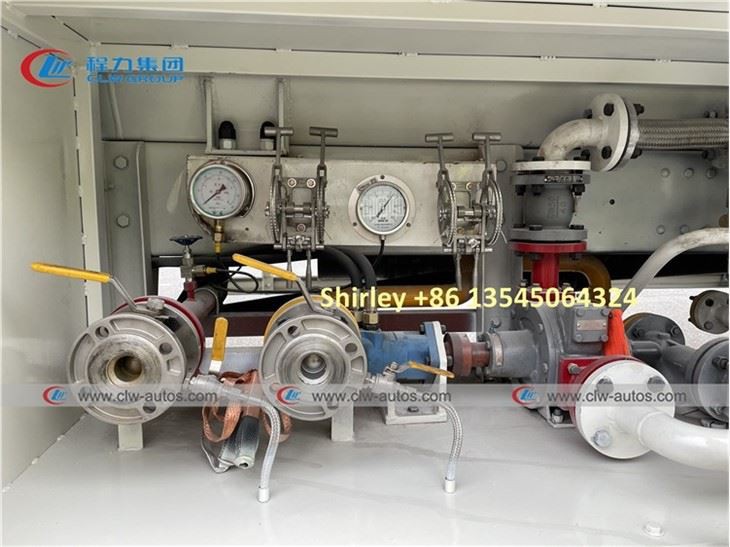

(flange type liquid and vapour phase of howo lpg bobtail)

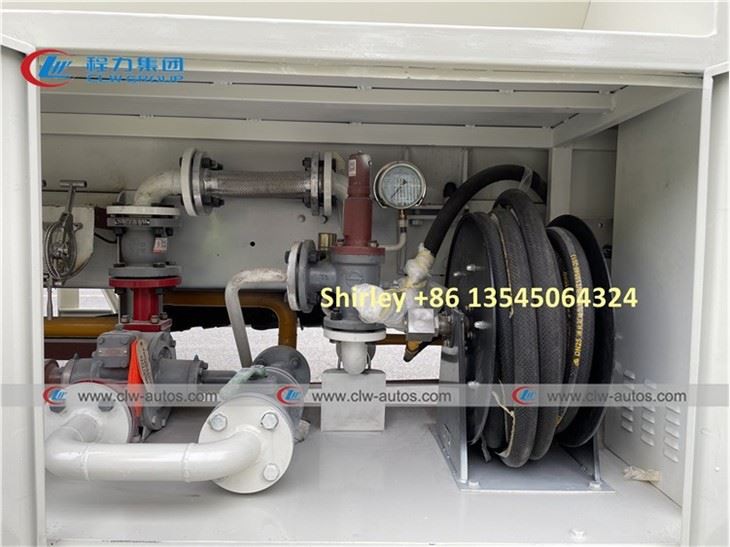

(refilling hose of howo lpg bobtail)
(REGO filling nozzle of right hand drive lpg bobtail)
(corken pump Z2000 of 15000L lpg bobtail)
(Name plate of howo lpg bobtail)
(dispatch of 7tons lpg bobtail)
Specification
|
RHD Howo 4X2 7MT 15,000Liters LPG Bobtail Truck |
|
|
Item No. |
Parameters |
|
Cabin |
Howo 2080 type cabin,one row and a half with A/C |
|
Overall Dimension |
7800x2500x3250 mm |
|
Driving Model |
Right hand drive |
|
Gross Vehicle Weight |
16000 kg |
|
Curb Weight |
8460 kg |
|
Payload |
7000 kg |
|
F/R Axle Loading |
3600/10500 kg |
|
Wheel Base |
4700 mm |
|
Front/rear Tread |
1886/1845 mm |
|
Approach/Departure Angle |
27/20 degree |
|
Engine |
Yuchai engine,YC4E160-33 |
|
Engine horsepower |
160 HP/118KW, EUROIII |
|
Displacement |
4260mL (Diesel) |
|
Max Driving Speed |
95 km/h |
|
Gear Box |
DC6J65TC,6 forward& 1 reverse |
|
Tire |
9.00R20 (6 pc with 1 spare) |
|
LPG tank |
|
|
Volume: |
15,000Liters |
|
Tank material: |
Q345R |
|
Tank diameter: |
2000mm |
|
Tank thickness: |
10mm |
|
End plate |
10mm |
|
Tank length: |
As designed |
|
Gas phase |
DN25 or DN50 or customized |
|
Liquid Phase |
DN50 or DN80 or customized |
|
Filling gas |
Propane(LPG) |
|
Design Pressure: |
1.61Mpa |
|
Hydraulic Testing Pressure |
2.21Mpa |
|
Working Temperature |
-20~50 ℃ |
|
Design Code |
GB150.1~2011 |
|
Accessory |
|
|
Level Gauge |
Float ball type at the rear of tank |
|
Safety Valve |
1,DN80 |
|
Tool and Valve Box |
1 |
|
Radiator of hydraulic oil |
1 |
|
LPG pump |
Corken Z2000, driven by truck engine through PTO |
|
Dispenser Machine |
1,single nozzle with english remarks |
|
Filling Hose |
15 meters |
|
Filling Nozzle |
1pc, |
|
Thermometer |
1 |
|
Pressure Gauge |
1 |
|
Emergency Valve |
1 set,controlled at in valve box and rear of truck |
|
Fender |
Steel |
|
Fire Extinguisher holder |
2,at truck rear and at left and right sides |
|
Exhaust shaft |
At the front of truck under cabin for safety |
