Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu p4 led screen billboard truck in China. If you're going to buy high quality isuzu p4 led screen billboard truck, welcome to get more information from our factory. For price consultation, contact us.
1. LED encapsulation confirm the high brightness even under strong sunlight
2. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
3. Long viewing distance, High definition, Good uniformity
4. Brightness can be adjusted automatically according to different surroundings,
5. Can be set to open and close the screen automatically
6. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
7. P4 P5 P6 is optional.
| |||
Overall Dimension | 5995×2040×2990(mm) | ||
Curb Weight | 4345(Kg) | ||
| |||
Chassis parameters | Chassis Brand | ISUZU | |
Cabin | Single, Left Hand Driving, with A/C | ||
Engine | Model | 4 Cylinders | |
Power | 72KW/98HP | ||
Emission standard | EURO 4 | ||
Displacement | 2.771L | ||
Fuel type | Diesel | ||
Gearbox | 5 Forward & 1 Reverse Gear | ||
Wheel base | 3360(mm) | ||
Brake System | Oil brake | ||
Steering Gear | Power Assistant | ||
Tire | 7.00R15, 6 Pieces with 1 Spare Tire | ||
Maximum speed | 90(km/h) | ||
| |||
| Pixel | Outdoor full colour display screen P6 | |
Dimension(LxW)(mm) | Both side: 3840*1728 | ||
Rear:1280*1440 | |||

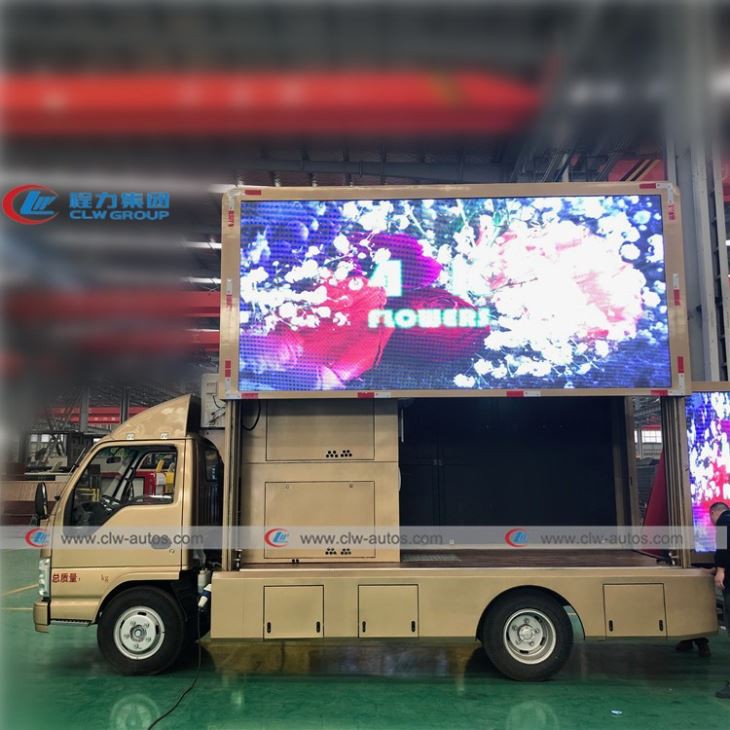

Description | Screen lift on both sides | ||
Waterproof, shake-proof, high brightness, long life | |||

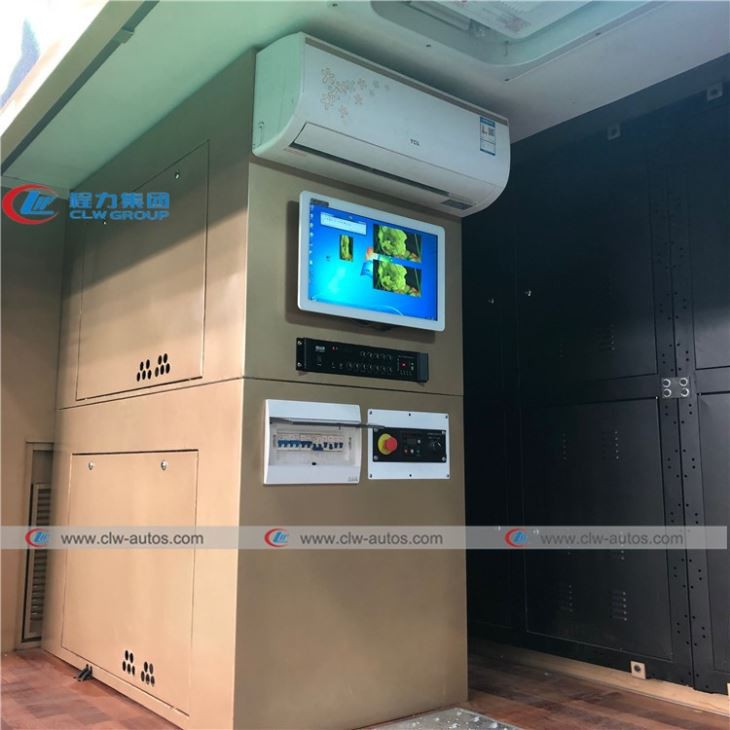

General configuration | 1. OUMA brand,Silent diesel generator, 15KW | ||
2. One set industrial computer with control system | |||
3. Sound system: Loudspeaker 4pcs, amplifier 1pc | |||
4. Internal and external electrical distribution box. | |||
5. Circulating ventilation and cooling systems. | |||
6. 5CM composite steel frame body | |||
7. Aluminum patterned floor | |||
Remarks | Equipped with Hydraulic stage | ||
The color of the superstructure is oprional. | |||
