Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5 metric tons 12000 l lpg bobtail truck howo in China. If you're going to buy high quality 5 metric tons 12000 l lpg bobtail truck howo, welcome to get more information from our factory. For price consultation, contact us.
5 Metric Tons LPG bobtail truck is used in rough road in Africa and for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.
For quick inquiry
whatsapp +86 135 4506 4324
Our design

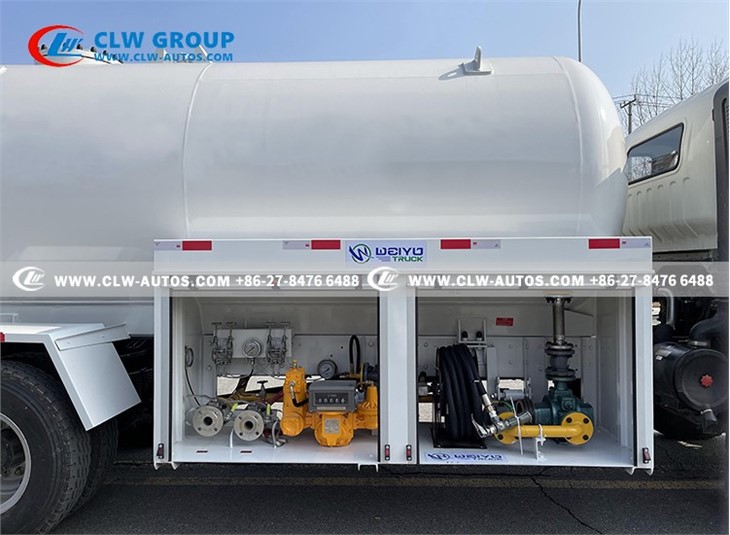

Main equipment
2" Flowmeter or single nozzle filling dispenser machine
2" USA corken pump Z2000 or Chinese brand vane Pump YQB15-5
15/30/40 meters Filling Hose Reel
REGO Filling nozzle
Radiator(optional)
hydraulic oil box(optional)
Stainless steel tool box (optional)
Optional gas bottling truck brand:
SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other Chinese brands.
Optional size of China HOWO LPG bobtail truck
5000liters,5000L,5 cbm
8000liters,8000L,8 cbm
10,000liters,10000L,10cbm,
12,000liters,12,000L,12cbm,
15000 Liters,15000L,15cbm,
20cbm,20,000liters,20,000L
25cbm,25,000liters,25,000L
35cbm 35,000liters,35,000L
Available options for pump drive
from truck’s PTO by hydraulic drive
From truck’s PTO by shaft
Electric motor-usually for lpg trailer
Main Truck Spec.
Stable howo truck chassis
Howo 2880 cabin with sleeper
Left hand drive/Right hand drive
Wheelbase 4700mm
Yunnei Diesel Engine YC4E160-33,160HP
Gear box:6 speed forward and 1 reverse
Front axle 3.6 tons,Rear axle 10.5 Tons
9.00R20 tires,6 pcs with one spare
Mounted with 12,000 liters LPG tank
10 mm thickness tank
Q345R,one of ASME standard material
Safety relief valve

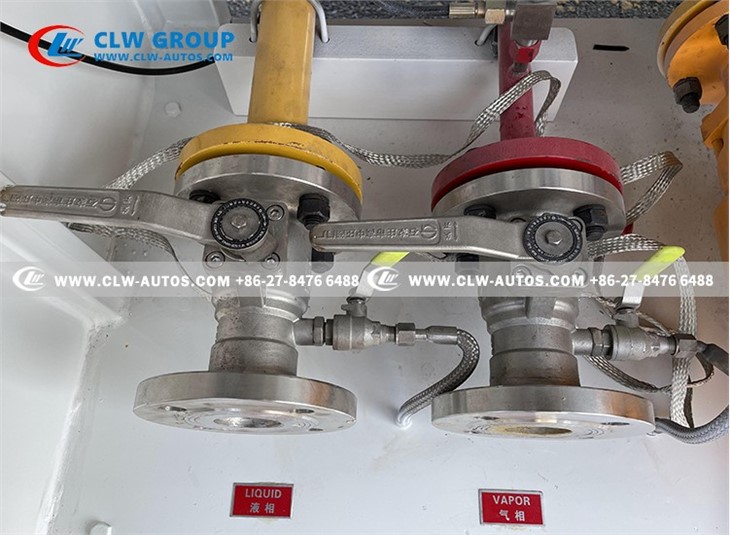

2" vapour and liquid phase
Float ball Level gauge

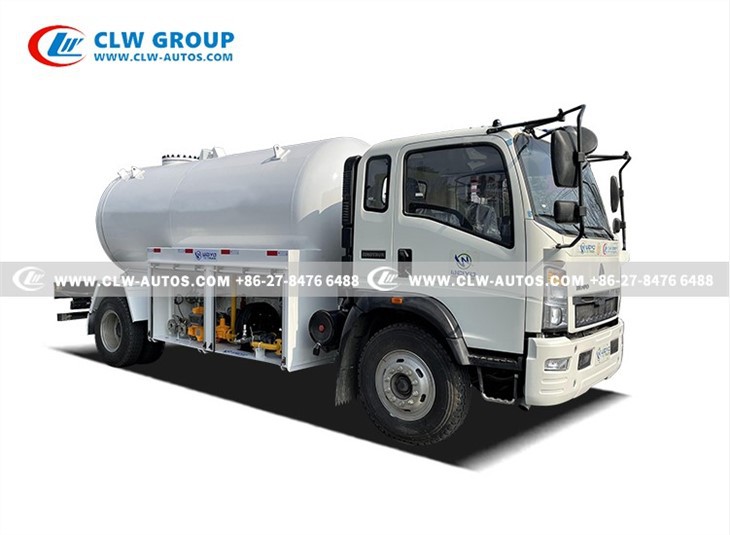

Reference picture
|
Item No. |
Parameters |
|
Overall Dimension |
7800x2500x3250 mm |
|
Driving Model |
Left hand drive for Nigeria |
|
Gross Vehicle Weight |
13,500 kg |
|
Curb Weight |
8,500 kg |
|
Payload |
5,000 kg |
|
Wheel Base |
4700 mm |
|
Front Axle |
3,600kg |
|
Rear Axle |
10,500kg |
|
Engine |
YC4E160-33,YUCHAI Diesel engine |
|
Engine horsepower |
160HP EUROIII |
|
Displacement |
4257mL (Diesel) |
|
Rated Rotation Speed |
2600 rpm |
|
Gearbox |
DC6J65TC,6-speed forward and 1 reverse |
|
Cabin |
HOWO 2080 type cabin, one row and a half with A/C |
|
Tire |
9.00R20 (6 pcs with one spare) |
|
Exhaust Pipe |
At front of Cabin for safety |
|
LPG tank |
|
|
|
|
|
Filling Medium |
Liquefied Petroleum Gas |
|
Working temperature |
-40~50 ℃ |
|
Volume: |
12,000Liters |
|
Tank material: |
Q345R |
|
Tank diameter: |
1800mm |
|
Tank thickness: |
10mm |
|
End plate thickness: |
10mm |
|
Tank length: |
5070mm |
|
Gas phase |
Flange type,DN50/2” or according to customer request |
|
Liquid Phase |
Flange type,DN50/2” or according to customer request |
|
Filling gas |
Propane(LPG) |
|
Working Pressure: |
1.61Mpa |
|
Design Pressure |
1.71 Mpa |
|
Testing pressure |
2.21Mpa |
|
Corrosion Allowance |
1.0 mm |
