Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5tons sinotruk howo lpg bobtail truck in China. If you're going to buy high quality 5tons sinotruk howo lpg bobtail truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Truck Brand of LPG Bobtail Truck : dongfeng, ,optional for howo,faw,isuzu,foton,shacman,JAC and other brands
2. Tank Size of LPG Bobtail Truck : 5tons, 10tons, 15tons, 20tons
3. Function of LPG Bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

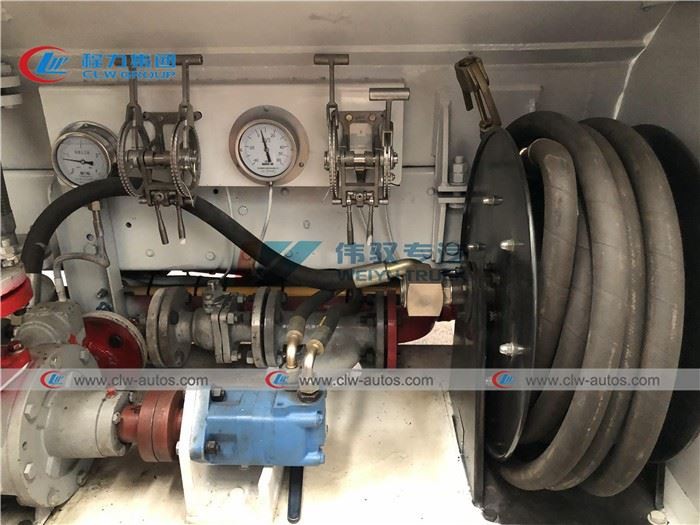

4. Refiling System of LPG Bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

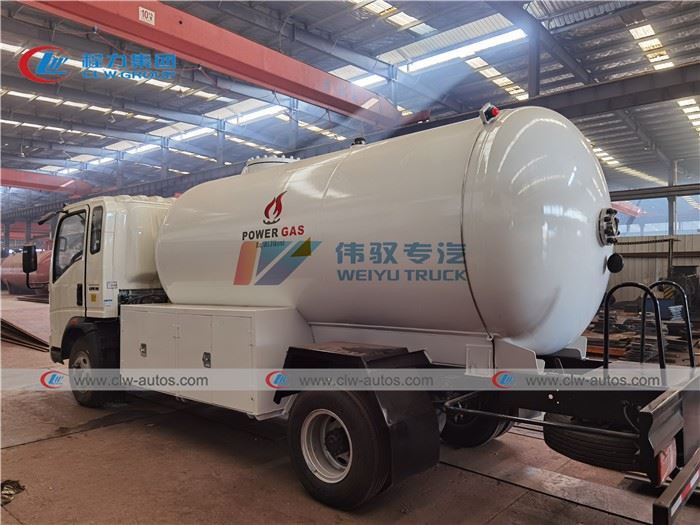

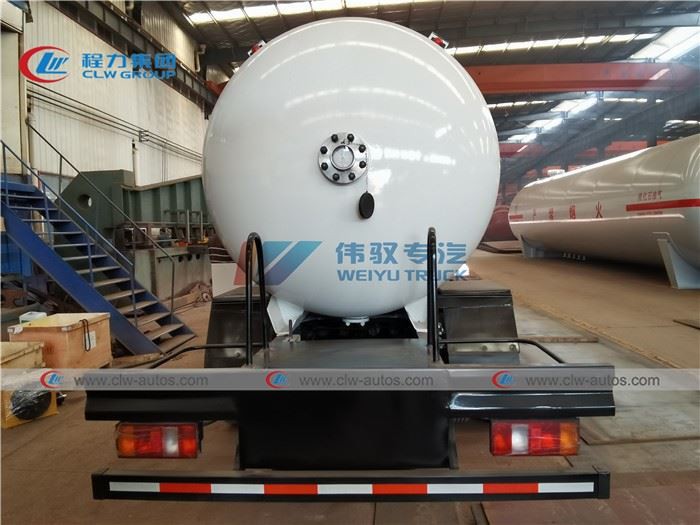

Reference picture
Specification
Item No. | Parameters |
Overall Dimension | 7600x2300x2980 mm |
Driving Model | Left hand drive or right hand drive |
Gross Vehicle Weight | 11460 kg |
Curb Weight | 6460 kg |
Payload | 5000 kg |
F/R Axle Loading | 3200/8000 kg |
Wheel Base | 4200 mm |
Engine | Yuchai 4110,YC4E160-33 |
Engine horsepower | 160 HP EUROIII |
Max Driving Speed | 95 km/h |
Gear Box | DC6J65TC,6 forward& 1 reverse |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 8.25R20 (6 pc with 1 spare) |
LPG tank | |
Volume: | 8~10cbm |
Tank material: | Q345R |
Tank diameter: | 1800mm |
Tank thickness: | 10mm |
End plate | 10mm |
Tank length: | As designed |
Gas phase | DN50 |
Liquid Phase | DN50 or DN80 for option |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
LPG pump | 1 |
LPG Volume Flow Meter | 1 |
Filling Hose | 15 meters |
Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher holder | 2 |
