Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 20tons 360 degree rotation wrecker towing truck in China. If you're going to buy high quality sinotruk howo 20tons 360 degree rotation wrecker towing truck, welcome to get more information from our factory. For price consultation, contact us.
Description
CLW build heavy duty wreckers with power and drive for strength and efficiency on the road and in any rigging and recovery situation. Choose from HOWO,Dongfeng,Shacman, JAC,JMC,FOTON,ISUZU chassis makes as well as conventional, integrated and rotator wrecker styles. With boom capacities from 16 ton to 50 ton, a wrecker from CLW Group has a strong reach that provides maximum power.
A rotator tow truck is one of the heaviest and the largest tow trucks available. It has several varieties. While some certain types of heavy-duty tow trucks feature a fixed boom, others have pivoting parts. The rotator tow truck is one of the pivoting varieties but it features a crane-like arm. Since the rotator tow truck is one of the heaviest and the largest of all tow trucks, it is commonly used in accidents that involve heavy vehicles such as large trucks and tractor trailers.

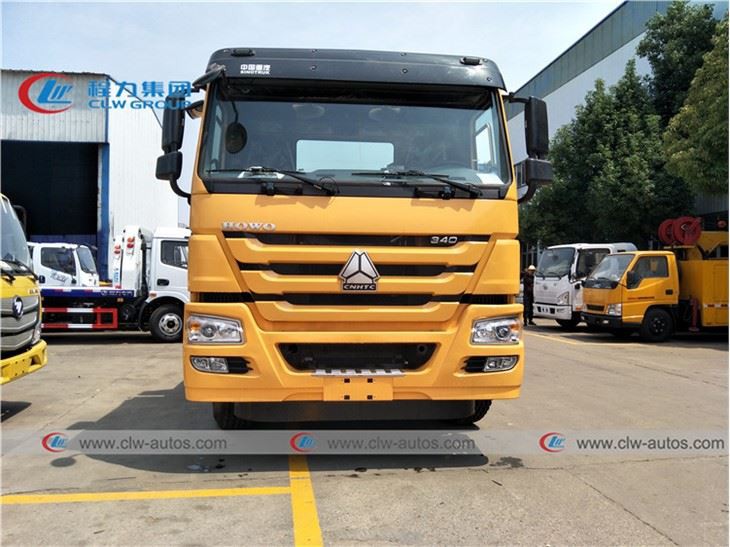

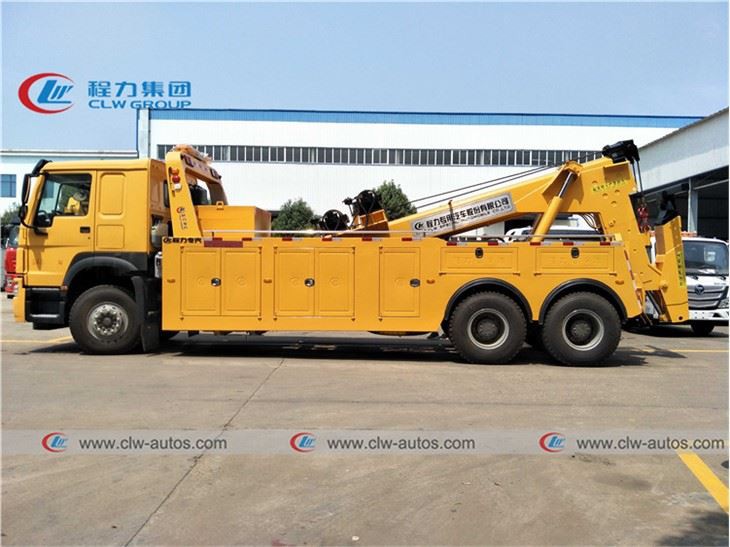

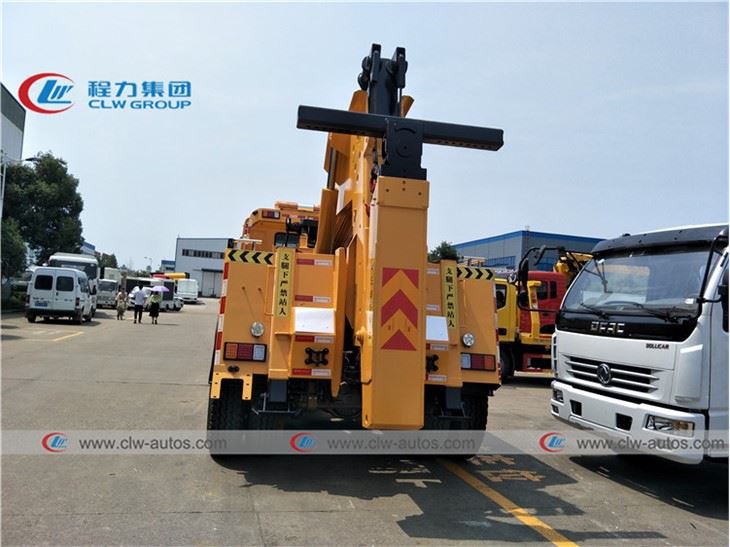

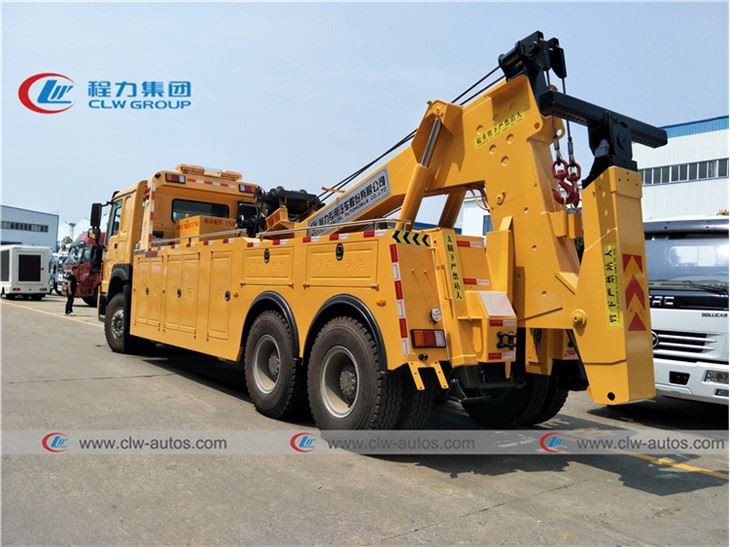

Reference picture
Specification
Condition | New condition/Left hand drive/6x4 | ||
Chassis | Brand | SINOTRUK | |
Model | HOWO | ||
Curb weight(kg) | 17400kg | ||
Wheelbase(mm) | 4600+1350 mm | ||
Dimensions(mm) | 10500*2500*3270 mm | ||
Overhang (front/rear) (mm) | 1500/2600 mm | ||
Approach/Departure angle(°) | 16/15° | ||
Axle Load(kg) | 7000/13000/13000 kg | ||
Max. driving speed(km/h) | 80 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: engine exhaust valve brake | |||
Steering Gear | ZF8118, Power steering, hydraulic steering with power assistance | ||
Tire | Number | 10pcs with one spare tire | |
Specifications | 12R22.5 | ||
Transmission | 10 Forwards and 2 Reverses | ||
Cabin | HOWO 76 cab,It can accommodate three people, With Air conditioner | ||
Engine | Brand | SINOTRUK | |
Power(kw)/Horsepower/(HP) | 248 kw/340 HP | ||
Emission standard | Euro 5/6 | ||
Upper Wrecker Equipment | |||
Lifting System | Max. Towing Weight(kg) | 20,000 | |
Max. Lifting Weight(kg) | 7400 | ||
Max. Lifting Weight under all extension(kg) | 4200 | ||
Effective Length of Corbeling Arm(mm) | 2800 | ||
Extend-retract of Corbeling Arm(mm) | 1360 | ||
Hydraulic Hose | Chinese brand | ||
Hydraulic control Valve | Imported from Italia, | ||
Hydraulic Seals for all hydraulic cylinder | Imported from Italia | ||
Balance Valves | Imported from Italia, | ||
Make of Lifting System | Design and made by CLW Group | ||
Hoisting System | Max. Hoisting Weight(kg) | 20,000 | |
Extension Distance of Oil Cylinder(mm) | 6000 | ||
Rotate Angle(°) | 360 | ||
Make of Hoisting System(crane) | Design and made by CLW Group | ||
Winch | No. | 2 | |
Capacity | 10,000 | ||
Length of Steel Rope(m) | 50*2 | ||
Min. Line Speed(m/min) | 5 | ||
Make of Winch | Shandong Taian Yiqun Machinery Co,,ltd | ||
Front Outrigger Type | “H” type 2494mm | ||
Rear Outrigger Type | “L” type 4650mm | ||
Jump-start cables | 12~24 Volts | ||
