Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of right hand drive sinotruk howo 18000l sewer exhauster truck in China. If you're going to buy high quality right hand drive sinotruk howo 18000l sewer exhauster truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Sewer exhauster truck(also called exhauster truck,sewage exhauster truck,honey sucker,vacuum truck,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Sewer exhauster truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.
Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.
Feature
--Sewer exhauster truck tanker material optional for carbon steel Q345 or stainless steel 304;
--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;
--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump or Italy brand BP,Jurop,Keiser Moro imported brand;
--Suction speed less than 10min and and discharge speed less than 8 min;
--horizontal suction distance: within 80 meters;
--Vertical suction depth:within 9 meters;
--Large horsepower 371HP howo truck chassis;
--Right hand drive howo truck chassis for Kenya/Tanzania/Bostwana...
Pictures

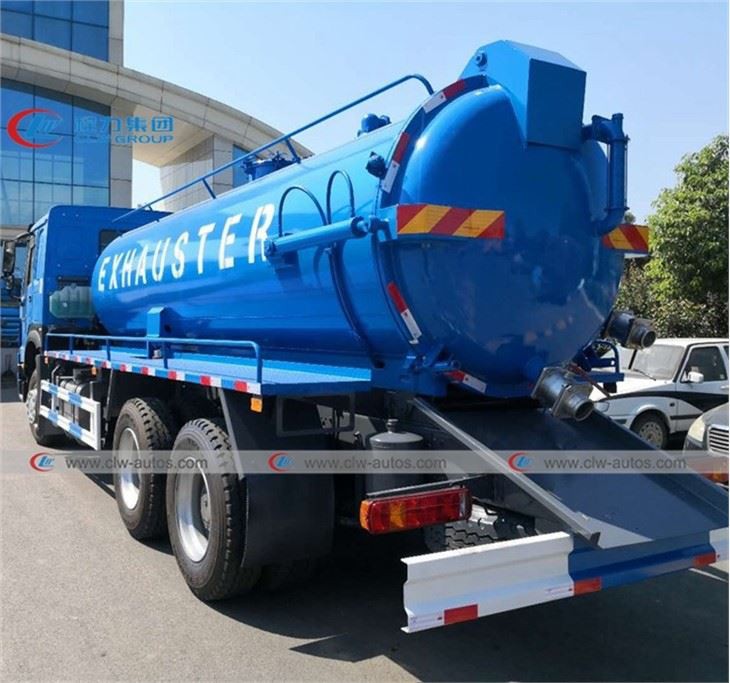

(rear view of RHD howo 18tons sewer exhauster truck)

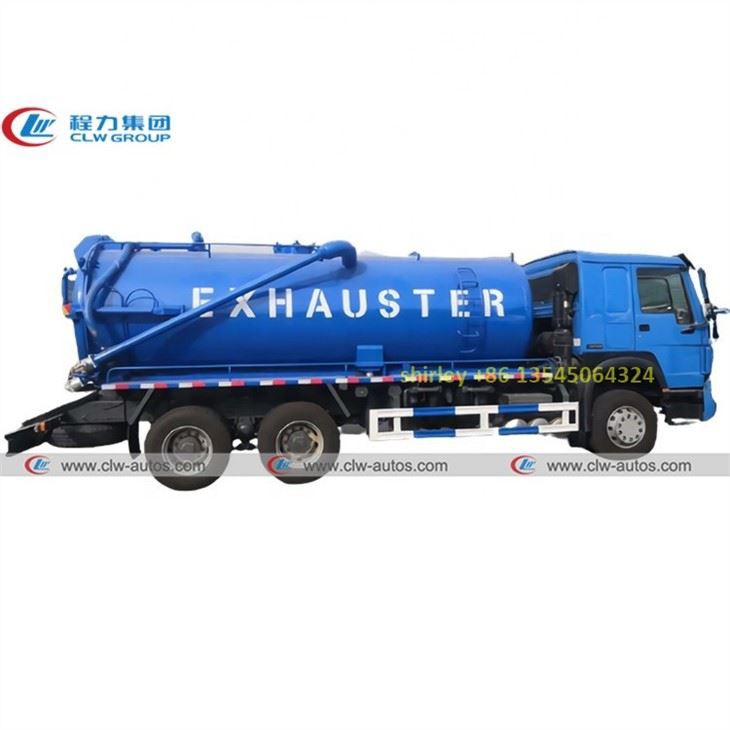

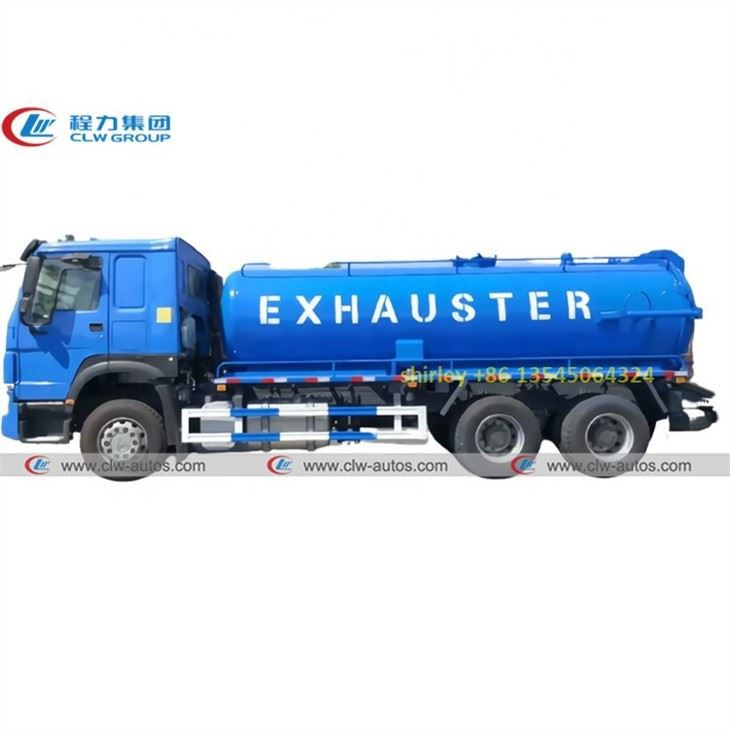

(side view of RHD howo 18tons exhauster truck)
(rear side view of sinotruk howo 18tons sewer exhauster truck)

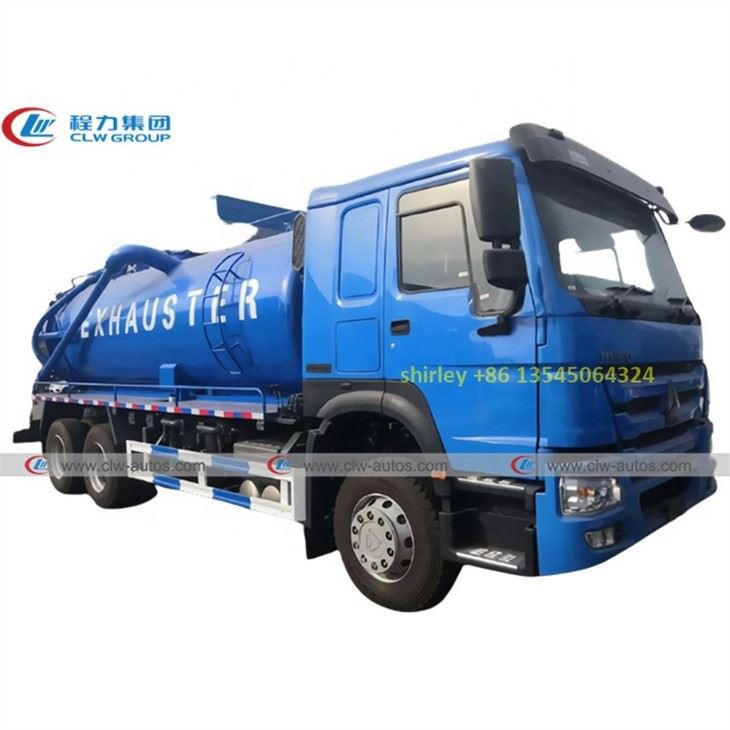

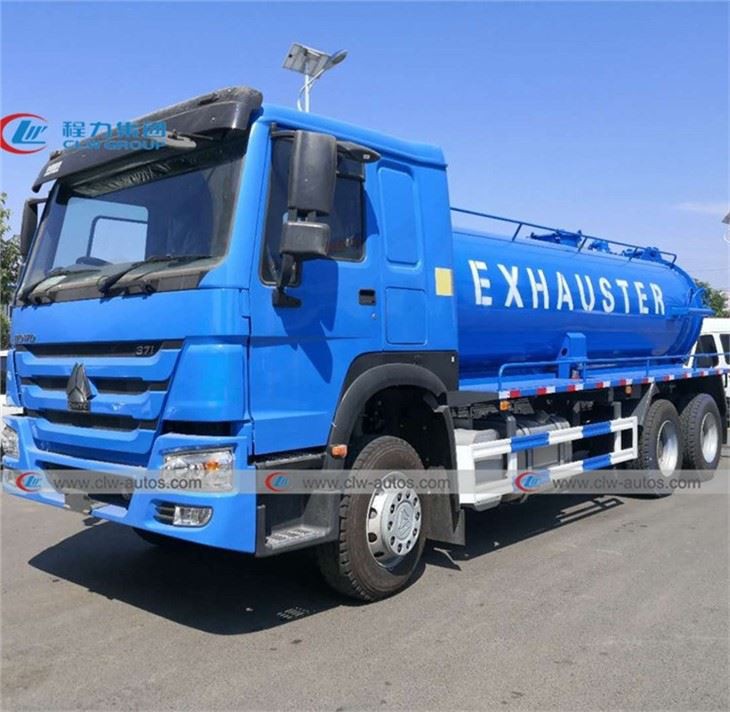

(front side view of sinotruk howo 18m3 sewer exhauster truck)
Truck Specification | |||
Cab | HW76 Flat single and a half row cab, with power steering with A/C | ||
Driving Type | 6x4,right hand driving | ||
Max Speed (km/h) | 90 | ||
Overall dimension(mm) | 9420×2500×3455 | ||
GVW( kg) | 25000 | ||
Mass in working order ( kg) | 13575 | ||
Wheelbase(mm) | 4600+1350 | ||
F/R track base (mm) | 2022/1830 | ||
F/R overhang (mm) | 1500/2380 | ||
Approach/Departure Angel | 16/14 | ||
Tire | 295/80R22.5 (10+1) | ||
Clutch | Single-plate dry diaphragm spring clutch | ||
Steering | Hydraulic steering with power assistance | ||
Gear box | 10-speed | ||
Bridge | Front axle | 7T | |
Rear axle | 16TX2 | ||
Engine | Model | WD615.47 | |
Fuel Type | Diesel fuel | ||
Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
Exhaust(ml) | 9726 | ||
Max output power | 273KW | ||
Horsepower | 371HP | ||
Braking system | Service Brake | Compressed air brake | |
Park Brake | Spring energy | ||
Auxiliary brake | engine exhaust brake | ||
Electric system | 24v | ||
Upper-Body specification | |||
Volume of tank | 18m³ /18000L/18000Liters | ||
Color | Painted color as required with logo on both front doors as specified by the client | ||
Material | 5mm Carbon steel (Q235) | ||
Special function | Suction height | ≥9(m) | |
Suction time | 250(S) | ||
Maximum Inclination Angle | ≥45° | ||
maximum vacuum | ≥11 MPa | ||
Lifting time | ≤45 S | ||
the Cover opening Angle | ≥75° | ||
The cover opening time | ≤25 S | ||
Suction pipe | 3m length and 100 mm in diameter | ||
Fittings | Four-way change valve fitted to pump | ||
vacuum pump | pump type | SK-30 | |
motor power (kW) | 11 | ||
weight (Kg) | 460 | ||
pump speed (r.p.m) | 1440 | ||
suction pressure (MPa) | 5.4 | ||
diameter (mm) | 80 | ||
