Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of rhd 8tons 8000l cesspit emptier truck faw in China. If you're going to buy high quality rhd 8tons 8000l cesspit emptier truck faw, welcome to get more information from our factory. For price consultation, contact us.
Description
Cesspit emptier (also called cesspit emptier truck,exhauster truck,sewage exhauster truck,honey sucker,vacuum truck,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution and also is cesspool and pit vacuum cleaner tanker which is an integral unit in sanitation systems; it is available with either a FULL BORE HATCH or a conventional 450mm (18in) diameter hatch at the rear of the tank which is slope-angle mounted on the chassis to facilitate discharge operations. Suction and discharge functions are performed by the VACUUM PUMP.
Cesspit emptier truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil,waste water and other liquid materials.
Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.
Feature
--Cesspit emptier truck tanker material optional for carbon steel Q345 or stainless steel 304;
--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;
--cesspit emptier pump is optional for chinese brand single weilong pump,water ring suction pump or Italy brand BP,Jurop,Keiser Moro imported brand;
--Suction speed less than 10min and and discharge speed less than 8 min;
--horizontal suction distance: within 80 meters;
--Vertical suction depth:within 9 meters;
--Right hand drive FAW truck chassis for Kenya/Tanzania/Bostwana...
Pictures

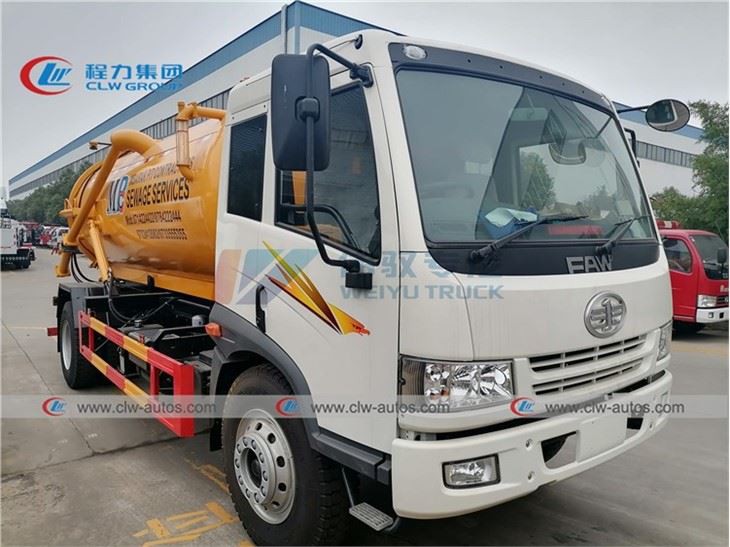

(front side view of RHD faw cesspit emptier truck)

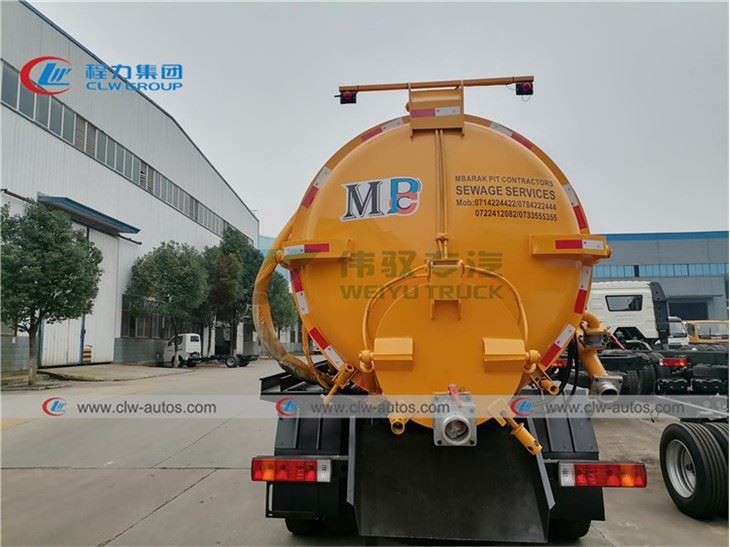

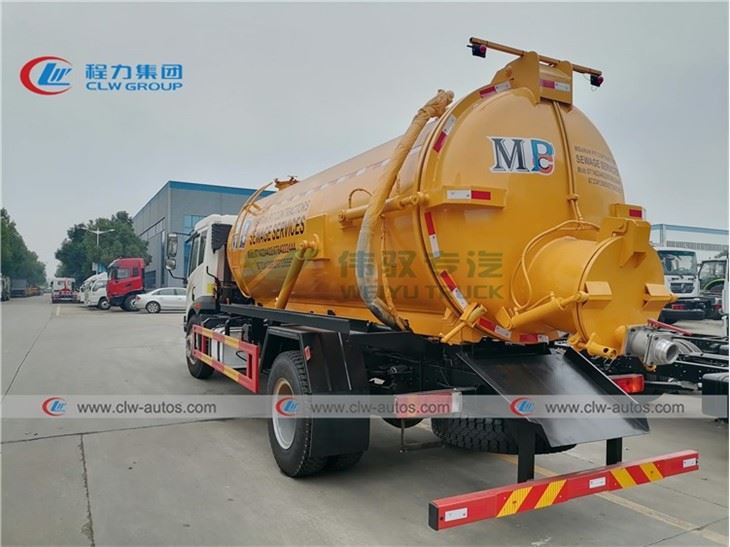

(rear side view of RHD faw 8tons cesspit emptier truck)
(Operation handle of RHD faw 8tons cesspit emptier truck)

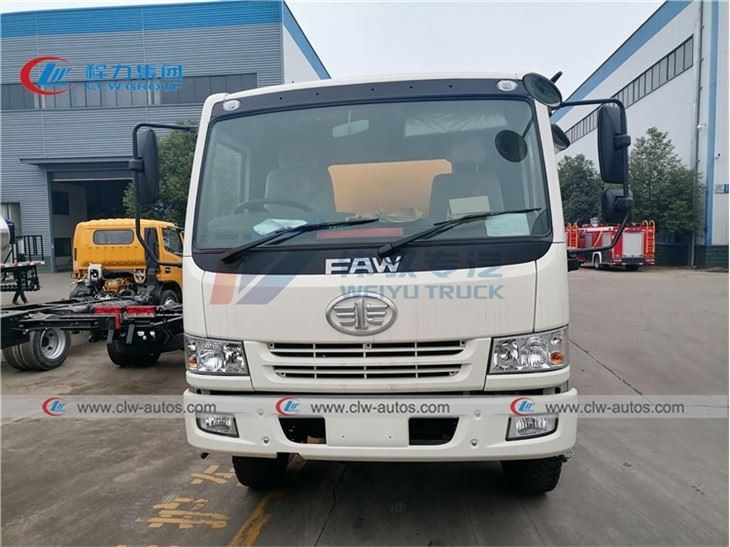

(right hand drive FAW J5K cabin of 8tons cesspit emptier truck to kenya sewage service company)

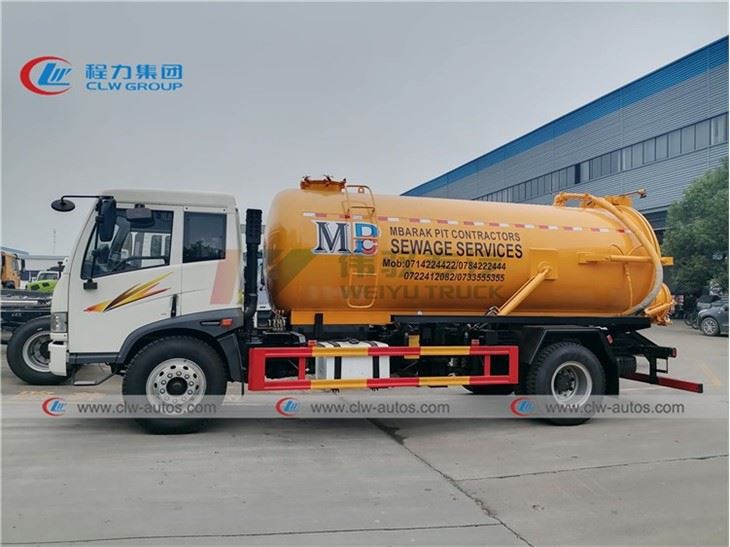

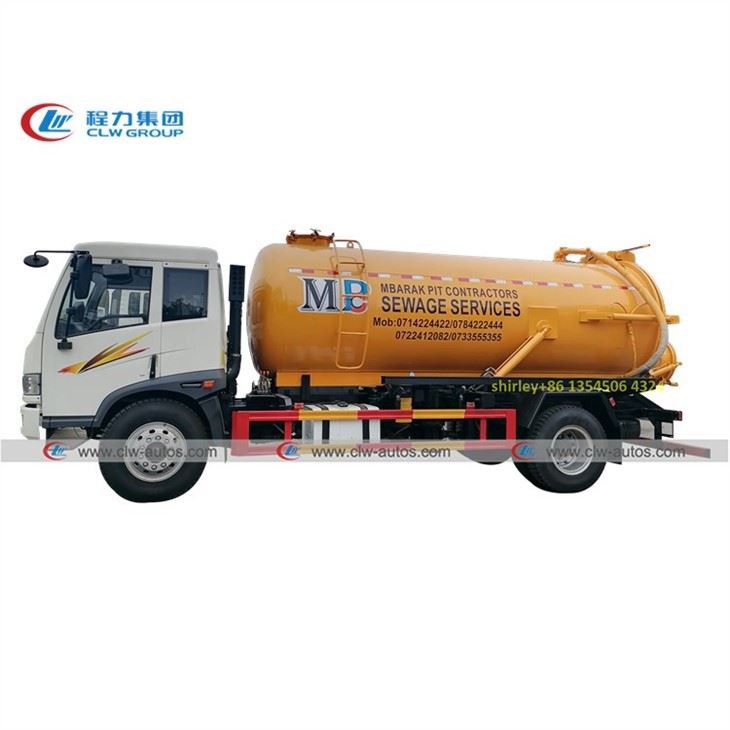

(side view of 8tons cesspit emptier truck to kenya sewage service company)
(Hydraulic lifting oil cylinders of 8tons cesspit emptier truck to kenya sewage service company)
Items | Descriptions | Specifications and Types |
General | Truck Name | Sewage suction truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 12000 | |
Curb Weight (kg) | 6500 | |
Overall Dimensions L*W*H(mm) | 8200×2480×3200 | |
Engine | Engine Model | CA6DF2D-17 |
Engine Brand | FAW | |
Fuel Type | Diesel | |
Power | 170HP | |
Emission Standard | Euro II | |
Displacement(ml) | 6557 | |
Engine Type | 6 cylinders in line, water cooling, charge inter-cooling diesel engine | |
Chassis | Chassis Brand | FAW |
Cabin | Flat roof, one row, J5K | |
Tire No. | 6+1 | |
Tire Specification | 9R22.5 steel tire | |
Wheelbase (mm) | 4600 | |
Axle No. | 2 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Clutch | Diameter 380 diaphragm spring | |
Steering wheel | Right Hand Drive with power-assisted | |
Sucking System | Tank Volume(L) | 8000 |
Tank shape | Cylindrical | |
Tank Material | 5mm thick carbon steel | |
Vacuum Pump | Yifeng/Wei Long or Jurop/BP italy pump | |
Suction Depth(m) | More than 6 meter |
