Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 15000liter sinotruk propane delivery tank truck in China. If you're going to buy high quality 15000liter sinotruk propane delivery tank truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. 7Ton / 15000Liter LPG Gas Tank with Cylinder Shape.
2. Sinotruk Howo Brand, Yuchai Engine for long time use.

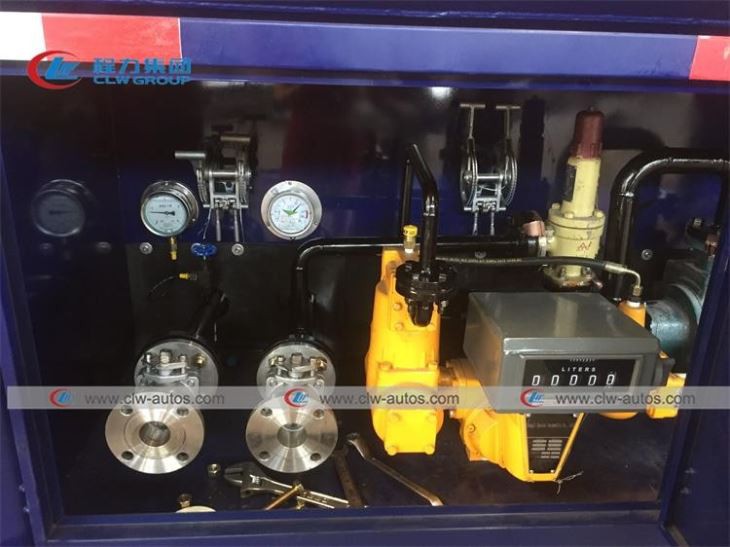

3. Dispensing System: 2” LPG Flow meters, 2” LPG Truck Pump, Tank or Cylinder Filling Nozzle.
4. Safety Features: Safety Relief Valve, Emergency Cut-off Valve for both Liquid & Vapor Line
5. Tank Material：10mm for Tank Body, 10mm for End Plate.
6. Standard: Strictly Follow Government Standard GB150-2013
Item No. |
|
Overall Dimension | 85000x2495x3250 mm |
Driving Model | Right hand drive |
Gross Vehicle Weight | 15795 kg |
Curb Weight | 9940kg |
Payload | 5660 kg |
Wheel Base | 4700 mm |
Front/rear Tread | 1886/1845 mm |
Approach/Departure Angle | 27/20 degree |
|
|
Engine horsepower | 160 HP EUROIII |
Displacement | 4260mL (Diesel) |
Max Driving Speed | 95 km/h |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 9R20 (6 pc with 1 spare) |
| |
Volume: | 15cbm |
Tank material: | Q345R |
Tank diameter: | 2000mm |
Tank thickness: | 10mm |
End plate | 10mm |
Tank length: | 5140mm |
Gas phase | DN50 |
Liquid Phase | DN50 |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
| |
Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher | 2 |
Exhaust shaft | At the front of truck for safety |
Key word: 7Ton Propane Delivery Tank, 6Ton Butane Transport Truck, LPG Bobtail Truck, Gas Dispensing Truck
Hot Tags: 15000liter sinotruk propane delivery tank truck, China, manufacturers, suppliers, factory, price
