Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 24000 liters dongfeng lpg bobtail truck in China. If you're going to buy high quality 24000 liters dongfeng lpg bobtail truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Truck Brand of LPG Bobtail Truck : dongfeng, ,optional for howo,faw,isuzu,foton,shacman,JAC and other brands
2. Tank Size of LPG Bobtail Truck : 8000liters, 10,000liters, 15,000liters, 20,000liters, 24,000liters ,
3. Function of LPG Bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4. Refiling System of LPG Bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

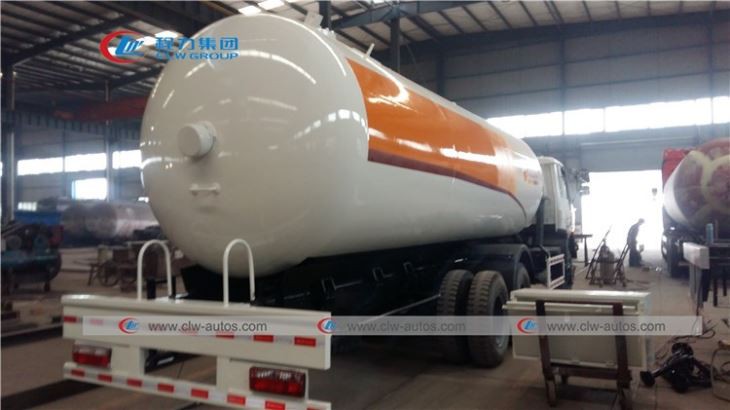

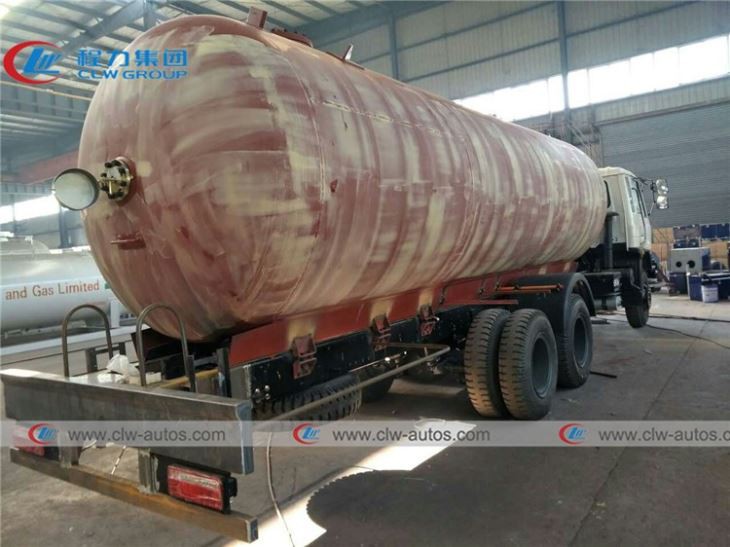

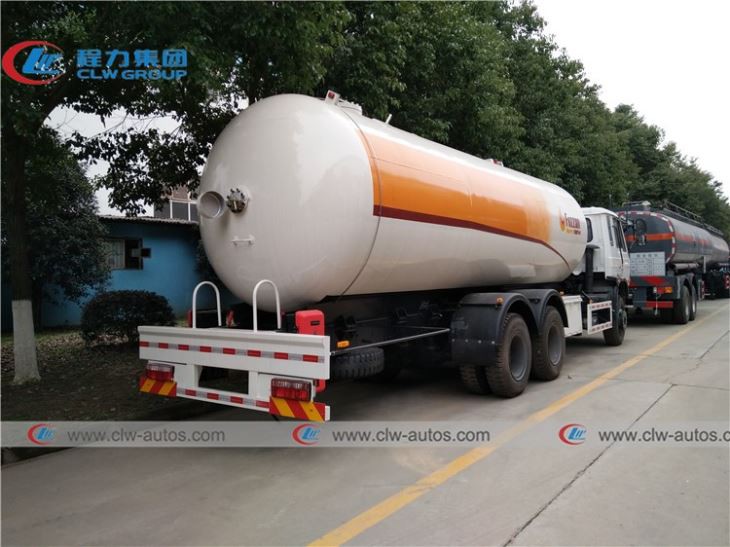

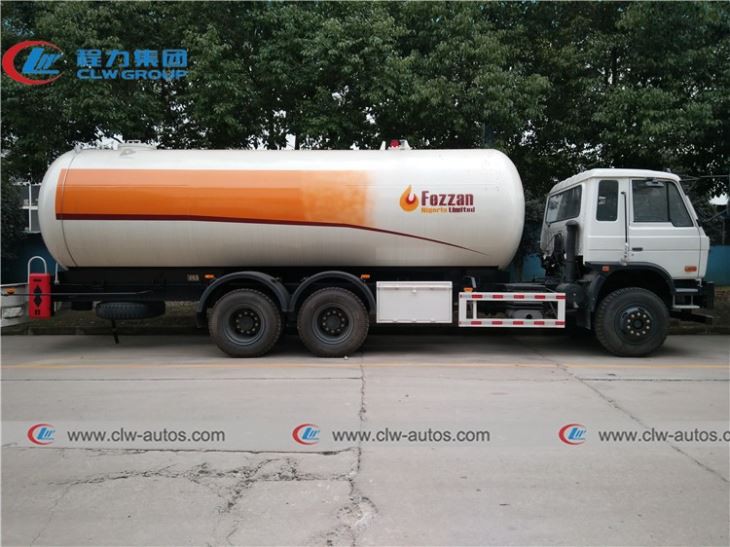

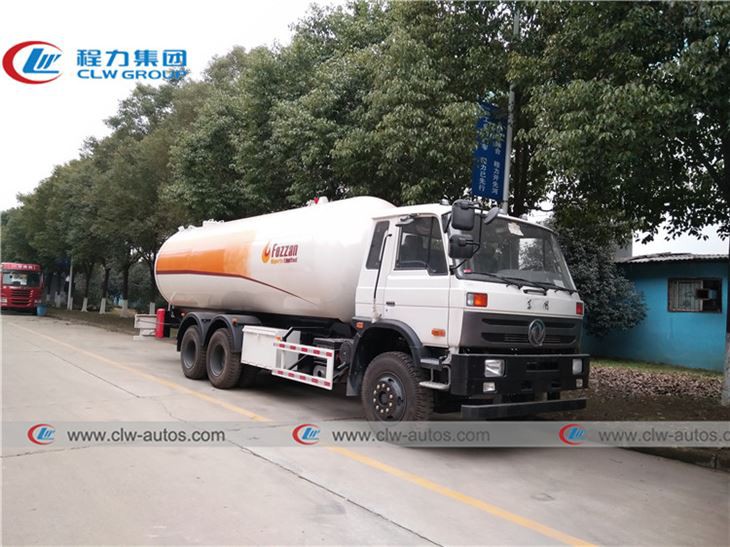

Reference picture
Specification
20m3-24m3 lpg bobtail truck | ||
Chassis brand | Dongfeng | |
Driving type | 6x4,left hand drive | |
| Cab | three passengers allowedwith A/C | |
| Overall dimensions (L x W x H) mm: | 10800*2500*3100 mm | |
Vehicle Main Dimensions | ||
| Wheel base: | 4350+1300 (mm) | |
:11500 kg | ||
Max. driving speed(km/h) | 90 | |
Engine | Brand | Cummins |
Model | B210 33 | |
Horse Power(HP) | 210HP | |
Emission | 5900ml | |
Gearbox | 8 Forwards gear & 2 reverse gear | |
Tire | 10.00-20/10.00R20/10.00R22.5, 10 tires + one spare | |
| ||
Volume | 20-24m3 | |
Diameter | 2100mm | |
Material | Q345R | |
Thickness of the end plate | 12mm | |
Thickness of the end plate | 12mm | |
Accessories for the tank | Pressure gauge, temperature gauge, emergency cut-off valve, stop-off valve, safety valve, needle valve etc. | |
| ||
Pump | Medium:Liquid petroleum gas | |
Speed:15m3/h | ||
Input and Output Diameter:50 mm | ||
Working pressure:2.0 Mpa | ||
Working temperature:-40ºC- 50ºC | ||
Material:carbon steel | ||
Flow meter | Inlet & Outlet: 2", optional 1 ½". | |
Maximum Capacity: 76~380lpm | ||
Working Pressure:350psi/24 Bar | ||
With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve. | ||
With Ticket Printer. | ||
Filling gun with pipe | 1 unit filling gun, 15m filling pipe | |
