Bangladesh Autogas Refilling Station 10MT
autogas filling station
10tons lpg station
10mt gas station
LPG skid station 10tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of bangladesh autogas refilling station 10mt in China. If you're going to buy high quality bangladesh autogas refilling station 10mt, welcome to get more information from our factory. For price consultation, contact us.
Function
Autogas station(also called skid mount lpg station,vehicle filling truck,car refilling station,autogas station for bangladesh,gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg plant composed with lpg tank,lpg pump and ex-proof motor,cylinder weighting/filling machine,valves and pipeline.
Feature
1. Autogas station for cooking gas refilling for vehicles and cars.
2. The autogas station is with 2 Function: Truck Discharging & vehicle refilling with dispenser;
3. Pump is optional for Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
4. Motor is optional for : ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
5. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
6. Explosive Proof Central Control Panel for whole station system
7. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp;
8. Easy installation,you don't need extra installation. Only need to connect electricity line with your local power.
9. Above autogas station is customized for bangladesh client.
Reference Pictures

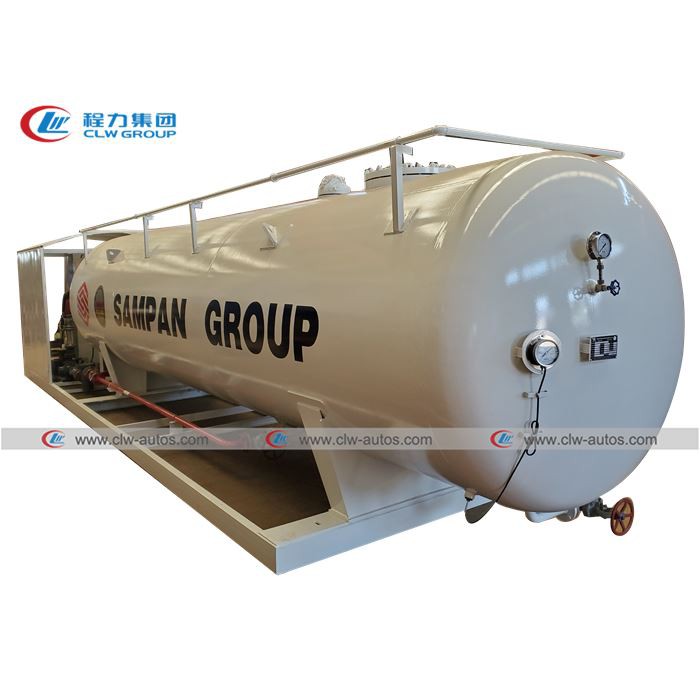

(Rear side view of 10 tons autogas filling station)

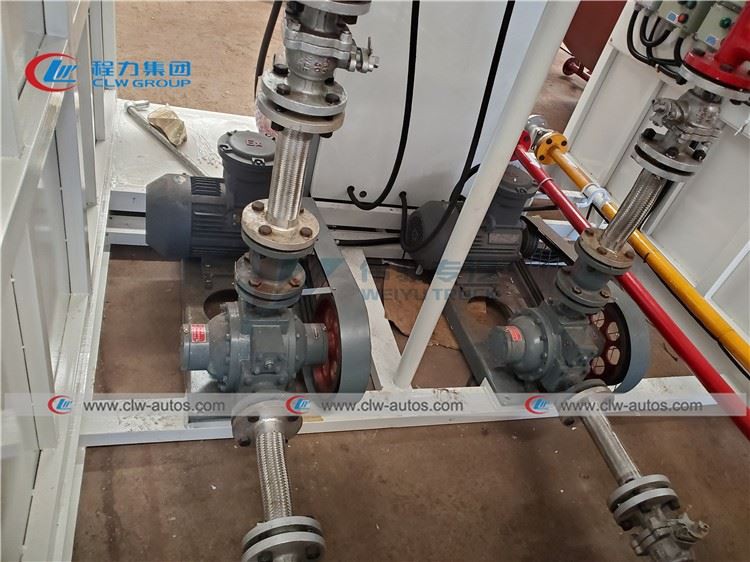

( 2 sets of LPG pumps and Ex-proof motors)

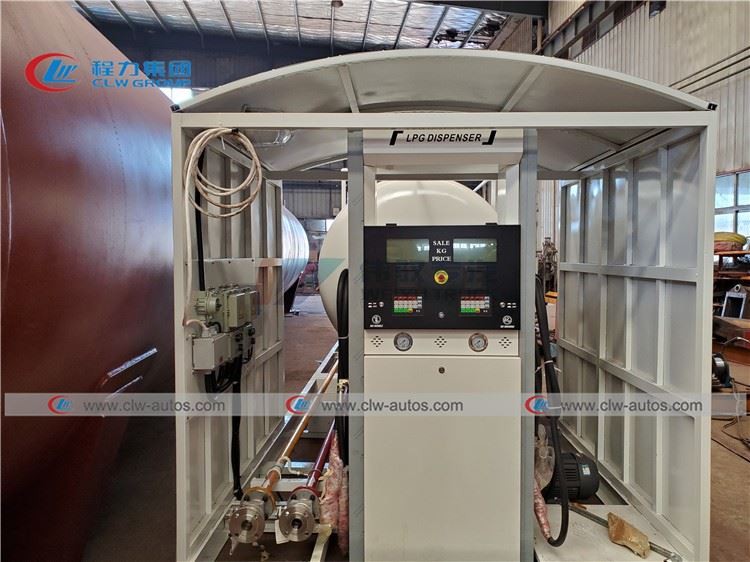

( Double nozzle lpg dispenser)

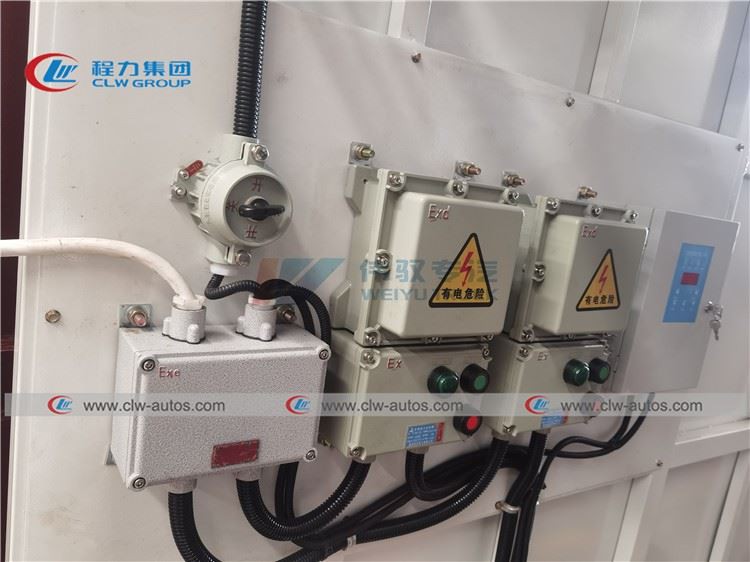

( Ex-proof control box and gas leakage detector)
Technical parameter
20CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 20CBM | ||
Filling Weight | 10000 kg | ||
Tank Weight | 2950 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 12 mm | ||
Tank Diameter (mm) | 1800 mm | ||
External Dimensions (mm) (length x width x height) | 8174 x 1820 x 2410mm | ||
Overall Skid Size | As designed | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Test Pressure | 2.22 Mpa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50-2" | 1 | |
Inflow Pipe | DN50-2" | 1 | |
Outlet | DN50-2" | 1 | |
Gas phase balance pipes | DN50-2" | 1 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50-2" | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
LPG Skid Part list | ||
Item | Model Number | Quantity |
LPG Tanker | LPG Storage Tank with tank accessories | 1 piece |
LPG Filling Pump | 2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, | 2 Piece |
LPG dispenser | Double nozzle | 1 Piece |
Leakage Detector | Leakage warning detector | 1 Unit |
Pipes | / | 1 sets |
Cut-off Valve | J41N-40 DN50 | 5 Pieces |
Ball Vavle | DN50 | 8 Piece |
Safety Valve | A42F-25 DN50 | 1 Piece |
Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
Ball floating level gauge | UQZ-2.5P | 1 Piece |
Discharging pipe | L=4M DN50/DN25 | 1 Piece |
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
Flange | 2.5MPaDN15 | 20 Pieces |
Pressure Gauge | 0 ~4Mpa | 1 Piece |
LPG Tank | LPG Storage Tank with tank accessories | 1 piece |
