10mt 20,000liter Propane Gas Cylinder Refilling Plant
Station Size:20000liters/20000L or as required
Loading capacity:10tons/10mt
Tank material:Q345R
Thickness:10mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10mt 20,000liter propane gas cylinder refilling plant in China. If you're going to buy high quality 10mt 20,000liter propane gas cylinder refilling plant, welcome to get more information from our factory. For price consultation, contact us.
Function
Propane cylinder refilling plant(also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.
Feature
1. Propane refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp
whatsapp +86 135 4506 4324
youtube https://www.youtube.com/watch?v=Liw62cr4vGA&list=PLbL-g-SP8MREK5gFx_tXrNFAj34m3-gAZ&index=20
Reference Pictures

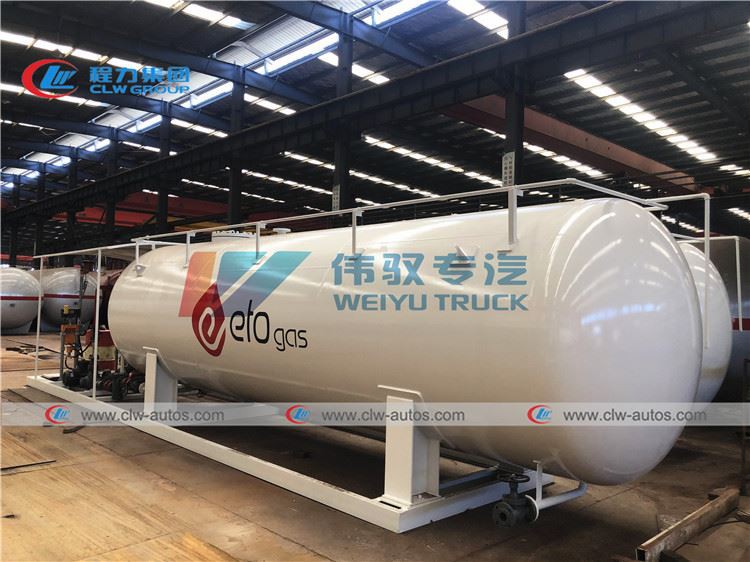

(Rear side view of 10mt propane filling station)

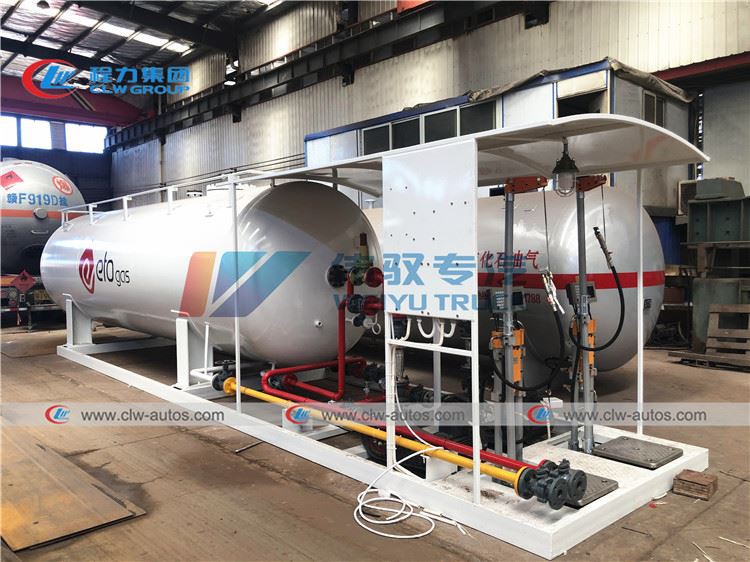

(front side view of 10mt propane filling station)

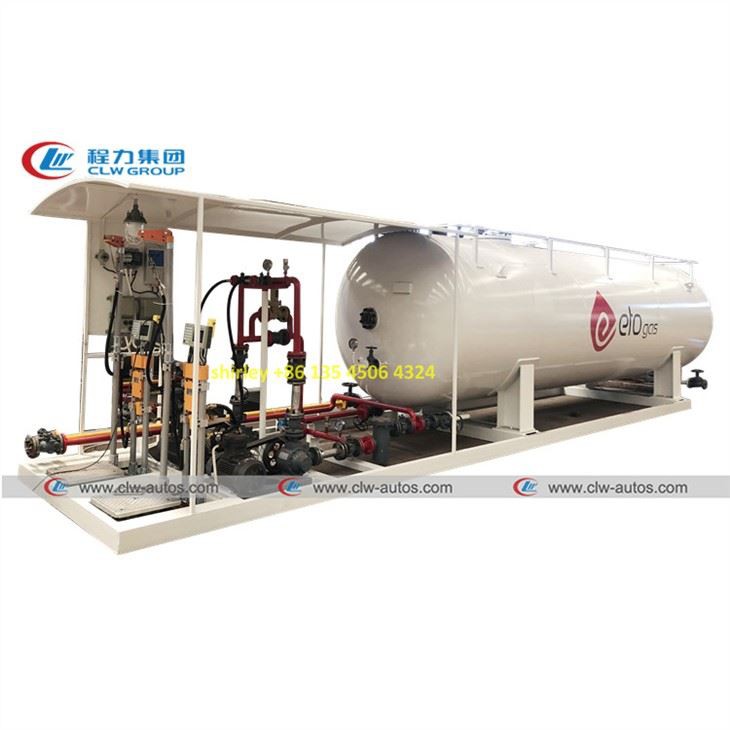

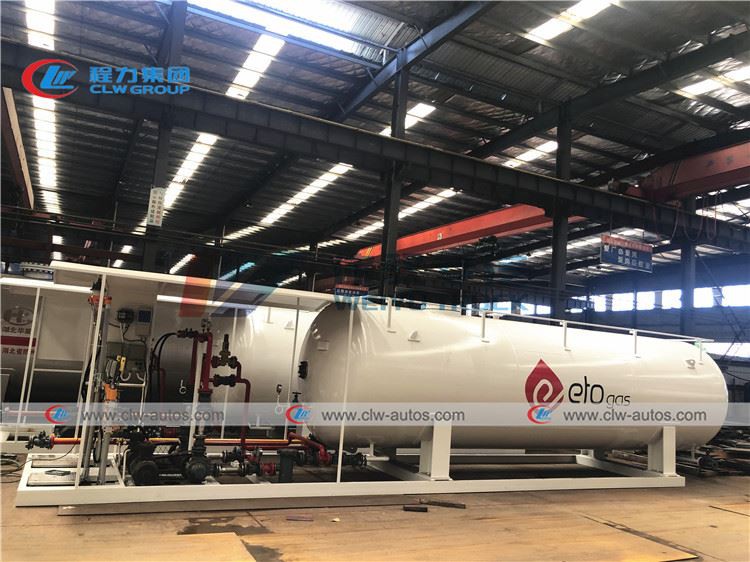

(side view of 10mt propane filling station)

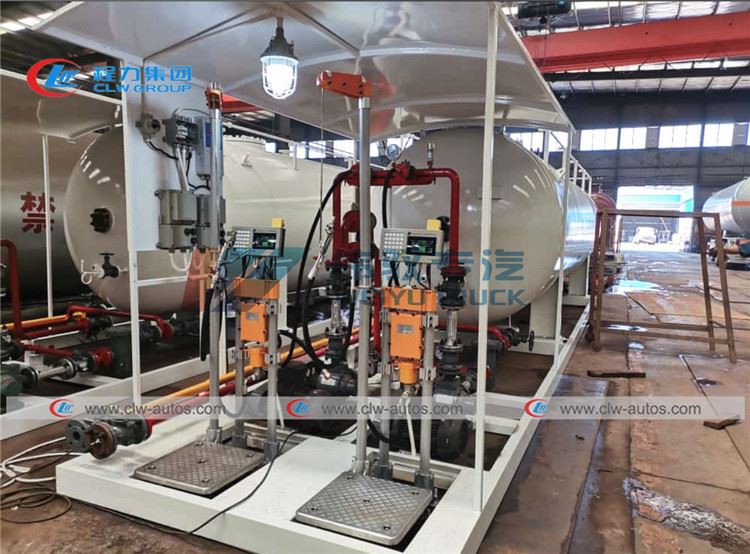

(10mt propane filling station with ex-proof lamp with 2 sets of cylinder filling machines)

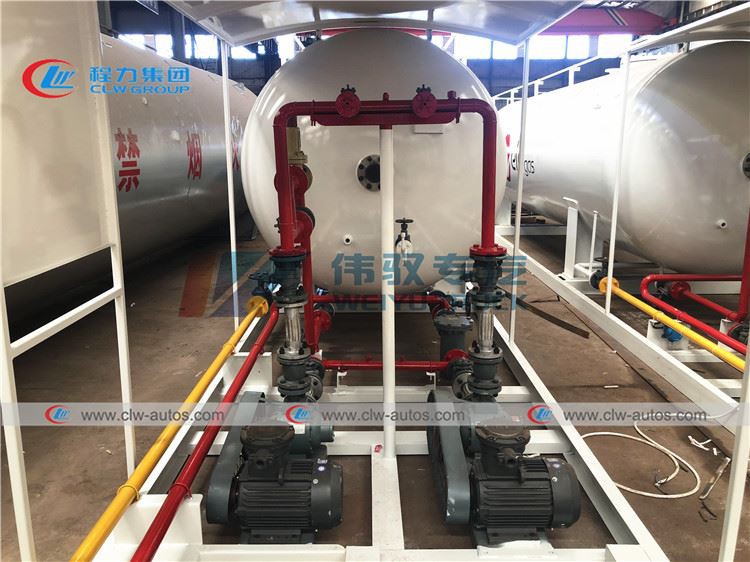

(10mt propane filling station with 2 sets of pumps and motors)

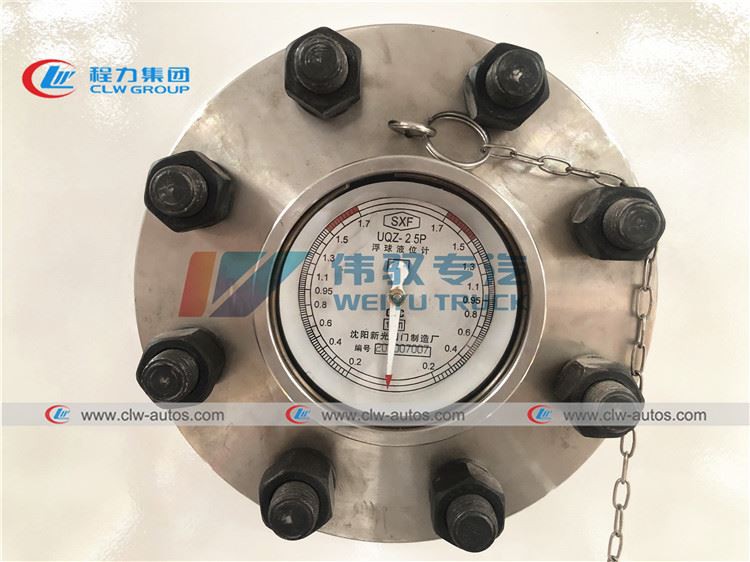

(10mt propane filling station with float-ball level gauge)
Technical parameter
|
20CBM LPG TANK DIMENSIONS |
|||
|
Volume of Tank |
20CBM |
||
|
Filling Weight |
10000 kg |
||
|
Tank Weight |
2950 kg |
||
|
Thickness of Shell (mm) |
10 mm |
||
|
Thickness of Endplate (mm) |
12 mm |
||
|
Tank Diameter (mm) |
1800 mm |
||
|
External Dimensions (mm) (length x width x height) |
8174 x 1820 x 2410mm |
||
|
Overall Skid Size |
As designed |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Test Pressure |
2.22 Mpa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420-590 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification/ mm |
Quantity |
|
|
Discharge Pipe |
DN50-2" |
1 |
|
|
Inflow Pipe |
DN50-2" |
1 |
|
|
Outlet |
DN50-2" |
1 |
|
|
Gas phase balance pipes |
DN50-2" |
1 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50-2" |
1 |
|
|
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
|
LPG Skid Part list |
||
|
Item |
Model Number |
Quantity |
|
LPG Tanker |
LPG Storage Tank with tank accessories |
1 piece |
|
LPG Filling Pump |
2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, |
2 Piece |
|
Cylinder Filling Scale |
Can fill 3kg to 150kg LPG cylinder |
2 Piece |
|
Leakage Detector |
Leakage warning detector |
1 Unit |
|
Pipes |
/ |
1 sets |
|
Cut-off Valve |
J41N-40 DN50 |
5 Pieces |
|
Ball Vavle |
DN50 |
8 Piece |
|
Safety Valve |
A42F-25 DN50 |
1 Piece |
|
Pipe Safety Valve |
A21F-25 DN15 |
1 Piece |
|
Ball floating level gauge |
UQZ-2.5P |
1 Piece |
|
Discharging pipe |
L=4M DN50/DN25 |
1 Piece |
|
Shock-absorbing Tube |
L=500mm DN50 |
2 Pieces |
|
Flange |
2.5MPaDN15 |
20 Pieces |
|
Pressure Gauge |
0 ~4Mpa |
1 Piece |
|
LPG Tank |
LPG Storage Tank with tank accessories |
1 piece |
