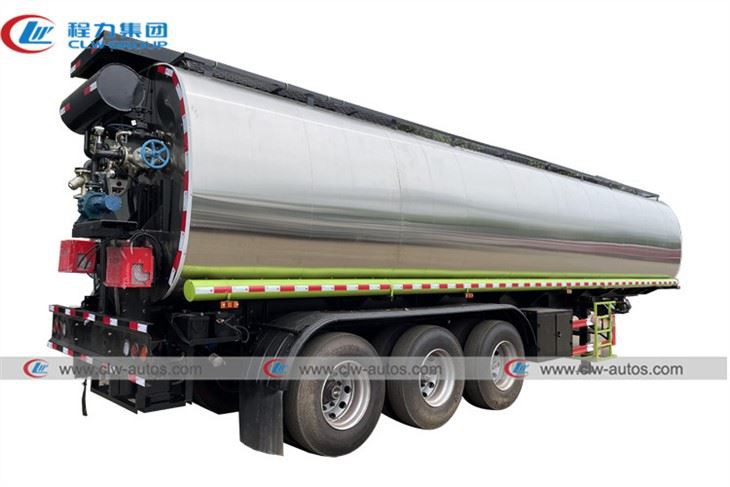

3 Alxe 40000liters Stainless Steel Bitumen Tanker Semi Trailer
Tank volume: 40000Liters Tank material: stainless steel Fuction: Asphalt/cement transport Axle number: 3
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 alxe 40000liters stainless steel bitumen tanker semi trailer in China. If you're going to buy high quality 3 alxe 40000liters stainless steel bitumen tanker semi trailer, welcome to get more information from our factory. For price consultation, contact us.
3 Axle 40000Liters 40tons Asphalt Bitumen Transport Stainless Steel Tanker Semi Trailer
Product Description
1. Purpose: It is used for transporting heated bitumen, emulsified bitumen and modified asphalt.
2. Main parts: Burner, Thermometer, Level gauge.
3. Tanker semi trailer composed of sealed tanker, climbing ladder, running gear (including axles, tires, landing gear, valve,pipeline system, heating system,etc.
4. This Tanker is applied to transport liquid bitumen in a short or long distance. It's an ideal equipment to transport bitumen from storage field or plant to construction site and operation road,etc.
5. The trailers are made by advanced techniques from both Europe and China
6. The key parts equipped with high quality fittings both domestic and overseas
7. Skeleton fasten by strength welding process
8. Safe and reliable driving for any bad road conditions
9. The tank equipped with heating system and insulation layer that can keep continuous heating for bitumen and keep warm loss by insulation layer.
10. Easy maintained and durable
Product Specification
STAINLESS STEEL ASPHALT/BITUMEN TANK SEMI TRAILER SPECIFICATIONS (3 axle heating bitumen tank semi trailer) | Remark | |
Overall dimensions (L*W*H) | 12000*2600*3750 mm | Cylinder shape |
GVW | Approx 52550 kg | |
Mass in working order | Approx 12550 kg | |
Max loading | Approx 40000 kg | Water load at 20ºC |
Axle specification | 13T×3pcs | FUWA axle |
Suspension system | Mechanical suspension | Optional air suspension |
Tire specification | 11.00R22.5×12pcs (tubeless tire), | Optional radial tire. (11.00R20). |
King pin | 90 # (3.5") JOST | Opting 2" 50# |
Landing leg | 28T load landing leg | JOST |
Braking system | WABCO Duplex line pneumatic brake | |
Voltage | 24V (7 lines) | |
BITUMEN TANK SPECIFICATION | ||
Tank capacity | 40000 L | |
Tank shape | Cylinder shape | |
Material | Mild steel Q345B | |
Thickness | 6 mm thickness | |
End Enclosure | 6 mm thickness | Flanged flat head |
Washplate | 4 mm thickness | |
Insulated | 100 mm thickness | Fiber glass rock wool |
Outside material | Stainless steel 1 mm thickness | |
Flue Pipe | 2 pcs | |
Firebox | 2 pcs | |
Model of Burner | 1 unit | Optional 2 unit type. |
Thermal Power of Burner | 200 thousand kcal | |
Model of Generator | 1 unit | |
Model of Electric Control Cabinet | PLC-3 | |
Manhole | 2 units DN500 mm | |
Asphalt Protective Frame | 800*750*150 mm | With asphalt flooding pipe DN50 |
Thermometer | 0~300 | |
Working temperature | 250 ºC | |
Working pressure | 0.9 Bar | |
Painting | Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting. | AS REQUIREMENT |
ACCESSORIES | ||
Mudguards | PVC Mudguards | |
Side protection | Nil. | |
Fire extinguishers carriers | 2pcs | |
Guardrail of Ladder | W=400 mm | |
Ladder | Front back ladder | |
Spare tire carrier | 2 pcs | |
Spare water tank | optional | |
Tool box | 1 tool box with our factory's standard free tools | |

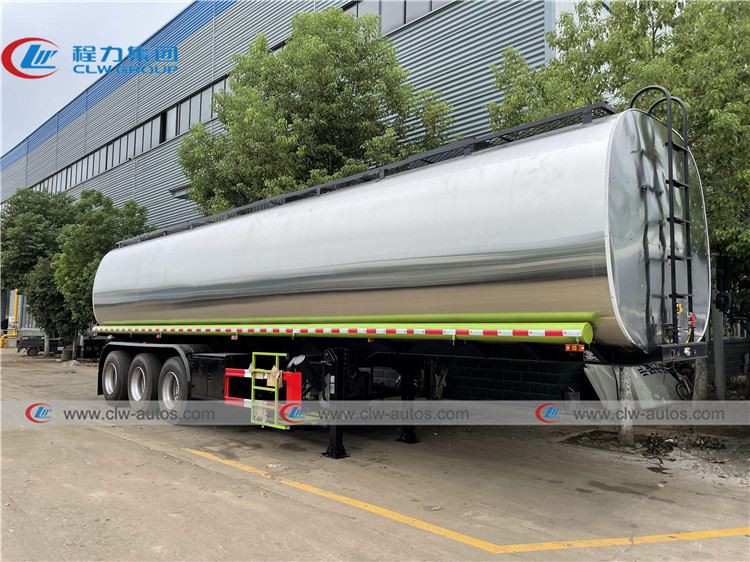

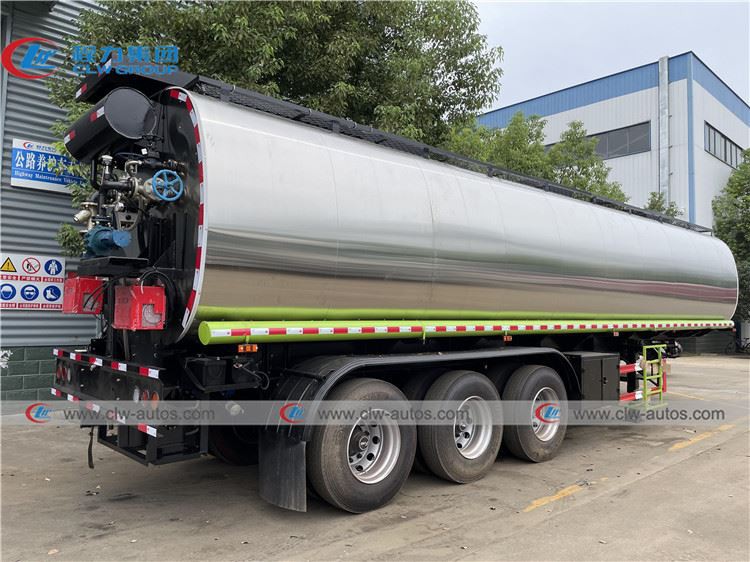

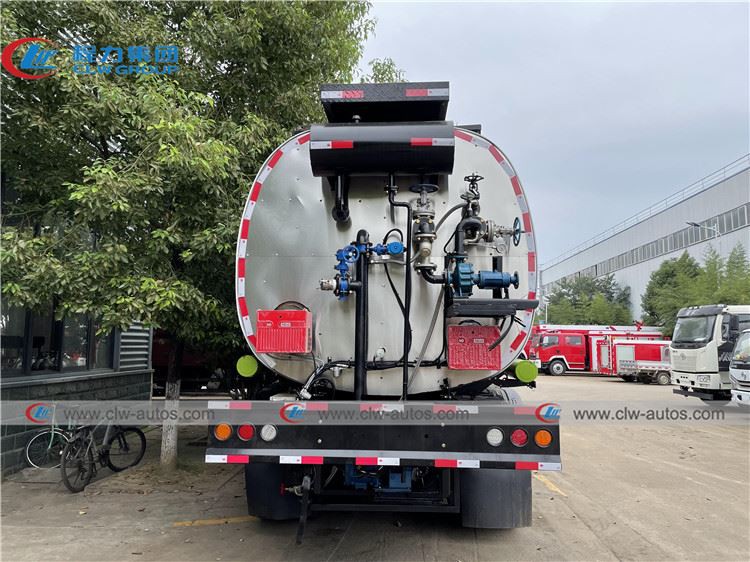

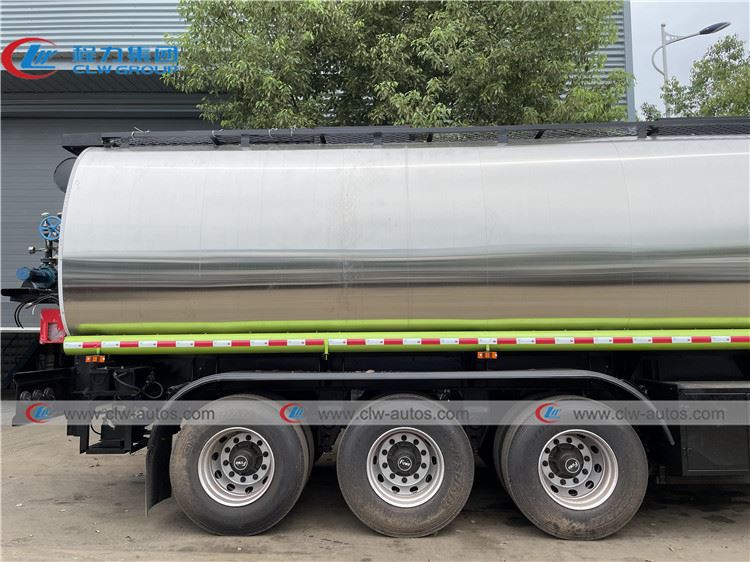

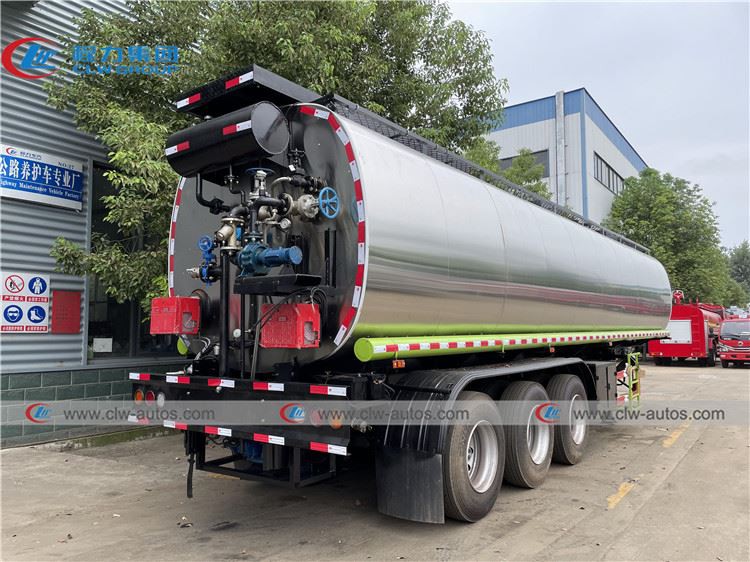

Product pictures
