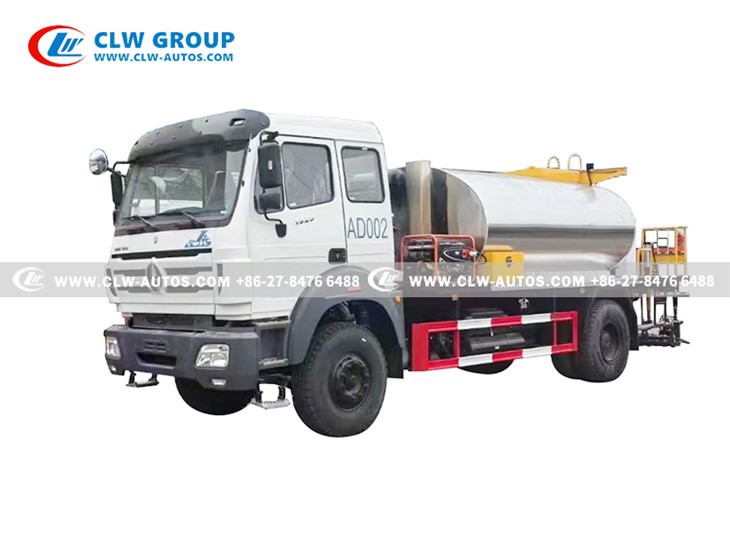

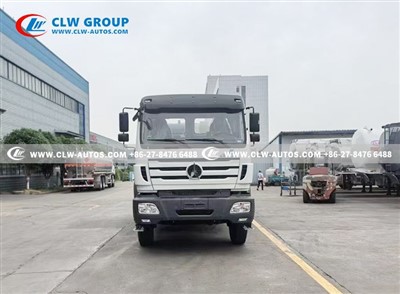

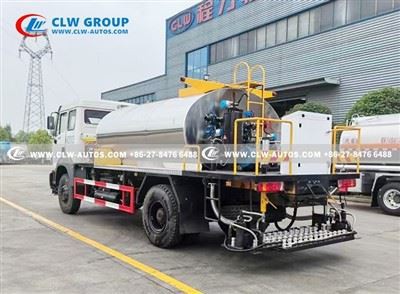

Beiben 8m3 Bitumen Sprayer Truck

Beiben 4x2 Chassis
Engine: 240 HP
GVW: 18 Tons
Asphalt Tank Capacity: 8m³

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of beiben 8m3 bitumen sprayer truck in China. If you're going to buy high quality beiben 8m3 bitumen sprayer truck, welcome to get more information from our factory. For price consultation, contact us.

Beiben 8m3 Bitumen Sprayer Truck

Products Description

Our Bitumen Sprayer, also referred to as a Bitumen Distributor Truck, Asphalt Sprayer Truck, or Binder Sprayer, offers a highly efficient solution for delivering consistent and accurate bitumen application during roadworks and pavement upkeep.

Equipped with a German-engineered Infineon smart control platform and an integrated pipeline heating system, this equipment ensures uniform bitumen distribution-even when vehicle speeds fluctuate. It is compatible with various types of bitumen, including hot-applied bitumen, emulsified asphalt, and modified bitumen, making it highly versatile for use in highway construction, municipal resurfacing, and large-scale civil engineering projects across Africa, South Asia, and the Middle East.

Mounted on a dependable FAW vehicle platform, the unit delivers:

Outstanding on-road performance
Rugged and long-lasting build quality
High-output spray performance
Intelligent thermal regulation and flow rate control

The North Benz Bitumen Sprayer is an excellent solution for contractors and construction firms pursuing smart, productive, and budget-friendly machinery for asphalt laying and surface sealing operations.

Key Features

1. Advanced smart control system ensures ultra-precise bitumen spraying, perfectly synchronized with vehicle speed.

2. High-performance asphalt pump supports self-loading and unloading, maximizing jobsite speed and flexibility.

3. Fully integrated pipeline heating delivers smooth, clog-free flow for hot, modified, and emulsified bitumen.

4. Foldable triple-section spray bar with 34 smart nozzles adapts instantly for wide or obstacle-filled areas.

5. Adjustable nozzle gaps and zoned spray control guarantee flawless coverage on roads of any width.

6. Compact, eco-conscious design with short wheelbase offers superior maneuverability and clean, safe operation.

Products Video

Products Parameter

Chassis Model	BEIBEN 4x2 240HP
Overall Dimensions	mm	725024502950
Wheelbase		3800
Tank Capacity	m³	8m³
Curb Weight	kg	8,450 kg
Gross Vehicle Weight (GVW)		18,000 kg
Engine	Model	WP6.240
	Power	176 kW / 240 HP
	Displacement	6,230mL
	Max Torque	800 N.m
Max speed	km/h	90 km/h
Tire specification	295/80R22.5 6 tires with 1 spare
Steering Position	LHD / RHD
Transmission	FAST Brand, 8 Speed Manual
Color	Customized
Equipment
Tanker Interior		Carbon steel
Insulation Material		50 mm rock wool insulation
Tank Exterior		1 mm stainless steel
Hydraulic Motor		05-11-BD31
Hydraulic pump		CBQ550-L
Bitumen Pump		QGB950, Flow Rate: 950 L/min
Proportional Valve		CL-BLTS120.00
Control System		PLC Control
Asphalt Nozzles		34 pcs
Burner		Riello G20 (Italy), 200,000 kcal/h
Thermal Oil Pump		RY40-25-160
Spray Width		4.5 m
Asphalt Spraying Rate		0.25 to 3.0 L/m²
Spraying Medium		Hot & emulsified asphalt (including SBS and rubber-modified types)
Optimum Construction Speed		3-6 km/h
Speed Sensor		GTS211B-N016
Temperature Controller		WZP-230

Products Show

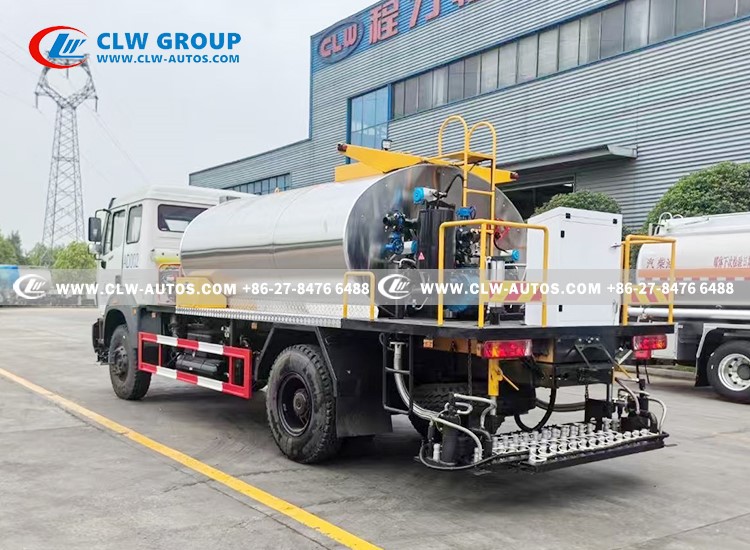

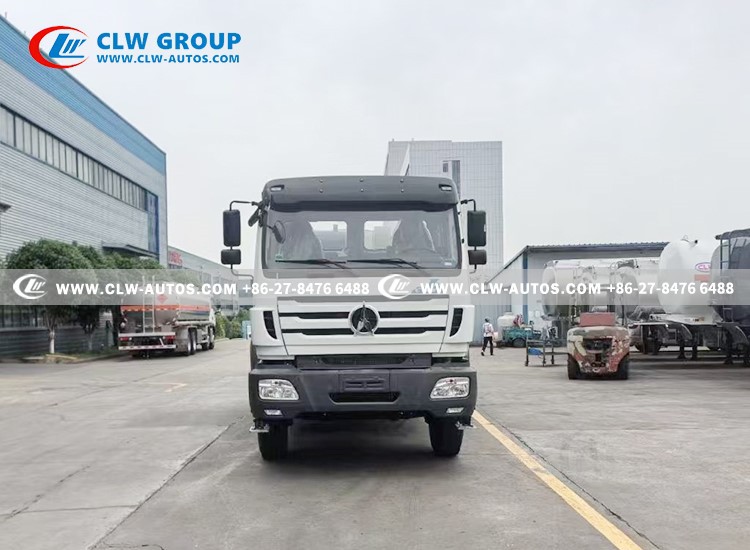

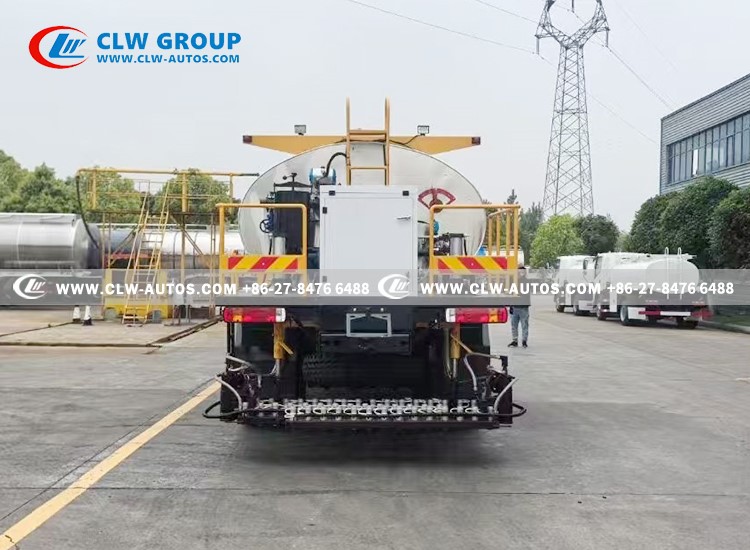

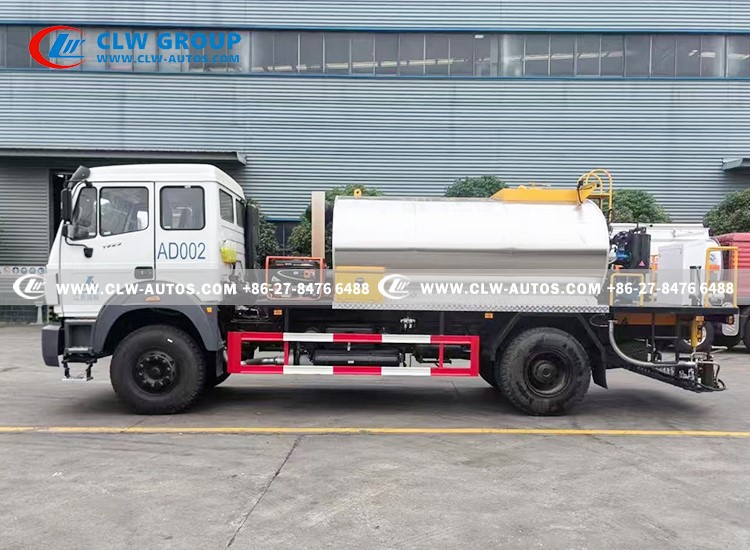

BEIBEN 8m3 Bitumen Sprayer Truck

product-750-550

Detail Photos

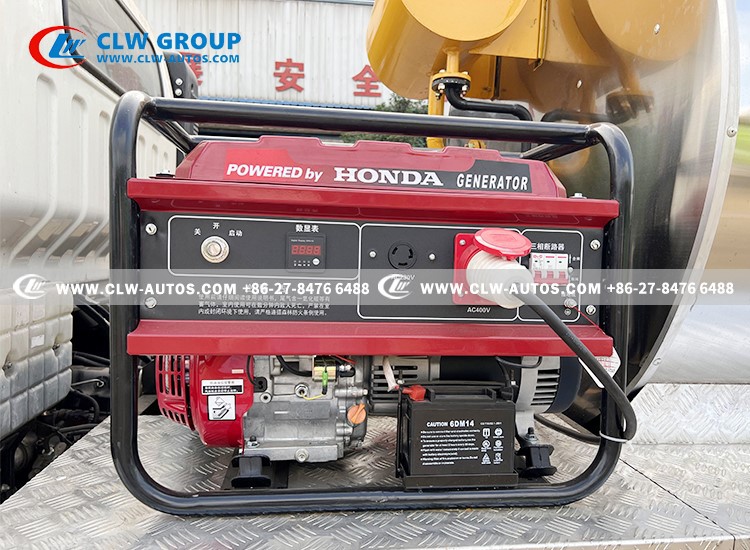

Generator

Rear Control Panel

Nozzles

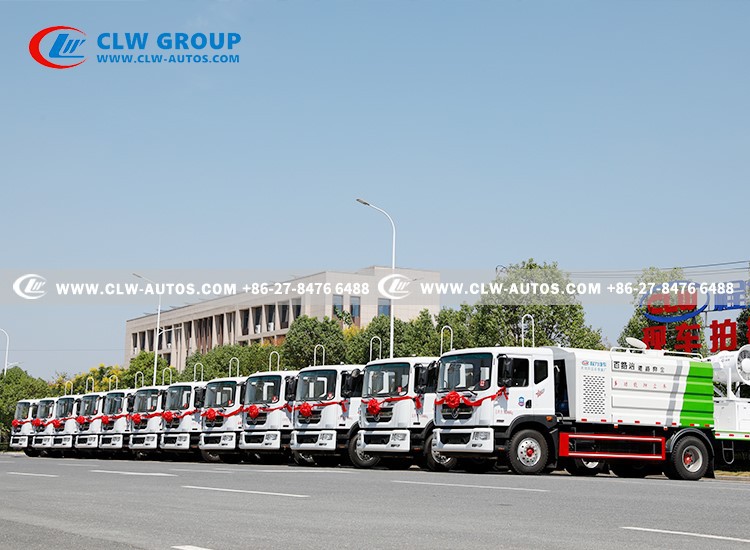

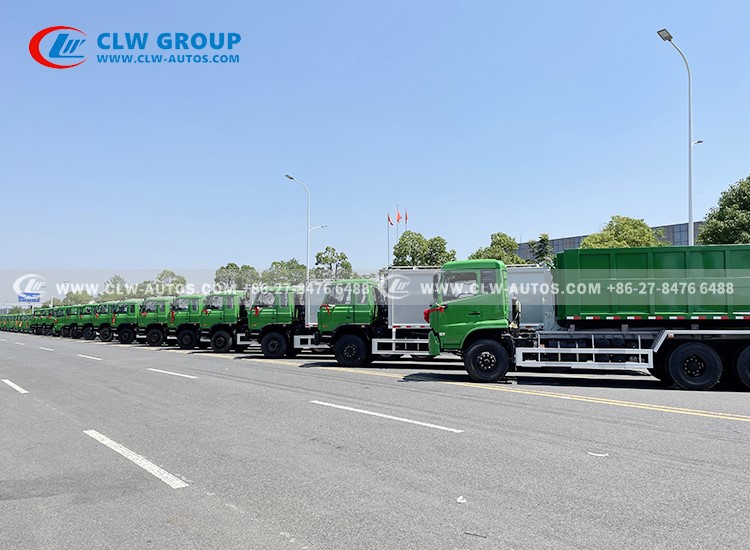

Batch Delivery

Meters
