Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu elf 3cbm foam tank fire fighting truck in China. If you're going to buy high quality isuzu elf 3cbm foam tank fire fighting truck, welcome to get more information from our factory. For price consultation, contact us.
Product description
ISUZU fire fighting truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, Sinotruk howo fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck, Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Water tower fire truck ;
--Earthquake rescue fire truck;
Features of fire rescue fighter truck:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
Product specifications
| Chassis Specification | ||
| Truck Brand | CLW | |
| Cab | ISUZU 600P CABIN | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 95 | |
| Overall dimension(mm) | 6360*2000*2740 | |
| GVW( kg) | 6530 | |
| Mass in working order( kg) | 4175 | |
| Wheelbase(mm) | 3360 | |
| F/R track base(mm) | 1504/1425 | |
| F/R overhang(mm) | 1015/1890 | |
| Approach/Departure Angel | 24/14 | |
| Tire | 7.00R16 (6+1) | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MSB 5-speed | |
| Bridge | Front axle | 2.5T |
| Rear axle | 4.8T | |
| Engine | Model | 4KH1-TCG4O |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust(ml) | 2999 | |
| Max output power/rotate speed (hp /rpm ) | 120/2900 | |
| Max torque/rotate speed(N.m/rpm) | 290/1500-2900 | |
| Braking system | Service Brake | Oil brake |
| Park Brake | Spring energy | |
| Electric system | 24v | |
| Upper-Body specification | |||
| Tank | Structure | Welding, there is clapboard inner. | |
| Material | Water Tank | High quality carbon steel plate, anti-rust treatment | |
| Capacity
| Total | 3000L | |
| Water Tank | 1500L | ||
| Foam Tank | 1500L | ||
| Equipment box | Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intention and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodize processed. | ||
| Pump room | on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
| Special
Parts Parameter | Fire Pump | Type | Normal pressure fire pump |
| Model | CB10/60 | ||
| Flux | 60L/S | ||
| Pressure | 1.0Mpa | ||

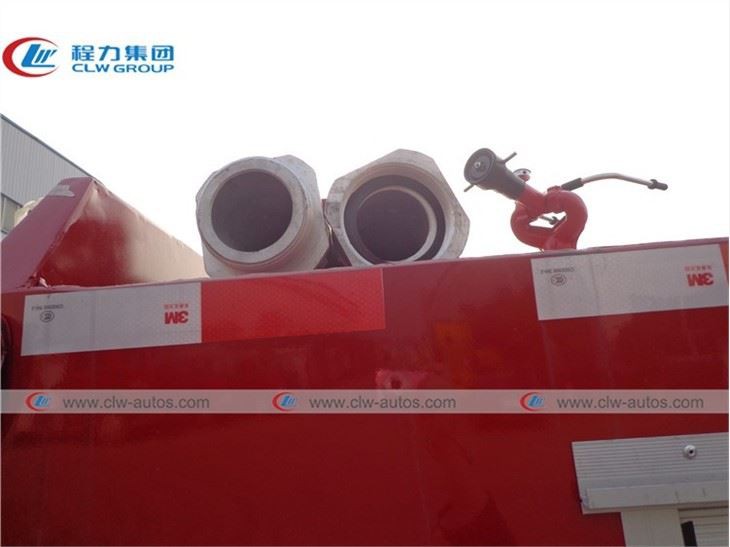

| Fire Monitor | Type | For water and foam | |
| Model | PL48 | ||
| Flux | 38L/S | ||
| Pressure | 1.0Mpa | ||
| Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
| Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||
| Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||
| Additional Electrical system system | warning light ,warning sirens | ||
| Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||
| Fire lights, pump room lights, equipment box lights | |||
| Additional instrumentation | pressure gauge | ||
| speedometer | |||
| level gauge | |||
| vacuum gauge | |||
| Carriage | Carriage is made of high quality steel and Aluminum embossed sheet | ||
| Rolling shutter door | Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. | ||

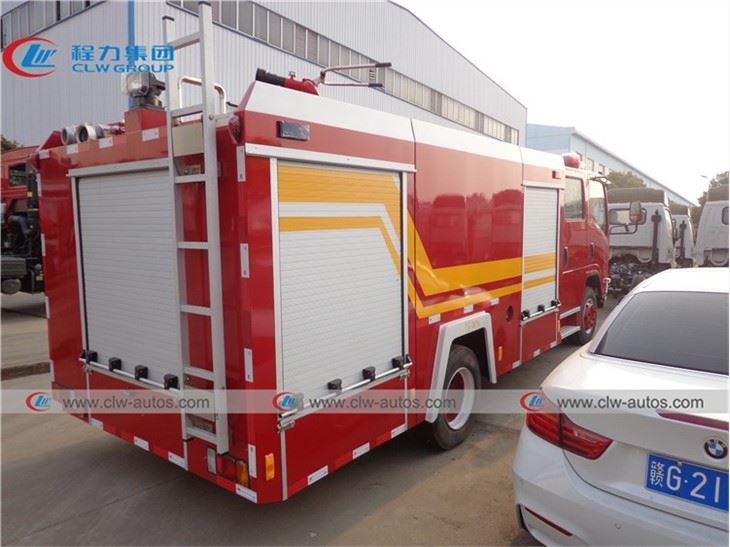

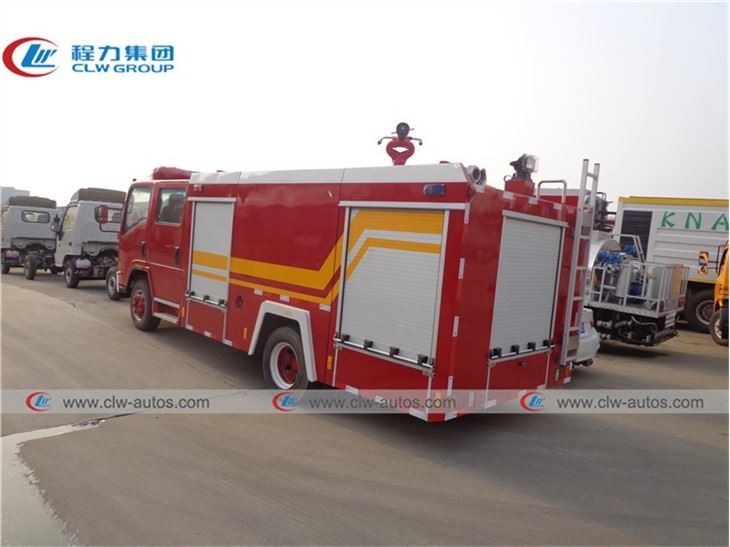

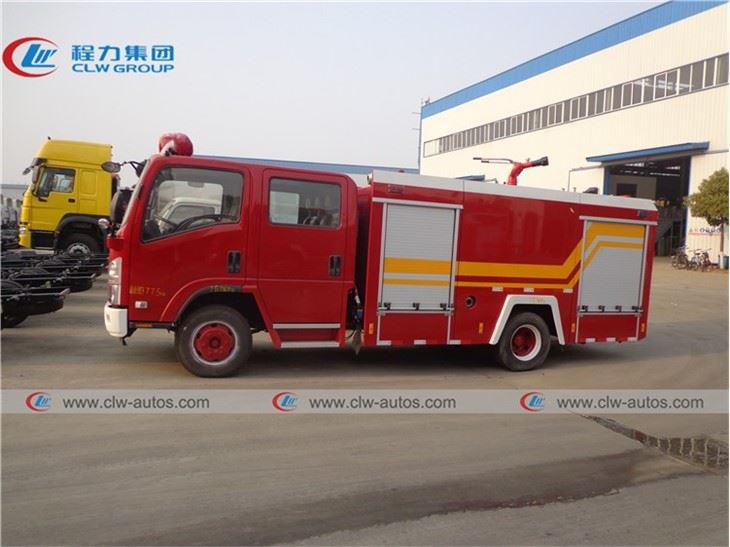

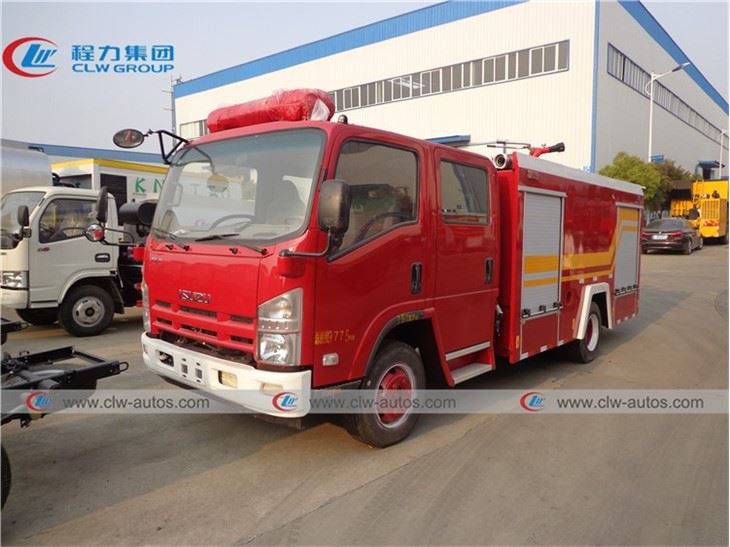

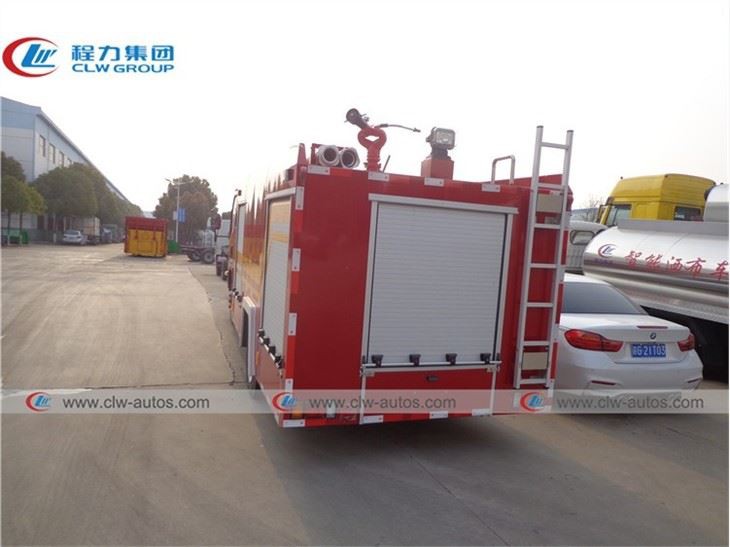

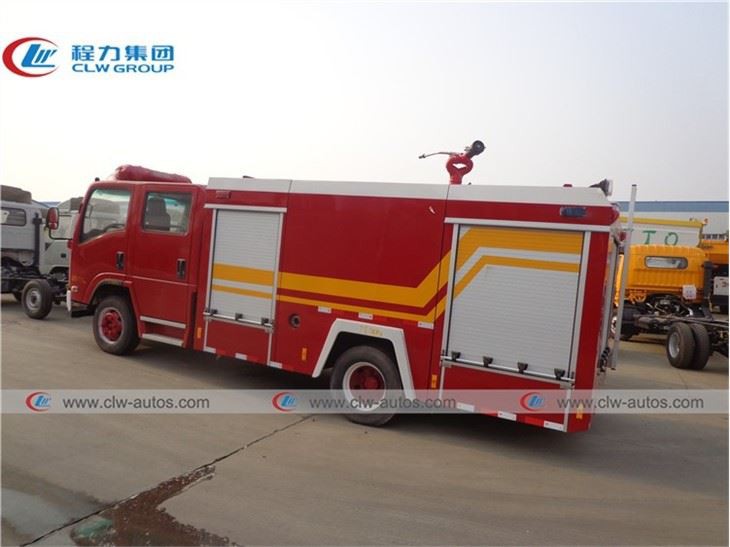

Product pictures
Equipment of fire truck
Production workshop
