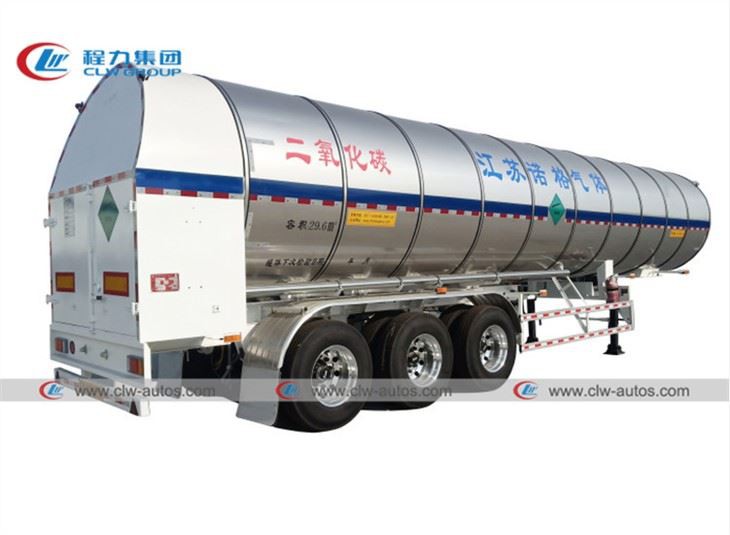

29.6M3 26Tons Liquid Carbon Dioxide Tank Trailer
29.6M3 26Tons Liquid Carbon Dioxide Tank Trailer For Liquid Carbon Dioxide transport or delivery. With Pump for discharging.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 29.6m3 26tons liquid carbon dioxide tank trailer in China. If you're going to buy high quality 29.6m3 26tons liquid carbon dioxide tank trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
Our tank trailers advantages:
1. Actively introducting and absorbing domestic and foreign advanced design, the tank body is designed with CAD, with reasonable structure, light deadweight, large working volume, and lower transportation cost.
2. We choose well-known brand OEM parts, good-looking and drable, decrease the cost of operate and maintain. 3. The sub-frame and semi trailer walking machanism are made of high strength GB steel, welded by special welding equipment, light dead-weight, and ensure its resistance to twisting forces, shock and bump, meet load requirements on different kind of road.
4. The tank body use snad blasting, rust removal technique and high-grade polyamine paint, which can make the paint a strong adhesion force, beautiful, bright and persistent.
5. The liquid tanker is produced with the special equipment, such as large special coiling plate machine and "welding by one side; in shape by two sides" welding machine, with the features of stable quality, cost-saving and good-looking.
Parameter for 3 axle 29.6M3 26Tons Liquid Carbon Dioxide Tank Trailer:
Technical Data | |||||
Weight Rating (kgs) | Tare Weight | About 13360 kg | |||
Pay Load | 26640 kg | ||||
Total Weight | 40000 kg | ||||
Dimension |
Trailer
| Overall Length | 13000 mm | ||
Overall Width | 2550 mm | ||||
Overall Height | 3620 mm | ||||
Tank | |||||
Shape | Ellipse | ||||
Total Volume（m3） | 29600 liters | ||||
Compartment | 1 Nos. | ||||
Manhole | Stainless Steel, 20 inch manhole | ||||
Inside Tank | Material | 16MnDR/12mm | |||
End plate | 16MnDR/12mm | ||||
Insulation | With Insulation Layer | ||||
Outside Layer | 1.0mm Stainless Steel | ||||
Design Pressure | 2.1Mpa. | ||||
Design Temperature | - 40℃ | ||||
Filling Medium | Liquid Carbon Dioxide | ||||
Test Pressure | 2.42Mpa | ||||

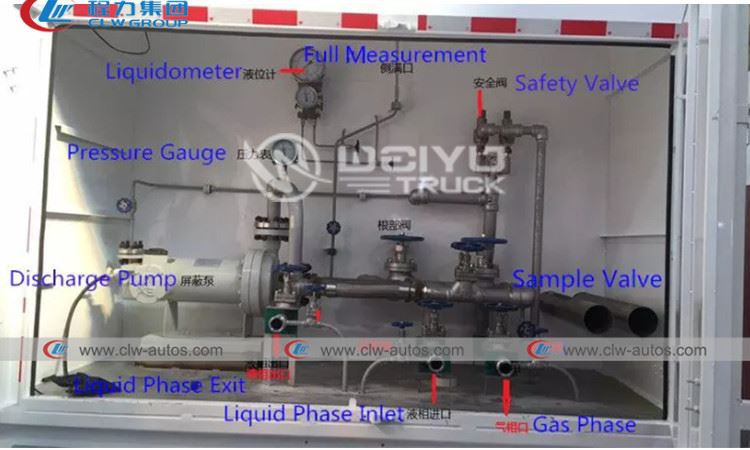

Parts for Tank | |||||
Manhole cover | 1 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve | ||||
Discharging valve | 5 sets of DN50 Low temperature ball valve | ||||
Level Gauge | Model No.: DZHF-I, One set. | ||||
Discharge pump | Chinese Famous Brand, one set. | ||||
Pressure Gauge | Range from 0—4.0MPa; One set. | ||||
Safety Valve | Set pressure: 2.25MPA; Model NO.: DAY-25, 2 sets. | ||||
Anti-static electricity system | pulling, wire carrier, sheet copper (6 sheet, reasonable layout) | ||||
Other Parts | |||||
Ladder | 1 unit at rear of tank | ||||
Guard on top of Tank | Zinc galvanizing net | ||||
Oil hose box | Circular single hole tube, 1 unit | ||||
Side guard | cross bar structure | ||||
Work tank deck | Box type | ||||
Mud guard | Steel Mud Guard | ||||
Fire Extinguisher | 8KGS, 2 sets. | ||||
Lights and wire | 24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp Anti-theft protective lamp. | ||||
Chassis | |||||
Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes | ||||
Axle | 3 units of L1 14Tons axles. | ||||
Landing Gear | JOST brand 28T, Two Speed Manual Operation | ||||
King Pin | JOST brand, 3.5” #90, bolt-in king pin | ||||
Suspension | Mechanical type suspension with 13mm x 90mm 10 leaf springs | ||||
Pneumatic Braking System | One units of WABCO RE 6 relay valve; four units of T30/30 chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | ||||
Tire | 12R22.5 Tubeless Tire, 12 Units with 1 Spare. | ||||
Painting | Sand blasting processing clean rust One coats of anti-corrosive Two coats of finish urethane paint Colour as customer choice | ||||
Other equipment | Tool Box，ABS system. 1 sets | ||||

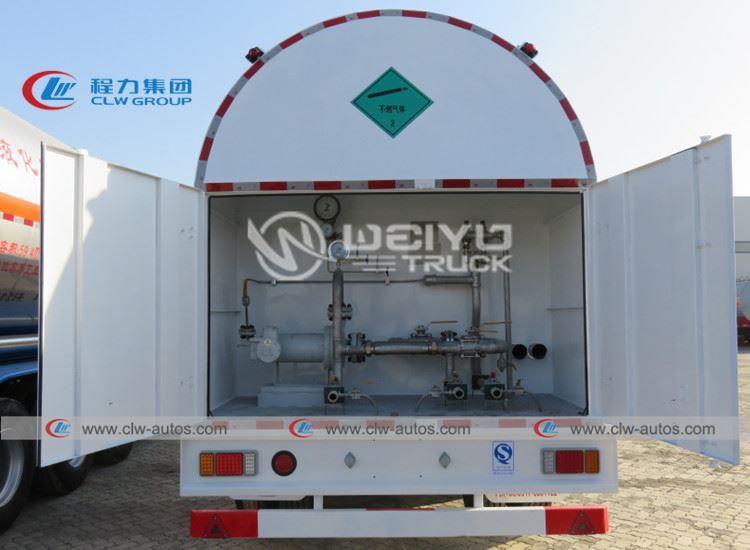

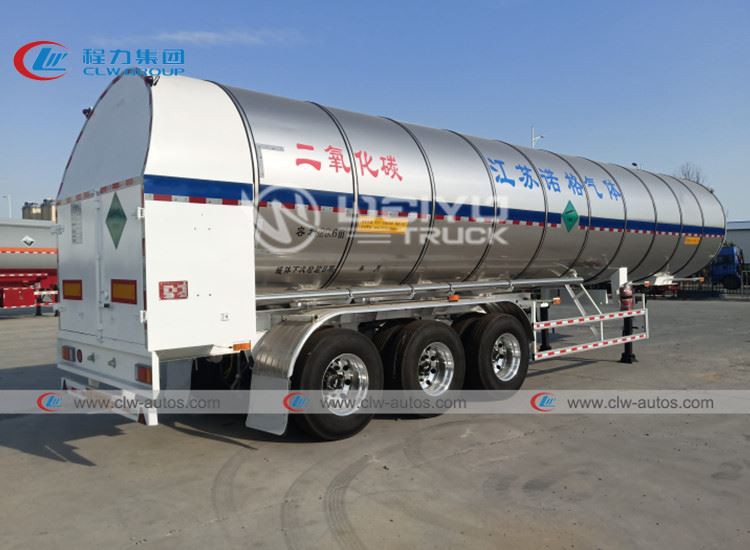

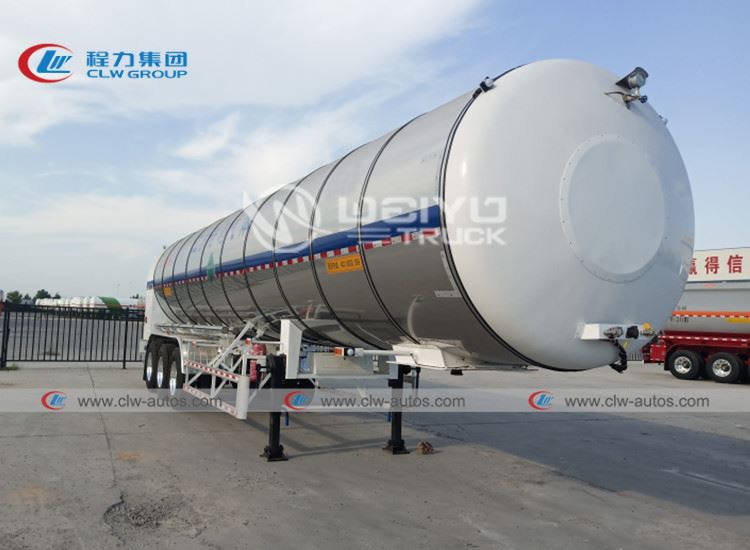

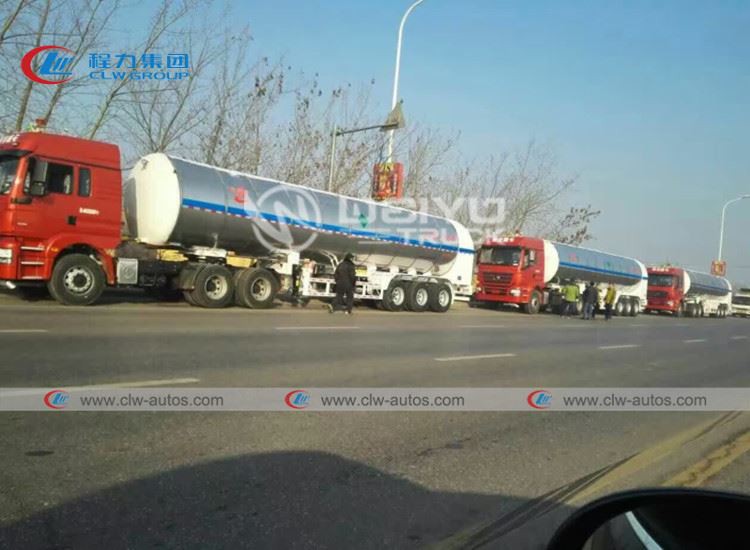

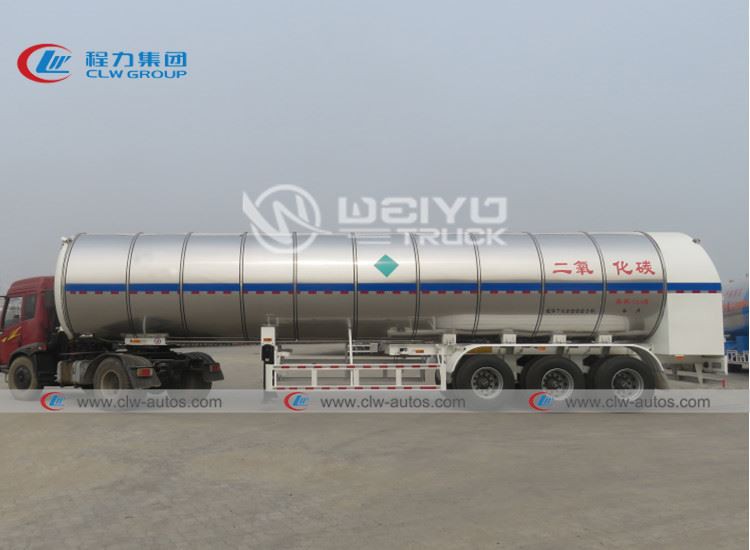

More pictures for 29.6M3 26Tons Liquid Carbon Dioxide Tank Trailer:
