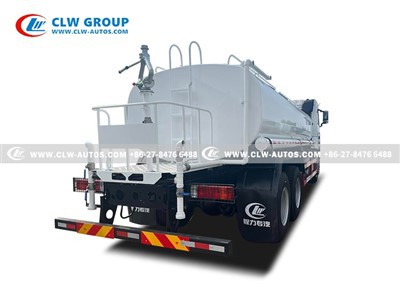

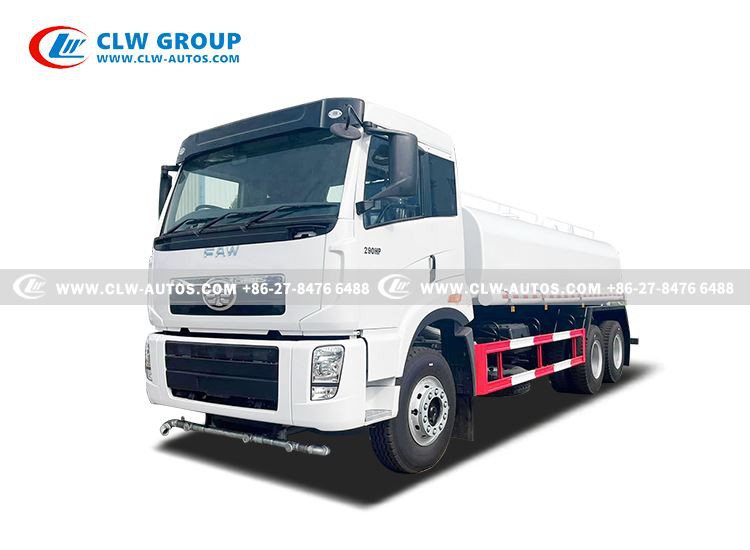

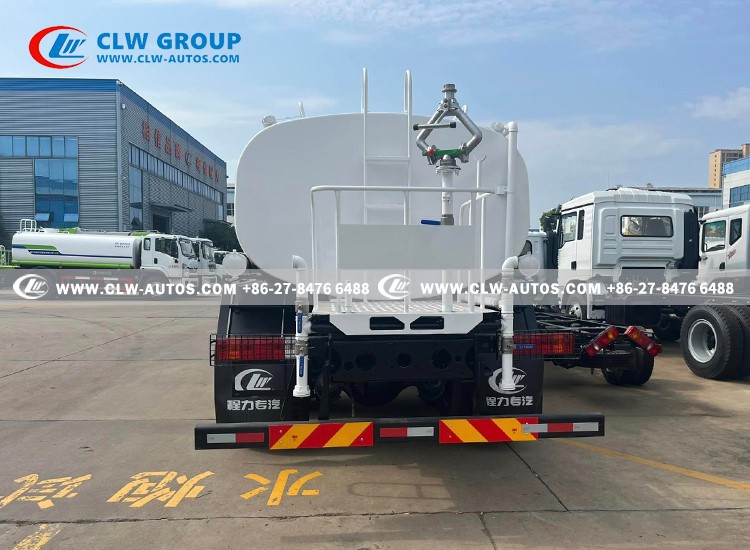

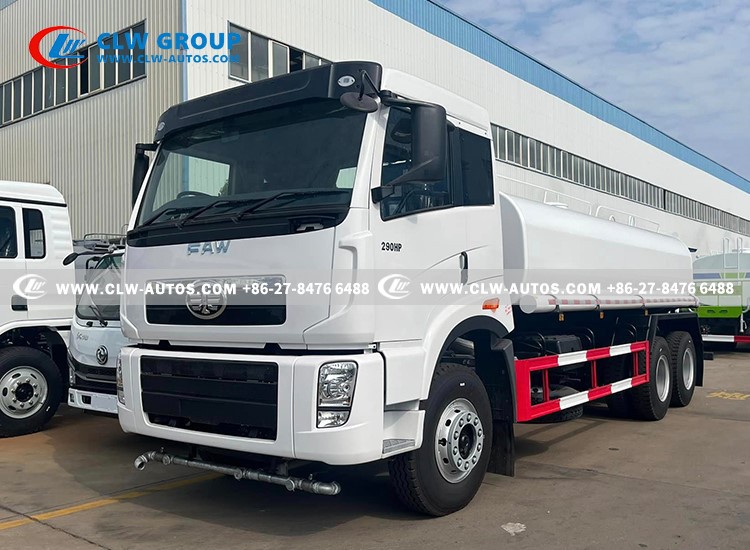

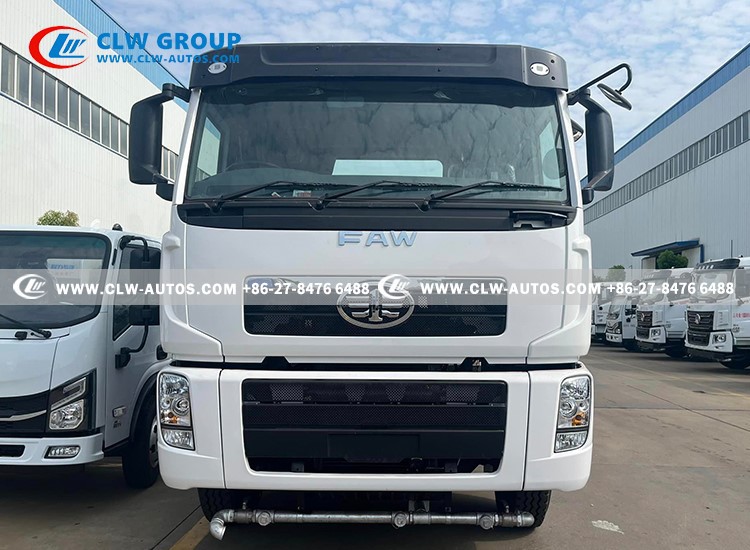

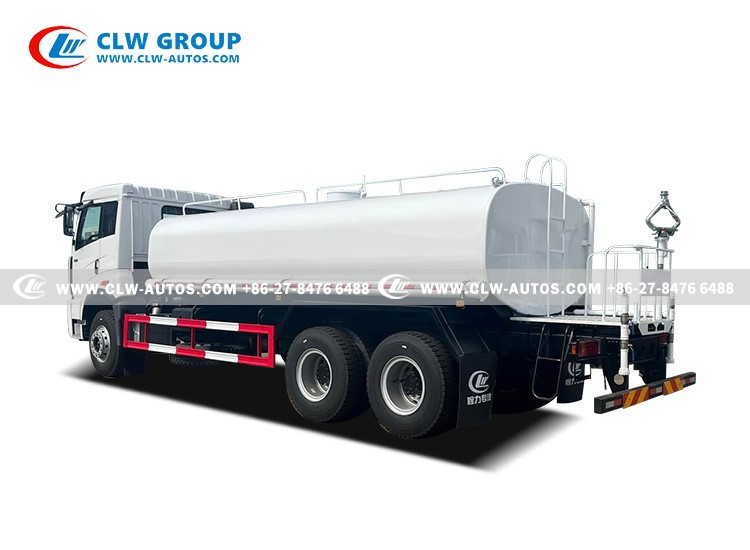

FAW RHD 20m3 Water Sprinkler Truck
FAW J5 6X4 chassis
Engine:Diesel/WP10.290E32/290HP/Euro 2
Water Tank Capacity:20,000liters (5300 Gallon)
Function:Front Flush, Rear Spray, Side Spray, Water Cannon
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw rhd 20m3 water sprinkler truck in China. If you're going to buy high quality faw rhd 20m3 water sprinkler truck, welcome to get more information from our factory. For price consultation, contact us.
FAW 6X4 RHD 20m3 5300 Gallon Water Sprinkler Truck
Factory Price For Sale
We are professional special vehicle manufacturer in China since 2004
Products Descriptions
- Water Sprinkler Truck Introduction:
The water sprinkler truck, also known as a greening spraying truck or water tank truck, is a specialized vehicle designed for transporting water. It consists of a vehicle chassis, water inlet and outlet system, and tank body.
Five key functions of sprinkler trucks:
1. Temperature Reduction:
Spraying water on the road surface during hot weather helps lower temperatures and protects the pavement from cracking due to excessive heat.
2. Dust Suppression:
In areas with significant dust, spraying water moistens and settles the dust, effectively reducing airborne particles and minimizing air pollution.
3. Horticultural Irrigation:
The adjustable spray pattern of the sprinkler can be set to various intensities, allowing for irrigation of roadside flowers and the cleaning of dust from trees.
4. Emergency Firefighting Use:
Equipped with high-pressure water cannons that have a range of 40-50 meters, sprinkler trucks can serve as a firefighting resource in emergencies, with fire connection points facilitating easier access to water.
5. Water Transportation:
Due to the varied climatic zones and irregular rainfall distribution in the country, as well as abnormal weather patterns causing droughts, sprinkler trucks can also function as water transport vehicles, earning them alternate titles such as water transport trucks or drought relief water trucks.
Operations involve water suction and spraying functions:
- Water suction requires parking near the operation point and performing suction work.

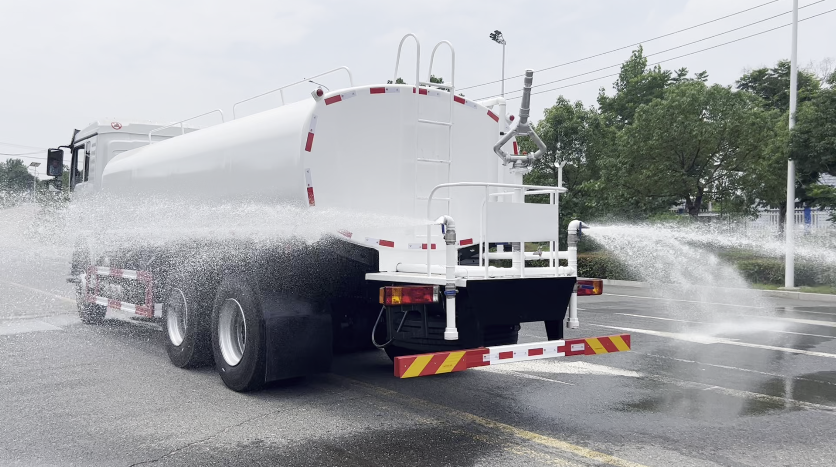

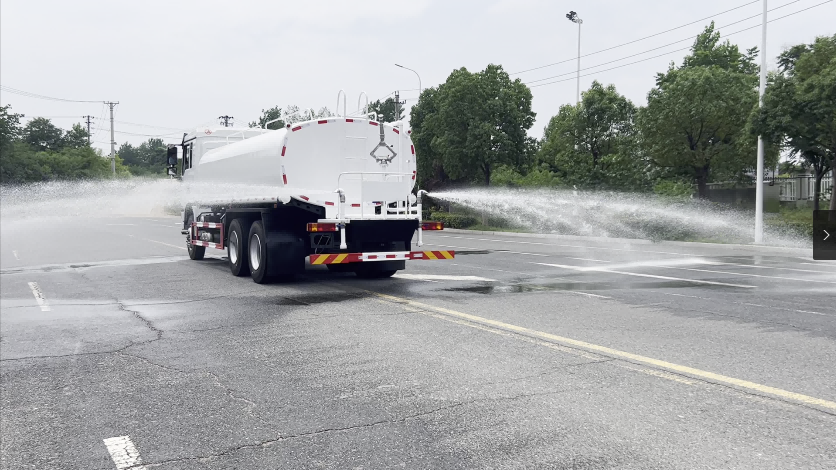

- Spraying is carried out using front-mounted duck-shaped nozzles or round head nozzles, as well as rear-mounted cylindrical spraying nozzles or lotus head nozzles.
- An optional eight nozzles at the rear can be utilized for street flushing and irrigation of green belts.
- Water Sprinkler Truck Choice:
1. Truck Chassis: FAW, FOTON, SHACMAN, ISUZU, SINOTRUK HOWO, Dongfeng, BEIBEN, JAC, JMC, etc.
2. Driving type: 4x2,4x4, 6x4, 6x6, 8x4.
3. Emission: Euro II, Euro III, Euro V, Euro VI.
4. Water Tank Capacity: 5000liters, 10000liters, 15000liters, 20000liters, 25000liters, 30000liters, 35000liters, etc.
- For quick inquiry, please contact Ms.Juniper Gong:
Whatsapp/ Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com

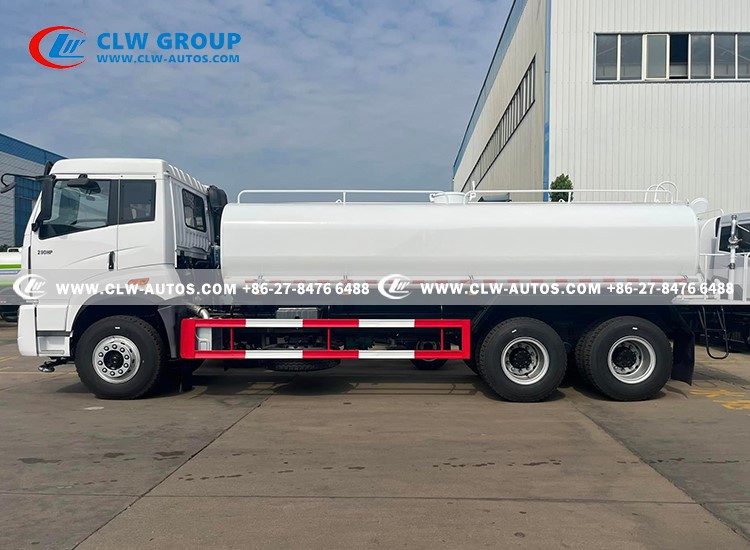

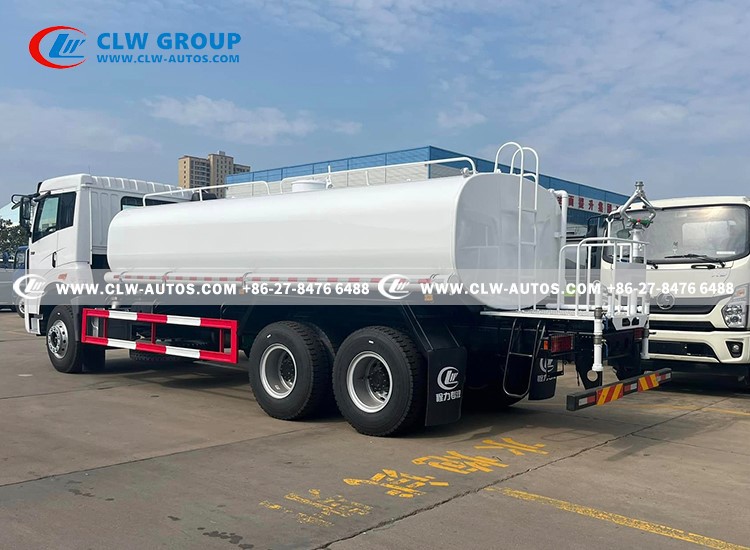

Reference Pictures
Products Parameters
|
Main Technical Parameter |
|
|
Product Name |
FAW RHD Water Sprinkler Truck 20,000Liters |
|
Driving Type |
4×2,Right hand drive |
|
Color |
Customizable with client's logo |
|
Weights |
|
|
Rated payload weight(kg) |
20000 |
|
Curb weight(kg) |
10500 |
|
Dimensions |
|
|
Wheelbase(mm) |
5100+1350 |
|
Overall Dimension(mm) |
10050*2500*3450 |
|
Box dimension |
20000L(5300 gallon) |
|
Max speed(km/h) |
110 |
|
Engine |
|
|
Engine model |
Weichai, WP10.290E32 |
|
Engine type |
Diesel engine, 4 stroke water-cooled, inter-cooling |
|
No. of cylinders |
6 cylinders |
|
Displacement(L) |
9.726L |
|
Max. output (kw) |
213kW |
|
Transmission |
|
|
Transmission model |
CA9TB160M, 9 forward and 1 reverse speed |
| Transmission type | Manual operation |
|
Cab |
|
|
Cabin |
FAW J5 (Xindawei) |
|
Standard configuration |
With A/C, oil brake with vacuum booster pump, power steering |
|
Axle Loading |
|
|
Front axle |
6,500kgs |
|
Rear axle |
13,000kgs |
|
Tire |
|
|
Tire specification |
11.00R20 |
| Tire quantity | 10 pieces with 1 spare tire |
|
Water Sprinkler System |
|
|
Water tanker material |
High quality carbon steel (Q235). |
|
Introduction |
1. Suction≥7m Sprinkler width≥14m Range≥28m |
|
2. Front flush, rear flush, side spray and water cannon |
|
|

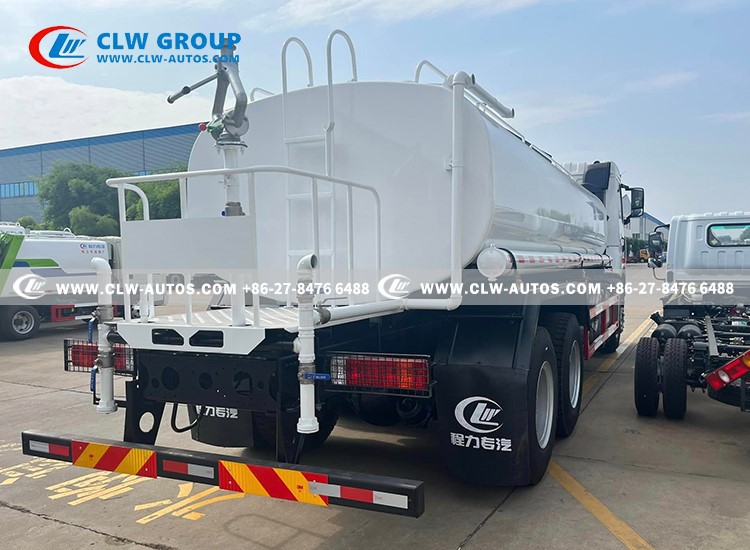

3. Working platform at the back, which can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
|
|
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
|
|
Manhole |
Man way access hole on top of tank;1 unit DN500 manhole |
|
Horse reels |
Two hose reels at each side of the truck |
|
Water pump |
Water pump model:80QZF-60/90N (N/S) |
|
Water pump flow rate(L/m): 60m3/h |
|
|
Head of delivery(m): 90m |
|
|
Self-priming function(min/4m):1.5 |
|
|
Efficiency(%):95% |
|
|
Related rotate speed(r/min)1180 |
|
|
matched power(kw):22 |
|
More Product Details

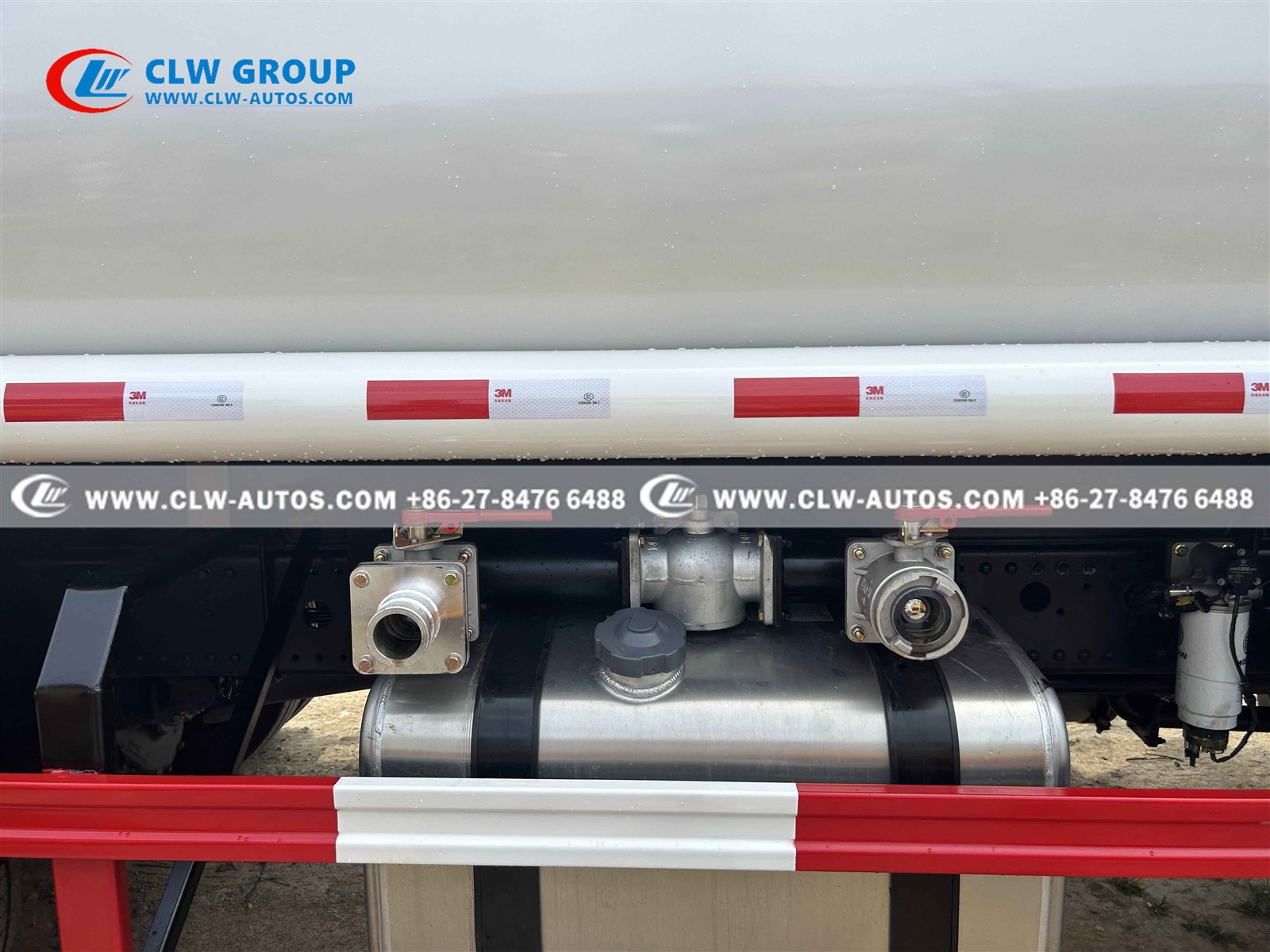

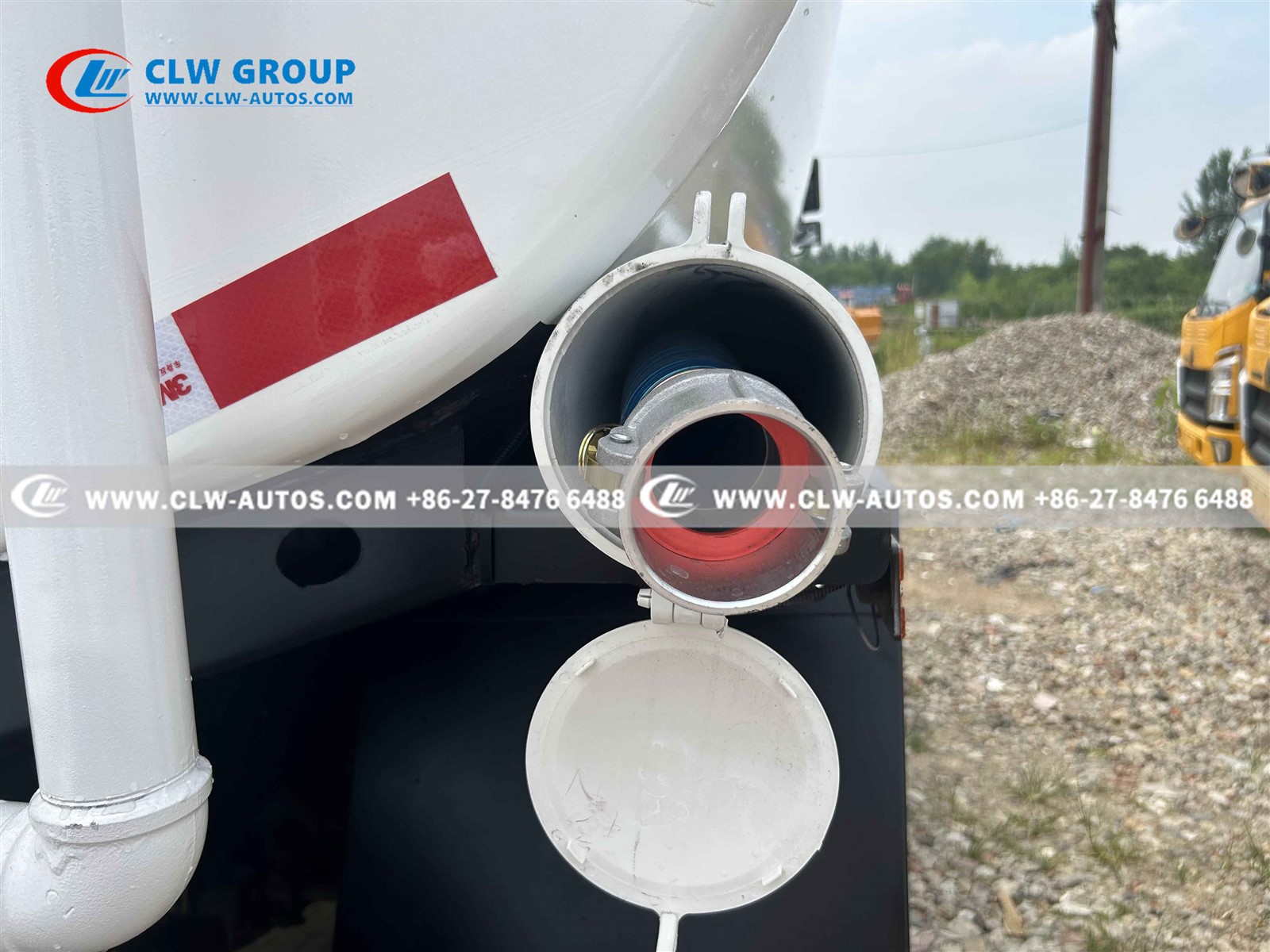

Two Water Inlet
One inlet is used to draw water from the fire hydrant. The other inlet is used to draw water from the sink by water pump.
Water Suction Hose

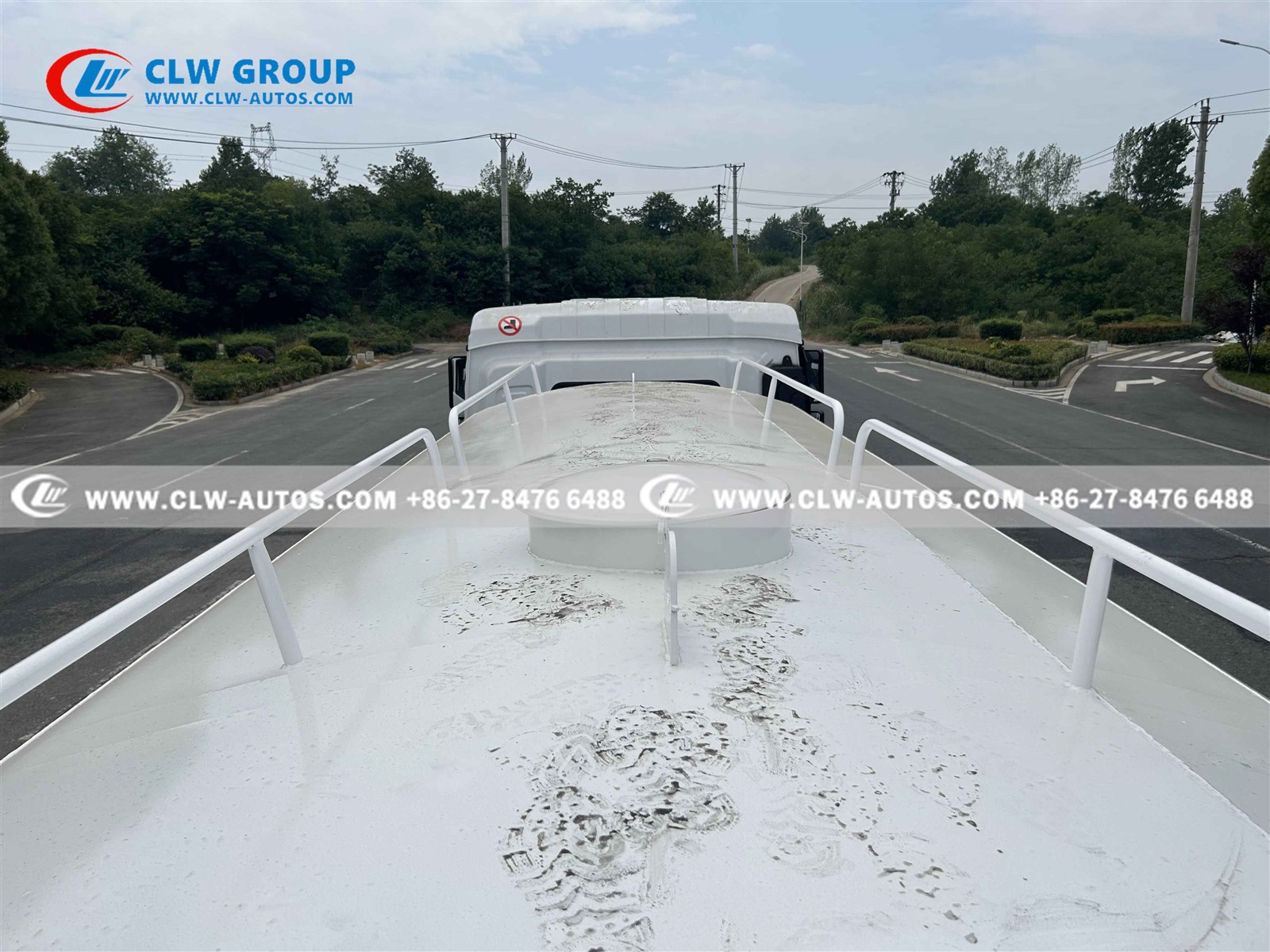

Manhole On Tank Top

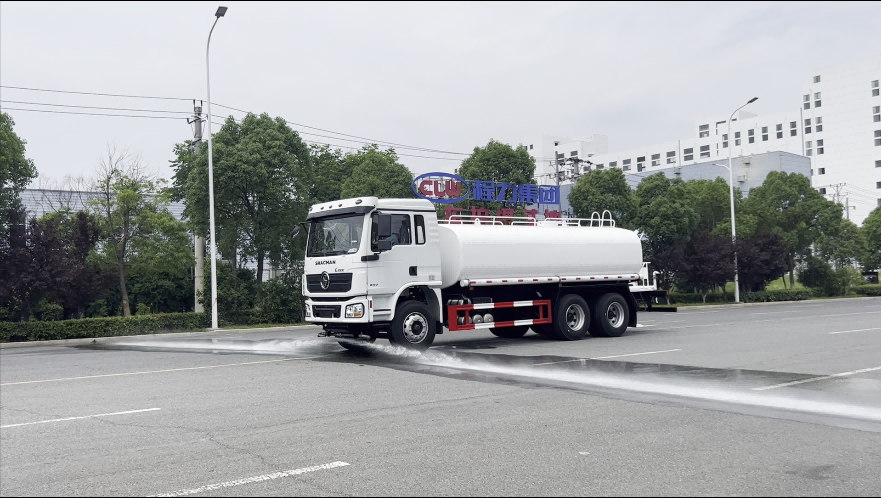

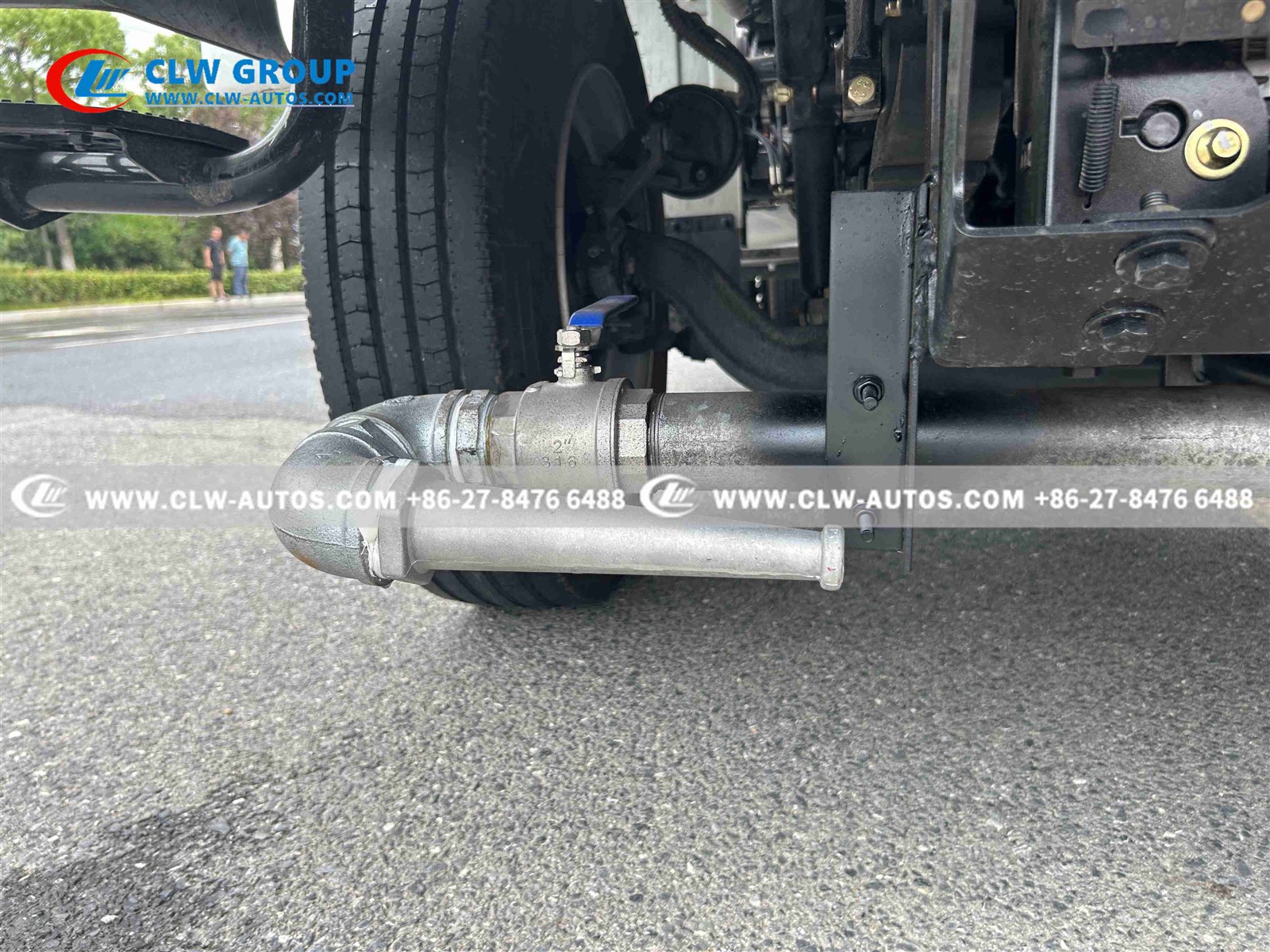

Front Flush Nozzle
Side Spraying Nozzle

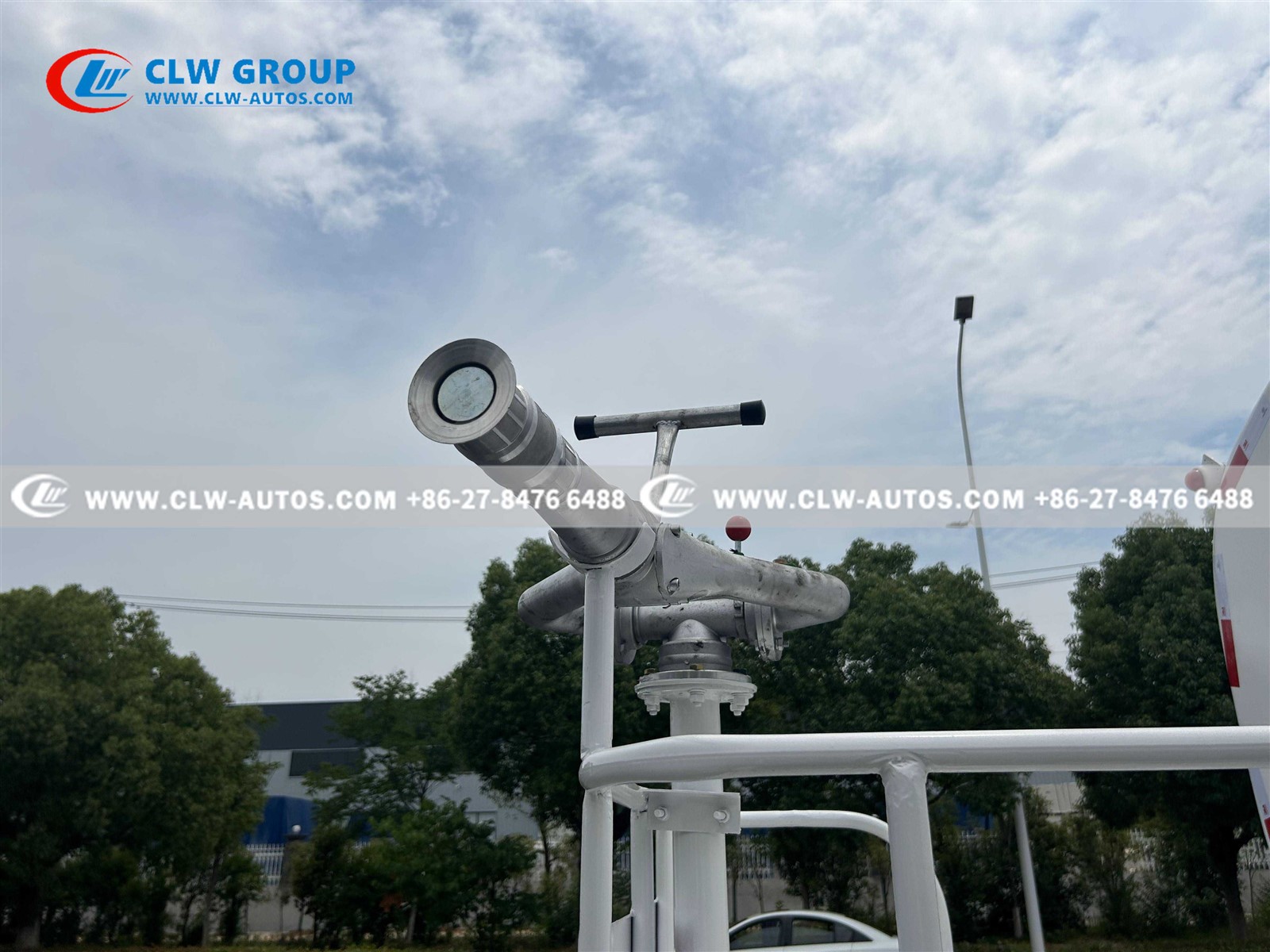

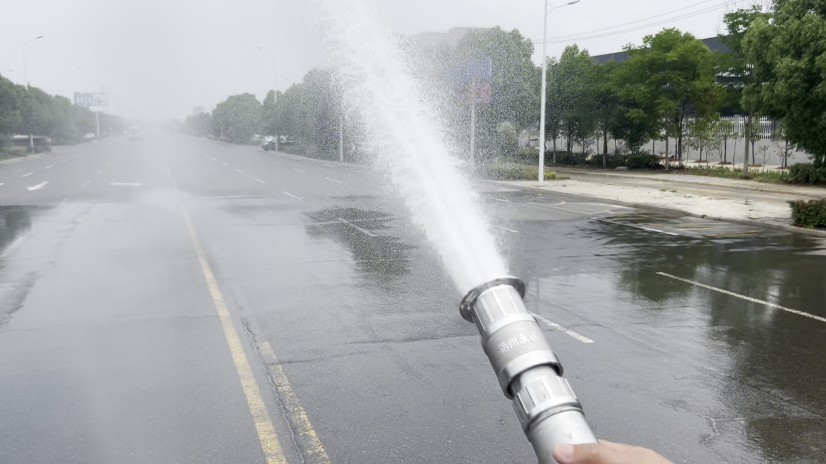

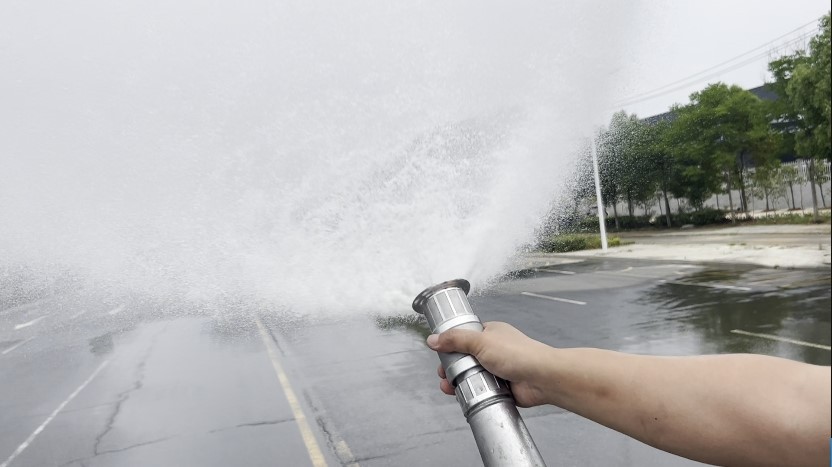

Water Cannon (360 Degrees Rotation)
