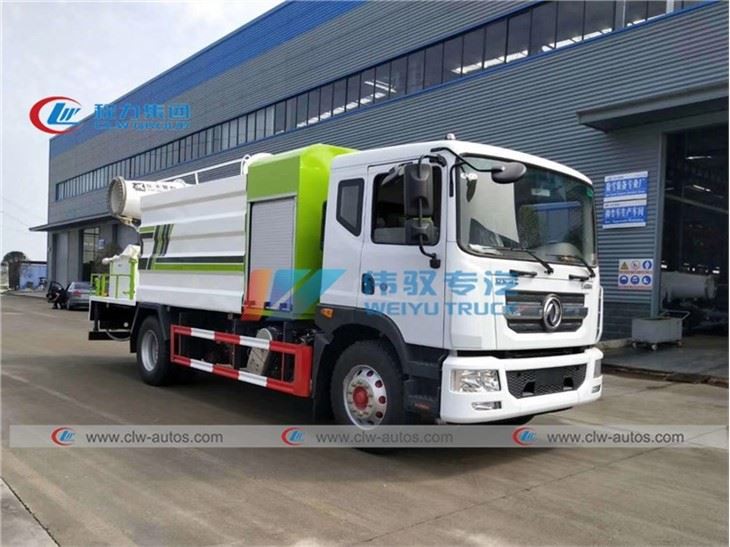

Dongfeng Dust Depression Fog Sraying Truck With Water Sprinkler
Water Fog Generator
50-100Meter Sparying Distance
Control Dust
Road Cleaning
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng dust depression fog sraying truck with water sprinkler in China. If you're going to buy high quality dongfeng dust depression fog sraying truck with water sprinkler, welcome to get more information from our factory. For price consultation, contact us.
What is a City Disinfection Truck / Dust Control Truck?
City Disinfection Truck is also named Dust Control Truck. It is designed for the envoronment cleaning purpose.

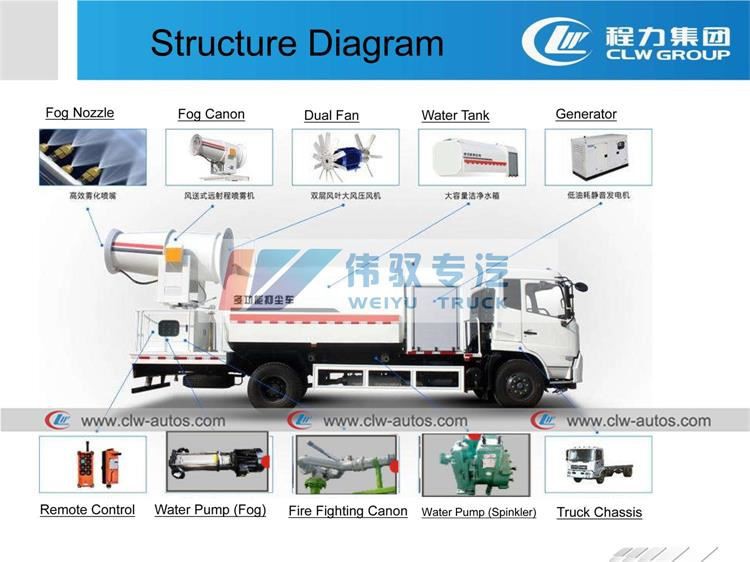

It is originated from an Water Sprinkler Truck, adding an separated Fog Generated System. The generated fog is just an nature drizzle, which will absorb the dust in the air and keep the air cleaning. By adding the disinfect into the water, the fog can also served as air disinfector, which assist to fight against the COVID-19 in the publice area outside area.
With all the water sprinkler fuction, it can be served as water truck for future use.
Dust Control Fog Spraying Truck | ||
Outside dimension | 10500×2500×3800 mm | |
Loading mass | 15,000 Kg | |
Kerb mass | 14280 Kg | |
Chassis Model /Manufacturer | Two beds, left hand drive. | |
Driving type | 8×4 | |
Cabin | Dongfeng, Flat head, Tippable, Two sleeper with A/C | |
Wheelbase | 4600+1350 mm | |
Engine | ||
Model | Cummins Engine B190 33 | |
Type | Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control inner Euro 2 | |
Max. Power | 190hp | |
Max. torque | 2200rpm | |
Displacement(ML) | 6750ml | |
Cylinder bore×Stroke(mm) | 130x126mm | |
Company of engine | Dongfeng Cummins | |
Compression ratio | 17:01 | |
Transmission | FAST 8 Forwar & 1 Reverse | |
Clutch | Φ430 Diaphragm type | |
Braking | Service Brake | dual circuit compressed air brake |
Parking Brake | spring energy, compressed air operating on rear wheels | |
(Emergency Brake) | ||
Auxiliary Brake | engine exhaust brake | |
Front axle | 5T Rigid stub axle with double T-cross section | |
Rear axle | 10T double reduction driving axle | |
Tyre | 10.00R20 | |
Max Speed | 90 Km/h | |
air condition | With | |
Volume of tank | 10,000 ltrs water tank truck | |
