Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 10ton van cargo truck in China. If you're going to buy high quality isuzu ftr 10ton van cargo truck, welcome to get more information from our factory. For price consultation, contact us.

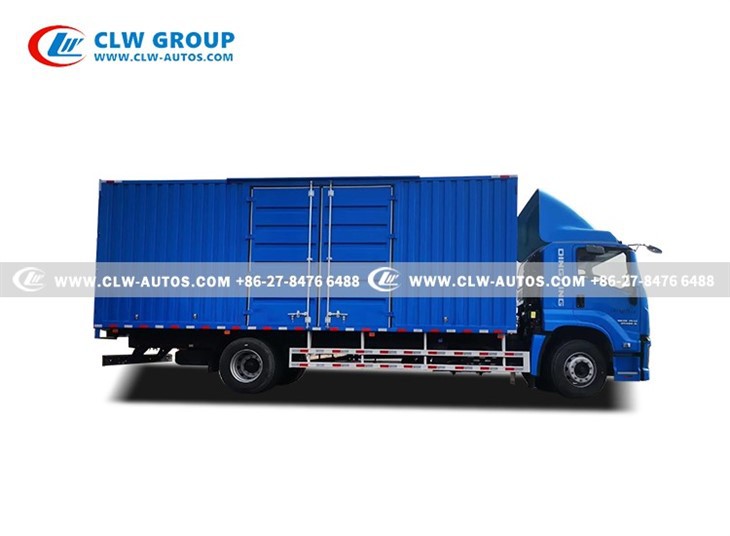

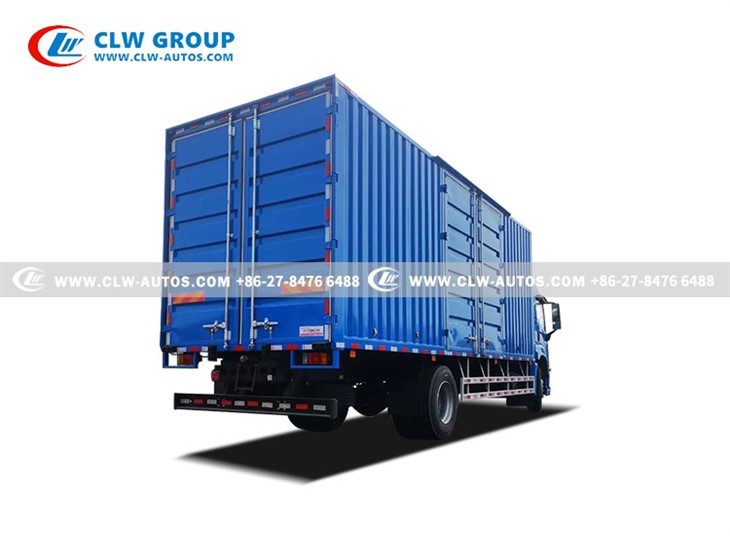

ISUZU FTR 4X VC61 4X2 6 Wheels 10Tons Cargo/Lorry/Delivery/Freight Truck
Main Functions
Core Advantages
1. High-Efficiency Powertrain
2. Spacious Cargo Capacity
3. Reliability & Durability
4. Comfort & Maneuverability
5. Compliance & Efficiency
Ergonomics: Wide-body cab (2,080mm) with air suspension seat, tiltable steering column, and multi-function LCD display
Braking: Dual-circuit air brakes with ABS + exhaust brake for downhill control
Lighting: LED headlights with auto-leveling and fog lamp configuration

Engine: Equipped with Isuzu 4HK1-TCG61 turbocharged diesel engine, delivering 205HP with optimized torque output for heavy-load operations
Transmission: 8-speed manual gearbox with synchronized shifting for smooth acceleration and gradeability
Fuel System: High-pressure common rail injection technology ensuring fuel efficiency (approx. 18-22L/100km)

Frame: Reinforced ladder-type chassis with 8+5mm high-strength steel beams for 10T payload capacity
Suspension: Front 9-leaf parabolic springs + rear 10+8 multi-leaf springs with shock absorbers
Axles: 6T front axle and 11.5T rear axle (single-wheel configuration) with 6.142 final drive ratio

Dimensions: 6,500mm(L) × 2,450mm(W) × 2,600mm(H) with 40m³ capacity
Construction: Full-sealed box with aluminum alloy side panels (thickness 50mm) and anti-slip diamond plate flooring
Access: Rear swing doors (270° opening) + optional side sliding door (1,800mm width)

|
ISUZU FTR CARGO TRUCK |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
9000 x 2500 x 3000 mm |
|
Cab |
|
|
Wheelbase |
5000 mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
9650 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 18PR |
|
6pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4HK1-TC60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5200ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forwards & 1 Reverse |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
6500 X 2300 X 2500 mm |
|
Loading Capacity |
10 Tons |
|
Material |
High quality Q235 carbon steel |
