Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road 4tons telescopic crane truck in China. If you're going to buy high quality howo 4x4 off road 4tons telescopic crane truck, welcome to get more information from our factory. For price consultation, contact us.
--telescopic crane truck(also called boon crane truck,truck with crane,crane truck,xcmg crane truck,palfinger crane truck,lorry mounted crane,truck mounted crane,knuckle boom crane truck,folding arm crane truck,crane truck mounted cargo truck,boom crane,boom crane truck,articulated crane truck) is used to lift,rotate and craing heavy equipment through hydraulic lifting and stretch.
-- telescopic crane truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc telescopic crane truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 telescopic crane truck;
3) according to towing capacity:2tons,3.2tons,4tons,5tons,6.3tons,8tons,10tons,12tons,16tons,20tons telescopic crane truck
4) according to crane type: straight-arm and folding arm telescopic crane truck.
5) according to crane brand:XCMG(China top brand),Palfinger,CLW own brand,Changxing,Dalishen crane truck
---- HOWO chassis ensures perfect driving performance
---- WEICHAI technology engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- Premium cranes Palfinger,XCMG,CLW
Crane Features:
---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
---- Advanced development means make sure that the design is very reliable.
---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
---- Compact hinge point design take up smaller space
---- The work is more safety after fitted over-winds alarm equipment.
---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
---- Anti-slewing impulse equipment that make vehicle running safely
Specification

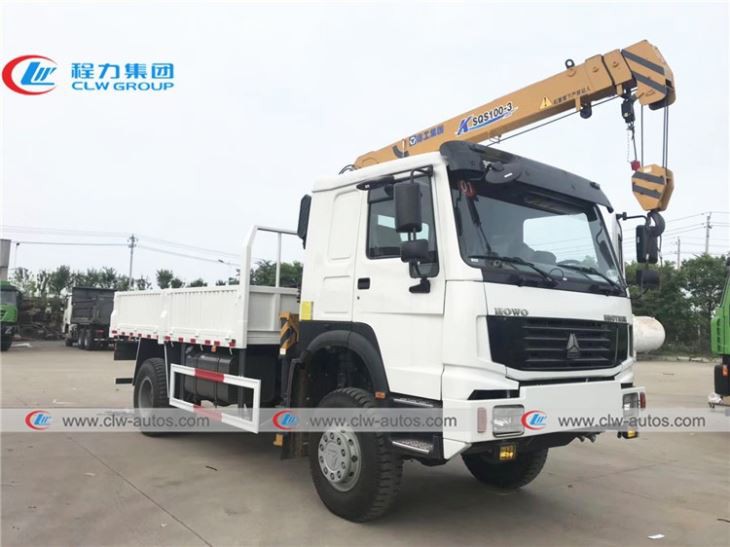

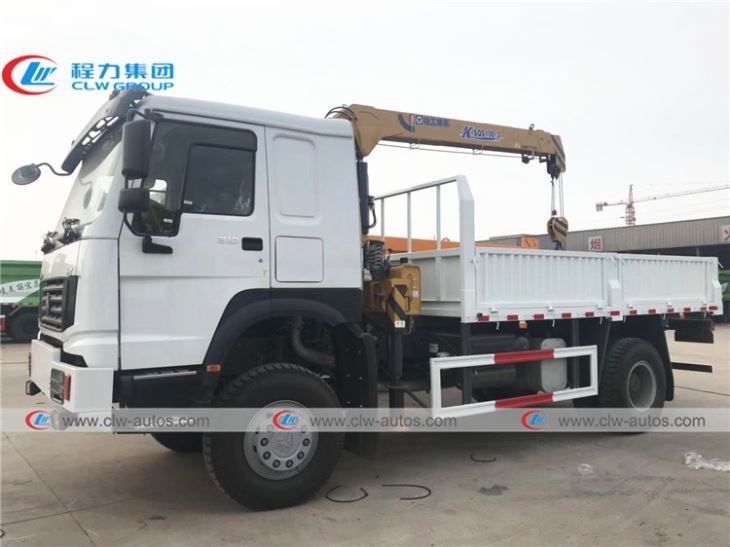

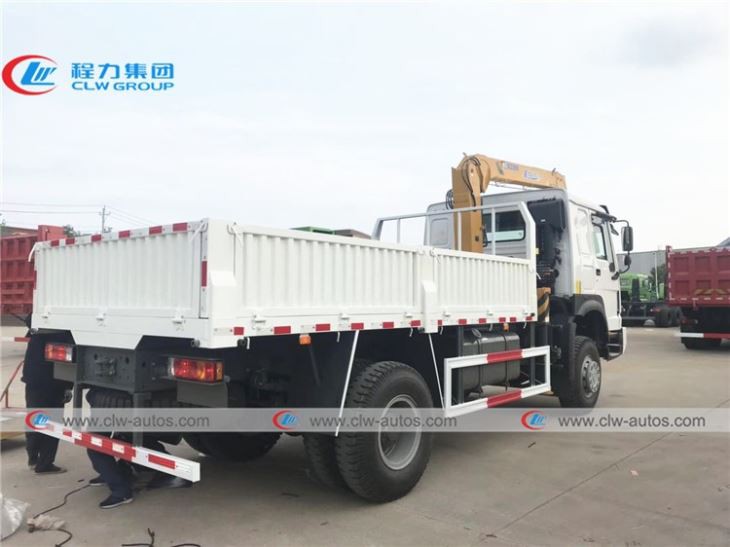

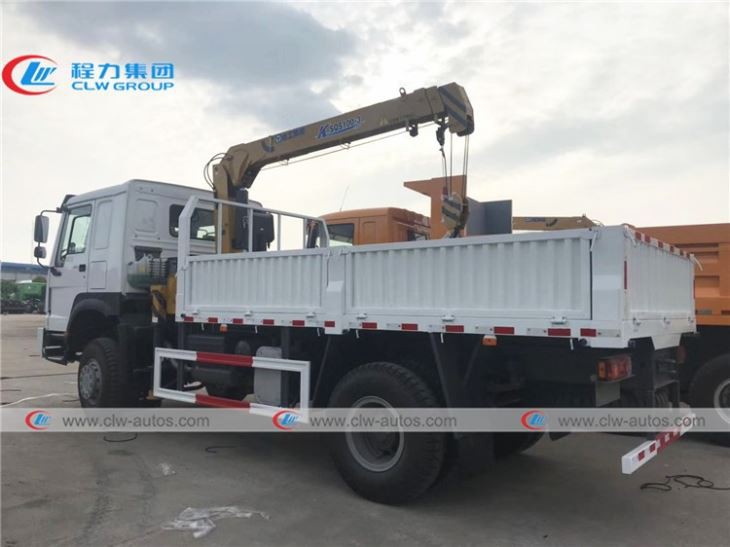

Howo 4X4 Off Road 4Tons Telescopic Crane Truck | ||
General | Chassis brand | Howo |
Overall Dimension | 7280 * 2500 * 3680 mm | |
GVW | 16,000kg | |
Cab | Cabin type | Howo cabin,3 persons |
Air conditioner | Optional | |
Engine | Engine Model | WEICHAI |
Engine Power | 270 HP (198 KW) | |
Displacement | 9726 ml | |
Emission standard | Euro 3 or 4 | |
Chassis | Wheelbase | 4500 mm |
Driving Type | 4x4,left hand drive,optional for RHD | |
Max.speed | 90km/h | |
Gear box | FAST 9-peed forward and 1 reverse | |
Tire | 11.00R20,6 pcs with one spare | |
Superstructure | Cargo Box Dimension | 4000*2400*600 mm |
Crane Type | Telescopic boom crane | |
Crane brand | XCMG | |
Max Lifting Capacity | 4000 kg | |
Slewing Angle | 360° All rotation | |
Crane Weight | 2120 kg | |
Installation Space | 900 mm | |
Control panel | English or Your language | |
Optional | 1-knuckle boom crane/folding arm crane; 2-Hydraulic tipper box; 3-Customized box thickness; 4-Remote control box | |
