Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4-arm straight boom crane in China. If you're going to buy high quality 4-arm straight boom crane, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Chassis brand and dive type could be chosen Brand-Dongfeng, Sinotruk, FOTON , Shacman, JAC etc
2. Drive type-4x2,4x2,6x4,6x6,8x4 etc
3. Crane type and loading weight
4. Type-telescopic boom or knuckled boom Loading weight: from 2Ton to 30Ton
5. Cargo box normally is made by Q235 carbon steel ,could loading goods which be lifted by crane
6. Leg has mechanical type and hydraulic type which keeps balance for whole truck
Product Specification
| 2080mm extended cabin, front title, new style seat, shock absorber, safety belt, handrail, sun visor, wiper, radio with AUX/MP3/USB | ||
Engine Model | YC4D130-33 | YC4E160-33 | |
Engine Power | 130 Hp | 160 Hp | |
Displacement | 4.214 L | 4.257 L | |
Engine type | Euro-II,4 cylinders in line, intercooler, turbocharge | ||
Wheelbase | 3900 mm | 4200 mm | 5300 mm |
Body dimension | 3650×2200×600 mm | 3700×2200×600 mm | 5300×2200×600 mm |
Overall dimension | 7340×2300×3450 mm | 7650×2300×3650 mm | 8890×2490×3750 mm |
Axle | 1069KWP/1080P | 1090NG10/1094P | |
Function | Crane capacity: 3 T | Crane capacity: 5 T | Crane capacity: 7 T |
Crane brand: XCMG, HIAB,DAHAN | |||
Cran type: Straight arm | |||
Gearbox | WLY653, 6 forwards | DC6J65TA, 6 forwards | |
Tire | 8.25-16 | 9.00-20 | |
Curb weight | 4000 kg | 6300 kg | 7550 kg |
Rated loading capacity | 6350 kg + 3 passengers | 8225 kg + 3 passengers | 9275 kg+ 3 passengers |
Others | Dual circuit compressed air brake, Leaf springs with shock absorber suspension, power steering, clutch booster, exhaust brake, diesel | ||
Option | A/C, Radial tire, wind-deflector | ||
Upperstructure Specification | |||
Cargo Body | Dimension | 8500×2290×550(mm) | |
Material | Q235 carbon steel | ||
Cargo Thickness | Side 1.5mm, Bottom 2.5mm | ||
Volume | 10m³ | ||
Working System | Boom Type | Straight 4-Arm telescopic boom | |
Crane | Crane Brand | SQ10SK3Q(XCMG) | |
Range of Sprayer | 30m | ||
Max Lifting Moment | 25(T.M) | ||
Max Lifting Capacity | 10000(kg) | ||
Max lifting height | 12(m) | ||
Rotation angle | 360(°) | ||
Installation space | 1150(mm) | ||
Recommented power | 30(kw) | ||
Maximum working pressure | 26(Mpa) | ||
Max Flow | 63(l/min) | ||
Crane weight | 3800(kg) | ||
Oil tank capacity | 160(L) | ||
Leg | Leg type | H type | |
Leg Span | 2.28-5.9(m) | ||
Hydraulic system | Pressure | 18(M pa) | |
Capacity | 70(l) | ||
Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||

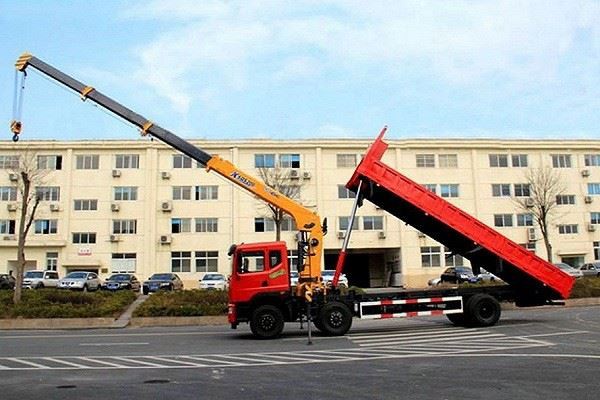

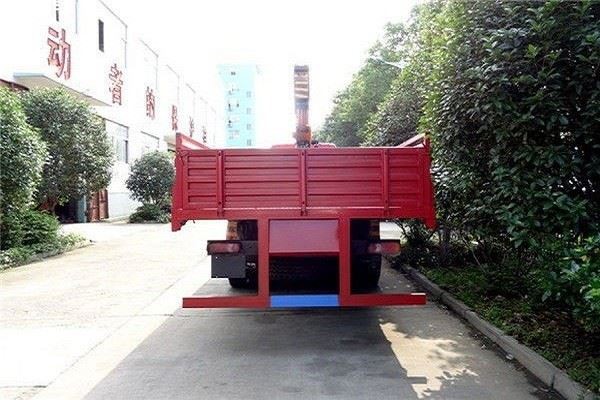

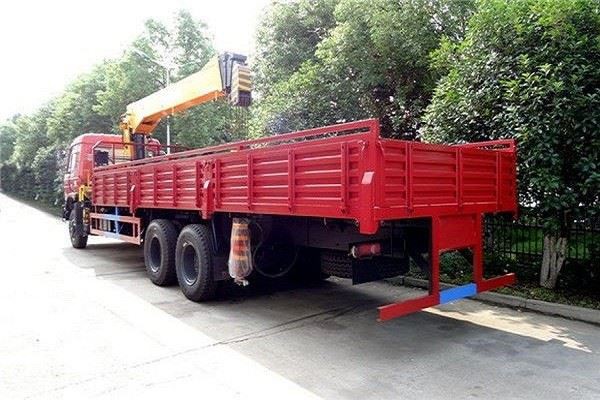

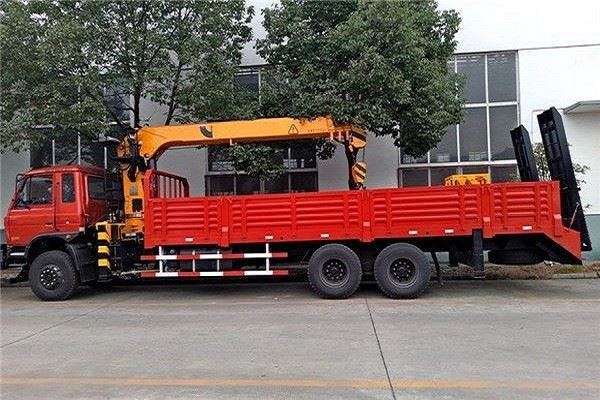

Reference Photos
Details of straight boom crane
Production Process
① Production of chassis;
② Strengthening and refitting of girder and cab;
③ Installing the boom crane;
④ Installing circuit and testing;
⑤ Painting and Customized LOGO design.
Packaging & Shipping
A.By ro-ro Ship:with ro-ro ship or bulk ship or flat rack container
B.By container: we take apart the truck,and the customer ou should reinstall in your country
Ship time :30 days after get the 30% deposit
Packaging: Nude or acoording to customers' demand
Working Situation
Customer Visiting
Overseas Exhibition and After-sales Service
Sales Service
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer maintenace in customer's Country.
FAQ
Q1: What kinds of straight boom crane truck I can order from your company?
A: We can supply various sizes and types of straight boom crane trucks with different capacities of cranes and chassis. Just tell us the purpose and your requirements, we willrecommend you the suitable product accordingly.
Q2: Have you supplied straight boom crane to any overseas companies?
A: Yes,with needs of overseas companies or government project,we offered straight boom crane trucks to more than 50 countries and regions, and mostof them are African, Southeast Asian, and South American countries.
Q3: What is your production standard of your straight boom crane truck?
A: China GB standard.
Q4: Can we adopts international brand crane for this straight boom crane truck?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane, with high quality and competitive price.
Q5: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q6: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
