Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 10cbm vacuum sewage suction truck in China. If you're going to buy high quality isuzu 10cbm vacuum sewage suction truck, welcome to get more information from our factory. For price consultation, contact us.
Sewage suction truck is mainly used for the suction, discharge, and transportation of sludge, excrement, or petrochemical sewage tank sludge in sewers, rain wells, septic tanks, and various ditches. It is suitable for small streets, narrow streets, residential areas, and other road section operations.
The detailed specification for ISUZU sewage suction truck, sewer cleaning truck with vacuum pump:
Technical Parameter | |||
Item | unit | parameter | |
Vehicle model | ISUZU FTR Sewage Suction Truck 190hp LHD | ||
Overall dimensions | mm | 8630×2500×3290 | |
Total Mass | kg | 19300 | |
Payload | 15000 | ||
Wheel base | mm | 4700 | |
F/R suspension | 1110/2145 | ||
Exhaust | ml | 5193 | |
Max speed | km/h | 95 | |
Tire specification
| 9.00R20 | Engine type
| 4HK1-TCG40 |
Traction system
| 4*2 | Horse Power | 190HP |
Number of axles
| 2 | Axle Load
| 6300Kgs/13000Kgs |
Leaf Spring | 9/7+7 | Allowable passengers in Cab | 3 |
Upper Equipment | |||
Tank Capacity | 10 cubic meters | ||
Tank Material | Material: Q235 high tension steel, Body Thickness 6mm, End Plate thickness 8mm, With Hydraulic Controlled Rear Door and Middle lifting. | ||
Vacuum Suction Pump | Chinese Famous Brand, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa. | ||
More information for Vacuum Sewage Suction Truck:
1. The vacuum pump is driven by hydraulic transmission, the system works stably, the reliability is high, the transmission efficiency is high, the failure rate is low:
2. Integrated hydraulic valve, pneumatic, manual two sets of operating systems, automatic sequence of opening and closing, locking, to prevent damage caused by misoperation of the device:
3. Tank lifting 0-40 degrees, easy to dump materials, Back cover open 0-55 degrees, easy to dump materials, easy to clean personnel in and out
4. The rear end cover is hydraulically locked and opened and closed in sequence with the rear end cover hydraulically opened. Vacuum pump with optional exhaust muffler, lower noise.
5. Secondary spillproof tank: once the former spillproof tank fails, the liquid enters the secondary spillproof tank to ensure the safe operation of the vacuum pump to the greatest extent
6. Tank pressure inlet air filter, safety valve, effectively ensure the safe operation of vacuum pump and system
7. The tank level electro-acoustic alarm system reminds the operator of the vehicle status in time
8. Tank level display to confirm the tank level height in time

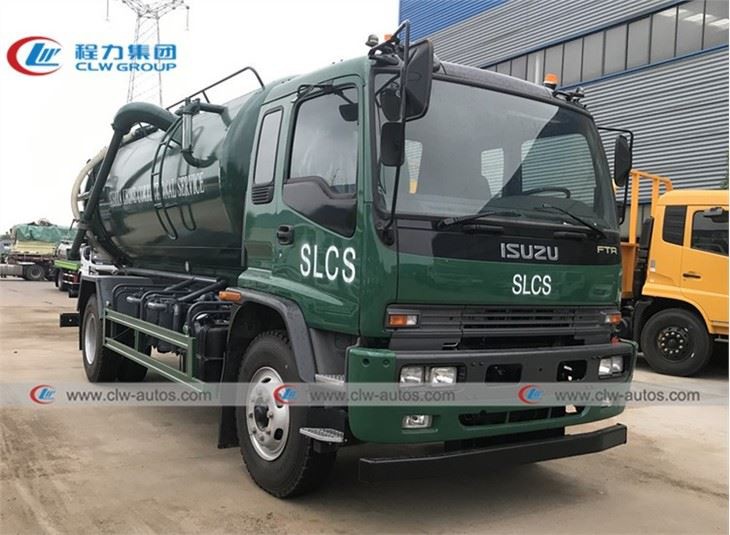

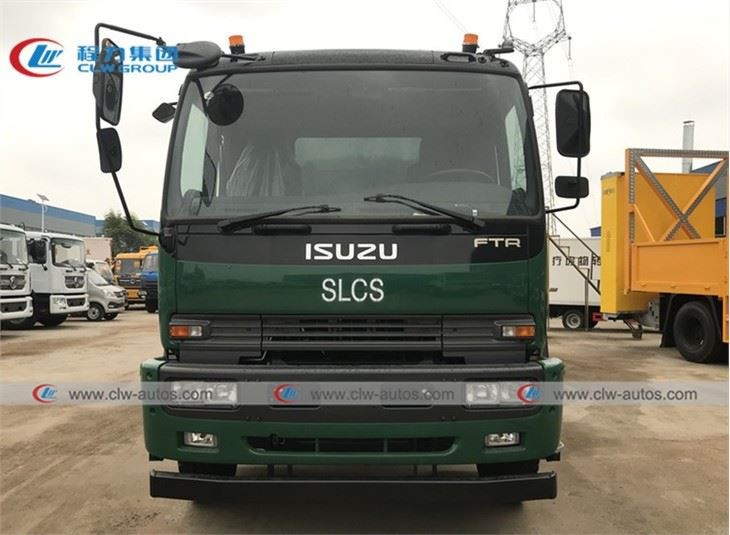

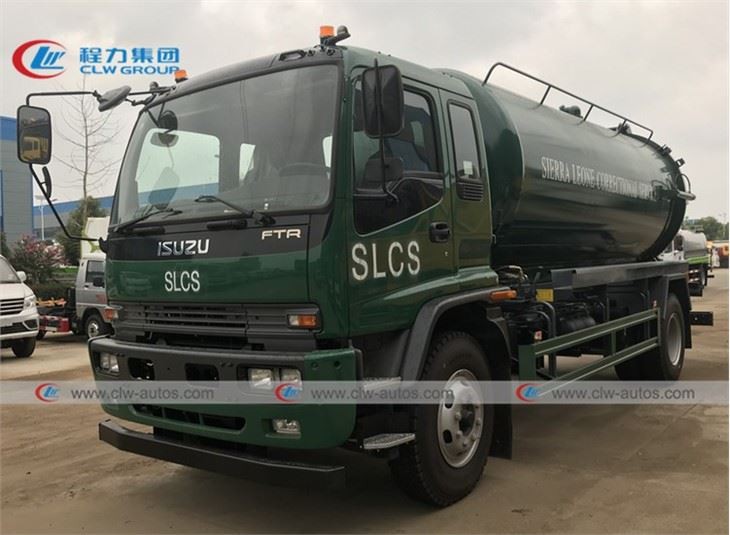

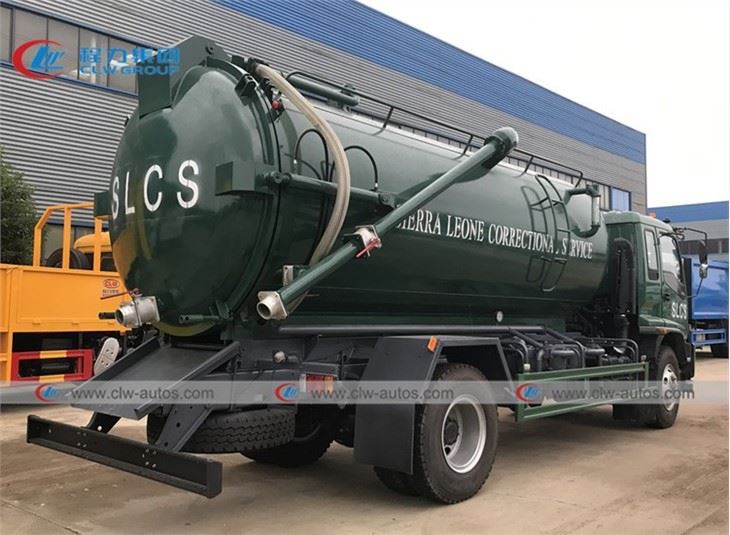

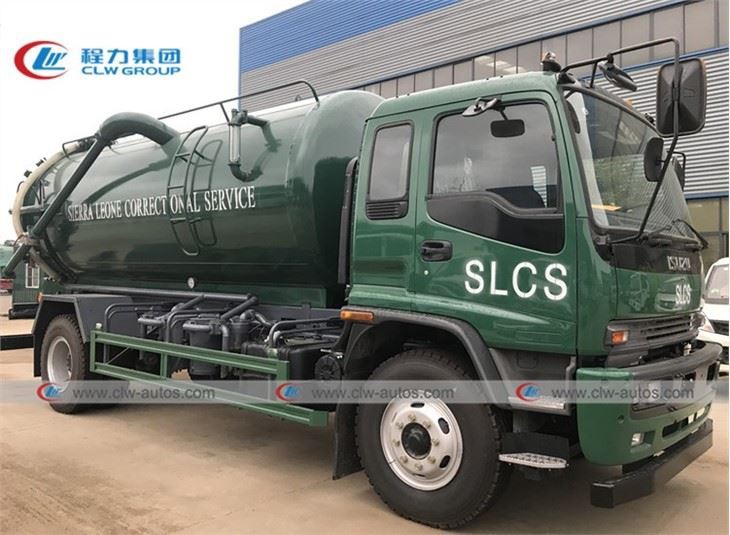

Working Pictures of Sewage Suction Truck:
