Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 25000litres vacuum sewage suction truck in China. If you're going to buy high quality dongfeng 25000litres vacuum sewage suction truck, welcome to get more information from our factory. For price consultation, contact us.
Production description
Function:
(1)Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck , vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum truck, sewer truck, cesspit emptier, gully emptier, etc.)
is used for collecting, transporting and discharging liquid such as dirty water, sludge, septic, crude oil and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, gully, etc. It is widely used in environment and sanitation field.
(2)Accessory of sewage suction function: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
(3)Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters
e.Nice shape ,rational structure,durable and long service life
Product Specifications
| The Parameters of 25CBM Sewage Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck |
| Dimension(LxWxH) | 10000X2530X3600(mm) |
| Total Mass | 31000 Kg |
| Rated Payload | 15670 Kg |
| Curb Weight | 15200 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 32/14 |
| The Parameters of Chassis | |
| Manufacture | Dongfeng |
| Driving Type | 8*4 left/right hand drive |
| Gearbox | 10 forward and 1 reverse, manual |
| Wheel Base | 2050+4150+1350(mm) |
| Alxe Load | 6500/6500/18000kgs |
| Tyre | 12.00R20 |
| The Number of Tyre | 12+1(spare tyre) |
| Front/Rear Suspension | 1515/1585(mm) |
| Leaf Spring Number | 9/13,10/13 |
| The Paremeters of Engine | |
| Rated Power | Cummmins engine, 231kw/314hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 6700ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/6/intercooling |
| Max. torque | 700N.m |
| Velocity | 2500rpm |
| Max speed | 89km/h |
| Superstructure | ||
| Sewage Tanker | Tank material | High quality steel plate |
| Tank thickness | 6mm | |
| Capacity | 25 cbm/ 25,000 Liters | |
| Shape | Cylindrical | |
| Vacuum Suction Pump | Brand | Chinese famous brand |
| Time for full suction | ≤12min | |
| Sewage Pipe | 1 pc | |
| Dumping System | Self unloading, Hydraulic Controlled Rear Door and Middle lifting | |
| Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device, Glass window, PTO | |

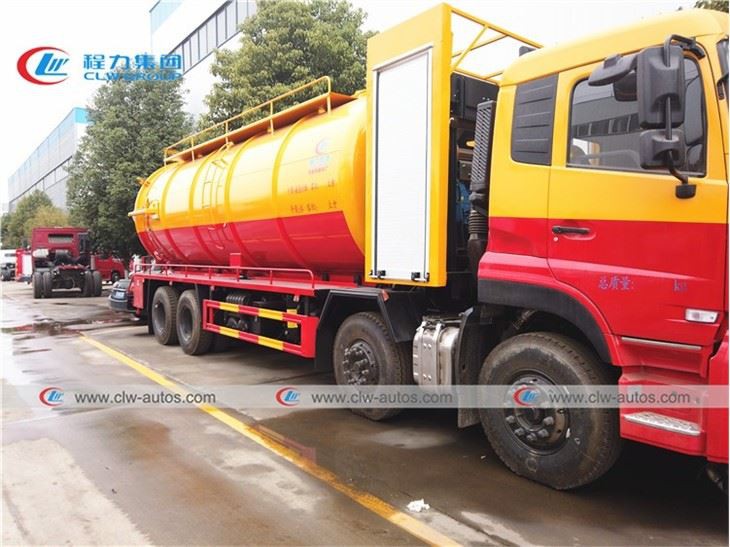

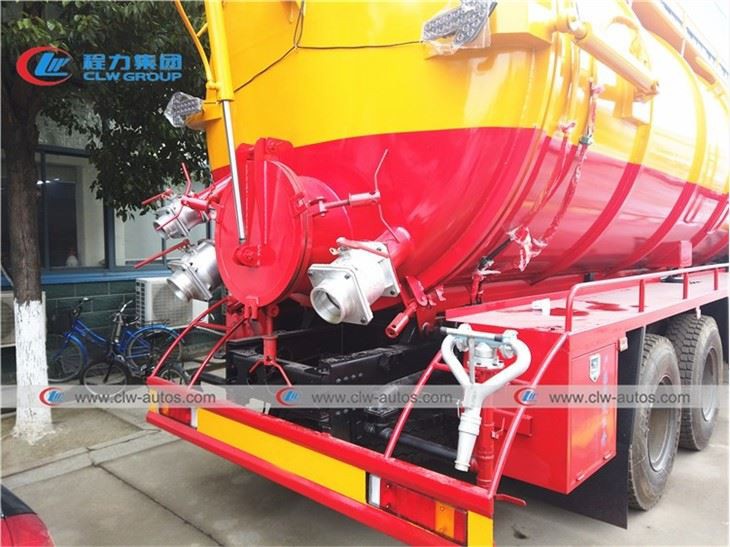

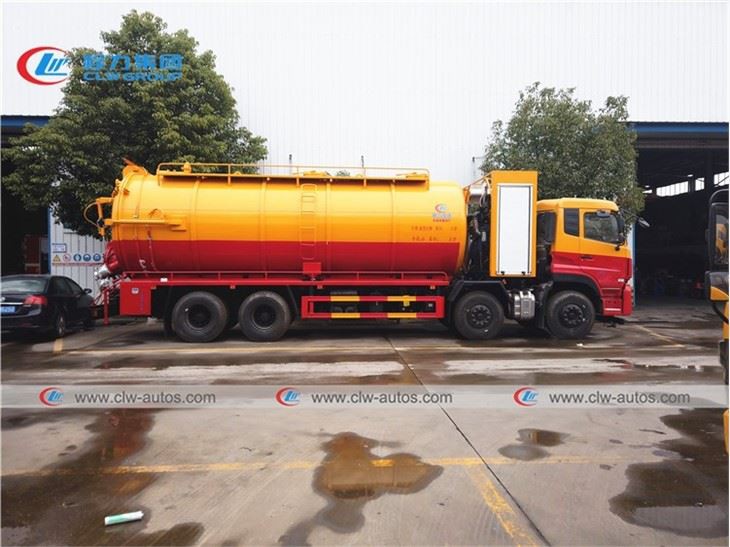

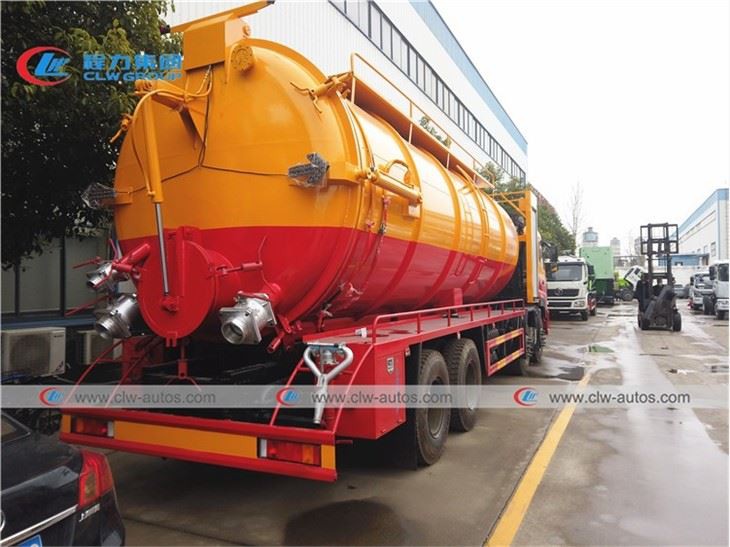

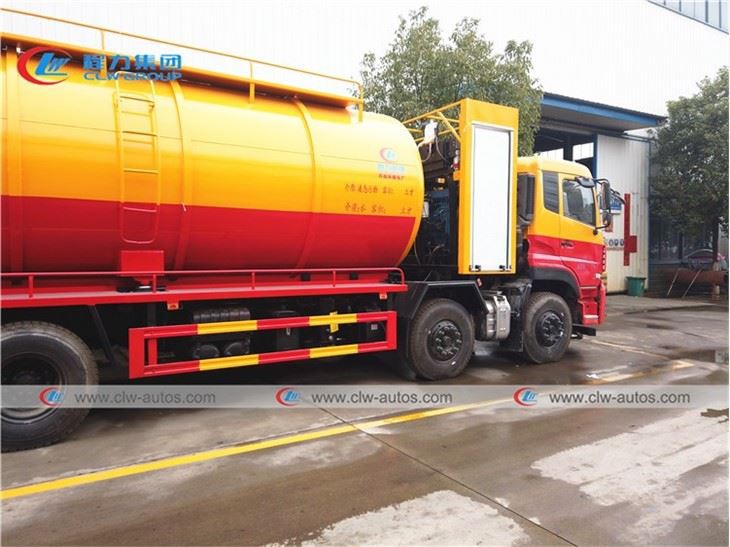

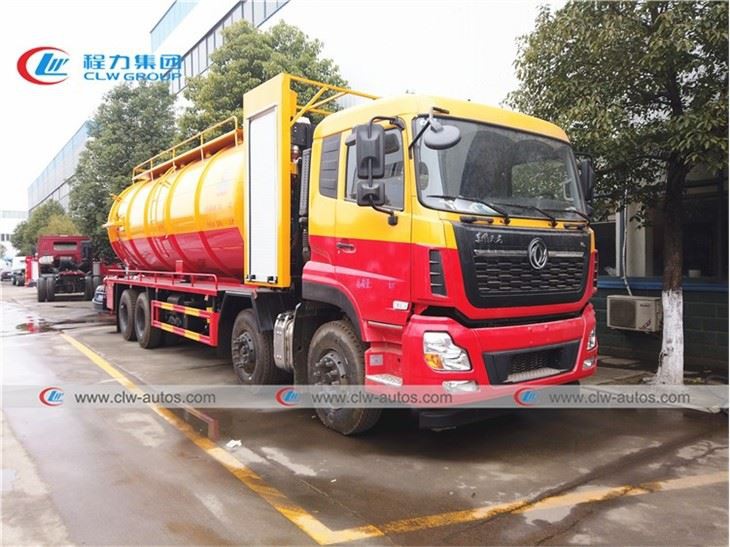

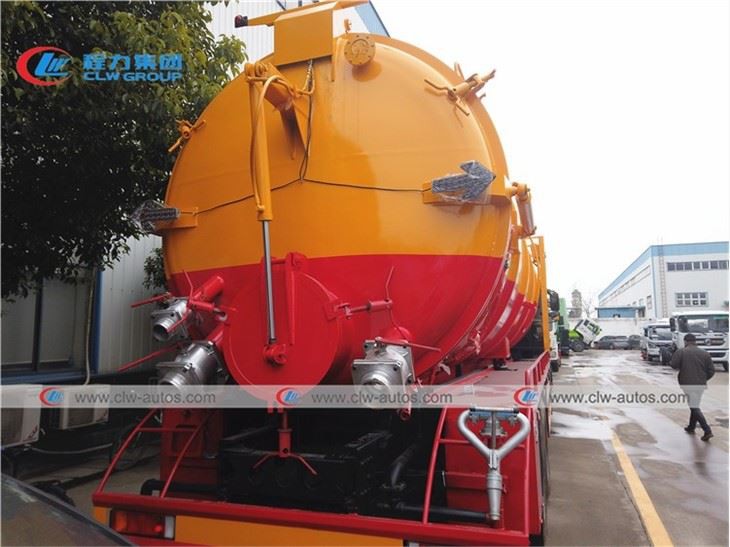

Product pictures
Truck diagram
