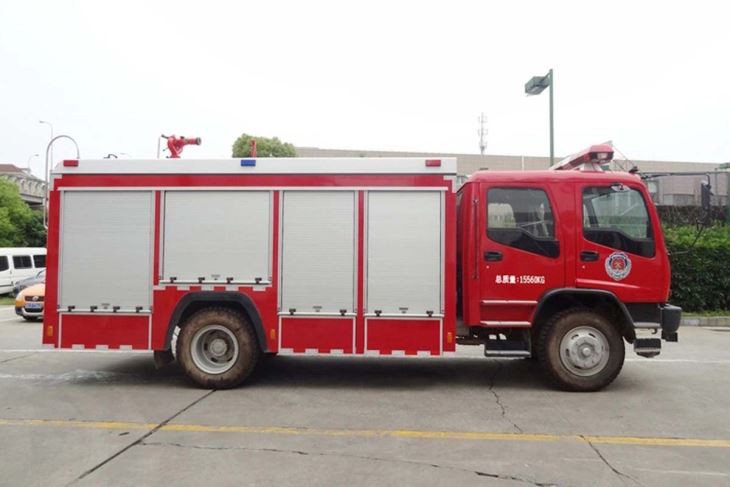

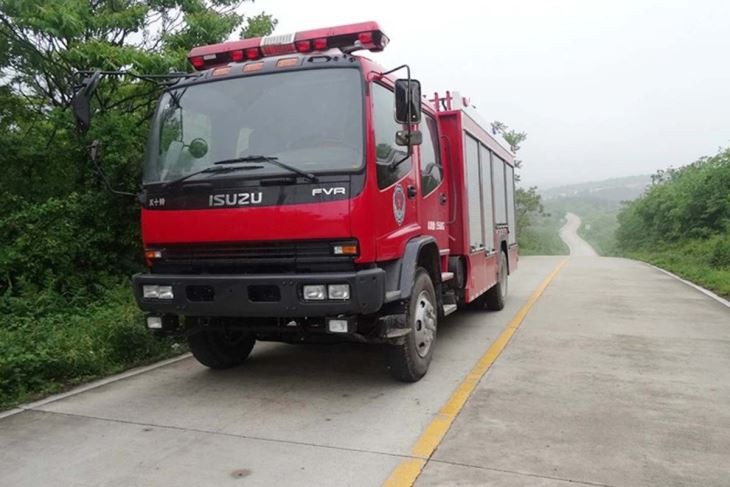

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x2 foam fire truck in China. If you're going to buy high quality 4x2 foam fire truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
It is composed by the tank, pump room, equipment boxes, power output and transmission system, piping systems, electrical systems and other components, widely used in urban public security fire brigades, petrochemical, industrial and mining enterprises, forests, ports and other departments. It can quickly approach the fire and start fire fighting, extinguish various kinds of fires; it is an ideal fire-fighting equipment.
Specification
|
Model |
Parameters |
others |
|
Overall Dimension |
8205×2500×3375mm |
|
|
GVW |
15200kg |
|
|
Engine Model |
B190 33 |
|
|
Engine Power |
139kW |
|
|
Wheelbase |
4700mm |
|
|
Driving Type |
4X2 |
|
|
Max.speed |
85km/h |
|
|
Emission Standard |
5700ml/kW |
Euro3 |
|
Fire pump rated flow |
40L/s@1.0Mpa |
Vacuum pump |
|
water monitor rated flow |
40L/s@1.0MPa(adjustable) |
Straight stream/spray/mist spray |
|
Water monitor range |
Water range≥55m Foam range≥50 |
|
|
Passengers |
2+4 |
|
|
Approach angle |
≥16° |
|
|
Departure angle |
≥13° |
|
Item Parameters |
Parameters |
others |
|||
|
1 |
Water tank capacity |
water |
6000 |
|
|
|
2 |
Fire pump model |
CB10/40 |
Shanghai rongshen |
||
|
3 |
Fire pump performance |
Pressure 1:1.0Mpa flow:40L/S |
Use vacuum pump to priming water |
||
|
4 |
the installation site of fire pump |
rear |
|
||
|
5 |
The quantity of fire pump water outlet |
6 |
|
||
|
6 |
Pressure gauge |
0-1.6 Mpa, 0-2.5 MPa |
2.6 level |
||
|
7 |
Vacuum gauge |
-0.1- -1 MPa |
2.6 level |
||
|
8 |
Fire monitor |
Injection pressure |
water:≥55m |
|
|
|
|
|||||
|
1.0Mpa |
|||||
|
Depression/Elevation angle |
-30-+70° |
||||
|
Turning angle 360° |
|||||
|
9 |
PTO Model |
YTQ600F type full power sandwich , pneumatic |
|
||
Fire Truck Production
Bulk Order for Fire Truck
Fire Truck bulk order Shipment
Overseas Exhibition and Local Support
Customer Visiting
Application for Foam fire truck
It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, energy companies, wineries, airports, and urban professional fire brigades.
Packaging & Shipping
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Sales Service
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Experienced engineers are always ready to deal with unexpected needs.
FAQ
Q1: Are you manufacturer or trading company?
A:We are direct manufacturer with more than 16 years experiences.
Q2:What is your terms of payment?
A:T/T 40% as deposit,and 60% before delivery,we will show ou the photoes of the products and packages before you pay the balance.
Q3:What is your terms of delivery?
A:EXW,FOB,CFR,CIF
Q4:Could your company totally customize products for me?
A:Yes,we can provide the customized-designing product meeting with any of your demand.
Q5:Do you test all your goods before delivery?
A:Yes,we will 100% test before delivery.
